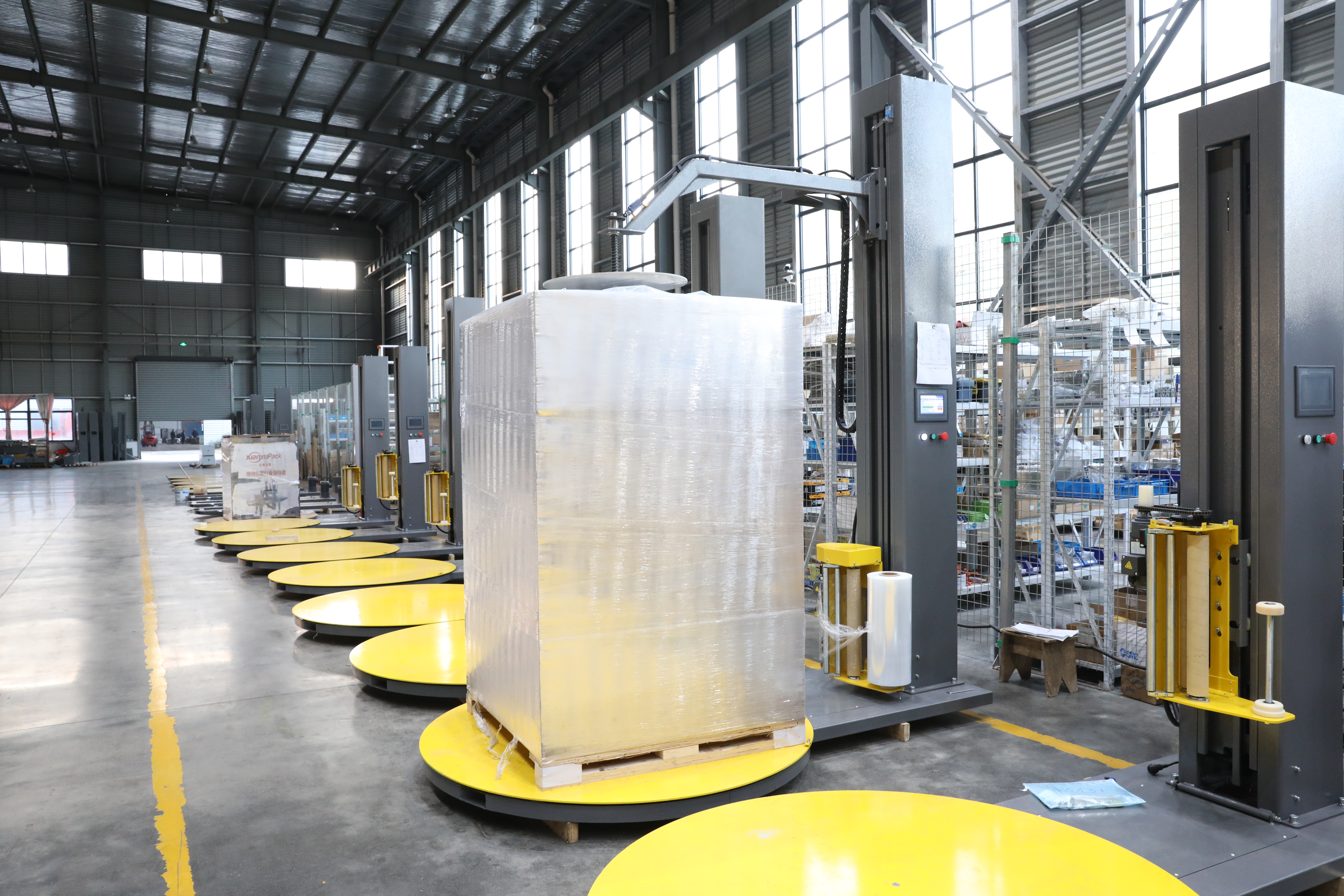

The pre-stretched top-pressing wrapping machine works by using the speed difference between the front and rear rollers of the film frame to pre-stretch and extend the plastic film before wrapping the items.

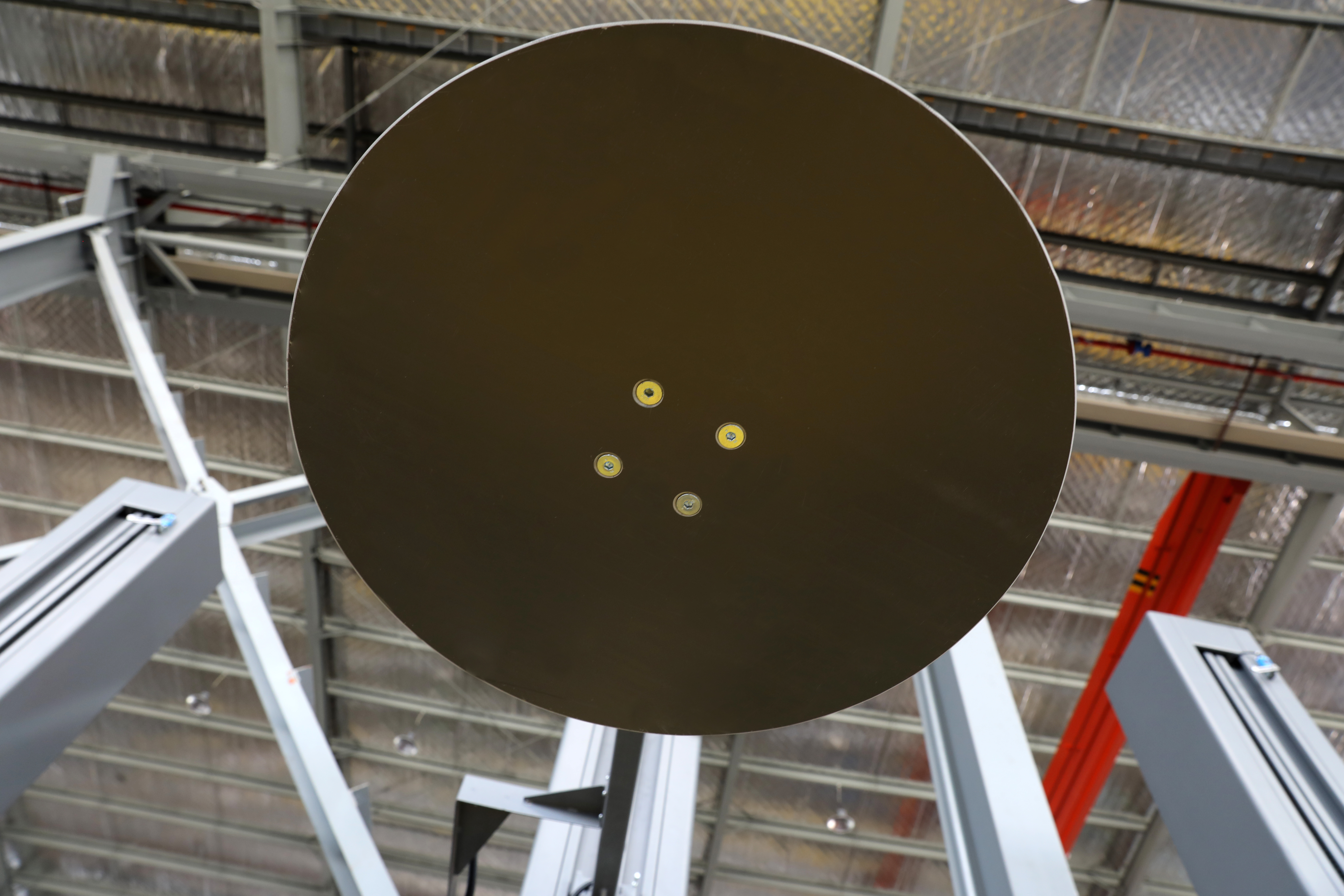

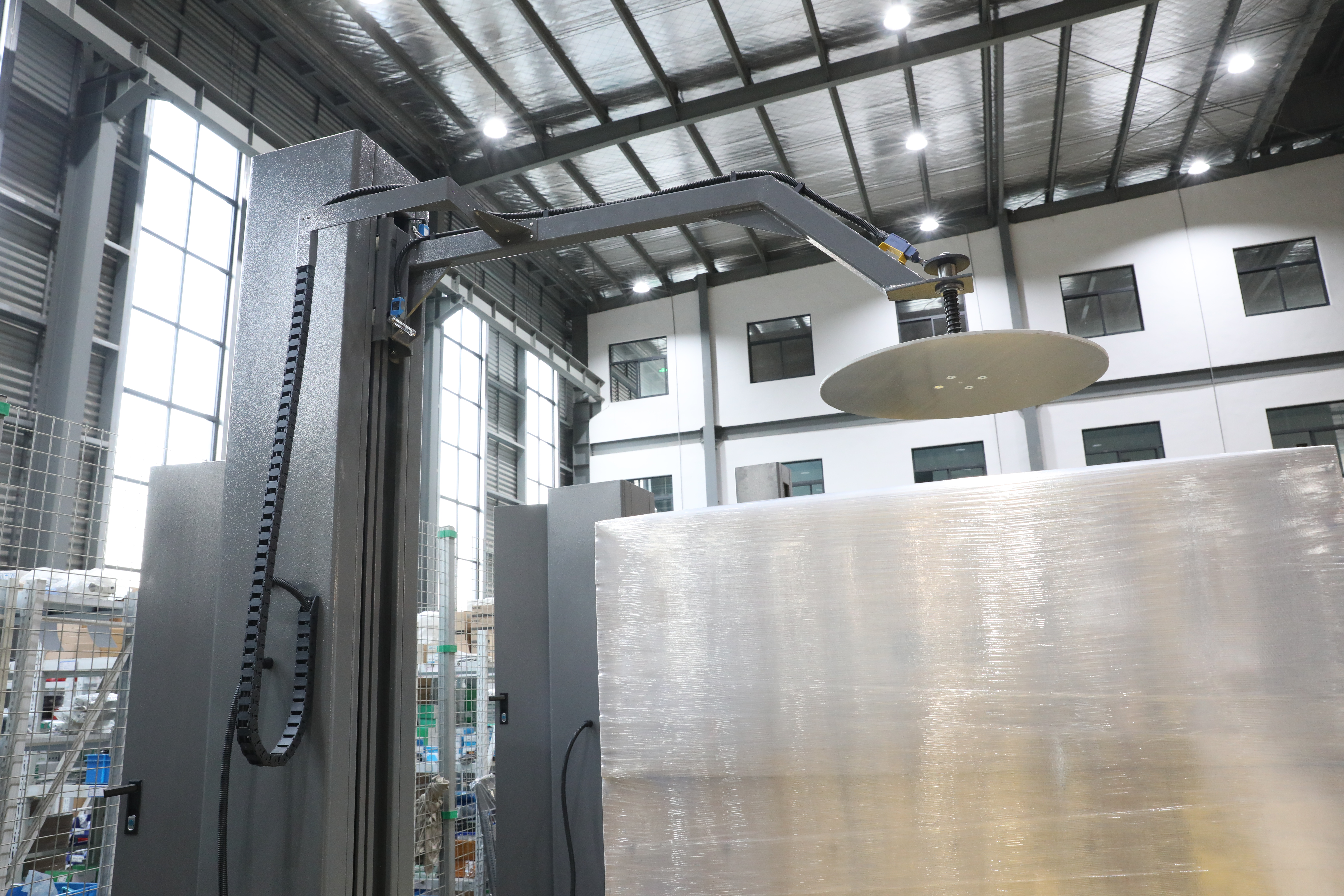

After wrapping the items, due to the rebounding property of the plastic film, the items are tightly wrapped inside the wrapping film, achieving the tightness, safety and protection of the tray, thus enhancing the packaging effect and facilitating transportation and item preservation. The fixed-pressure disc device ensures that when laying down trays of different heights or items, it can perform pressing, assist in stability, and ensure a firm and non-loose state.
The pre-tensioned winding machine is a reliable and easy-to-operate winding equipment with programmable control and frequency converter control. The machine has a stable structure design and a long service life. It features a slow start and reset device, which effectively prevents the goods from falling during the operation and ensures the safety of the goods. The equipment is controlled by human-machine touch screen, and the operation is simple. The upper and lower layers of packaging can input data to set the number of packaging layers. The equipment has a frequency conversion device, which can effectively regulate the packaging speed of the equipment.

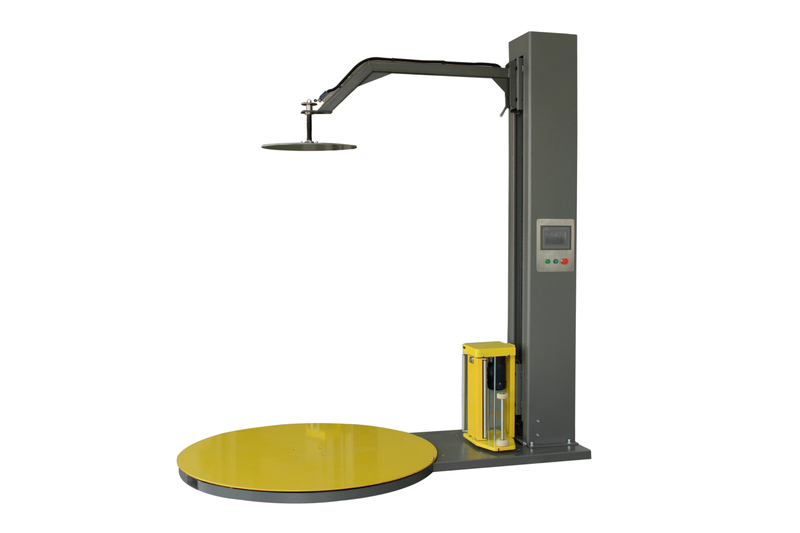

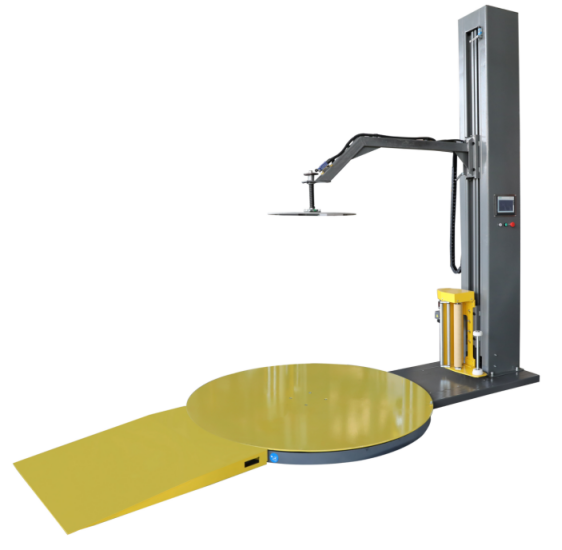

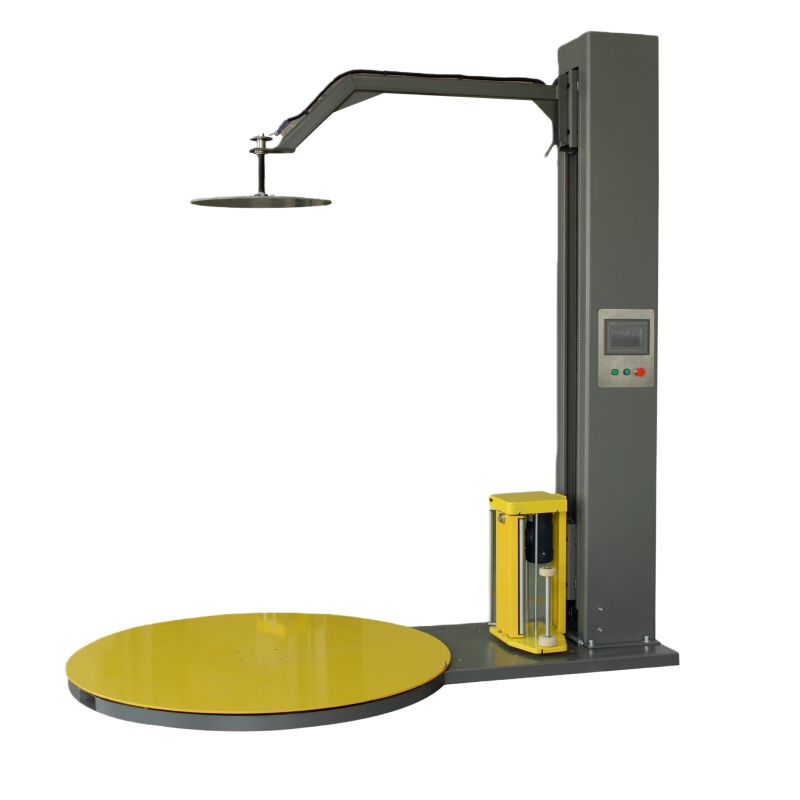

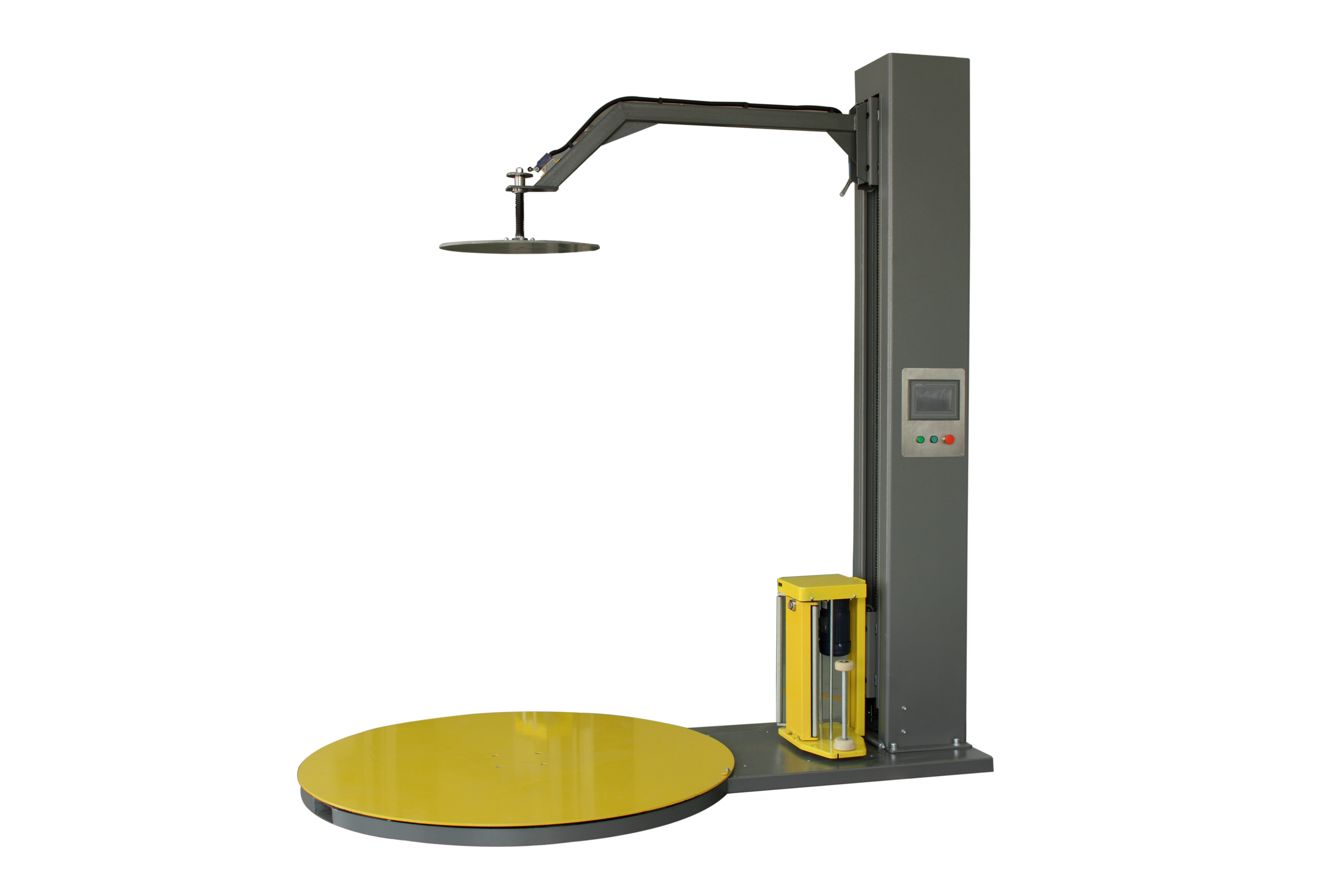

Pre-tensioned compression top winding machine BDH-YK1650F-CS
Technical parameters
- Disc diameter 1650mm (not applicable for black or highly reflective galvanized products)
- Packaging height 2000mm
- Compression disc diameter 600mm
- Platform height 80mm
- Platform load capacity ≤1500 kg
- Speed 20-30 pallets / hour
- Machine weight 500 kg
- Overall dimensions 2650*1650*2830mm
- Machine power 1.69KW (4 motors)
- Power supply voltage 220 V (single phase)
- Suitable film specifications Film width 500mm, film outer diameter ≤220mm, film thickness 18-25μm, paper core inner diameter 76mm
Main Performance
All dangerous components such as the motor, wires, and chains are built-in to ensure the safety of the operators.
PLC programmable control, and the winding program is optional.
A multi-functional human-machine interface text control display system displays the real-time operating status of the equipment.
German Beckhoff photoelectric switches automatically sense the height of the goods.
The number of winding layers, running speed, and film tension can be adjusted arbitrarily, and the operation is convenient and simple.
An independent variable-frequency control pre-stretching automatic film feeding system with adjustable tension.
The number of winding loops at the top and bottom can be controlled separately, ranging from 1 to 9 with free adjustment.
Switchable between automatic and manual operation, requiring almost no daily maintenance.
Turntable Drive:
A 558-tooth large gear design for load-bearing, minimizing the wear of vulnerable rollers and reducing noise.
The turntable is variable-frequency speed-controlled, adjustable from 0 to 12 rpm/minute.
The turntable has a smooth start-up, stop, and automatic reset function.
The turntable is made of high-quality carbon structural steel, with a longer service life.
Film System:
The film frame has a power-variable pre-stretching mechanism, with a pre-stretching rate of up to 200%, reducing film consumption.
The rising and falling speeds of the film frame can be adjusted separately, and the nylon wheel-type guide rail operates smoothly and is lightweight and durable.
The film feeding speed is variable-frequency adjustable, providing more precise, stable, and convenient stretching control.
The winding loops at the top and bottom can be controlled separately.
The film frame is made of carbon steel, lightweight and stable.
Wear-resistant rubber rollers are selected, with a longer service life.
The lifting columns are of chain structure, stable and reliable.
