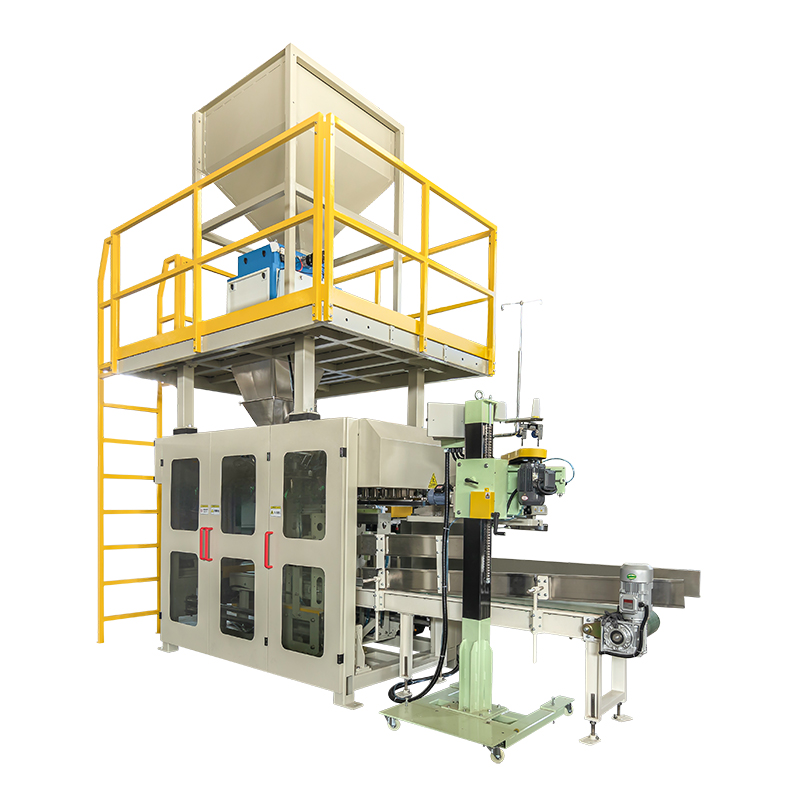

The BC-SD600 large bag fully automatic packer represents a paradigm shift in industrial material handling, transforming labor-intensive bagging processes into a highly streamlined, hands-free operation. When observing this robust machinery on the factory floor, the rhythmic, precise hum of its pneumatic actuators and the smooth, synchronized movement of its mechanical arms convey an immediate sense of unwavering reliability. Designed specifically for granular materials, it addresses the critical bottleneck of slow, inaccurate manual packaging that frequently plagues high-volume production facilities. By automating every intricate step—from initial bag loading and multi-suction opening to precise weighing, filling, and final sealing—this equipment effectively eliminates human error and drastically reduces operational fatigue. The gleaming 304 mirror-finish stainless steel contact surfaces not only provide a visually striking, hygienic profile but also ensure exceptional resistance against abrasive agricultural grains or corrosive chemical granules. Every component is meticulously engineered to deliver a seamless flow of materials, ensuring that your production line maintains maximum throughput without sacrificing a fraction of a percent in measurement accuracy. Investing in this machinery means upgrading your facility's core infrastructure, ensuring that every single sack leaving your plant reflects uncompromised quality, exact weight standards, and superior structural integrity.
Technical parameters and related notes:
Items | Parameters | Notes |
Device model | BC-SD600 large bag fully automatic packaging machine | |
Operation interface | 10 "LCD touch screen with Chinese/English interface | |
Control system | PLC control | SIEMENS |
Working environment temperature /℃ | -10 ° C to +50 ° C | |
Packaging range /Kg | 10Kg—25Kg | |
Packaging accuracy /% | Plus or minus 0.2% | |
Packaging speed/pack/minute | Granules 10-15 packs /min | Speed adjustable |
Production capacity/pack/hour | 600-900 packs per hour | |
Equipment size /mm | Length width height 2900*2610*1893mm | |
Total weight of the equipment /T | 2T | |
Gas source pressure /MPa | 0.6 MPa | |
Total power of the equipment /KW | 10KW | 380V,50HZ |
Equipment material | The core parts in contact with the material are made of 304 mirror-finish stainless steel, and the frame is carbon steel with plastic coating unless otherwise specified. | |
Achieving operational excellence requires equipment that goes far beyond basic functionality. This automated packer is engineered with sophisticated mechanical and digital mechanisms that directly enhance your bottom line by minimizing unexpected downtime and maximizing output consistency.
Intelligent Fault Diagnostics: The system actively monitors its own operational health. When an anomaly occurs, the interface immediately displays actionable solutions, preventing prolonged production halts and reducing reliance on specialized technicians.
Advanced Bag-Opening Mechanism: Utilizing a proprietary multi-suction cup array, the machine firmly grips and opens various bag materials with a near-perfect success rate, eliminating the frustration of misfed or jammed sacks that disrupt the workflow.
Robust Lifting Architecture: The automated lift conveyor employs a single-point drive mechanism connected to a four-point vertical lifting system. This structural design ensures unwavering stability and exceptional load-bearing capacity during the heavy lifting and transfer phases.
Hygienic and Durable Construction: All core components that physically touch your product are forged from 304 mirror-finish stainless steel. This smooth, non-porous surface prevents material cross-contamination and resists corrosion, making it ideal for harsh chemical or strict food-grade environments.
Secure Enclosed Framework: Safety on the factory floor is paramount. The fully enclosed structure features mechanical and electrical interlocking devices, instantly halting operation if access doors are breached, thereby protecting your workforce from moving parts.
Transforming your operational workflow requires machinery that operates with relentless consistency. This packer eliminates the need for manual intervention at every critical stage of the bagging process, allowing your workforce to focus on higher-level supervisory tasks.
Achieves a fully unmanned workflow from automatic bag loading, opening, weighing, and filling to sewing and discharging.
Delivers a formidable production capacity of 600 to 900 bags per hour, drastically cutting labor overhead while accelerating large-scale standardized output.
Maintains a steady, adjustable pace of 10-15 packs per minute to perfectly match your upstream processing speeds.
In bulk material handling, even minor discrepancies in weight can lead to significant financial losses over time. Precision engineering ensures that every single bag meets strict weight tolerances, protecting your profit margins.
Integrated with a highly responsive SIEMENS PLC control system and premium weighing modules for rapid data processing.
Restricts packaging variance to a strict ±0.2% margin, effectively eliminating material giveaway.
Ensures strict compliance with stringent international quality control standards for high-value granular commodities.
Flexibility in packaging formats allows your facility to respond rapidly to changing market demands. This equipment is engineered to handle a diverse array of heavy-duty bagging materials without mechanical hesitation or structural jamming.
Specifically calibrated for heavy industrial loads ranging from 10Kg to 25Kg per unit.
Features an exclusive multi-suction cup opening mechanism and a single-point driven, four-point vertical lift conveyor for absolute stability.
Flawlessly processes flat-mouth and M-fold bags, including kraft paper, plastic, and cold-cut laminated woven bags.
Industrial environments are unforgiving, exposing machinery to abrasive dust, corrosive chemicals, and continuous vibration. The structural integrity of this packer is designed to withstand these harsh realities while actively protecting your workforce.
All vital components making direct contact with your materials are constructed from premium 304 mirror-finish stainless steel, providing superior rust and corrosion resistance.
The heavy-duty frame is built from carbon steel with a protective plastic coating to endure years of industrial wear and tear.
Features a fully enclosed architecture integrated with sensitive safety interlocking mechanisms, drastically minimizing workplace hazards and ensuring compliance with safety regulations.
Complex machinery shouldn't require a steep learning curve. The user interface and internal diagnostics are designed to empower your floor operators and maintenance teams, making daily operations as smooth as possible.
Equipped with an intuitive 10-inch bilingual (Chinese/English) LCD touch screen, making parameter adjustments straightforward and highly accessible.
Incorporates an advanced intelligent fault self-diagnostic system that instantly pinpoints mechanical or electrical issues before they escalate.
Displays step-by-step troubleshooting prompts directly on the screen, significantly reducing unplanned downtime and maintenance delays.
Whether your facility operates in freezing conditions or sweltering heat, production must continue uninterrupted. This robust system is thermally and mechanically shielded to perform consistently in extreme manufacturing environments.
Highly versatile across multiple sectors, including seeds, agricultural fertilizers, animal feed, agrochemicals, milled rice, grains, waterproof construction materials, and plastic pellets.
Engineered to maintain peak operational stability in severe ambient temperatures ranging from -10℃ to +50℃.
Perfectly suited for unheated warehouses, cold storage facilities, or high-temperature processing zones.
Every production line has its own unique footprint and operational rhythm. We provide comprehensive engineering support to ensure this packer integrates perfectly into your existing infrastructure, maximizing your return on investment.
Offers deep customization options, allowing modifications to packaging volumes, sealing techniques, and specific bag material compatibilities.
Backed by an extensive service framework that includes on-site installation, precision commissioning, and thorough operator training.
Designed for seamless downstream integration with secondary automation systems, such as inline weight checkers and robotic palletizing units.
We offer tailored solutions based on specific customer needs, including adjusting packaging volume (10Kg-25Kg), customizing bag closing methods (sewing machine or edge folding machine), and modifying bag material compatibility. Technical teams provide on-site installation, commissioning, and training to ensure smooth integration into existing production lines.

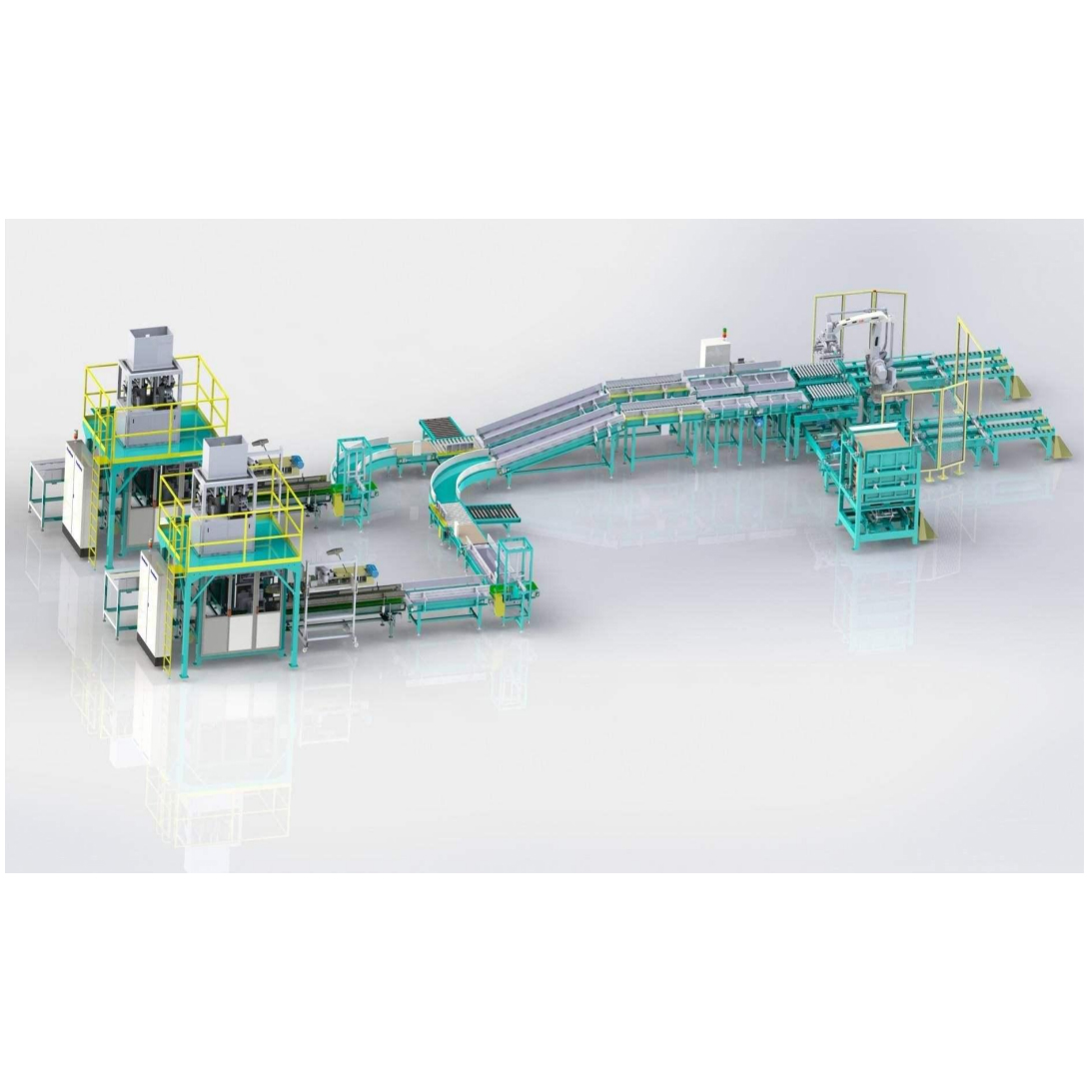

The advanced design ensures that the machine is suitable for the entire process automation of weighing, packaging inspection, robot palletizing and pallet transportation of various flat-mouth, M-fold packaging bags, such as paper bags, plastic bags, woven bags, etc. It is widely used in unmanned metering and packaging in various industries such as seeds, fertilizers, feed, agrochemicals, rice, grains, waterproof building materials, plastic pellets, etc.
1. After manual bag placement, the equipment can achieve functions such as automatic bag supply, automatic bag loading, automatic bag opening, automatic detection, automatic weighing, automatic filling, and automatic sealing. It has functional features such as fault alarm and safety protection, and has a high degree of automation.
2. Touchscreen, PLC programmable control system, human-machine interface display, clearer and more convenient operation, high degree of automation, friendly human-machine interface.
3. Unique multi-suction cup bag-opening technology with high bag-opening success rate.
4. The unique automatic lift conveyor uses single-point drive for four-point vertical lifting, with a wide range of lifting heights, precise and stable lifting, and strong carrying capacity.
5. The unique combined bag supply machine is designed to combine the advantages of both the horizontal and vertical bag supply machines, suitable for woven bags and PE button hand packaging bags.
6. High safety, with a closed structure and interlocking device.
7. The device has a self-checking function for faults, and faults can be quickly eliminated according to the prompts on the touch screen
Package-related parameters:
Model | BC-SD600 |
Filling method | Fill once/one bag |
Filling volume | 10Kg-25Kg |
Bag opening closed form | a. Sewing machine b. Edge folding machine |
Material properties | Granular materials |
Notes:
1. The bag material is paper laminated product/woven bag (with laminated inside)/plastic bag, and the bag opening is a cold-cut type packaging bag.
2. Sewing machine thread: 3×3 strands of strong vinylon or polyester tower thread.
3. Plastic packaging bag requirements: Lay flat in the carton, no rope binding, no bending or folding, no static electricity in the plastic packaging bag, no chain sticking inside the plastic bag. Plastic packaging handles are not allowed to be irregular in position or shape.
4. Packaging requirements for woven bags: Flat, no notches or bends are allowed. For woven bags with handle clasps, the position of the clasps should meet the following requirements: the lower opening line of the clasps is between 43mm and 45mm from the bag opening size, the width of the clasps is 70mm±2mm, and the width of the clasps is 17mm±1mm. The woven bag should be cold-cut and double-sided laminated.
Partnering with a reliable equipment supplier is a critical decision that impacts your facility's long-term profitability. We deliver more than just machinery; we provide engineered resilience tailored to your specific operational demands and industry challenges.
Stringent Quality Assurance: Every packer undergoes exhaustive mechanical and electrical stress testing under simulated peak-load conditions prior to deployment, ensuring immediate reliability on your factory floor.
Expert Engineering Support: Our technical teams possess deep expertise in material handling, ensuring the equipment is perfectly calibrated for the specific flow dynamics of your granular products.
Lifecycle Partnership: From initial site assessment and installation to lifelong maintenance and parts supply, we act as a continuous extension of your engineering department to prevent operational hiccups.
Seamless Infrastructure Integration: We design our systems to handshake flawlessly with your existing upstream hoppers and downstream robotic palletizers, creating a unified, highly efficient production ecosystem.
To assist your engineering and procurement teams in making an informed decision, we have compiled detailed answers to the most common technical inquiries regarding this automated packing system.
Q1: How does the equipment manage the flow of different granular materials?
A: The system utilizes a sophisticated dosing mechanism controlled by the SIEMENS PLC. It employs a multi-stage feeding strategy—fast fill for volume, slow fill for precision—ensuring that materials like fragile seeds or dense plastic pellets are handled gently yet rapidly. This dynamic adjustment achieves the ±0.2% accuracy target without crushing or degrading the product.
Q2: What are the specific requirements for the plastic bags used in this machine?
A: For optimal performance, plastic bags must be stored flat in their cartons without any rope bindings, bends, or folds. It is critical that the bags are free of static electricity, as static can cause the inner walls to stick together, hindering the multi-suction cup opening process. Furthermore, there should be no chain sticking inside, and any handles must be regular in shape and position.
Q3: Can the bag closing method be altered after installation?
A: Yes, the system is designed with modularity in mind. While it comes configured with either a heavy-duty sewing machine (utilizing 3x3 strands of strong vinylon or polyester thread) or an edge folding machine, the sealing station can be mechanically swapped or upgraded by our technical team if your packaging requirements evolve over time.
Q4: How does the single-point drive four-point vertical lifting system benefit the packaging process?
A: Traditional lifting mechanisms often suffer from uneven wear or tilting under heavy loads. Our unique single-point drive connected to a four-point vertical lift ensures that the 10Kg-25Kg bag remains perfectly level during the critical filling and transfer stages. This provides a wider range of stable lifting heights and a much stronger load-bearing capacity, preventing material spills and ensuring a neat final package.
Q5: What facility preparations are needed before installing this packer?
A: Your facility will need to provide a stable three-phase power supply capable of handling the 10KW (380V, 50HZ) load. Additionally, a clean, dry compressed air source delivering a consistent pressure of 0.6 MPa is required to operate the pneumatic cylinders and suction cups. The installation area must accommodate the machine's footprint of 2900 x 2610 x 1893 mm, with adequate clearance for maintenance access and material feeding.
