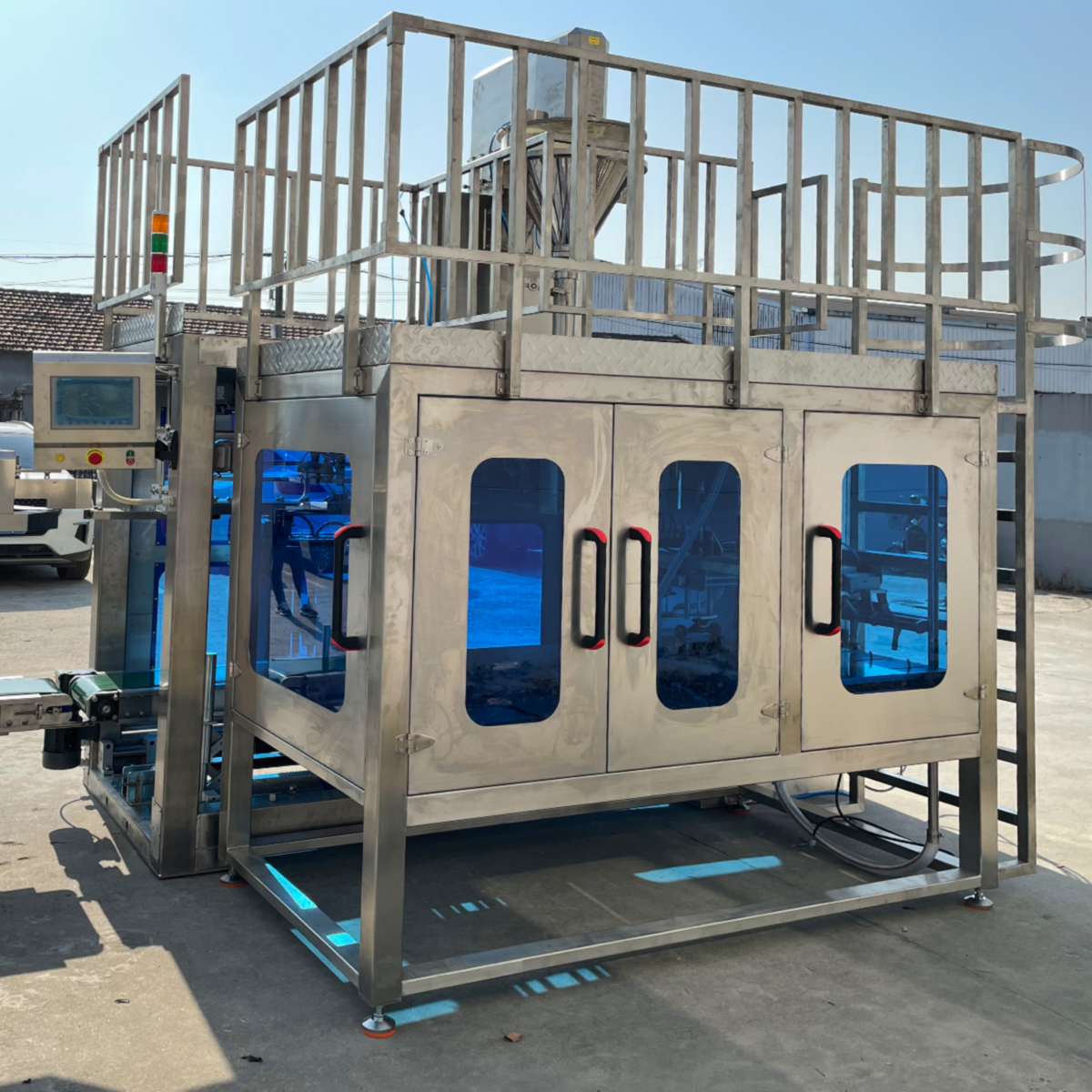

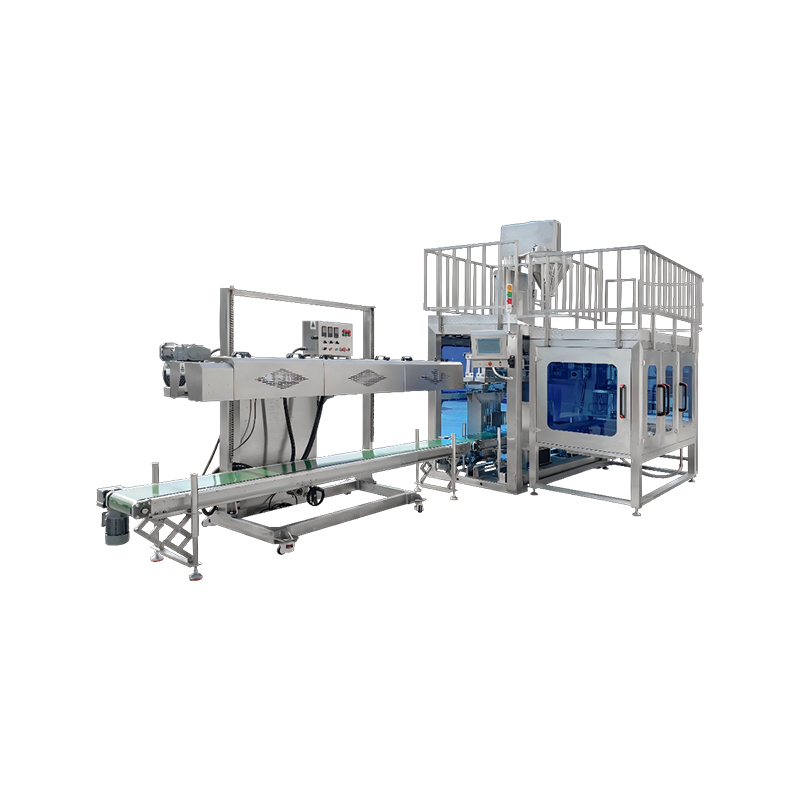

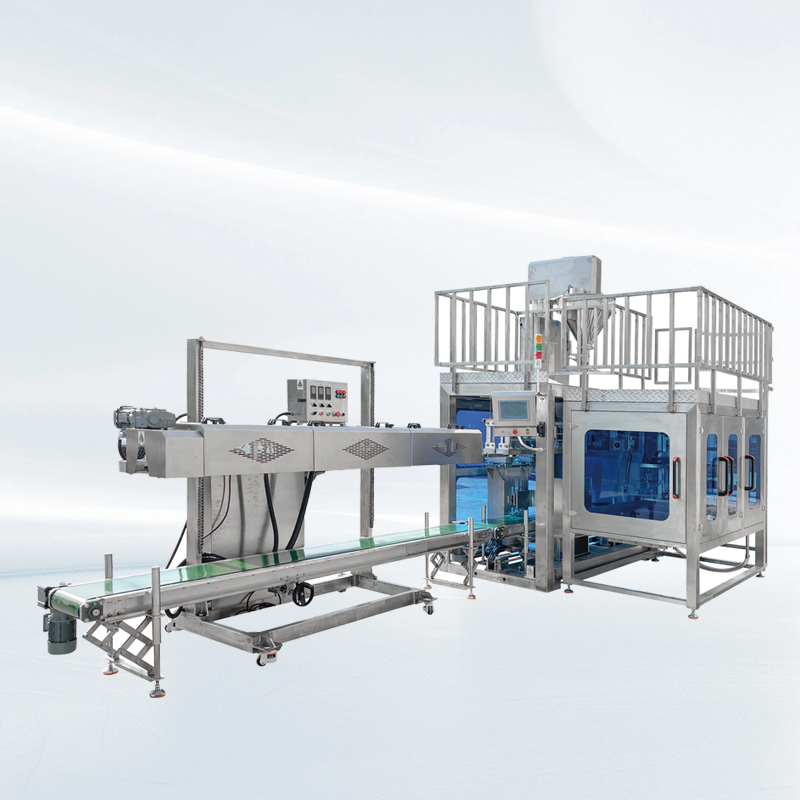

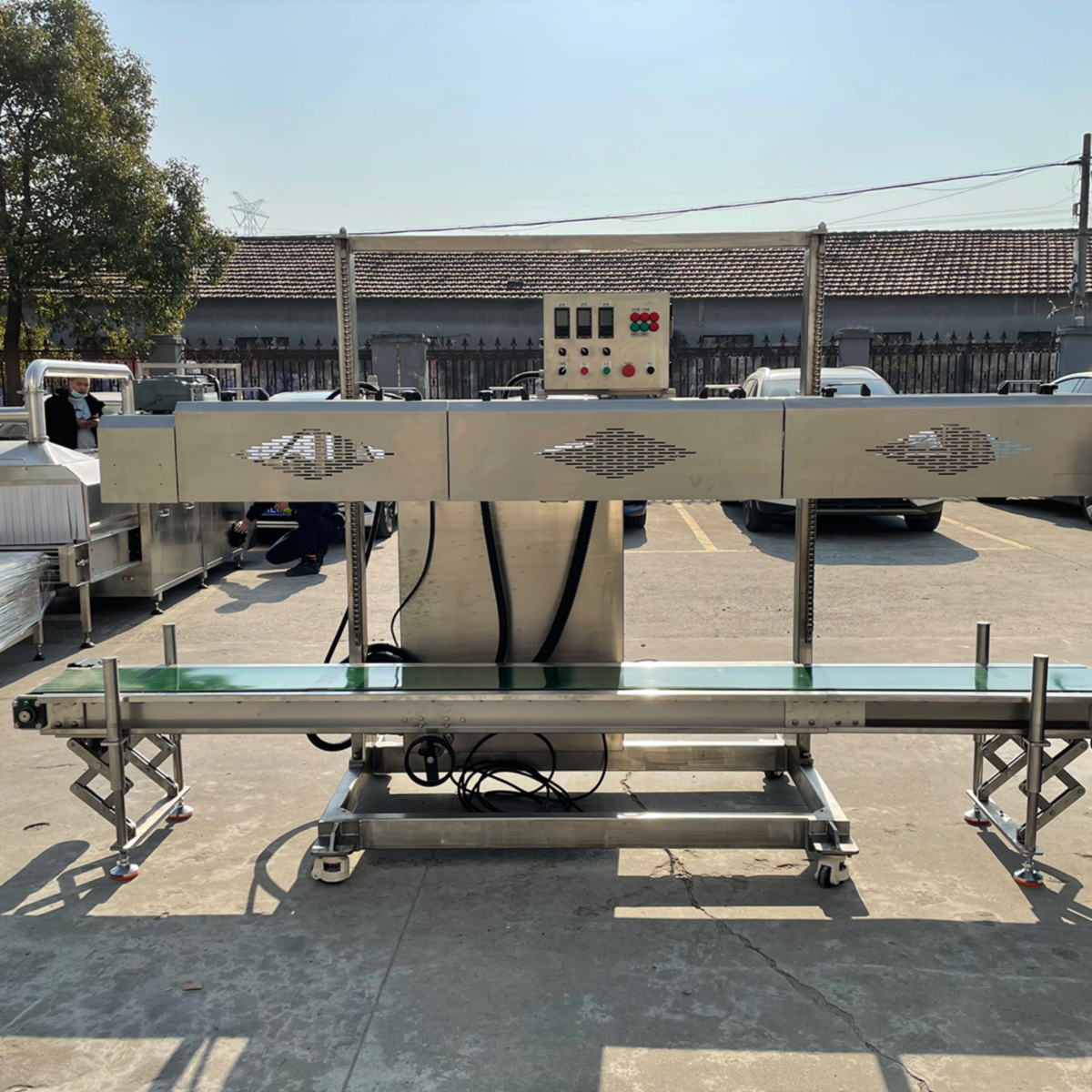

The machine features a single helix feeding system optimized for powder flow, paired with a lifting mechanism that minimizes dust dispersion during filling. It integrates automatic weighing, vacuum suction cup bag retrieval, bag opening, filling, sealing, and delivery—all controlled by PLC and photoelectric switches. A real-time detection system monitors every step, triggering alarms for anomalies to ensure stable, continuous operation.

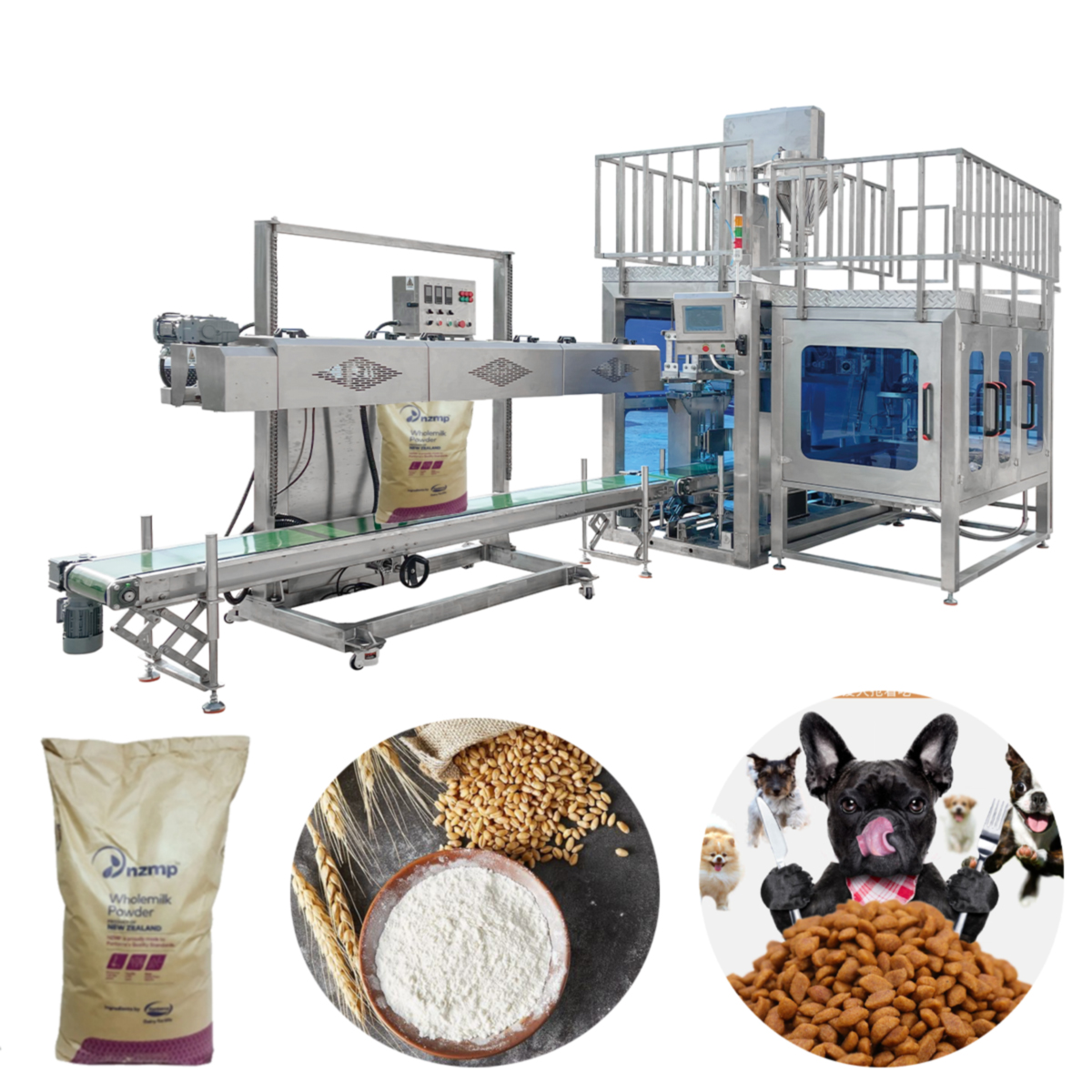

Ideal for powder and granular materials, it handles food powder, veterinary medicine, solid pharmaceuticals, pesticides, dyes, metal powder, and building materials. It accepts craft paper coated bags, coated woven bags, 0.2mm-thick plastic bags, and woven bags with PE liners—all in a pillow open pocket shape. Bag sizes are customizable within L:810mm-960mm and W:410mm-650mm to adapt to diverse product requirements.
Powder materials present unique challenges: excessive dust, poor flowability, and gas entrapment. Traditional packaging machines struggle to address these issues, creating an urgent need for specialized equipment. Industries like pharmaceuticals, dyes, and building materials increasingly seek dust-free, high-precision solutions to improve workplace safety and product purity.
Rising labor costs and strict safety regulations for dust control are driving manufacturers to adopt fully automatic powder packaging. The DC-S25-CJ’s unmanned operation and dust-suppression design align with this trend, helping businesses reduce labor risks and improve operational efficiency.
The lifting mechanism and sealed feeding components minimize dust leakage, creating a cleaner, safer workplace. This design is especially critical for ultra-fine powders and high-gas-content materials that are prone to dispersion.

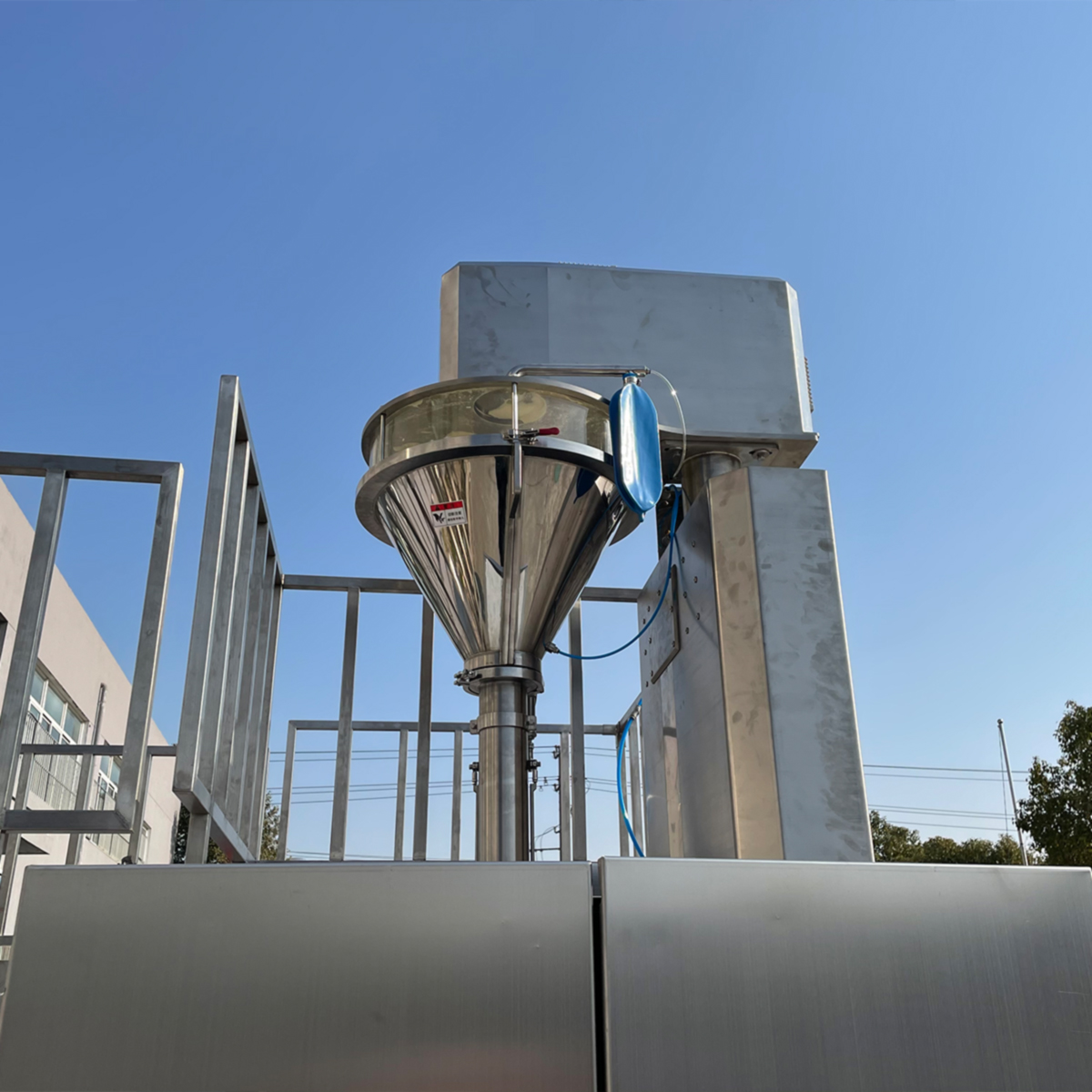

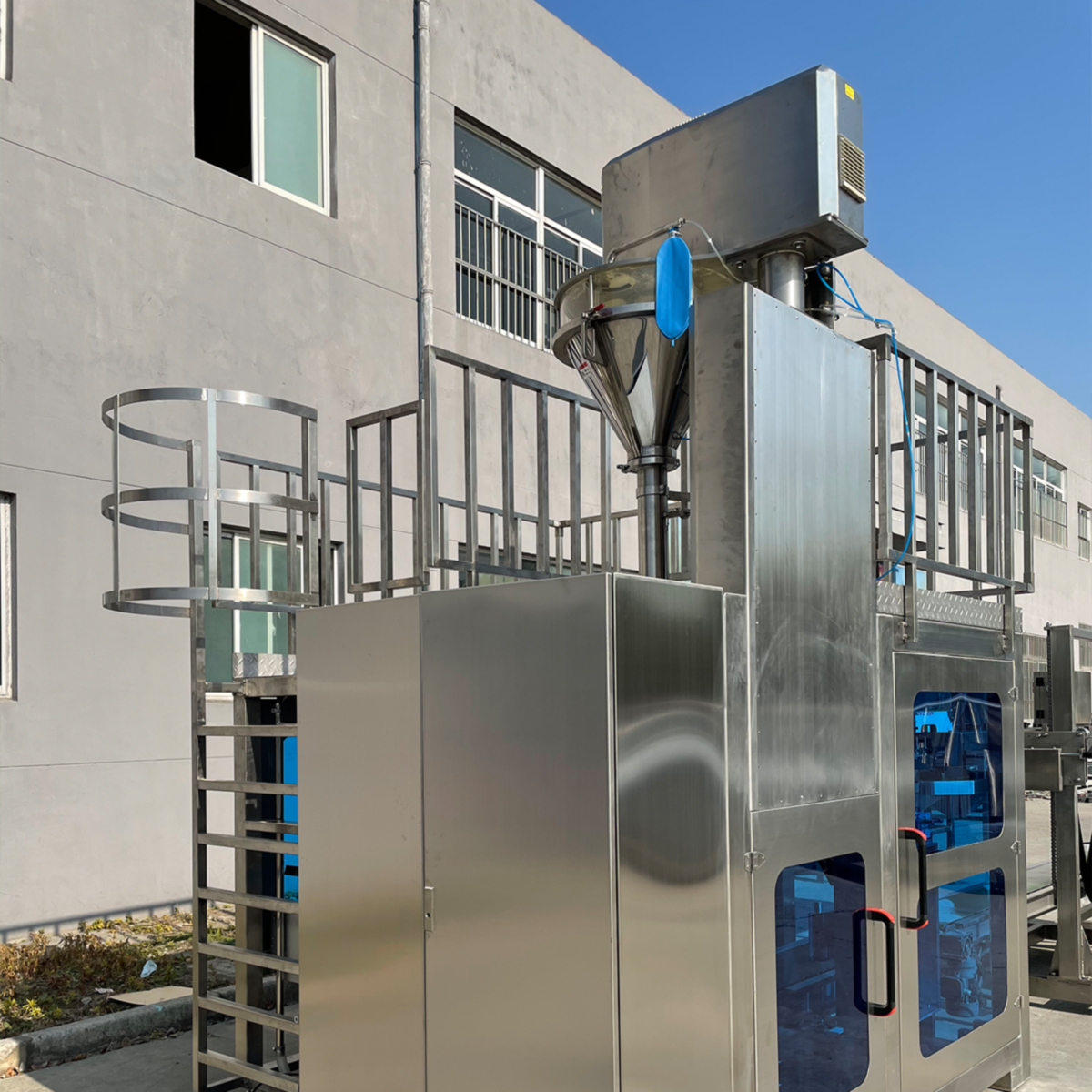

The single helix feeding system is tailored for powder flow, reducing clogging and ensuring uniform filling. The integrated lifting mechanism adjusts to bag heights, optimizing filling precision and reducing material waste.
From bag retrieval to delivery, the machine operates without manual intervention. PLC and photoelectric switch control, combined with a detection alarm system, ensures error-free operation—preventing empty bags, improper sealing, and other costly issues.
Achieving weighing precision of ≤±0.1-0.2%, the machine meets strict quality standards for powder products. Its sealed design and dust-suppression features protect product purity and comply with workplace safety regulations.
Operating at 2–3 bags per minute, it prioritizes precision over speed—ideal for high-value or sensitive powders that require careful handling. The single-station design simplifies operation and maintenance, making it suitable for medium-scale production lines.
Running on 380/220V 50-60Hz (TN-S) power with 8KW total power, it offers efficient operation. Gas consumption of 6kg/cm² 0.4-0.6cm³/min aligns with standard industrial gas systems, keeping operational costs low.
Unlike general-purpose packaging machines, the DC-S25-CJ is engineered specifically for dust-prone and high-gas-content powders. Its design addresses the unique challenges of these materials, ensuring superior performance and reliability.
We offer bag size customization within L:810mm-960mm and W:410mm-650mm, as well as specialized bag materials (e.g., moisture-resistant options for hygroscopic powders). Our technical team adjusts the single helix feeding system for different powder flowabilities.
Backed by a dedicated after-sales team, we provide installation, training, and maintenance support to ensure optimal machine performance. The machine’s robust construction and industrial-grade components are built to withstand continuous heavy-duty use.
Flow of work
To the bag mechanism using vacuum suction ker from the bag library bag automatic bag, the whole process with the detection system, the whole process by PLC, photoelectric switch intelligent control, detection alarm. Ensure that the whole process is stable, reliable and continuous operation.
Scope of application
Suitable for packaging powder granular materials, such as food powder, veterinary medicine, solid medicine, pesticides, dyes, metal powder, building materials, etc.
Method of feeding | Single helix feed |
Packing weight | 25kg |
Packaging accuracy | ≤±0.1-0.2% |
Packaging speed | 2-3 bags/min |
Power supply | 380/220V 50-60Hz(TN-S) |
Whole machine powder | 8KW |
Bag size | L:810mm-960mm W：410mm-650mm（Size can be customized） |
Bag material | Craft paper coated bag, woven bag (coated), plastic bag (0.2mm thick) woven bag (with PE plastic bag), etc. |
Bag shape | Pillow open pocket |
Gas consumption | 6kg/cm2 0.4-0.6cm3/min |
Yes. The DC-S25-CJ’s lifting mechanism and sealed feeding system are specifically designed to minimize dust dispersion, making it ideal for ultra-fine powders that are prone to dust generation.
It works with craft paper coated bags, coated woven bags, 0.2mm-thick plastic bags, and woven bags with PE liners—all suitable for powder and granular materials. We can recommend materials based on your product’s properties.
While the standard speed is 2–3 bags per minute (optimized for precision), our technical team can adjust settings to match your production needs—balancing speed and accuracy for your specific material.
The machine is designed for easy maintenance, with accessible components and a dust-resistant structure. Regular cleaning of the feeding system and sealing components is recommended to ensure long-term performance, and our team provides guidance on maintenance protocols.
