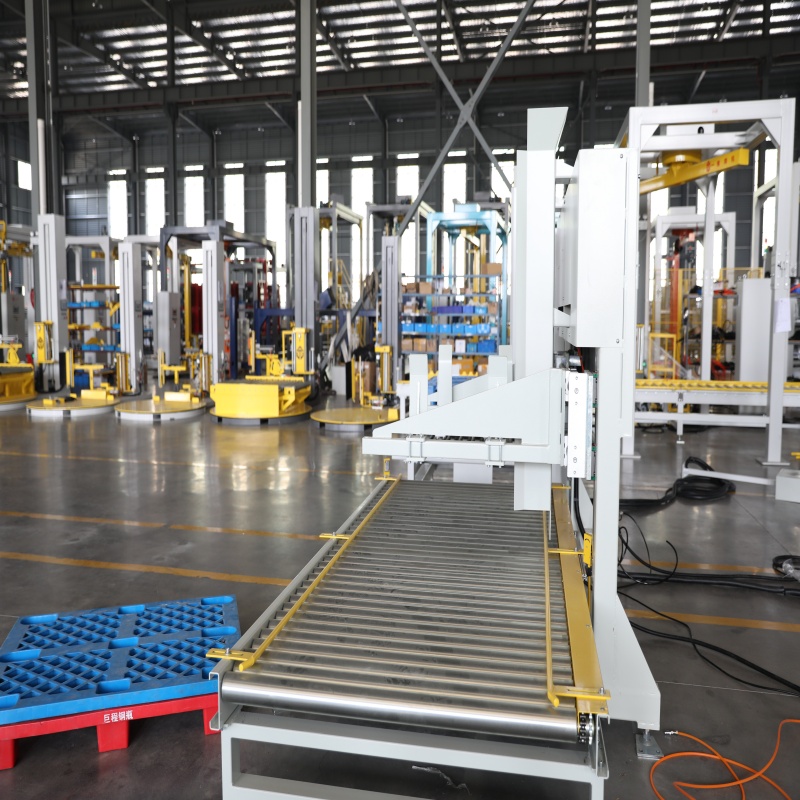

Pallet feeder for the stacker is mainly used to automatically complete the release of empty pallets. Through the coordinated action of two sets of pneumatic devices in the pallet storage bin, the empty pallets can be accurately released. The empty pallets are transported to the next workstation in a timely, accurate and smooth manner by the chain conveyor.

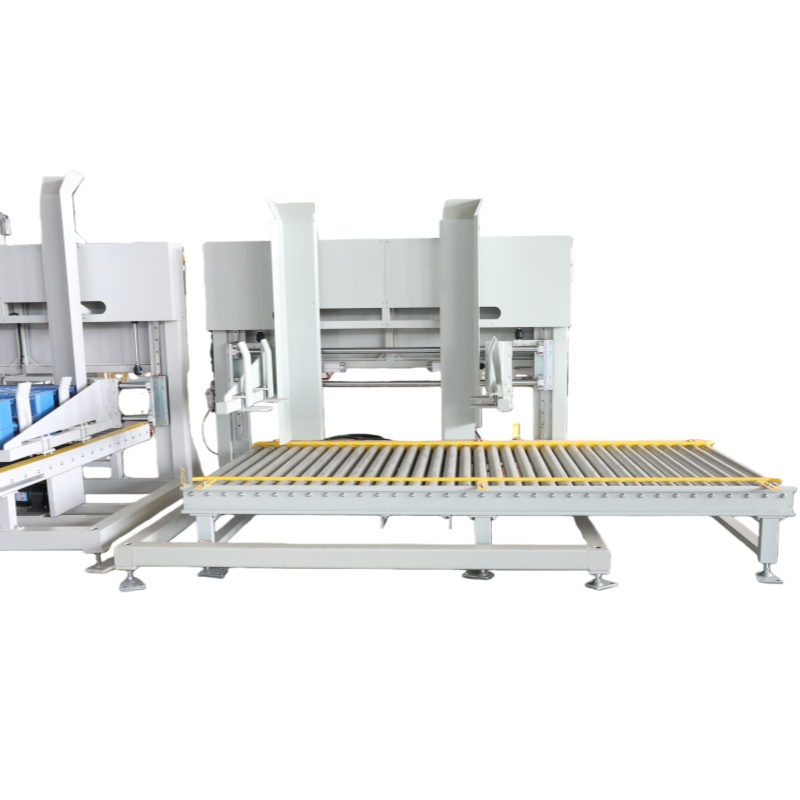

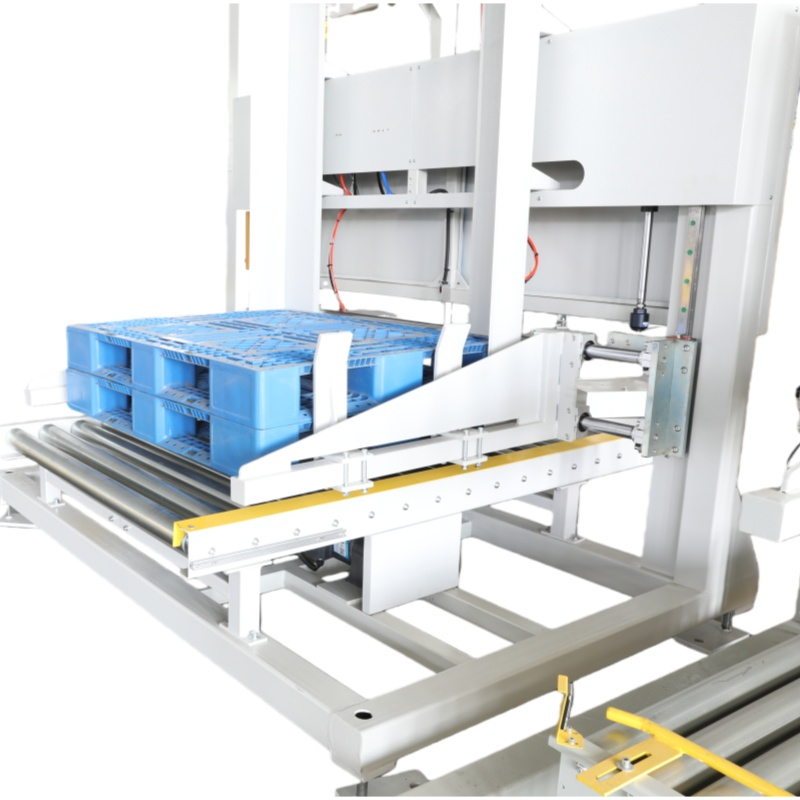

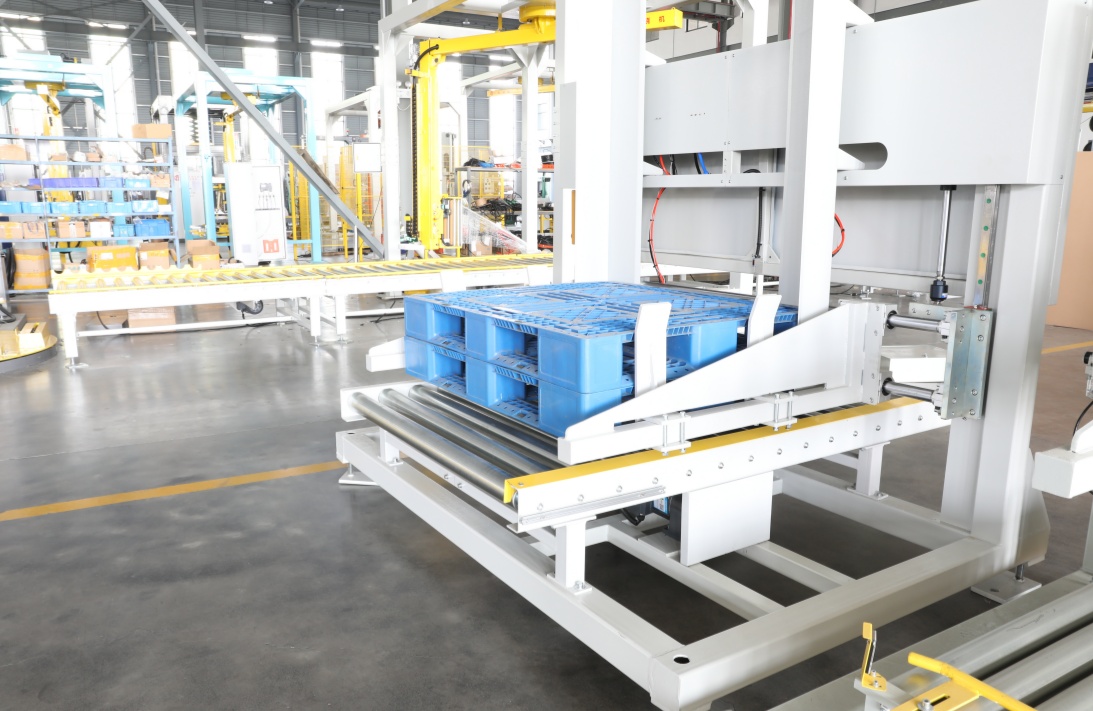

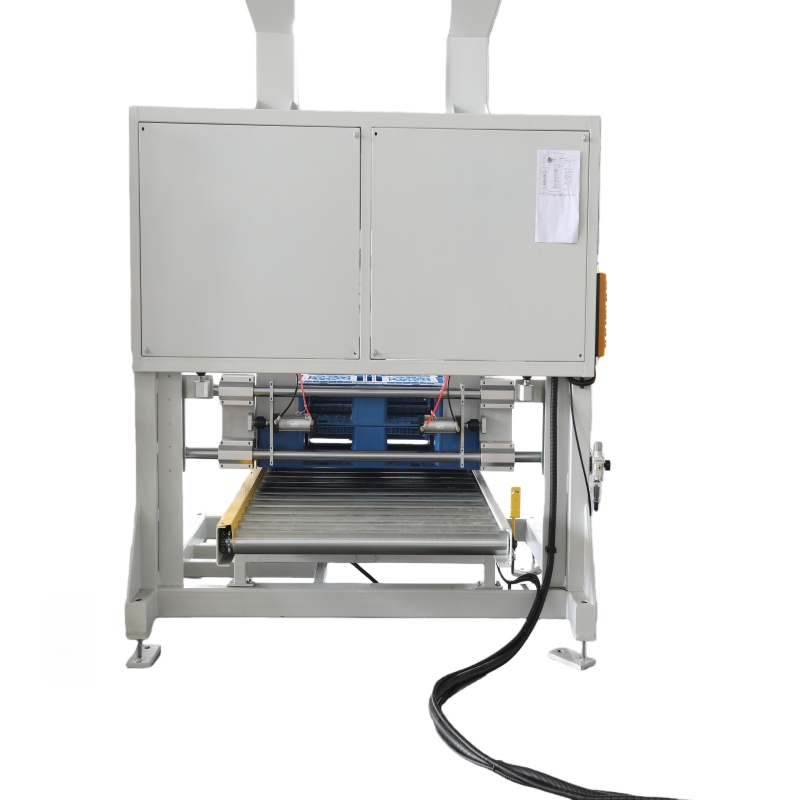

The pallet feeder (fully automatic pallet storage system) includes:
* A frame, within which there is a lifting mechanism.
* Pallet is placed on the lifting mechanism.

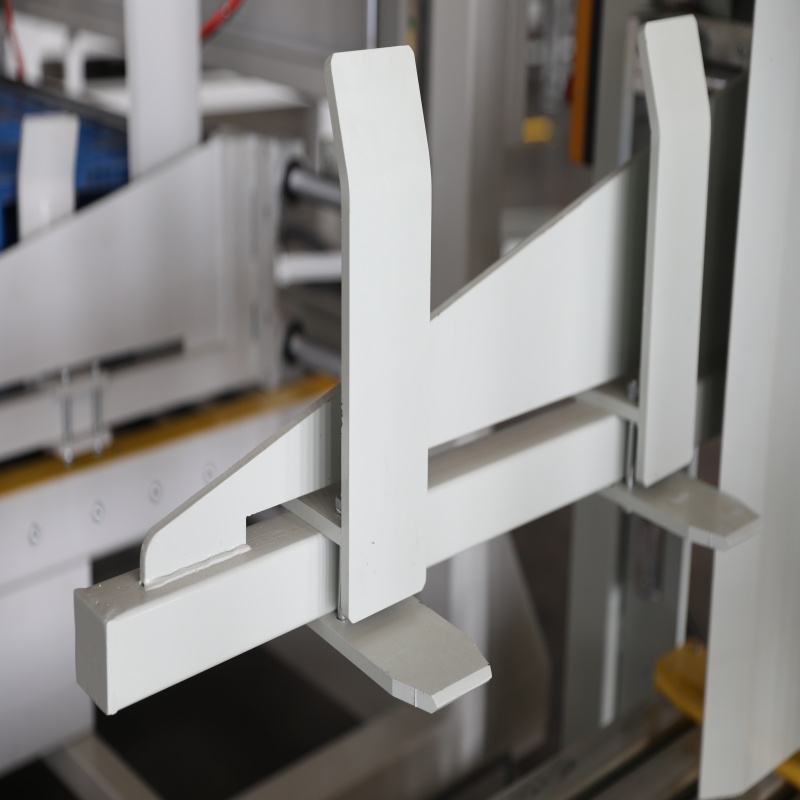

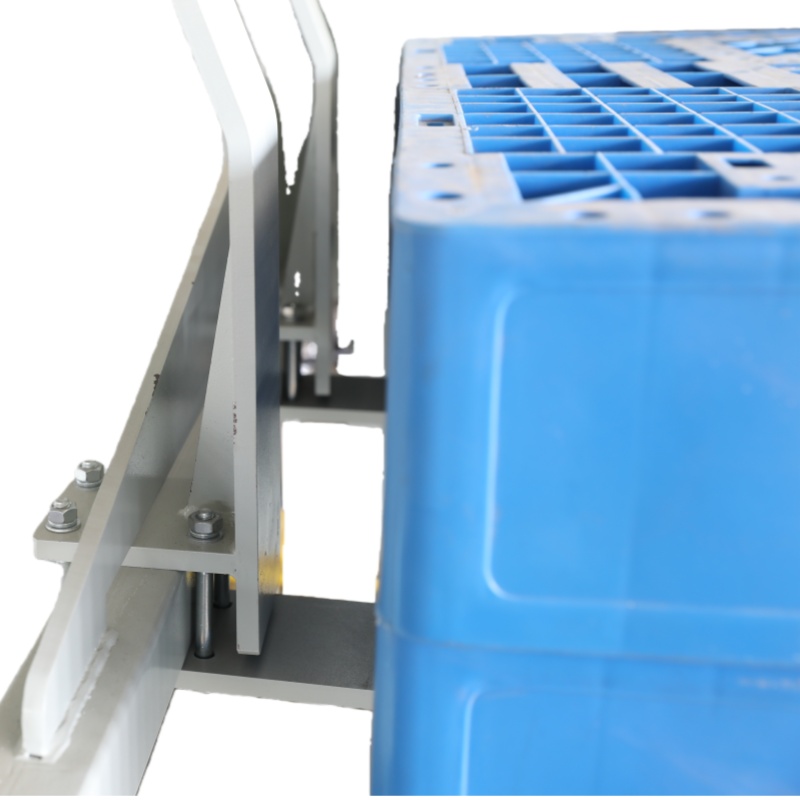

* On both sides of the frame, there are separation devices.
* On one side of the lifting mechanism, is a conveying device.
* On the frame, a control system is installed for adjusting the actions of the lifting mechanism,
separation device and conveying device.
- Tray dimensions: L1200 X W1200 X H150mm (Chuzi type)
- Conveyor line: Required length 2000mm (Customer to provide)
- Work surface height: 500mm
- Storage quantity: 8 units (According to actual situation)
- Packaging speed: ≤ 20 units/hour
- Machine weight: Approximately 450Kg
- Main power supply: 380V 50/60Hz
- Suitable air source: 0.6 - 0.8 MPa
- Conveying method: Chain (Customer to provide)
- Main material: Powder coating treatment
- Electrical components: Relay - Omron
- Photoelectric switch - Omron
- Control method: Plug-in passive control
- Other: Can be customized according to actual situation- PLC: Siemens
- Frequency converter: Siemens-
- Lifting motor: Mecano reducer motor (1.1KW)
- Moving motor: Mecano reducer motor (0.37KW)

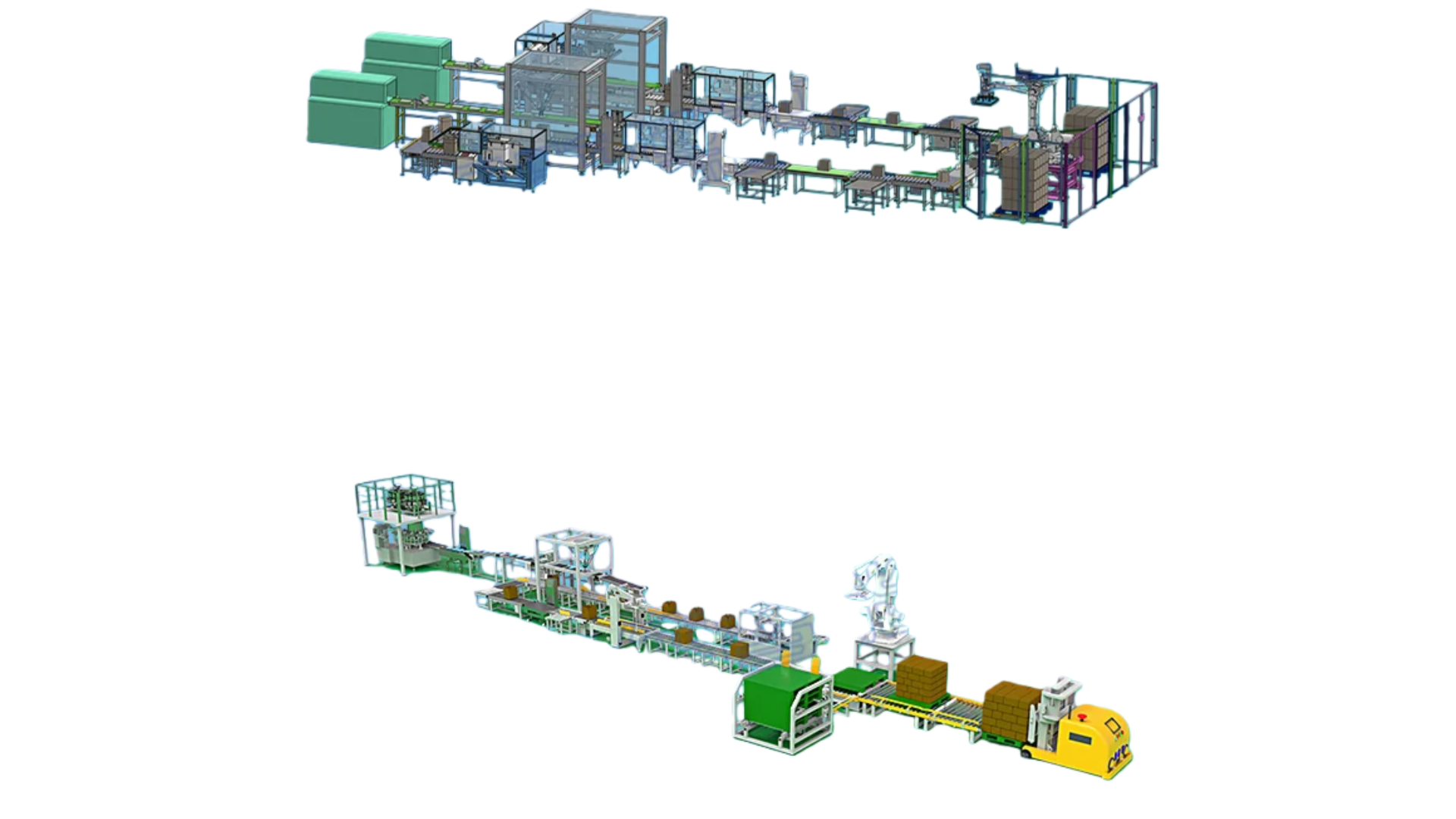

Application model diagram reference
