BDH-YK1800FZ
BDH
| Availability: | |
|---|---|
| Quantity: | |

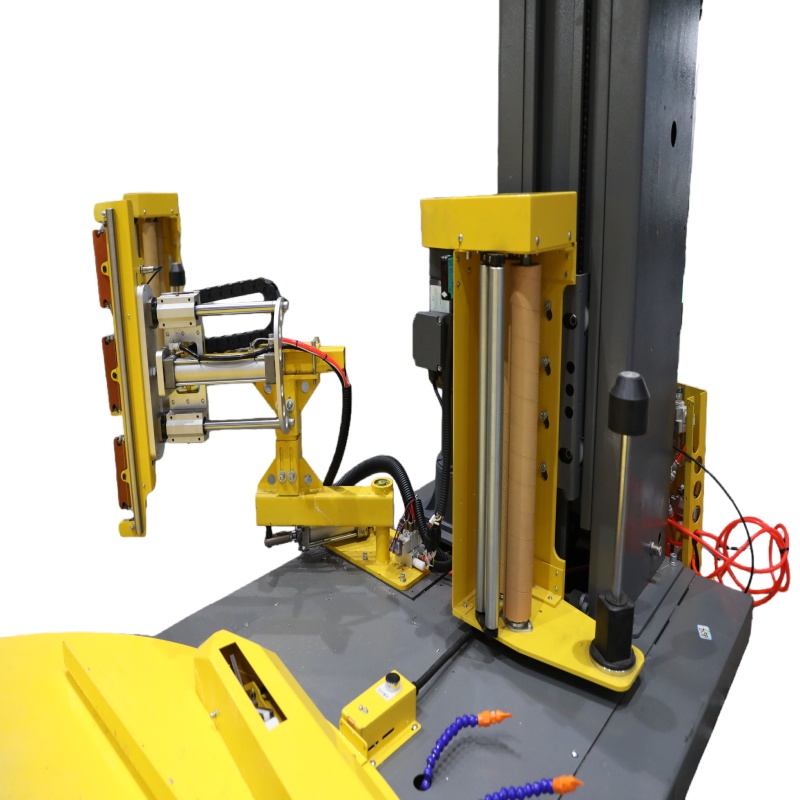

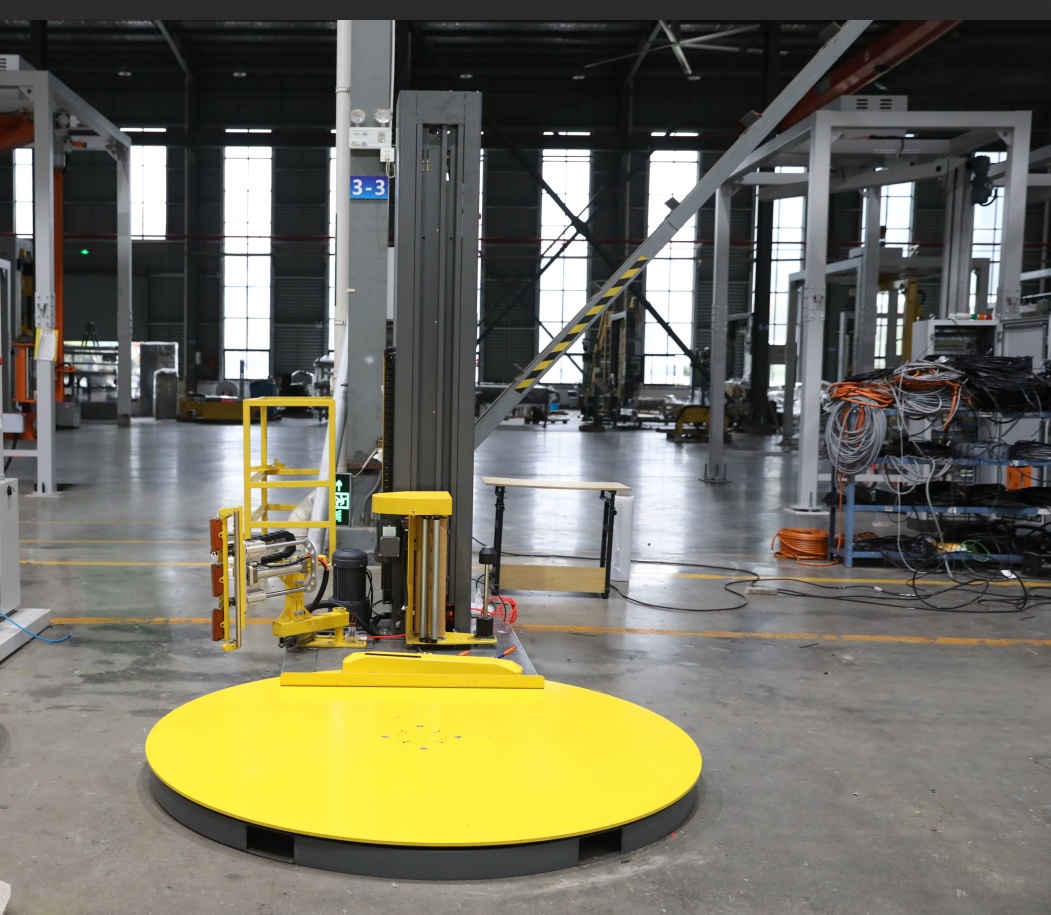

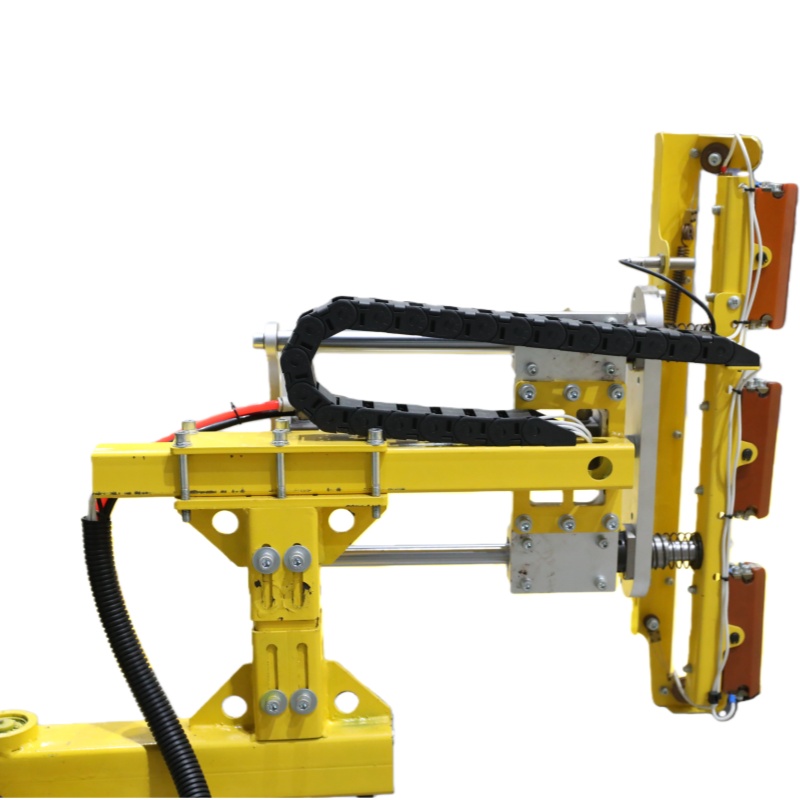

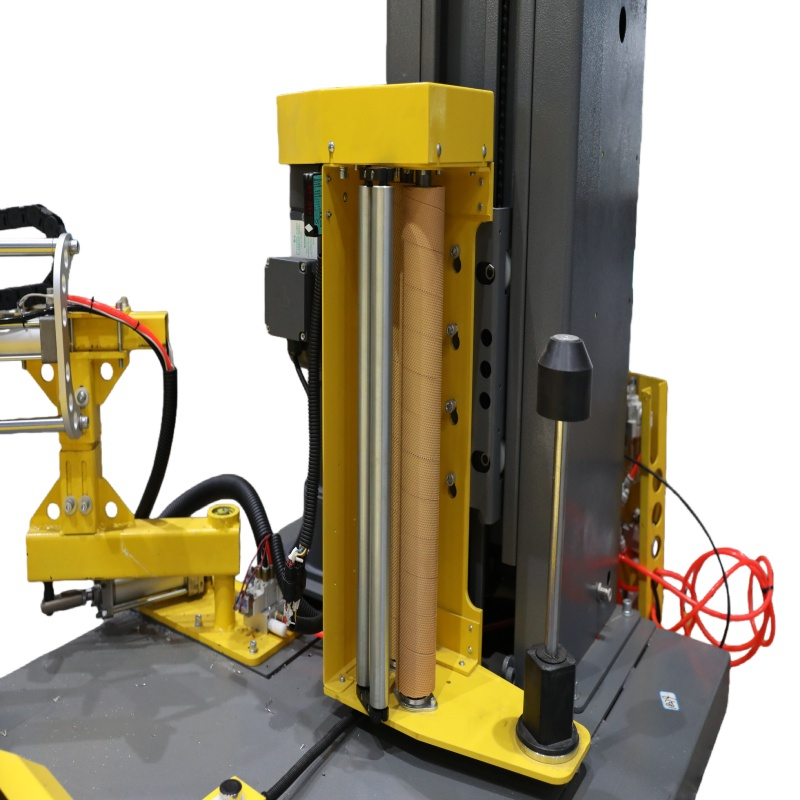

Fully automatic wrapping machine. This wrapping machine is equipped with automatic film-breaking devices, eliminating the need for manual film-breaking. It is a packaging machinery suitable for assembly line operations and is highly suitable for the automation packaging needs of modern enterprises.
It plays a very positive role in improving packaging efficiency, reducing labor intensity, and effectively utilizing human resources. Currently, such products have been widely applied in packaging lines of industries such as chemicals, electronics, food, beverages, and papermaking.
| Technical Parameters | |
| Item | Description |
| Load Dimensions | L800-1200mm x W800-1200mm |
| Load Height | Max.1800mm |
| Turntable Diameter | 1800mm |
| Turntable Height | 110mm |
| Turntable Speed | 0-12 rpm |
| Load Weight | Max.1500kg |
| Pre-Stretch Ratio | 200% ( 1meter--->2meter ) |
| Suitable Stretch Film | Width 500mm, Thickness 15-25μm, Core Dia. 76mm, O.D.≤220mm |
| Production Speed | Up to 25 pallets per hour |
| Power Supply | AC220V, 1Ph, 50Hz |
| Total Power | 1.32KW ( 0.75KW + 0.37KW +0.20KW ) |
| Touch Screen | Inovance (China) |
| PLC | Inovance (China) |
| Converter | Inovance (China) |
| Position Switch | Delixi (China) |
| Photoelectric Switch | P+F (Germany) |
| Proximity Switch | Fotek(China) |
| Turntable Motor | ZD (China) |
| Lift System Motor | Mykono(China) |
| Film Carriage Motor | ZD (China) |
| Cylinder/Solenoid valve | SMC(Japan) |
Others special parameters customization available
Shanghai BoDingHui Automation Machinery Co., Ltd. (referred to as "BDH") was established in 2024.
It is a high-tech enterprise specializing in intelligent manufacturing under Shanghai Zhuwei Automation MachineryCo., Ltd that located in the Fengjing Town Industrial Park, Jinshan District, Shanghai, with a production base of 6, 000 square meters.
It is mainly engaged in the design, research and development, and production of automated integrated equipment and packaging equipment. Main Business: 1. Standard Equipment: Fully automatic and semi-automatic packaging equipment; Suitable for standard machinery for particles, powders, cartoning, bagging, etc. 2. Non-standard Equipment: Customize various types of products in the fields of non-standard automation integration, intelligent production lines, intelligent conveying, etc. For manufacturing enterprises. It is applicable to industries such as medicine, food, chemicals, agriculture, new energy, and warehousing: Technology - Driven InnovationAll our products meet the quality standard in countries and regions in Asia, Europe, America, Africa and etc.
Company has also gained reputation with fast responding service provided by our senior engineers. Bodinghui is an excellent partner to keep you and your business moving forward. Our company insists on ′ Beneficial to you is beneficial to us′ . Win-win has always been our principle in business. We strictly execute "within 24 hours, " replies to our customers; Feedback as our top priority. We also spend a lot effort on R& D to improve the packaging quality and the level of automation. With over one hundred thirty Intellectual Properties, we are making the difference in contribution to this industry worldwide.



What kind of supplier is trusted?
A: The machine is different from ordinary products. It is better to choose an experienced factory. Especially considering after-sales service, only the factory can respond quickly.
How do I know which machine I need?
A: Please provide your requirements and circumstances in as much detail as possible. This information is basic and important to help us recommend the right machine for you.
What details should I provide?
A: Usually, we need to know the details of your product, the material, size, shape of the bag, the weight of the package and so on. Good communication is very important, so if you have questions, don't hesitate to ask and get in touch.
Where is your factory located?
A: We are located in Jinshan District of Shanghai. We are always here to welcome you.
How about your warranty?
A: Our warranty is 12 months.
Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
