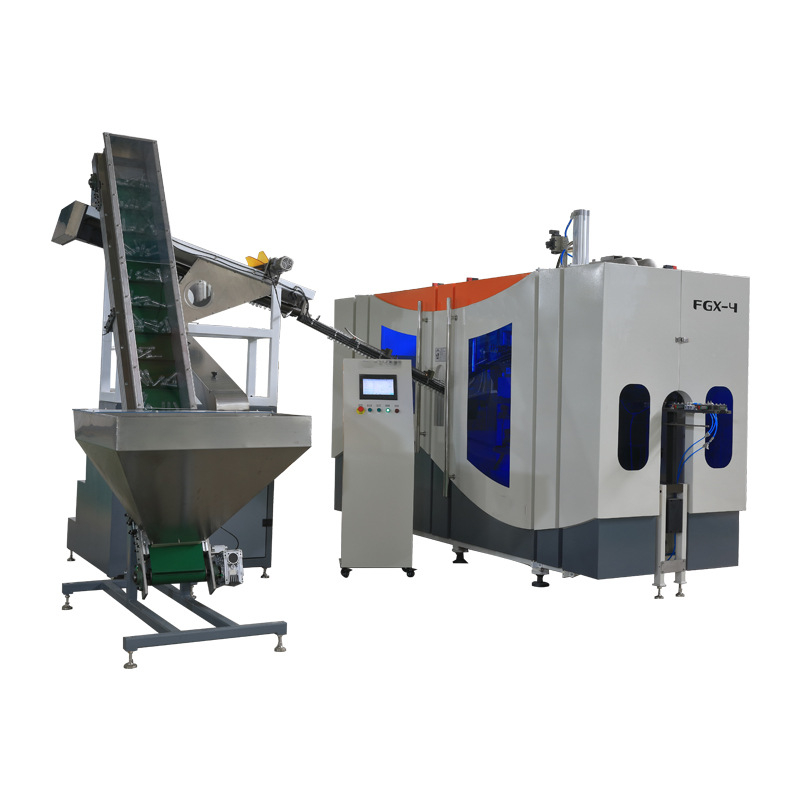

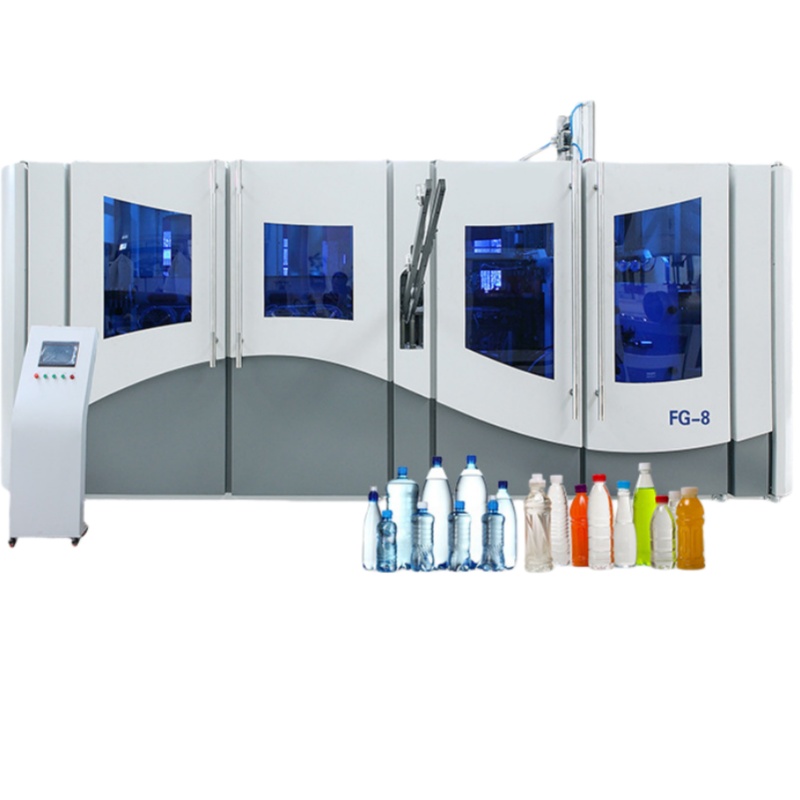

BDH-YDHBA-2L-6 fully servo-controlled variable pitch high-speed energy-saving bottle blowing machine with one inlet and six blowers.
The single machine's stable production capacity can reach 12,000 BPH (0.2L - 0.75L), and it can also accommodate a 1.5L production capacity of 10,000 BPH. The equipment has been preset with different bottle blowing formulas upon leaving the factory, eliminating the need for manual adjustment. It can switch to the corresponding formula according to different containers of users.
An optional remote control system is available, which can better ensure the after-sales service efficiency. It adopts PTO (servo-controlled module system), which is efficient, energy-saving, and stable. It is suitable for the blowing of light-weight and low-density containers.
*Reasonable design, fully automatic control, significantly reduces power consumption and manpower.

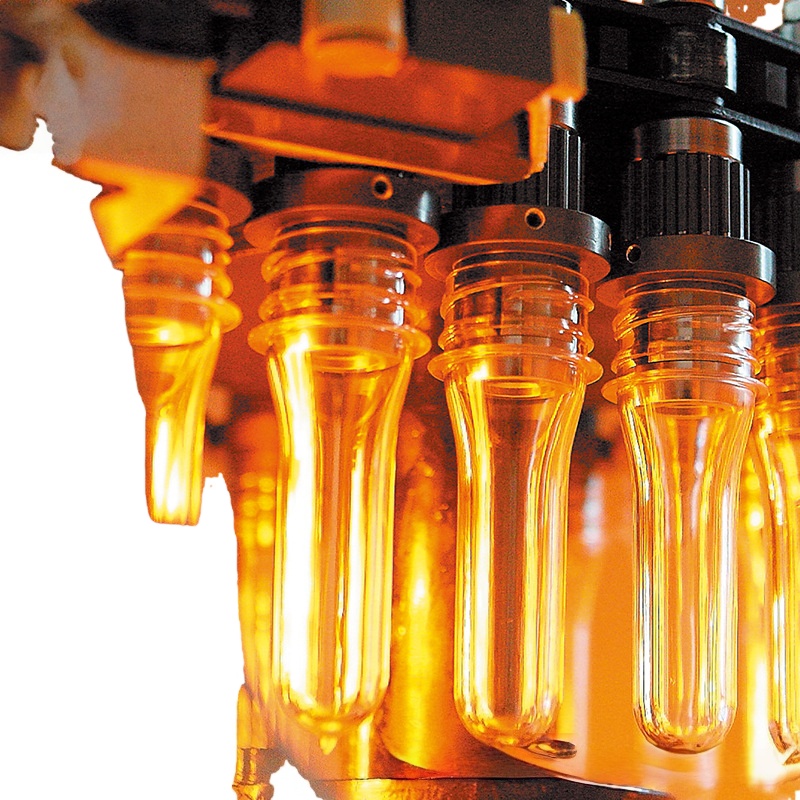

* The tube billets are preheated using an infrared preheating box.
*The entire production process is fully automated, featuring low investment, quick returns, and convenient operation and maintenance.
Various customizable automated bottle blowing machines, suitable for industries such as beverages, cosmetics, household chemicals or edible oils
| Technical Parameters | BDH-YDHBA-2L-6 | BDH-YDHBA-2L-7 | BDH-YDHBA-0.5L-9 | |
| Host Mchine parameters | Cavity Cavities | 6 | 7 | 9 |
| Clamping force KGs | 45000 | 45000 | 56000 | |
| Mold route mm | 110 | 110 | 90 | |
| Stretching rod route mm | 400 | 400 | 260 | |
| Bottom mold route mm | 50 | 50 | 50 | |
| Bottle spacing mm | 114 | 114 | 80 | |
| Bottle preform number pcs | 160 | 160 | 180 | |
| Products parameter | Max Capacity ml | 15000 | 1500 | 600 |
| Max bottle body height mm | 330 | 330 | 260 | |
| Max bottle body diameter mm | 105 | 105 | 68 | |
| Max bottle preform height mm | 140 | 140 | 100 | |
| Max bottle mouth diameter mm | 38 | 38 | 30 | |
| Capacity | B/H | 12000 | 14000-15000 | 18000 |
| Electrical parameter | Heating oven quantity PCS | 4*4 | 4-4 | 4*4 |
| Heating lamp quantity PCS | 9 | 9 | 7 | |
| Hheating configuration power KW | 48 | 48 | 64 | |
| Total power capacity KW | 92 | 92 | 100 | |
| Voltage V | 380 v 50Hz | 380V 50Hz | 380V 50Hz | |
| Air source parameter | Working pressure MPA | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
| Blowing pressure MPA | 2.5-3 | 2.5-3 | 2.5-3 | |
| Air capacity consumption m3/ min | 10/30 | 10/30 | 12/30 | |
| Total power KW | 110 | 110 | 125 | |
| Cooling chiller parameter | Temperature | 9-13 | 9-13 | 9-13 |
| Pressure MPA | 0.4 | 0.4 | 0.4 | |
| Rated power HP | 3 | 380V 50Hz | 5 | |
| Dimension | Host machine size mm | 35200-2200-2400 | 5200-2200-2400 | 5200-2200-2400 |
| Weight T | 5.5 | 6 | 6.5 | |
