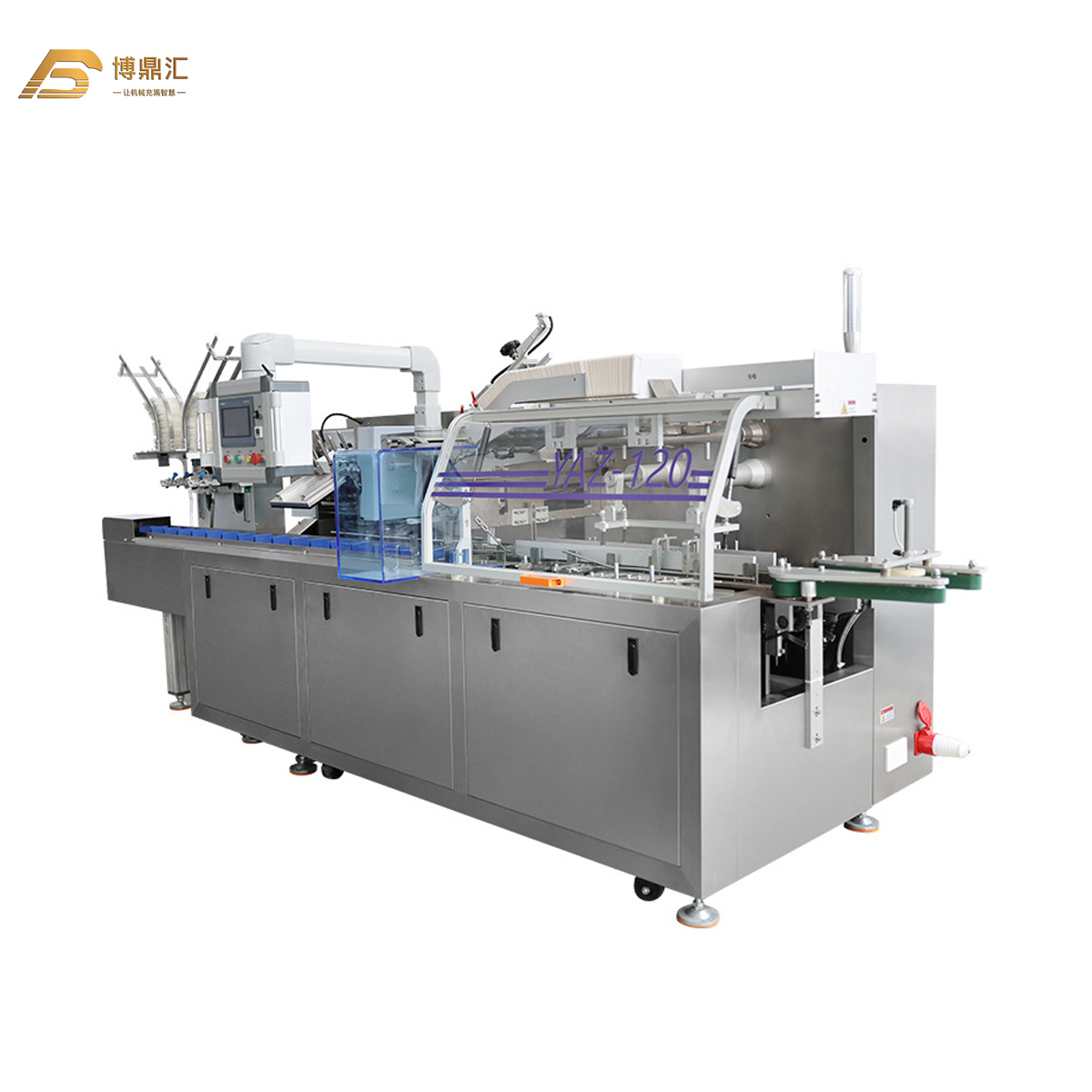

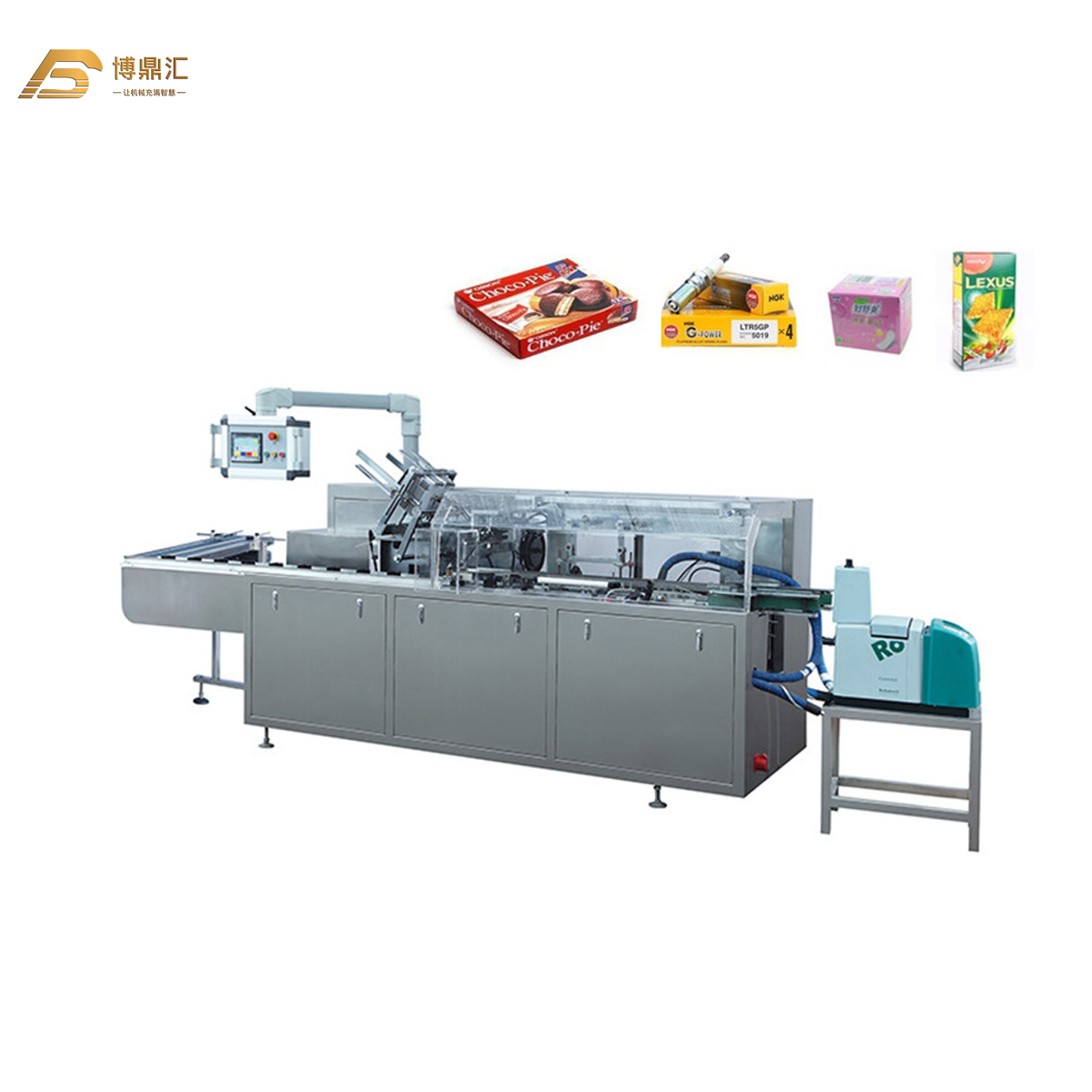

The Toothpaste Tube Cartoning Machine Automatic Cartoner is a masterclass in precision engineering, meticulously crafted to transform your secondary packaging workflow. When observing the machine in operation, you will notice the rhythmic, quiet hum of its synchronized servo motors and the smooth, frictionless glide of the stainless steel pushers as they gently yet firmly insert products into perfectly erected cartons. This system eliminates the bottleneck of manual boxing, ensuring that every toothpaste tube, cosmetic jar, or medicinal pouch is packaged with flawless consistency. By automating the delicate processes of carton opening, product loading, flap folding, and final sealing, this equipment drastically cuts down on human error and labor costs. The tactile quality of the heavy-gauge SS304 stainless steel frame speaks to its industrial durability, designed to withstand the rigorous demands of continuous production environments. Beyond just boxing items, it provides a hygienic, reliable, and aesthetically perfect finish to your retail-ready products, elevating your brand presentation while maximizing operational throughput.
Application: | Cosmetic cream, paste, liquid, oil, food, medicine, etc |
Speed: | 10-70boxes/min |
Voltage: | 220/380 50-60hz |
Air pressure | 0.5-0.8Mpa |
Material: | Stainless steel |
Equip your facility with a machine that redefines reliability and precision. This cartoning system is built from the ground up to address the most demanding packaging challenges, ensuring that your production line operates at peak efficiency with minimal intervention. The integration of world-renowned electrical components guarantees a responsive, long-lasting performance that you can trust day in and day out.
All-in-One Functionality: Seamlessly combines carton erection, precise product insertion, flap folding, and secure sealing into one continuous, fluid motion.
Exceptional Reliability: Engineered for 24-hour uninterrupted operation, maintaining a remarkably low defective rate of just 1‰ to minimize material waste.
Premium Componentry: Utilizes internationally recognized electrical parts, ensuring rapid response times, electrical stability, and extended machine lifespan.
Unhindered Accessibility: Thoughtfully designed with a compact footprint and logical layout, making routine maintenance and mechanical adjustments straightforward and time-efficient.
Flawless Finish: The gentle handling mechanisms ensure that the outer cartons remain pristine, free from scratches or dents, preserving the premium look of your packaged goods.
Scaling up your output requires machinery that can keep pace with aggressive production targets. This automatic cartoner is specifically calibrated to handle the intense demands of modern manufacturing facilities, bridging the gap between medium-scale operations and massive industrial outputs. By stabilizing your secondary packaging speed, it ensures your entire facility runs like clockwork.
High-Speed Output: Capable of processing 10 to 70 boxes per minute, allowing operators to fine-tune the pace according to your upstream supply rate.
Continuous Operation: Built for endurance, the robust mechanical architecture supports 24-hour continuous, fault-free running, virtually eliminating costly downtime.
Labor Optimization: By fully automating the secondary packaging phase, facilities can reallocate human resources to higher-value operational tasks, significantly reducing overhead costs.
Maximized Yield: The synchronized feeding and cartoning mechanisms ensure a steady, uninterrupted flow, dramatically boosting your daily production volume without sacrificing quality.
In an era of diverse product lines and frequent SKU changes, rigid machinery is a liability. We designed this cartoning equipment to be highly adaptable, accommodating an extensive array of product types and carton dimensions without the need for complex, time-consuming retooling. This flexibility is paramount for facilities managing diverse product portfolios.
Multi-Format Handling: Effortlessly processes various primary packaging formats, including aluminum tubes, plastic squeeze tubes, composite tubes, small bottles, and flexible pouches.
Tool-Less Adjustments: Features intuitive, easy-to-adjust mechanisms that allow operators to switch between different carton sizes swiftly, drastically reducing changeover times.
Versatile Industry Application: Whether you are packaging thick cosmetic creams, liquid pharmaceuticals, or granular food items, the machine adapts its handling dynamics to suit the product's specific physical properties.
Future-Proof Design: As your product portfolio expands, the machine's flexible parameters ensure you won't need to invest in entirely new equipment for every new box size.
True automation goes beyond mere movement; it requires intelligent oversight. This cartoner acts as its own quality control inspector, utilizing advanced sensors and smart logic to prevent errors before they occur, safeguarding your materials and maintaining absolute consistency throughout the packaging run.
Advanced PLC & HMI: At the heart of the machine is a sophisticated PLC programmable control system paired with a highly responsive Touch Screen Human-Machine Interface, offering real-time data on speed, quantity, and machine status.
Smart Sensor Synchronization: Equipped with precision photoelectric tracking that dictates a strict \"No Product, No Carton\" rule, preventing the machine from erecting an empty box if a product is missing from the conveyor.
Automated Diagnostics: In the rare event of a jam or carton shortage, the system instantly triggers an automatic alarm and displays the exact fault reason on the screen, allowing for immediate resolution.
Waste Reduction: By eliminating empty cartons and misloads, the intelligent logic maximizes the utilization of your packaging materials, directly improving your bottom line.
When dealing with pharmaceuticals, cosmetics, and food products, hygiene and safety are non-negotiable. The physical construction of this cartoning machine reflects a deep commitment to sanitary design and operator protection, meeting the stringent requirements of highly regulated manufacturing environments.
Sanitary SS304 Construction: The entire machine body is forged from premium SS304 stainless steel, providing a smooth, corrosion-resistant surface that is exceptionally easy to clean and sanitize.
Comprehensive Safety Shielding: All moving parts, gears, and transmission systems are fully enclosed within protective covers, drastically reducing the risk of workplace accidents and operator injury.
Regulatory Readiness: The meticulous material selection and hygienic design principles align perfectly with international manufacturing standards, facilitating easier compliance with GMP, CE, and ISO certifications.
Contamination Prevention: The enclosed structure not only protects the operator but also shields the product and cartons from environmental dust and debris during the packaging process.
A truly effective packaging solution does not operate in isolation. This automatic cartoner is engineered with a holistic view of your factory floor, designed to act as a seamless bridge within a fully automated, end-to-end production line. It transforms fragmented processes into a singular, unified workflow.
Compact Footprint: Despite its powerful capabilities, the machine features a highly rational, space-saving design that integrates easily into existing facility layouts without requiring massive spatial restructuring.
Upstream Synchronization: Can be flawlessly connected to automatic tube filling and sealing machines or pouch form-fill-seal equipment, creating a continuous flow from primary to secondary packaging.
Downstream Connectivity: Easily interfaces with subsequent processing equipment, including date coders, automatic checkweighers, and 3D transparent film overwrapping machines.
Unified Control Potential: The standardized communication protocols within the PLC allow for potential integration into broader factory execution systems, paving the way for a highly automated setup.
Capital expenditures must yield long-term returns. We have engineered this cartoning machine to be a relentless workhorse, minimizing the hidden costs associated with frequent breakdowns, rapid part wear, and constant maintenance interventions. It is built to run reliably, year after year.
Precision Transmission: All transmission and friction components are manufactured to strict, exacting standards, ensuring smooth kinetic transfer and significantly reducing mechanical wear over years of heavy use.
Extended Component Life: By utilizing high-grade metals and optimized friction pathways, the machine requires far fewer replacement parts during its lifecycle compared to standard market alternatives.
Ultra-Low Defect Rate: Operating with a proven defective rate of just 1‰, the machine ensures that nearly every single carton that enters the system exits as a perfect, saleable product.
Simplified Upkeep: The logical mechanical layout and readily accessible lubrication points mean that routine preventative maintenance can be performed quickly, keeping your line running with minimal disruption.
Partnering with the right equipment supplier is just as critical as the machinery itself. We are dedicated to empowering large-scale manufacturing facilities with robust, innovative packaging technologies that drive growth and operational excellence. Our commitment extends far beyond the initial delivery, ensuring you have a reliable partner for the lifespan of your equipment.
Industry Expertise: Decades of specialized experience in designing and manufacturing high-performance automated packaging solutions for highly regulated sectors.
Stringent Quality Control: Every machine undergoes rigorous, multi-stage testing and continuous 24-hour dry-run trials before it ever leaves our facility, guaranteeing out-of-the-box reliability.
Comprehensive Technical Support: We provide extensive training resources, rapid-response troubleshooting, and detailed maintenance guidance to ensure your engineering team is fully equipped.
Customized Engineering: We understand that no two production lines are identical; our engineering team works closely with you to tailor machine parameters and integration points to your exact facility requirements.
Global Component Sourcing: By utilizing universally recognized brands for critical electrical and pneumatic parts, we ensure that you can easily source replacements locally, no matter where your facility is located.
Investing in automated packaging infrastructure involves careful consideration. Below, we address some of the most technical and operational inquiries we receive from procurement and engineering professionals regarding our cartoning solutions.
Q1: How does the machine handle variations in carton thickness and quality?
A: The equipment features highly sensitive, adjustable suction and erection mechanisms. By fine-tuning the vacuum pressure and mechanical guides, the machine can reliably open and form cartons of varying GSM (Grams per Square Meter) without crushing or misfeeding, ensuring smooth operation even with slightly warped cardboards.
Q2: What is the procedure for changing over to a different tube or carton size?
A: Changeovers are designed to be fast and largely tool-less. Operators use calibrated handwheels and quick-release levers to adjust the magazine width, product pusher stroke, and guide rails. A standard size changeover can typically be completed by a trained operator in under 15 to 20 minutes, minimizing line downtime.
Q3: Can the PLC be integrated with our existing factory SCADA or ERP systems?
A: Yes. The high-end PLC system utilized in our cartoner supports standard industrial communication protocols. With appropriate networking modules, it can export real-time production data, fault logs, and operational status to your centralized SCADA or ERP systems for comprehensive line monitoring.
Q4: How does the \"No Product, No Carton\" feature mechanically function?
A: The machine utilizes precision photoelectric sensors positioned along the infeed conveyor. If the sensor detects an empty slot where a tube or pouch should be, it sends an immediate signal to the PLC. The PLC then temporarily disables the vacuum suction cup for that specific cycle, preventing a carton from being pulled from the magazine, thereby saving packaging material.
Q5: What maintenance protocols are required to maintain the 1‰ defective rate?
A: Maintaining this ultra-low defective rate requires adherence to a simple but consistent preventative maintenance schedule. This includes daily cleaning of the photoelectric sensors, weekly lubrication of the main drive chains and guide rails, and monthly inspections of the vacuum suction cups and pneumatic seals. The HMI also provides proactive maintenance reminders based on operational hours.
