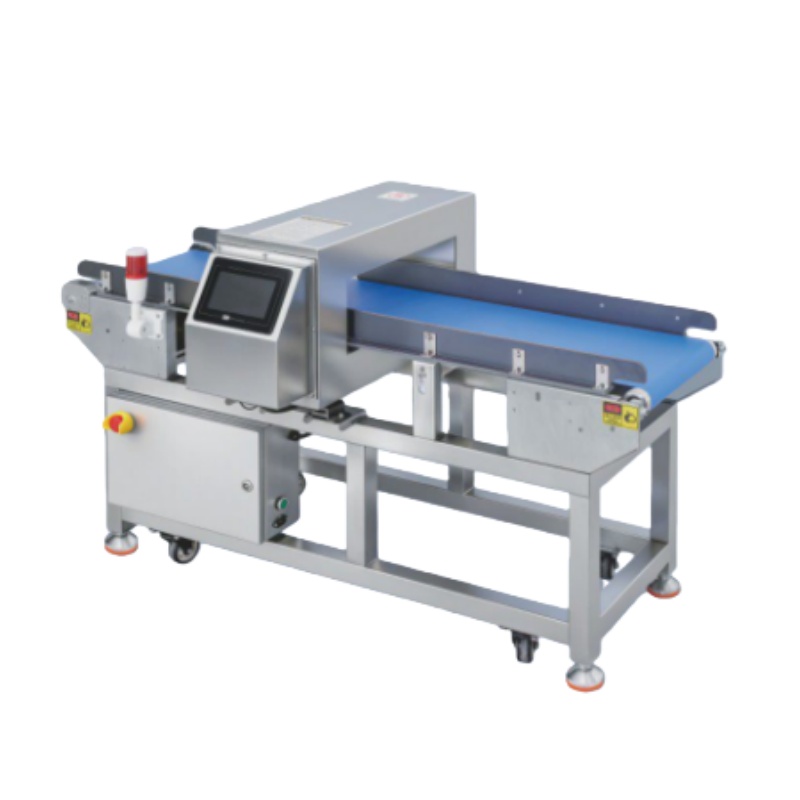

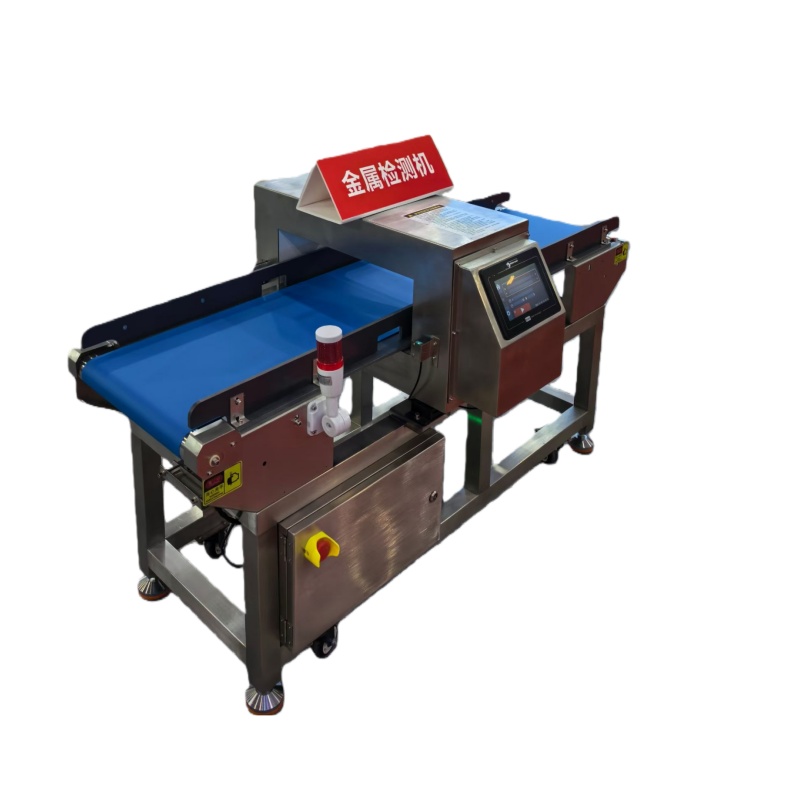

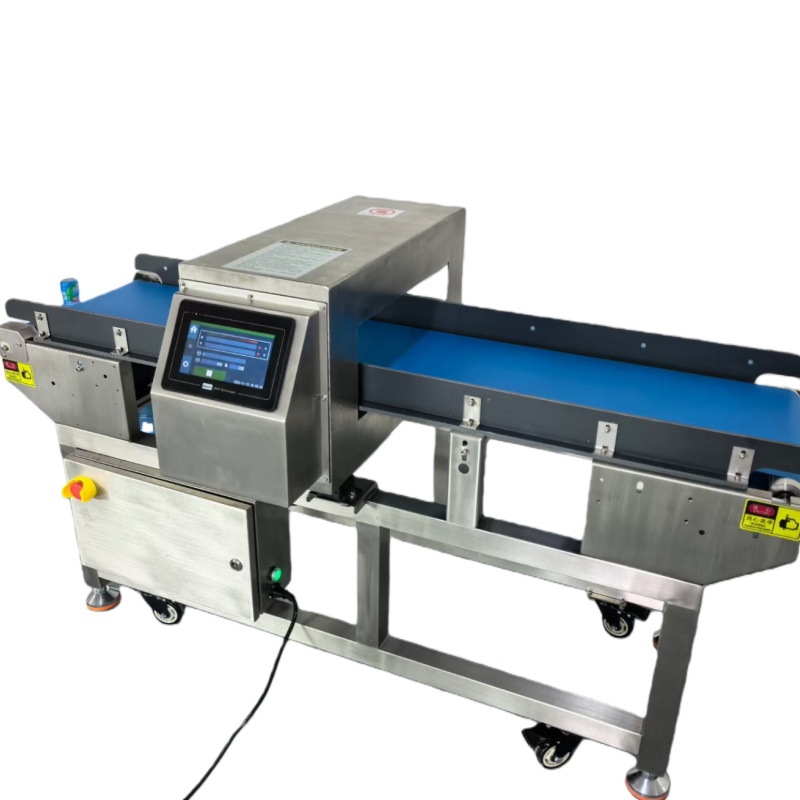

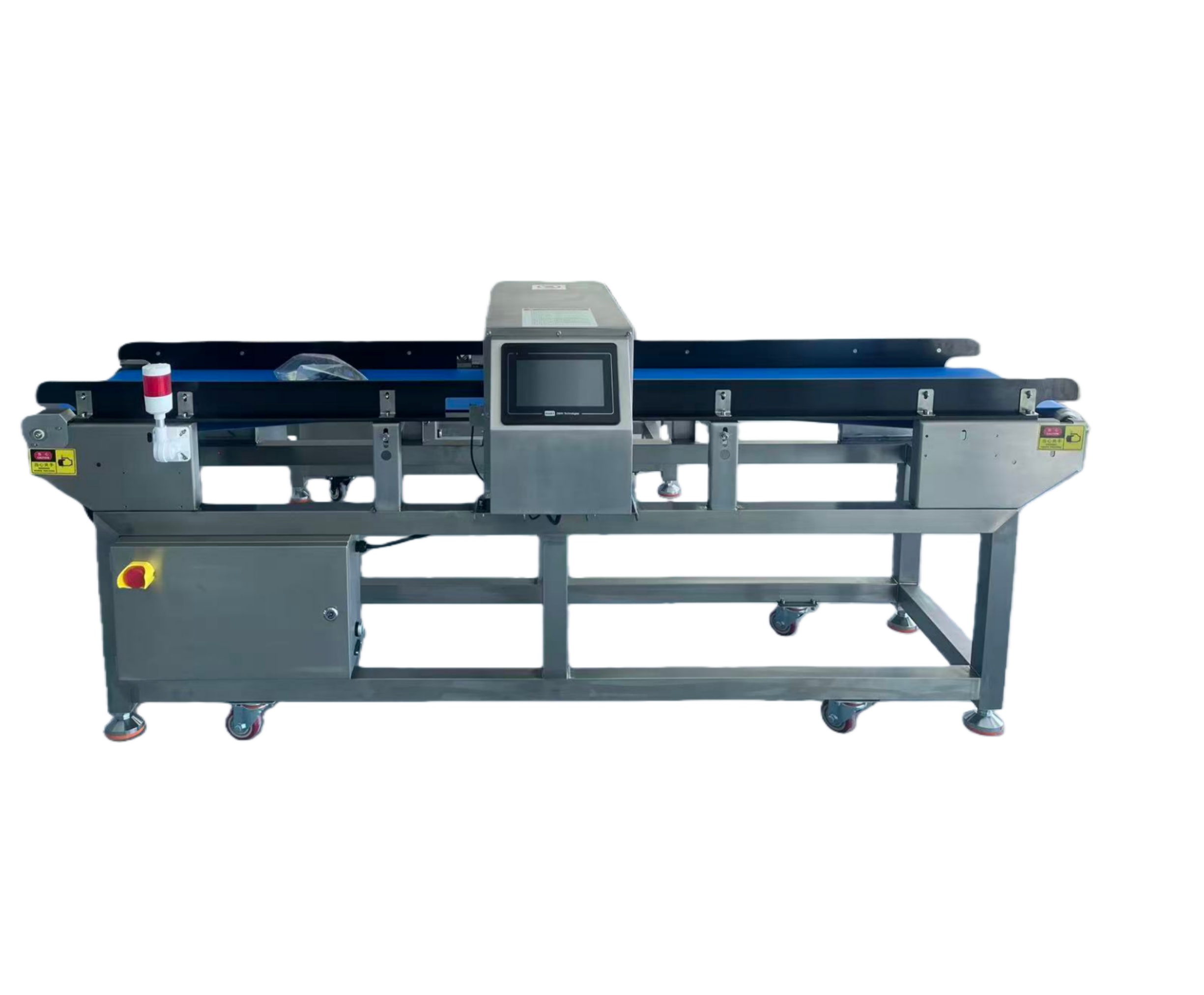

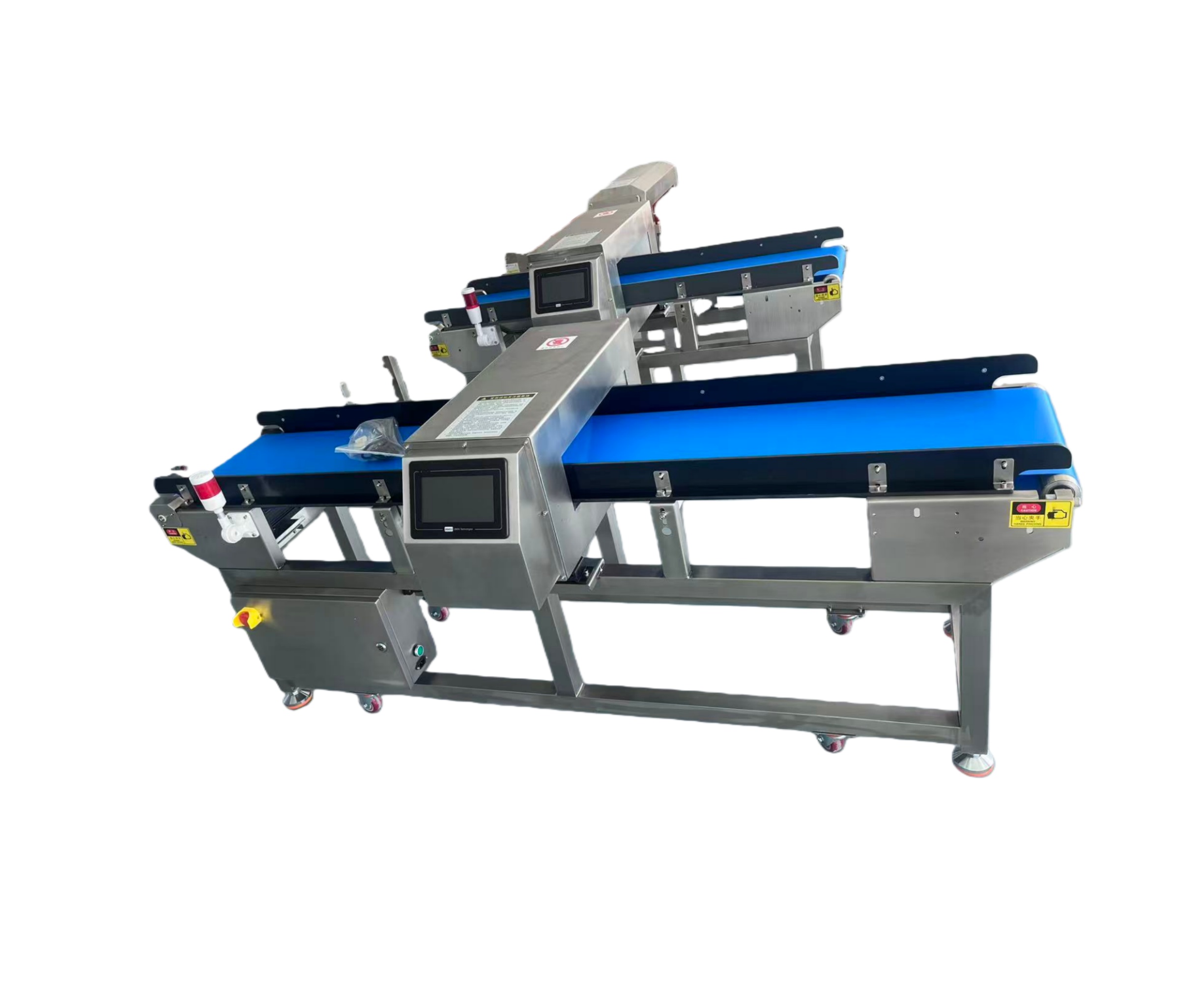

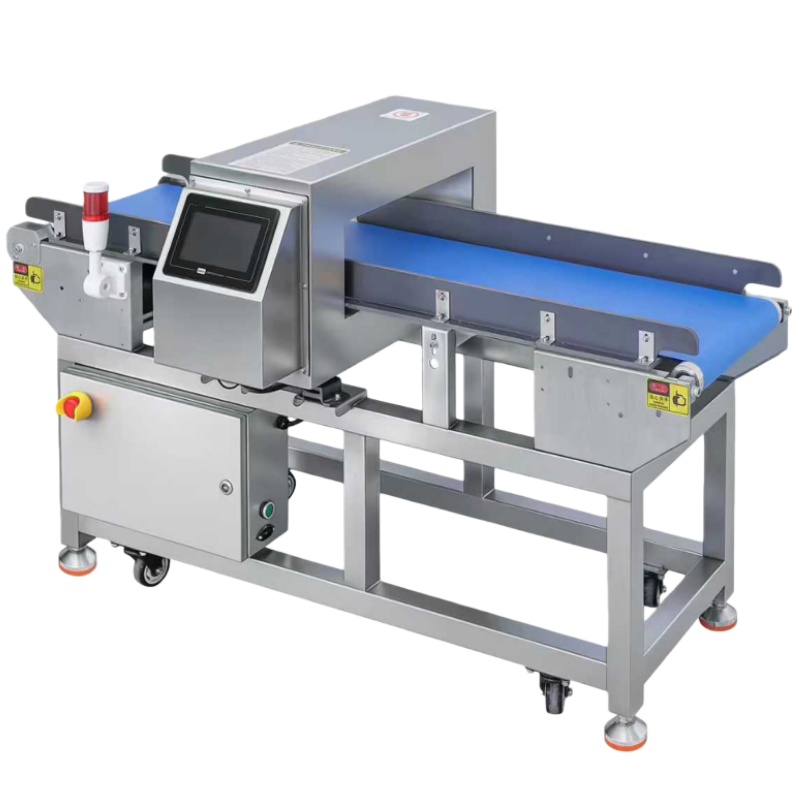

Snacks food bread packing line metal detector machine

Features:

1. We have close technical cooperation with Mettler Toledo, a world leader in weighing and metal detection technology.

2. The core part is carefully developed using leading digital technology and original imported chips, and the detection coil is encapsulated once inside Molding has the characteristics of high detection accuracy, stable performance, and strong resistance to external interference.

3. Multiple frequencies can be used according to product characteristics, and it has the function of storing product testing data, which can store more than 100 types Product testing data has a wide range of applications.

4. Adopting intelligent recognition technology, with self-learning and memory functions, it can automatically recognize and remember the characteristics of the product, effectively eliminating various issues The interference caused by the 'product effect'.

5. A simple and friendly operating interface, using a conversational LCD display screen, which can be quickly and conveniently set through a simple key control interface Parameters; It can detect multiple products containing different product signals (characteristics), and a single setting can ensure extremely high detection accuracy, No need to readjust, set the program.

6. Meet the requirements of HACCP, GMP, and FDA.

7. Seismic and waterproof design, dustproof and waterproof functions comply with IP-66/I-P-65 international certification, anti vibration and noise absorption, and can adapt to Poor working environment.

 8. Various removal devices (such as flippers, air blowers, push rods, etc.) and lightweight, large packaging specific types can be used according to user needs Load bearing body design.

Product Information

1.

Product weight:50g

Bagged products

Packaging Form:  Carton Packaging  Unpackag Regular Bag

2 Equipment name: Metal detection machine

3 Equipment model: BDH-HXCW-JS2010

4-channel width: 200mm

Belt width: 160mm

6-channel height: 100mm

7. Overall dimensions: length 1600mm, width 350mm, height 950mm

8. Whole machine weight: 120KG

9. Material of the whole machine: SUS304

Belt height above ground: 700mm (fixed)+100mm (adjustable)

11 Load bearing range: 20kg

12 motor power: 120W

13. Overall power: 200W

14 Input voltage: AC 220V, 50Hz

15. Detection accuracy: Fe0.8mm, nofe1.0mm, sus2.0mm. The actual accuracy is related to product efficiency.

16 Alarm methods: Sound and light alarm

17 Removal device: Alarm shutdown

18 Belt speed:  Fixed speed: 26 meters  Customization: 10-30 meters

19 Belt Material: Blue Food Grade Other:

   When facing the display screen in the direction of 20 conveyors, from left to right

21 Product Testing Data Storage 100 Types

22 Operation Methods Touch Screen

23. Service life of 10 years

Note: The above sensitivity is the detection sensitivity obtained by placing the detection card on the belt surface during the testing of other customer products, and passing through the detection channel of the conveyor belt. The actual detection is

Sensitivity may vary depending on the product being tested or the usage conditions.
