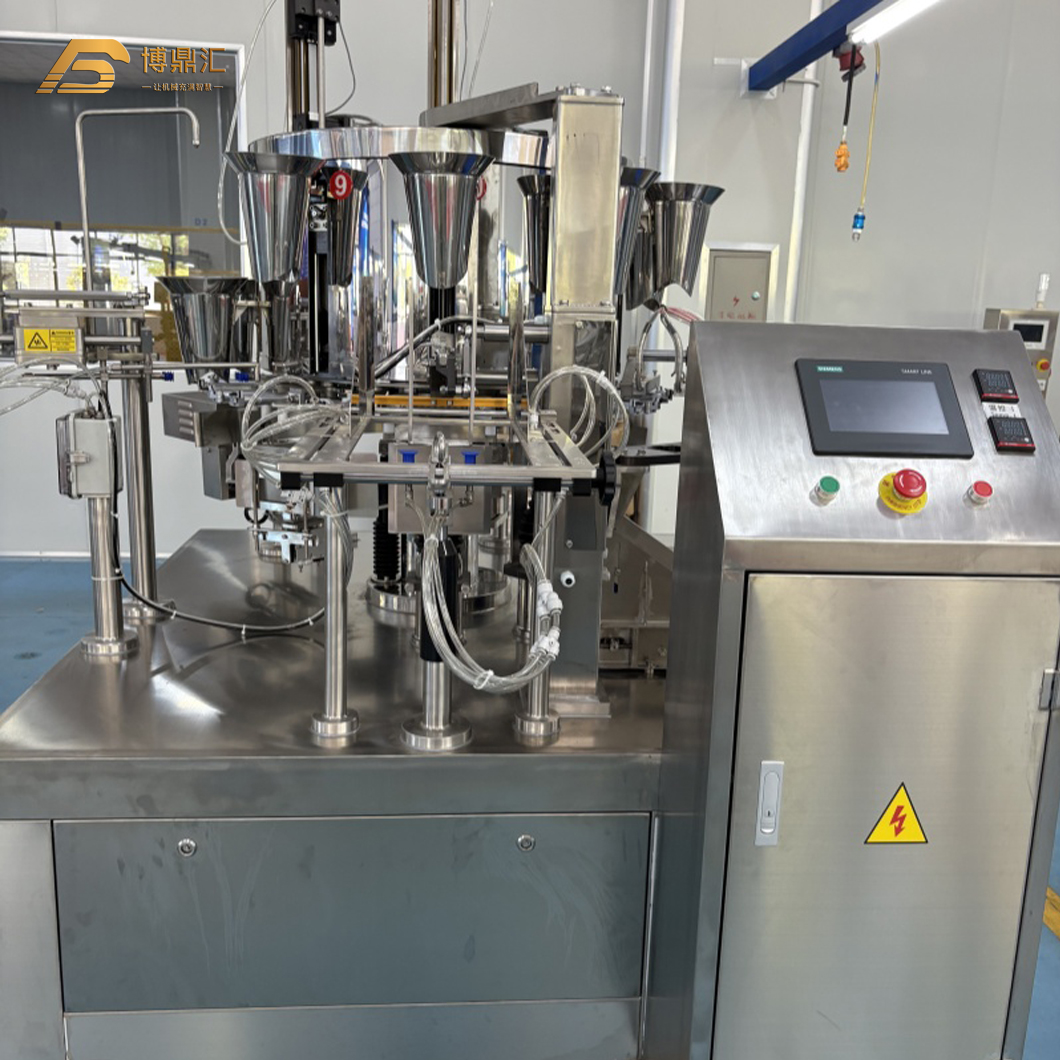

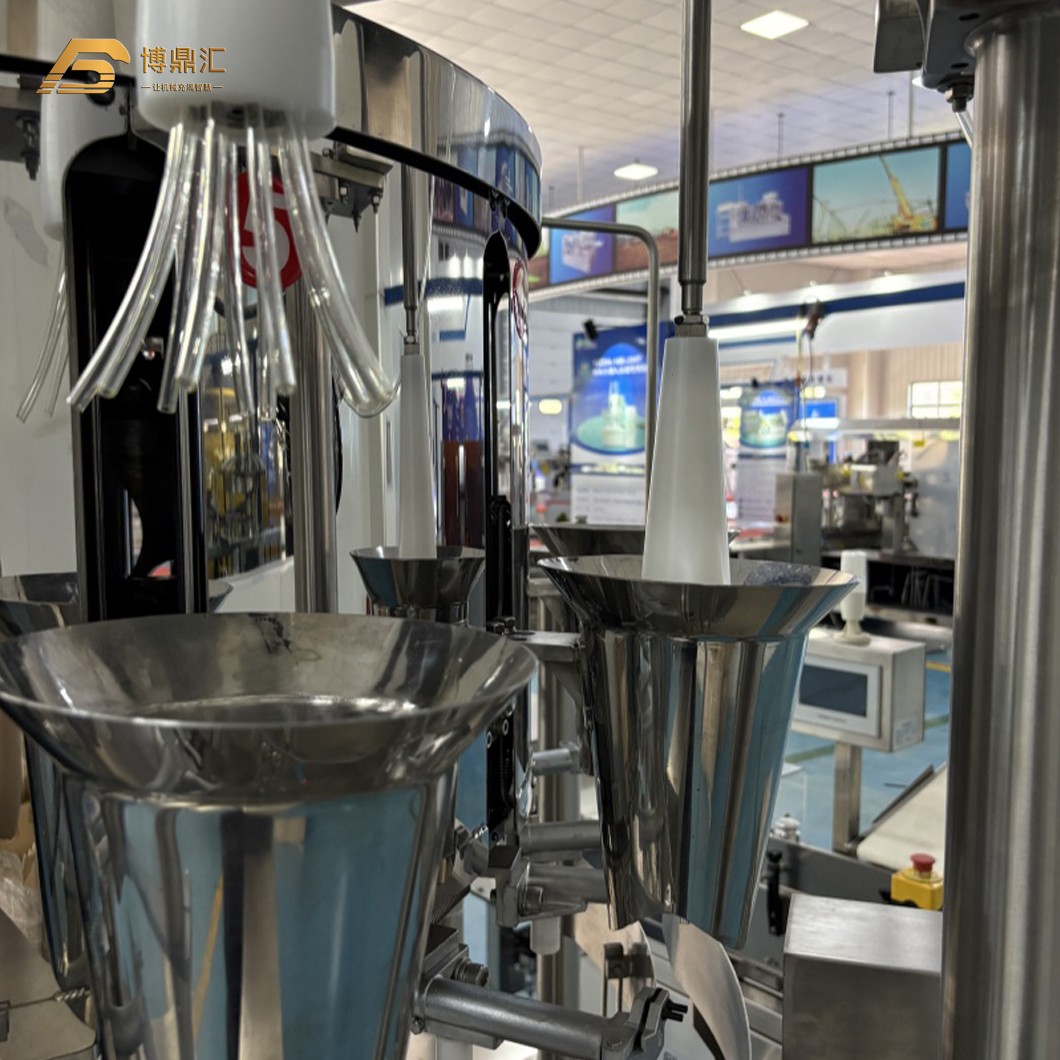

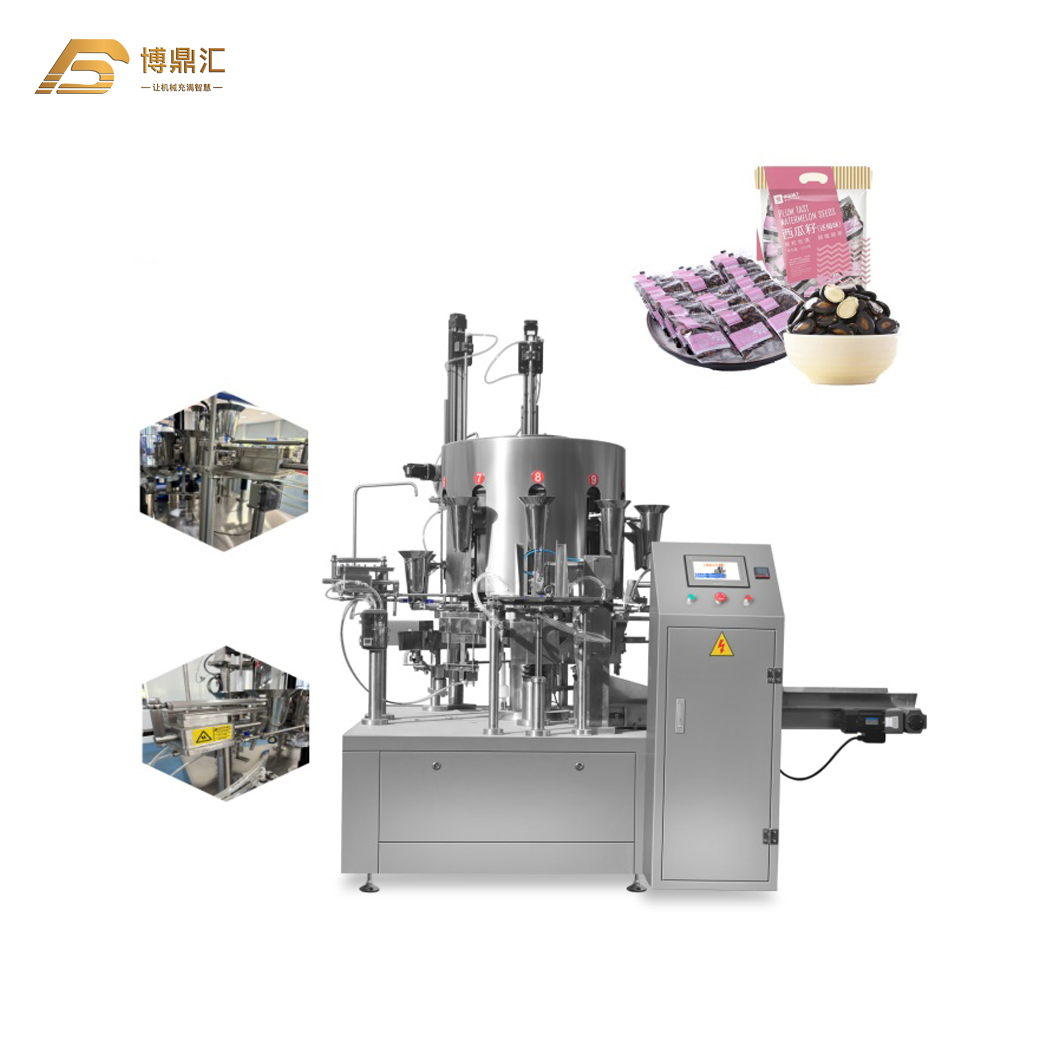

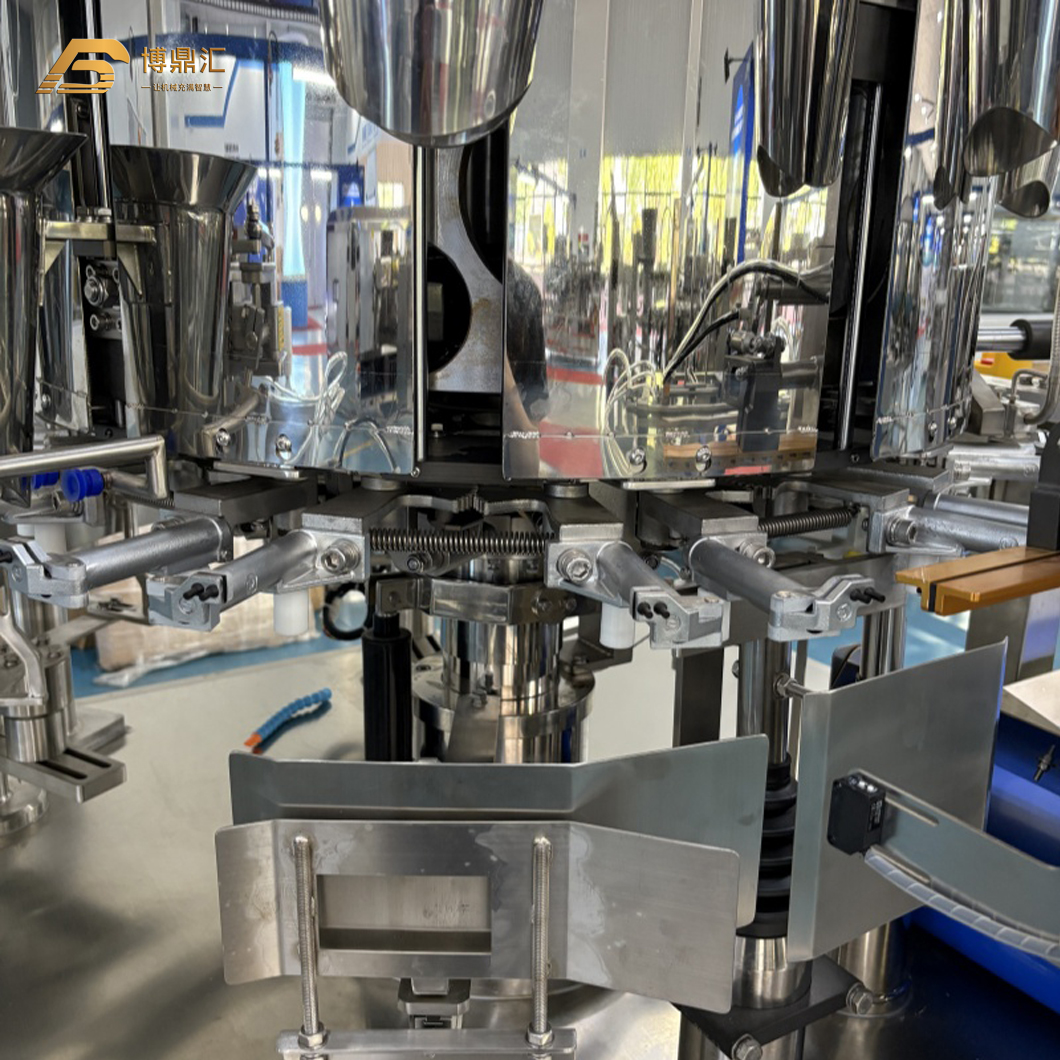

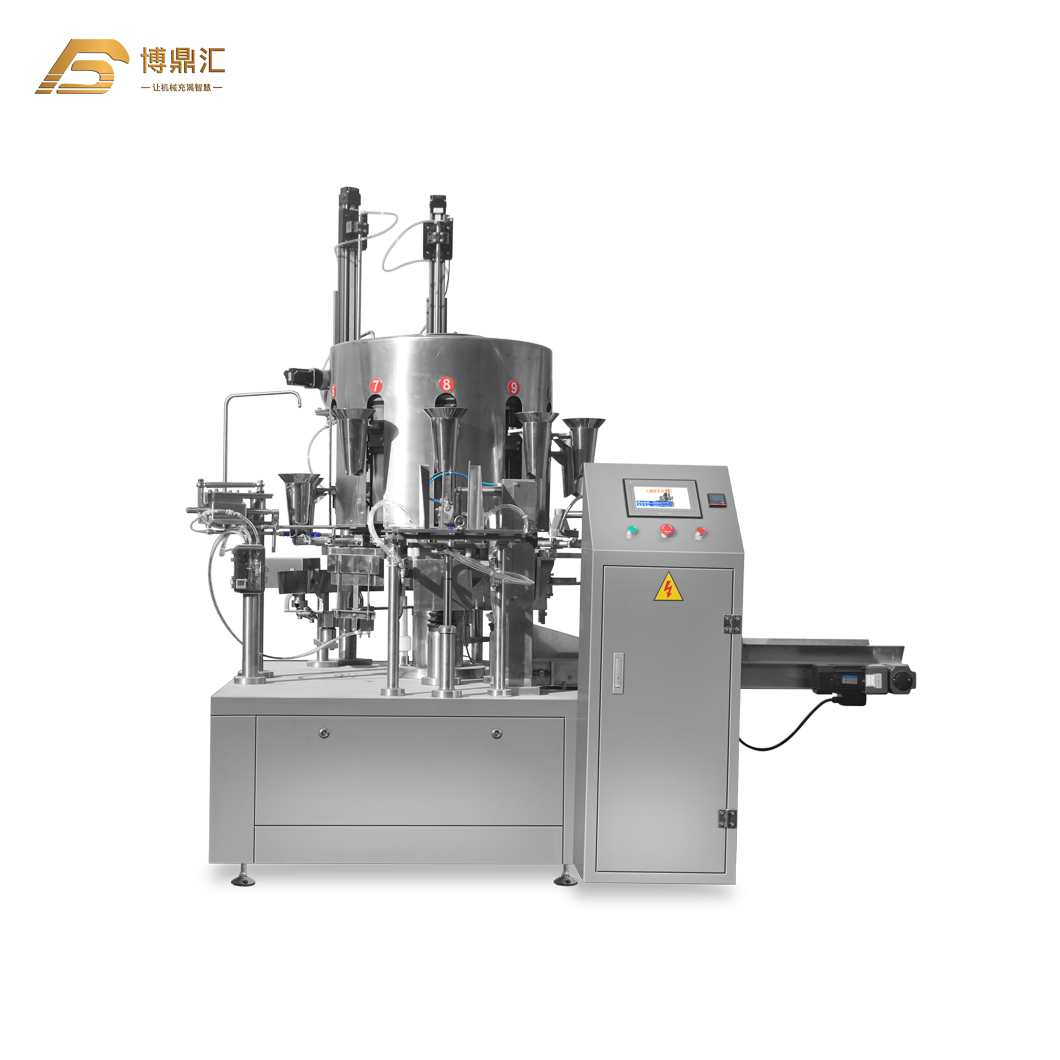

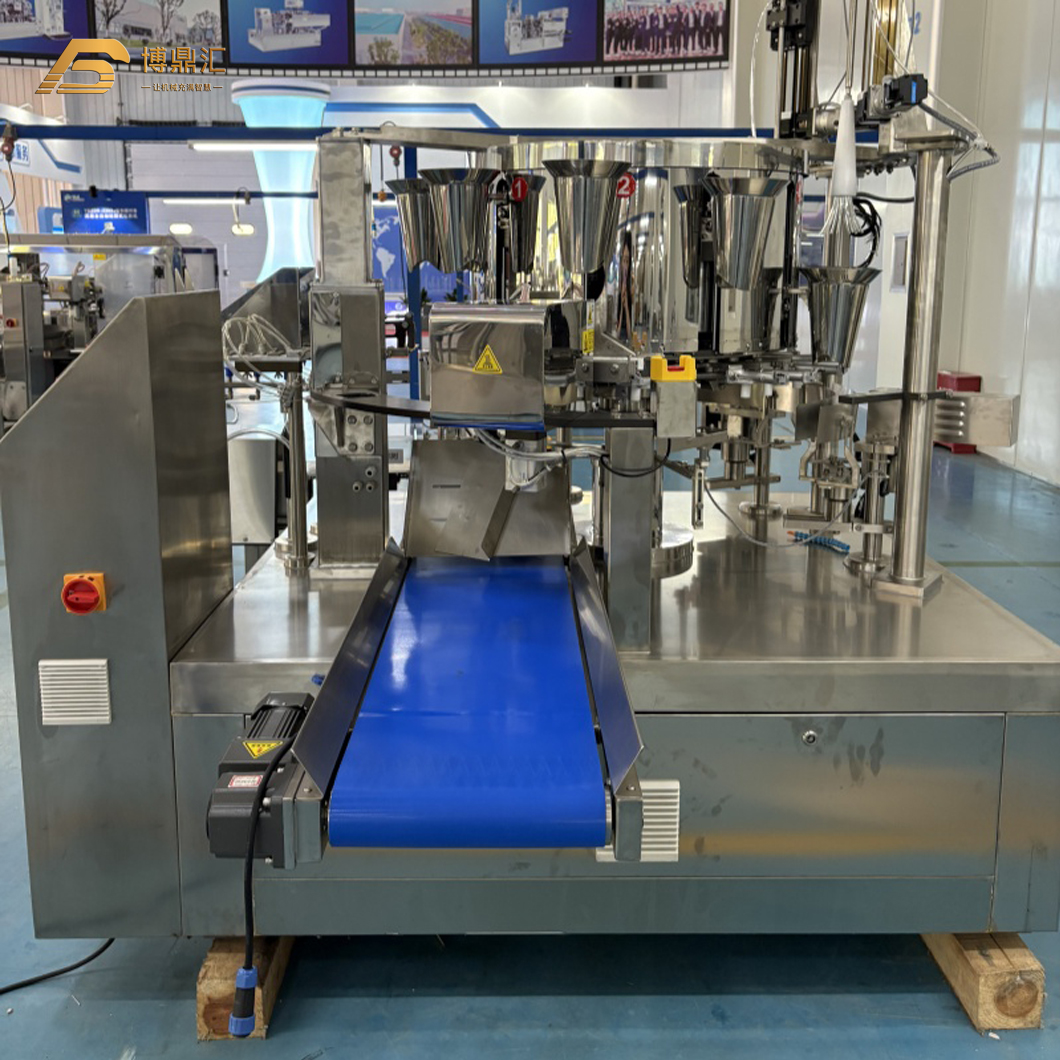

Small Bag in Big Bag Packaging Machine for Snacks Cakes Biscuits is used for packing small bags into large bags. It is suitable for products that are not convenient for quick and one-time bagging.
1. PLC adopts the German Siemens brand, and the pneumatic components adopt well-known brands such as German Festo, Japanese SMC, and Taiwan Yadeke, with strong program compatibility, strong durability, and friendly human-computer interface;
2. The action of the whole autoamtic packaging machine adopts the working principle of full cam, with only one power motor, strong synchronization, and avoids the risk of collision;
3. High-strength carbide cam, 21 precision machining, small wear, easy to maintain and clean, long service life.
4. Adjust the size of the machine clip with one click on the touch screen, which realizes convenient and fast adjustment of the bag width.
Parameter:
Materials of Equipment | 304 stainless steel (food contact parts) |
Pneumatic Component | Germany FESTO (standard parts), Taiwan Yadke (non-standard parts) |
Driving Mode | Mechanical transmission (cam gear lever full mechanical mode) |
Applicable Materials | Preserved Fruit Cakes, Sunflower Seeds, Peanuts, Puffed Snacks, Small bag in big bag, etc. |
Packaging Speed | 20-30 bags/min (depending on the product and feeding method) |
Packaging Bag Material | Self-standing bag, zipper bag, four-sided sealed bag, three-sided sealed bag, paper bag (surface covered with paper) and so on |
Packaging Bag Specifications | Width 160mm-300mm / Length 200mm-500mm |
Aggregate Capacity | The main engine power is about 9.5KW |
Gas Consumption | 0.6m3/min |
Drive Power Supply | Three-phase 380V 50Hz (non-standard three-phase 380V 60Hz) |
Machine Shape | 2405mm*2209mm*2312mm(L*W*H) |
Machine Weight | 1.8T (mainframe) |
F&Q
Who are we?
A: As a leading manufacturer of packaging equipment, Shanghai Bodinghui Automation Packaging Machinery specializes in designing and producing high-performance packaging systems for industries worldwide.
With over 15 years of experience, we deliver cutting-edge technology combined with worldwide reliable engineering.
How do I know which machine I need?
A: Please provide your requirements and circumstances in as much detail as possible. This information is basic and important to help us recommend the right machine for you.
What details should I provide?
A: Usually, we need to know the details of your product, the material, size, shape of the bag, the weight of the package and so on. Good communication is very important, so if you have questions, don't hesitate to ask and get in touch.
Where is your factory located?
A: We are located in the Jinshan District of Shanghai. We are always here to welcome you.
How about your warranty?
A: Our warranty is 12 months.
Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spare parts could be provided at any time.
