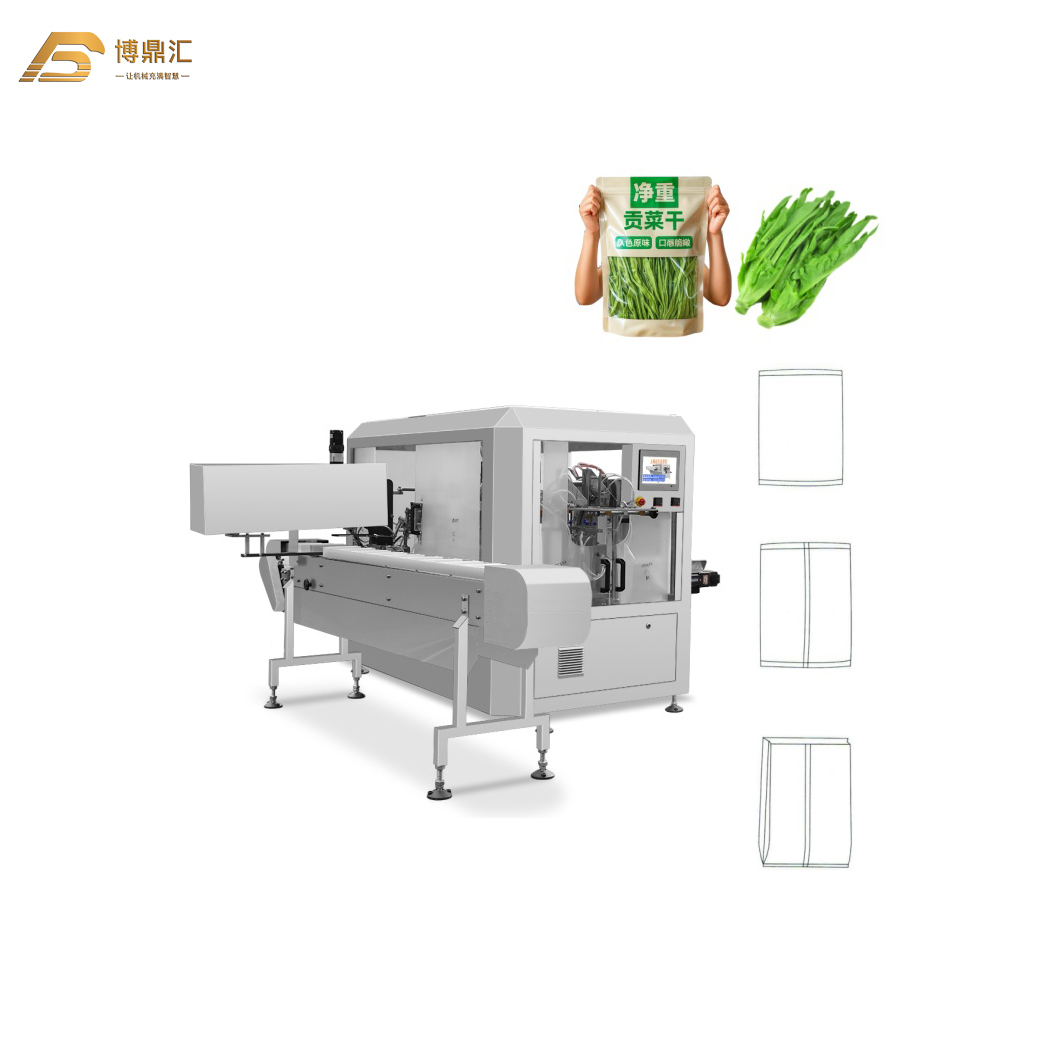

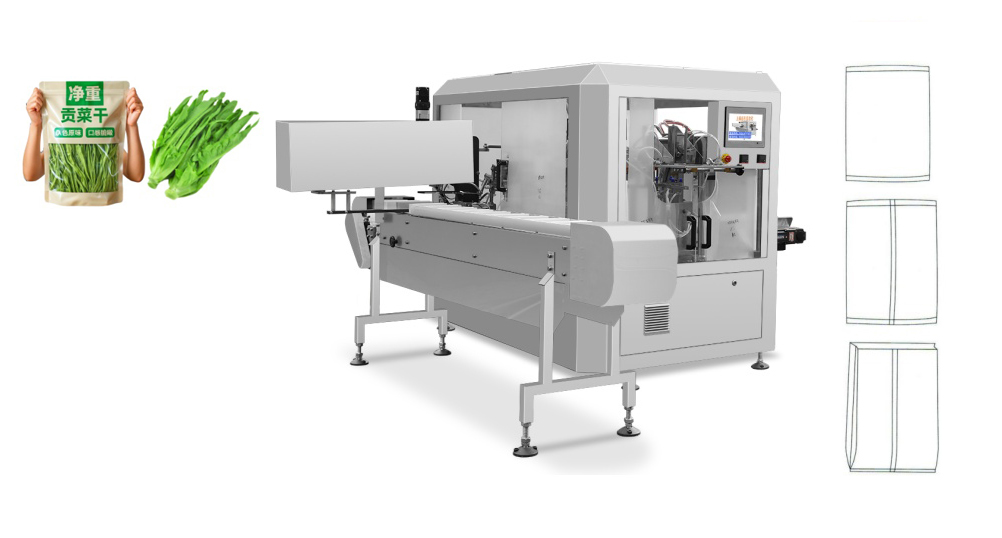

The Side-push Bag Feeder Automatic Pouch Feeding Packaging Machine represents a paradigm shift in complex packaging operations, specifically engineered to resolve the bottlenecks associated with multiple-product overwrap bags. When standing on the facility floor, operators will immediately notice the quiet, rhythmic hum of its single-motor, full-cam mechanical drive—a stark contrast to the clunky, jarring noises of traditional multi-motor systems. The tactile feedback of the heavy-duty 304 stainless steel frame conveys an immediate sense of industrial-grade durability, built to withstand the rigorous daily washdowns required in food processing environments. By utilizing a highly synchronized side-push feeding mechanism, this machine eliminates the chaotic, jam-prone feeding cycles that plague standard packaging lines. Facilities struggling with the intricate \"bag-in-bag\" presentation will find that this equipment smoothly guides, opens, and fills pre-made pouches with absolute geometric precision. The resulting finished product boasts a crisp, airtight seal that feels premium to the touch, instantly elevating the brand perception on the retail shelf. Furthermore, the intuitive interface transforms what used to be a grueling, hour-long mechanical changeover into a seamless, one-touch digital adjustment, drastically reducing operational downtime and maximizing the overall equipment effectiveness of your production floor.
Materials of Equipment | 304 stainless steel (food contact parts) |
Applicable Materials | Preserved Fruit Cakes, Sunflower Seeds, Peanuts, Puffed Snacks, Small bag in big bag, etc. |
Workflow | ① Bag up ② Reserve space ③ Open bag, stretch bag ④ Material 1 ⑤ Material 2 ⑥ Material ⑦ Straighten ⑧ Seal 1 ⑨ Seal Seal two ⑩ seal three |
Packaging Speed | 20-30 bags/min (depending on the product and feeding method) |
Packaging Bag Material | Self-standing bag, zipper bag, four-sided sealed bag, three-sided sealed bag, paper bag (surface covered with paper) and so on |
Packaging Bag Specifications | Width 160mm-300mm Length 200mm-500mm |
Aggregate Capacity | The main engine power is about 9.5KW |
Gas Consumption | 0.6m3/min |
Drive Power Supply | Three-phase 380V 50Hz (non-standard three-phase 380V 60Hz) |
Machine Shape | 2405mm*2209mm*2312mm(L*W*H) |
Machine Weight | 1.8T (mainframe) |
Achieving peak operational flow requires equipment that anticipates production challenges before they occur. This side-push packaging system is meticulously crafted to deliver uninterrupted performance, minimizing human intervention while maximizing output quality.

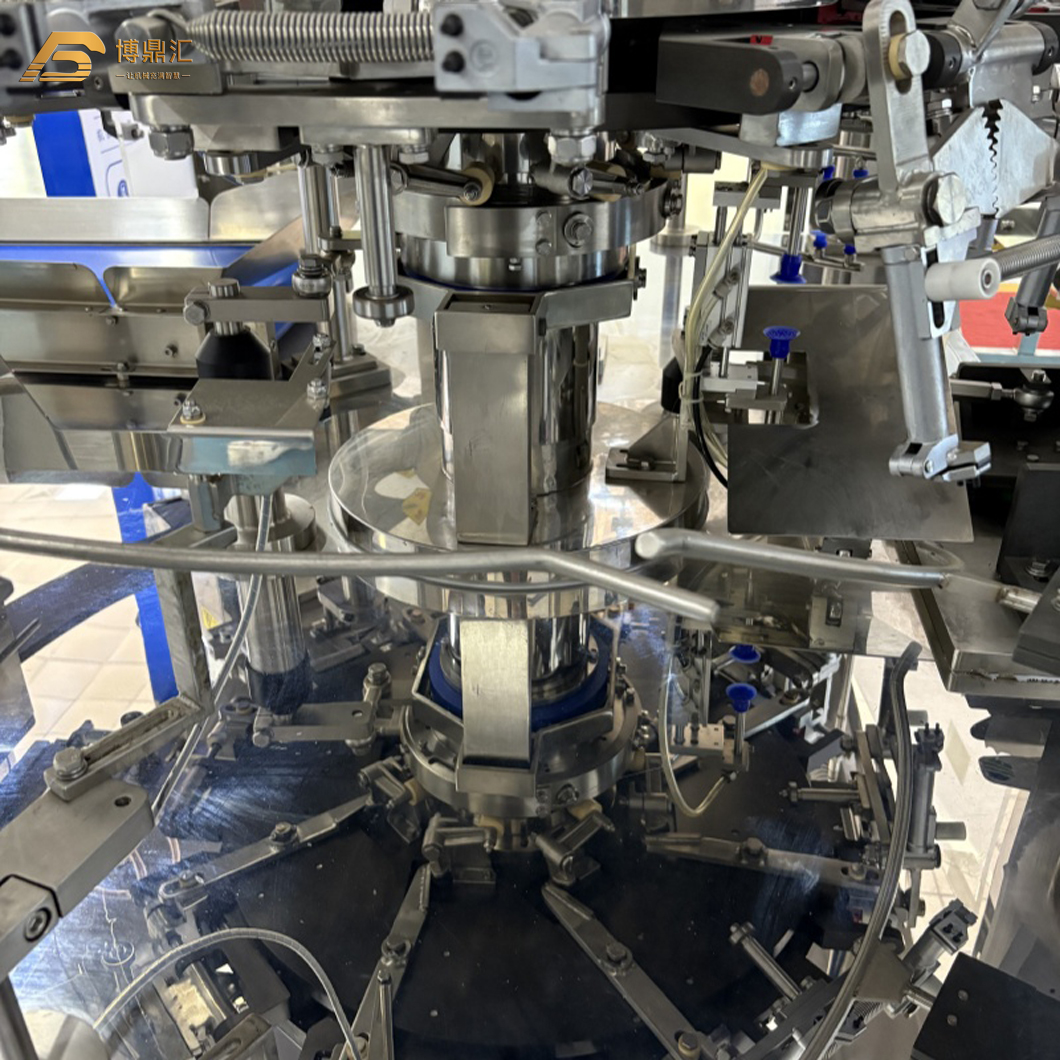

Harmonized Mechanical Synchronization: Utilizing a full-cam working principle driven by a single power motor, the machine operates with a rhythmic, collision-free precision that significantly extends the lifespan of moving parts.

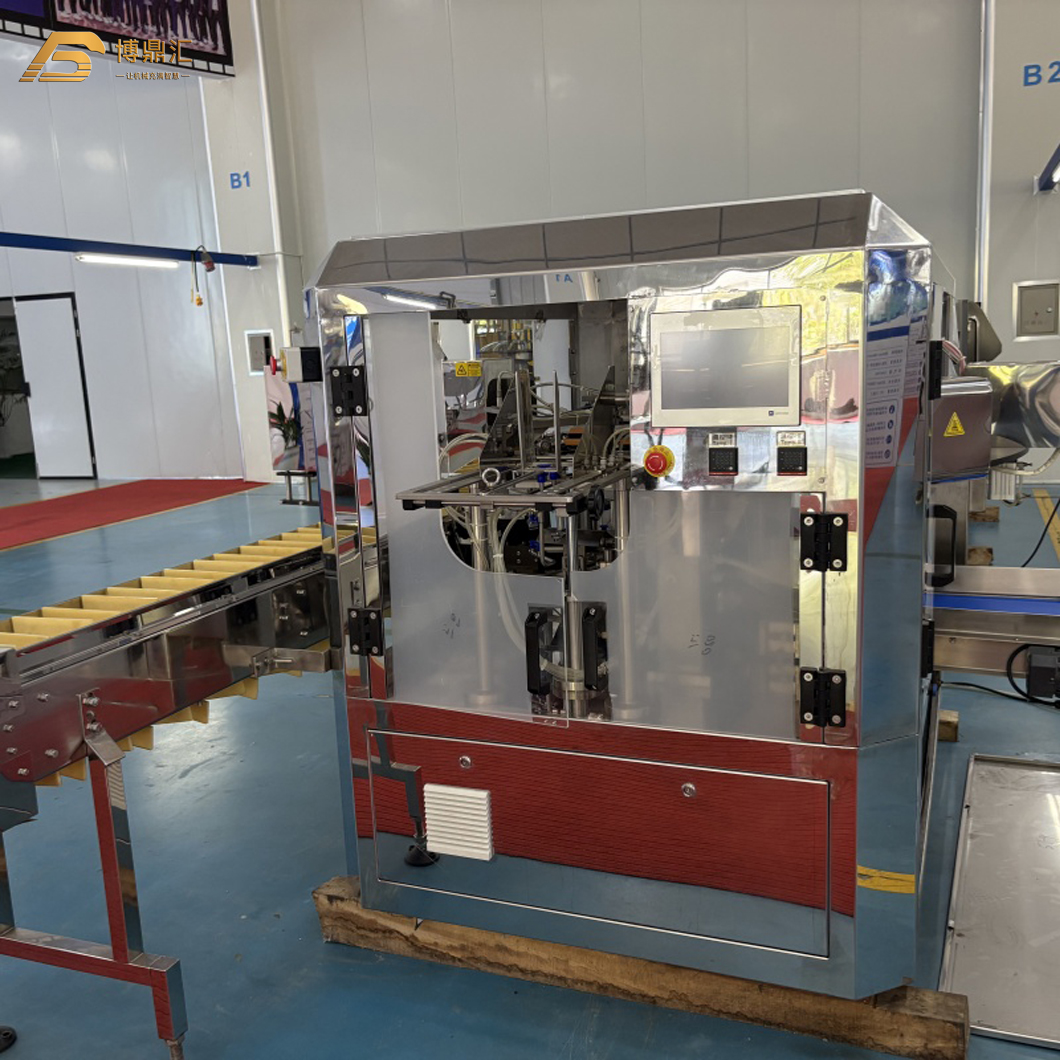

Frictionless Changeovers: Operators can adjust the machine clip dimensions with a single tap on the high-definition touch screen, instantly adapting to new bag widths without the need for manual tool adjustments.

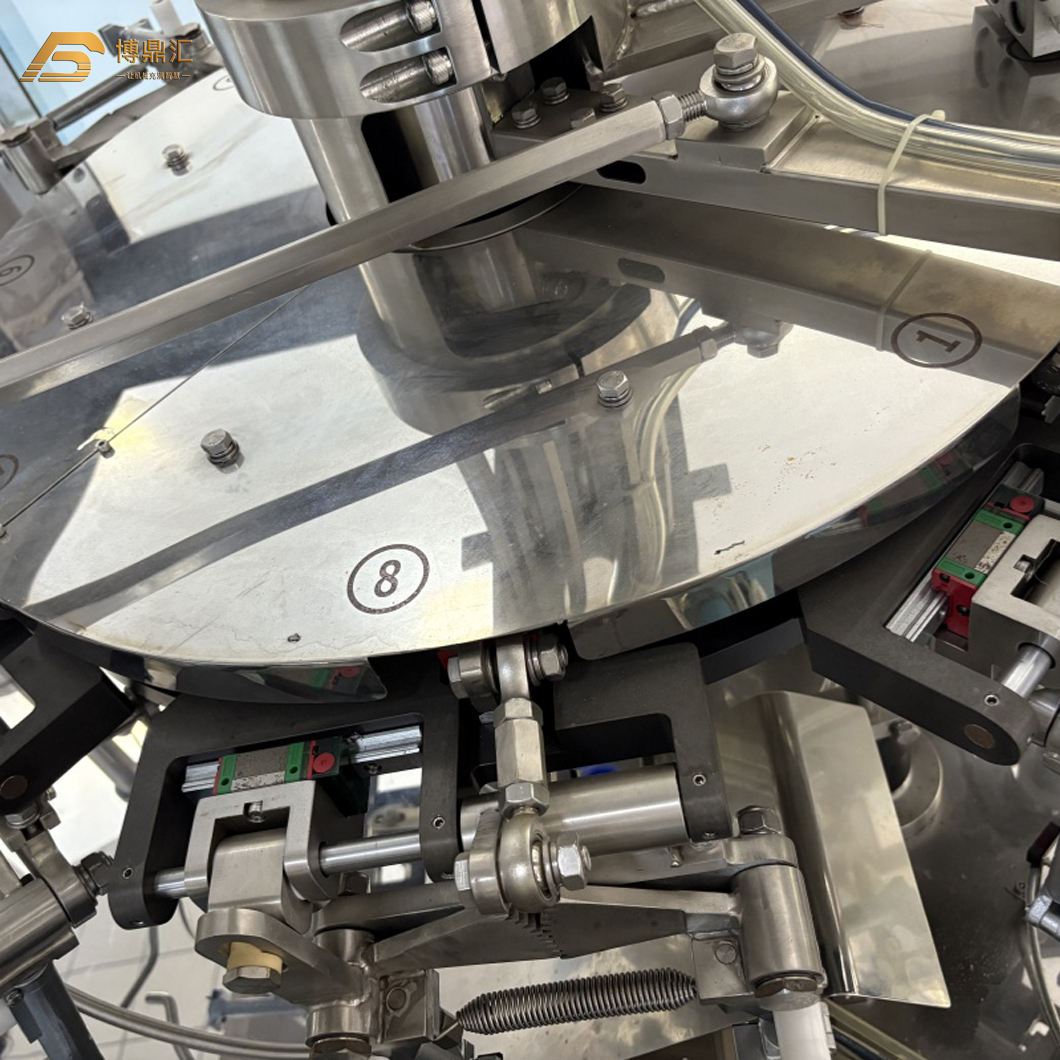

Unyielding Cam Durability: The core features a high-strength carbide cam subjected to 21 rigorous precision machining processes. This results in microscopic wear levels, ensuring a long service life and remarkably easy maintenance routines.
Intelligent Fault Prevention: The robust program compatibility ensures that the machine communicates flawlessly with operators, providing a friendly interface that preemptively alerts staff to potential feeding or sealing anomalies.
For procurement professionals, the true cost of equipment is measured by its uptime and longevity. This machine is fortified with an architecture of internationally recognized components, ensuring that unexpected breakdowns and costly maintenance pauses are virtually eliminated.
World-Class PLC Architecture: At the brain of the operation is the German Siemens PLC, delivering lightning-fast processing speeds and unparalleled program compatibility for complex packaging sequences.

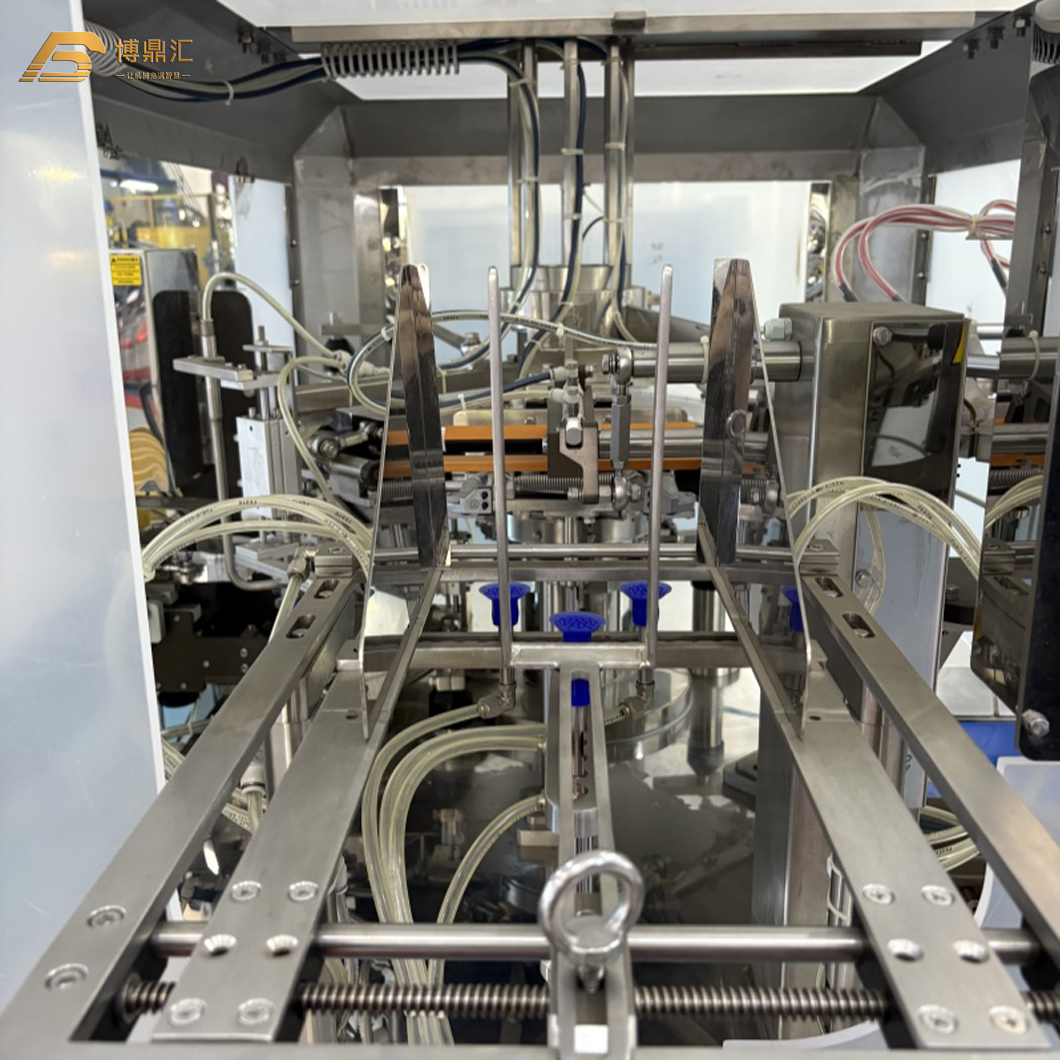

Premium Pneumatic Ecosystem: The pneumatic actions are governed by a triad of industry titans—German Festo, Japanese SMC, and Taiwan Yadeke. This guarantees that every mechanical breath the machine takes is smooth, powerful, and highly responsive.
Precision-Milled Alloy Core: The high-strength carbide cam, refined through 21 distinct precision machining stages, offers a near-indestructible foundation. It operates with minimal friction, dramatically lowering the long-term cost of ownership and spare parts replacement.
In modern manufacturing, throughput is the ultimate metric of success. This packaging system is engineered to accelerate your production timeline while maintaining absolute consistency across every single pouch.
Streamlined Drive Mechanism: By relying on a pure mechanical transmission powered by a single motor, the system achieves perfect synchronization. This eliminates the lag and collision risks often found in multi-motor setups.
Optimized Output Rates: Capable of sustaining a rigorous pace of 20 to 30 bags per minute, the equipment handles heavy, bulky, or complex overwrap tasks without breaking a sweat, ensuring daily quotas are met effortlessly.
Instantaneous Format Switching: The highly intuitive HMI allows for one-click adjustments of the gripper sizes. This transforms what is traditionally a lengthy mechanical changeover into a rapid, digital transition, keeping the line moving with minimal disruption.
Compliance with strict sanitary regulations is non-negotiable for food and pharmaceutical processing facilities. The structural integrity of this equipment provides absolute peace of mind regarding product safety and facility hygiene.
Sanitary Grade Construction: Every component that comes into direct contact with your product is forged from premium 304 stainless steel, offering exceptional resistance to corrosion, acidic food components, and rust.
Seamless Washdown Capabilities: The smooth, polished surfaces and thoughtfully engineered drainage angles prevent the accumulation of dust, debris, or biological contaminants, allowing for rapid and thorough daily sanitation protocols.
Audit-Ready Hygiene Standards: By utilizing materials that meet and exceed international food processing machinery standards, this equipment ensures that your facility remains fully compliant during rigorous quality and safety audits.
Consumer demands shift rapidly, and your packaging line must pivot just as fast. This machine offers extraordinary flexible manufacturing capabilities, adapting seamlessly to a vast array of product types and packaging aesthetics.
Universal Pouch Handling: Whether your branding requires self-standing bags, secure zipper pouches, robust four-sided seals, traditional three-sided seals, or eco-friendly paper-covered bags, the grippers handle them all with delicate precision.
The Ultimate Bag-in-Bag Solution: Specifically engineered to conquer the complexities of packing multiple smaller items into a larger overwrap, it provides an elegant solution for variety packs and bulk retail presentations.
Broad Product Spectrum: From the dense weight of peanuts and sunflower seeds to the delicate structure of puffed snacks and preserved fruit cakes, the feeding mechanism adapts to the unique physical properties of your inventory.
The final seal is the ultimate guardian of your product's freshness and your brand's reputation. A compromised seal leads to spoilage, returns, and diminished consumer trust. This system guarantees a flawless finish.
Meticulous 10-Step Workflow: Every pouch undergoes a rigorous journey: from precise bag loading and spatial reservation to opening, stretching, multiple material injections, straightening, and finally, sealing. Nothing is left to chance.
Triple-Seal Technology: To guarantee absolute airtight integrity, the machine employs three distinct sealing stages (Seal 1, Seal two, Seal three). This redundant thermal application ensures that even thick or gusseted materials are welded shut permanently.
Premium Shelf Presentation: The dedicated straightening phase ensures that before the heat is applied, the bag is perfectly aligned. This results in a crisp, wrinkle-free closure that communicates high quality to the end consumer.
Standalone equipment creates islands of automation; true efficiency requires a connected ecosystem. This packaging machine is designed to be the highly communicative heart of your broader production line.
Seamless Upstream Connectivity: The intelligent Siemens PLC effortlessly handshakes with multi-head weighers, auger fillers, and liquid pumps, ensuring that material drops are perfectly timed with the bag-opening sequence.

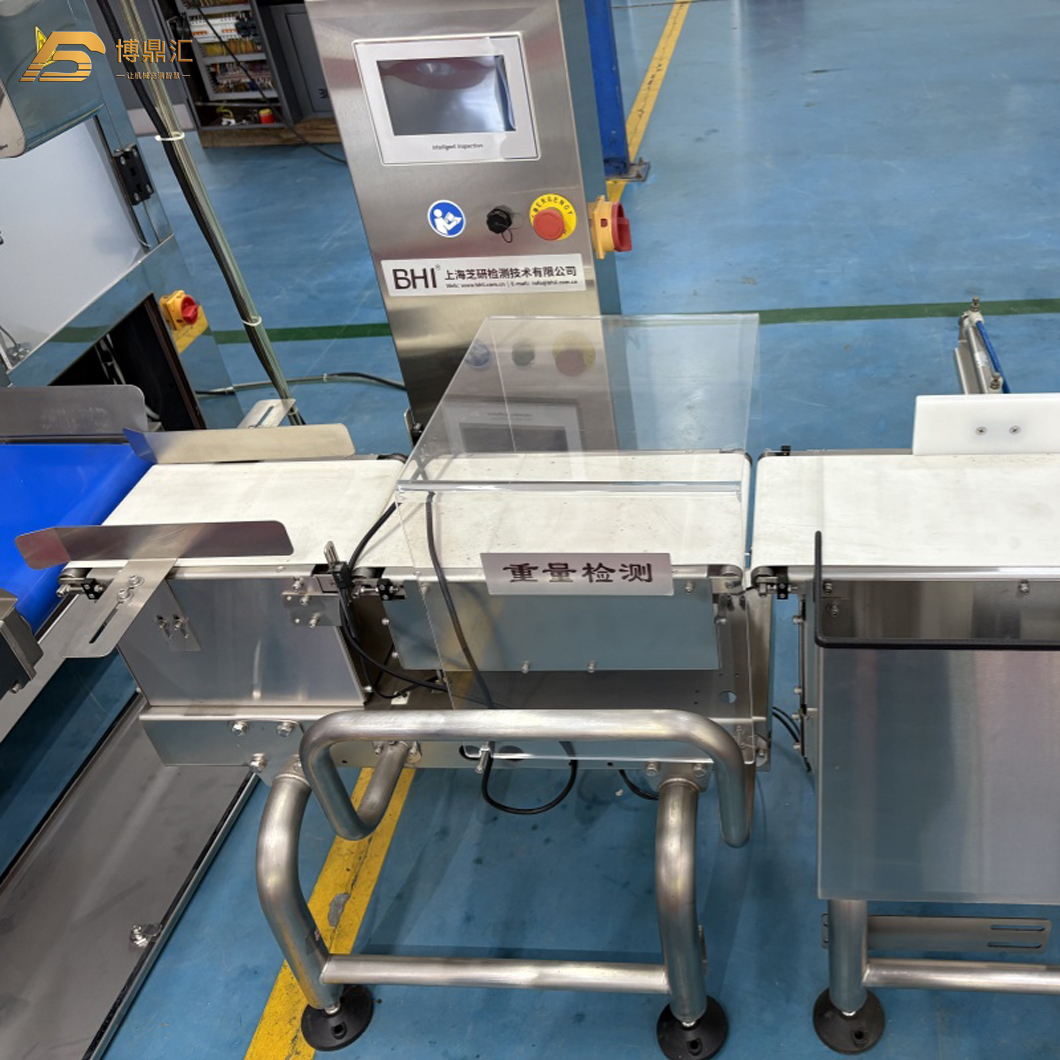

Downstream Quality Assurance: The system easily integrates with end-of-line verification equipment, seamlessly passing finished pouches to checkweighers, metal detectors, and robotic case packers without bottlenecking the flow.
Centralized Command Interface: The highly responsive HMI acts as a central nervous system, allowing facility managers to monitor integration points, adjust timing delays, and customize the workflow to match the specific rhythm of the factory floor.
Investing in heavy machinery is a long-term commitment, and buyers need absolute certainty that their operations will be supported globally, long after the initial installation.
Comprehensive Warranty Coverage: Every mainframe is backed by a solid 12-month warranty, protecting your investment against manufacturing defects and ensuring operational peace of mind during the critical first year.
Lifetime Engineering Support: Our commitment does not expire. We provide permanent, lifetime technical support, giving your maintenance teams direct access to seasoned engineers whenever troubleshooting is required.
Rapid Spare Parts Availability: Downtime is expensive. We maintain a robust inventory of paid spare parts that can be dispatched at a moment's notice, ensuring your line is back up and running with minimal delay.
Decades of Expertise: Backed by over 15 years of dedicated experience in automated packaging design, our support staff possesses the deep technical knowledge required to solve complex operational challenges swiftly.
Selecting a manufacturing partner involves evaluating not just the machinery, but the engineering pedigree and reliability behind it. We stand as a pillar of innovation and dependability in the global packaging sector.
Proven Engineering Heritage: With over a decade and a half of focused research and development, we have refined the art of automated packaging, translating complex mechanical challenges into elegant, durable solutions.
Uncompromising Quality Standards: From the selection of raw 304 stainless steel to the final calibration of the Siemens PLC, every step of our manufacturing process is subjected to rigorous internal quality audits.
Global Operational Insight: Having deployed high-performance packaging systems across diverse industries worldwide, we understand the nuanced demands of different regulatory environments and production cultures.
Client-Centric Innovation: We do not just build machines; we engineer solutions. By actively listening to the pain points of facility managers, we continuously evolve our designs to directly improve your bottom line.
By utilizing a single power motor driving a full-cam mechanism, the machine achieves perfect mechanical synchronization. This eliminates the micro-collisions and timing errors common in multi-motor systems, drastically reducing the wear and tear on moving parts and extending the equipment's lifespan.
Yes. The equipment is designed for rapid format changeovers. The HMI touch screen allows operators to adjust the machine clip dimensions with a single click, accommodating self-standing bags, zipper pouches, and four-sided sealed bags (widths of 160mm-300mm) without manual tool calibration.
The machine features a highly controlled 10-step workflow that includes a dedicated straightening phase prior to sealing. It then applies a rigorous three-stage sealing process (Seal 1, Seal two, Seal three), which guarantees an airtight, wrinkle-free closure even on thick or complex overwrap materials.
Absolutely. All components that come into direct contact with the product are manufactured from high-grade 304 stainless steel. The machine's architecture is designed for easy access and cleaning, preventing contamination and ensuring compliance with stringent food and pharmaceutical hygiene regulations.
We provide a comprehensive 12-month warranty on the mainframe, alongside permanent, lifetime technical support. Furthermore, we maintain a complete inventory of premium pneumatic and electronic spare parts (including Siemens, Festo, and SMC components) that can be shipped globally at any time to minimize production downtime.
