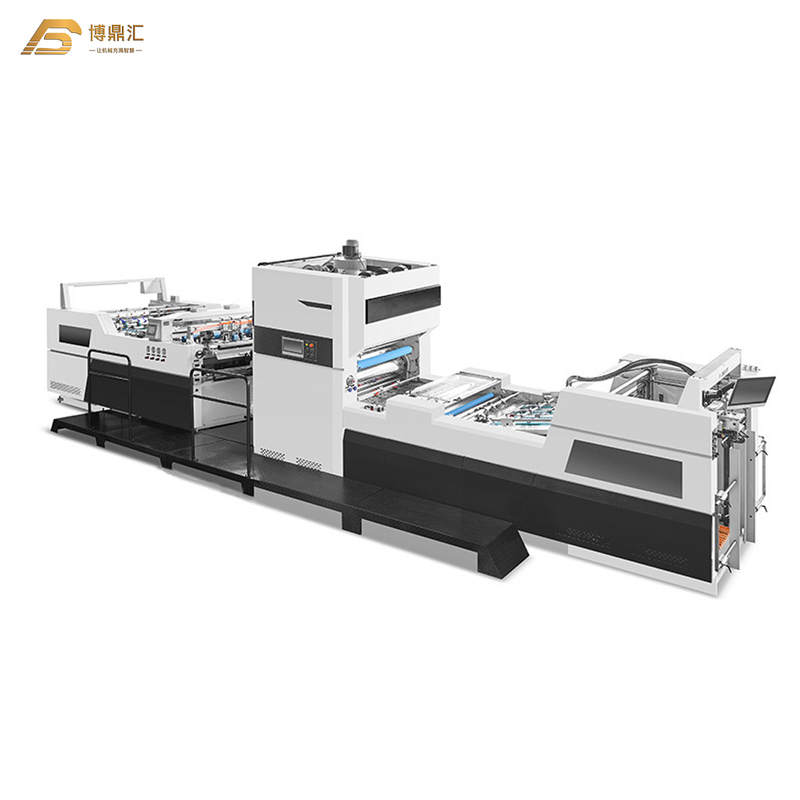

Automatic Pre-Coated Thermal Film Paper Laminating Machine Configuration Description

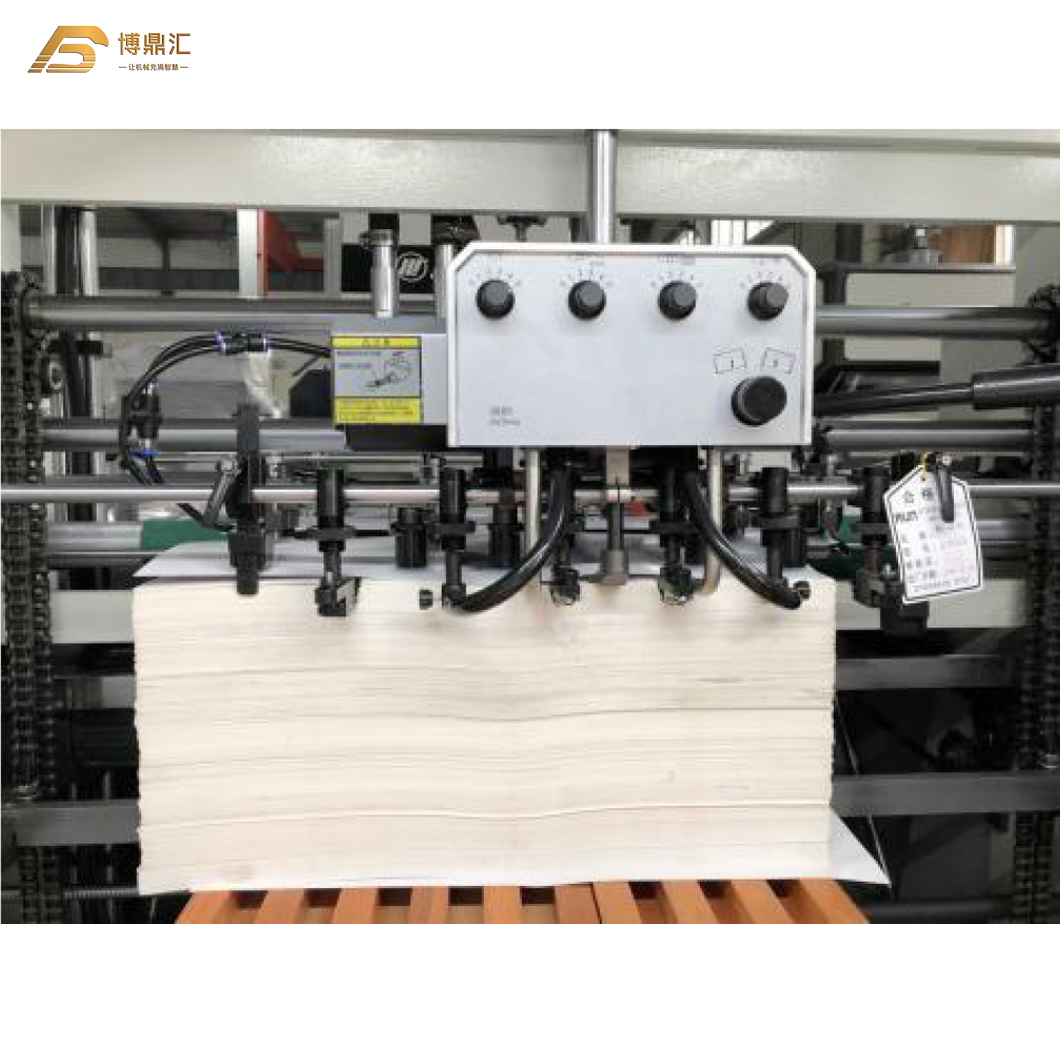

1. Automatic High Speed Feeder: Adopt high speed pneumatic offset feeder, speed up to 100m/min. Pre-stacking system can realize non-stop feeding, obviously improving work efficiency.

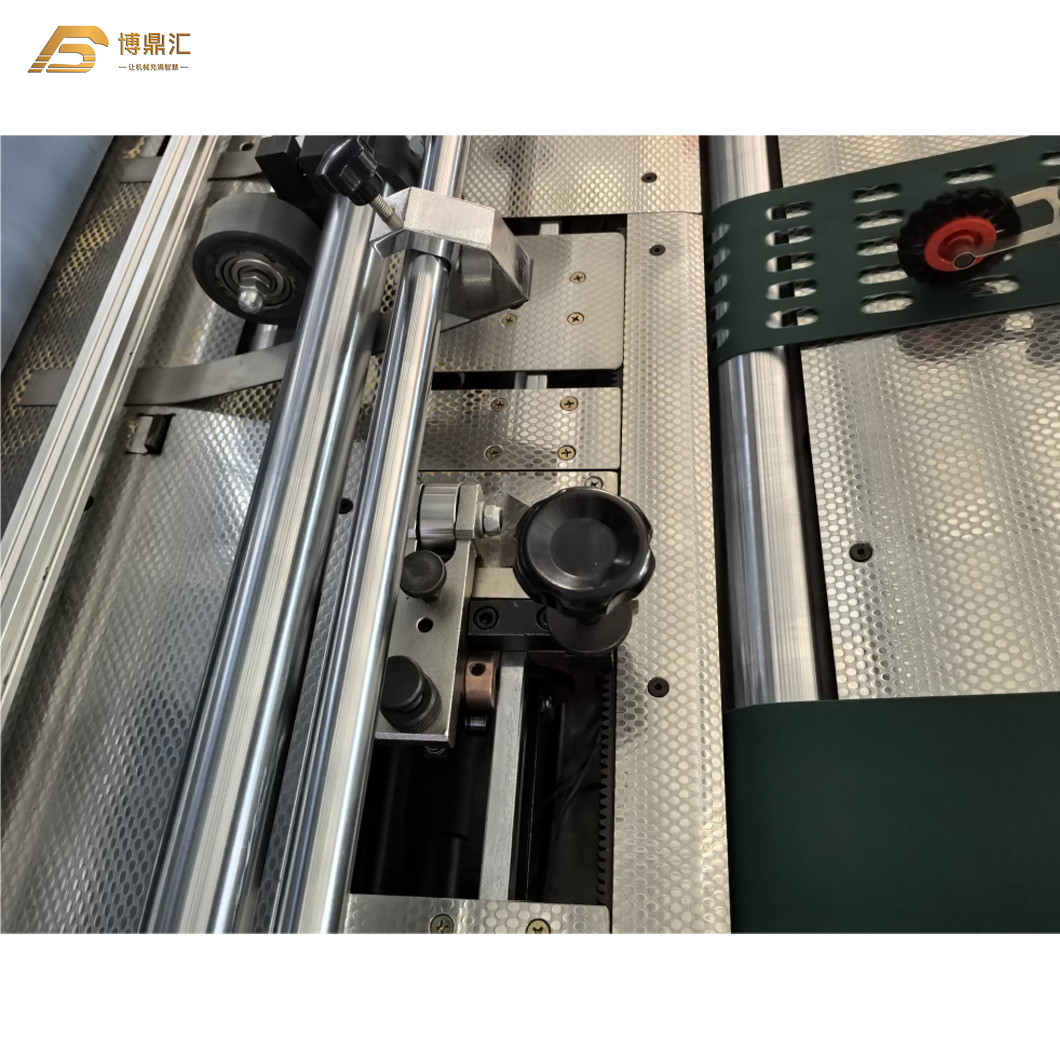

2. High Accuracy Lap Control: Servo-controlled lap within ±2mm, synchronizes with feeder, high accuracy front lay and pnuematic side lay regulator ensure accurate and stable position.
3. Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper broken and paper overlap.
4. Drying And Heating System:The 800mm diameter large heating roller equipped with multi-group of heating lamps, at the same time supported with drying channel thermal circulation system, can realize high speed booting and heating in 5~10 minutes, 2 times than traditional oil heating device meanwhile save much power consumption.
5. Automatic Hydraulic System: The hydraulic system automatically provides stable and large pressure to ensure high quality of lamination.
6. Man-machine Interface System:Equipped with 10 inch color touch screen, easy and convenient to operate. The operator can view the machine's working status at any time from the touch screen.

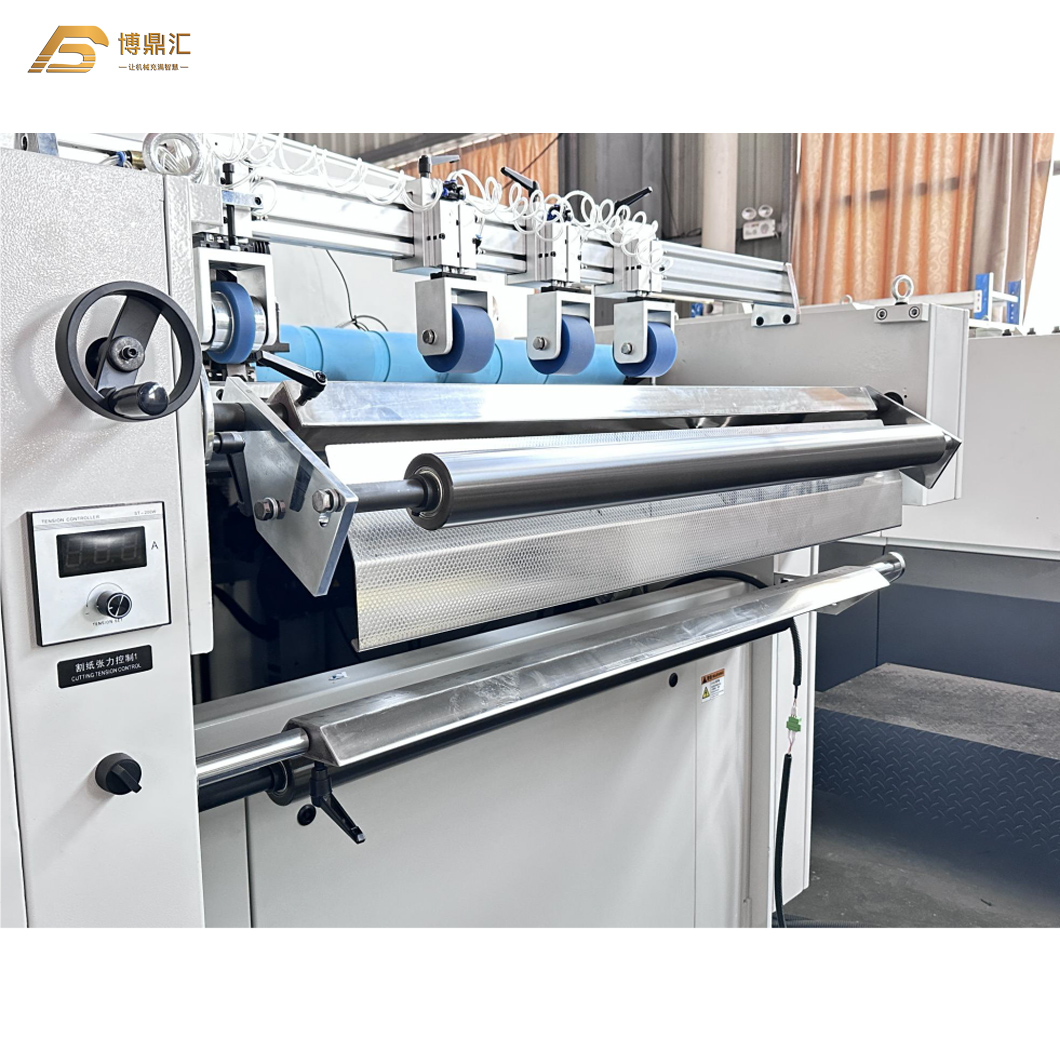

7. Air Shaft and Tension Control System:Adopt air shaft, easy to load film, accurate film position by the graduation of the air shaft. At the same time the intelligent tention system easy to control the tention of film, increase laminating performance.

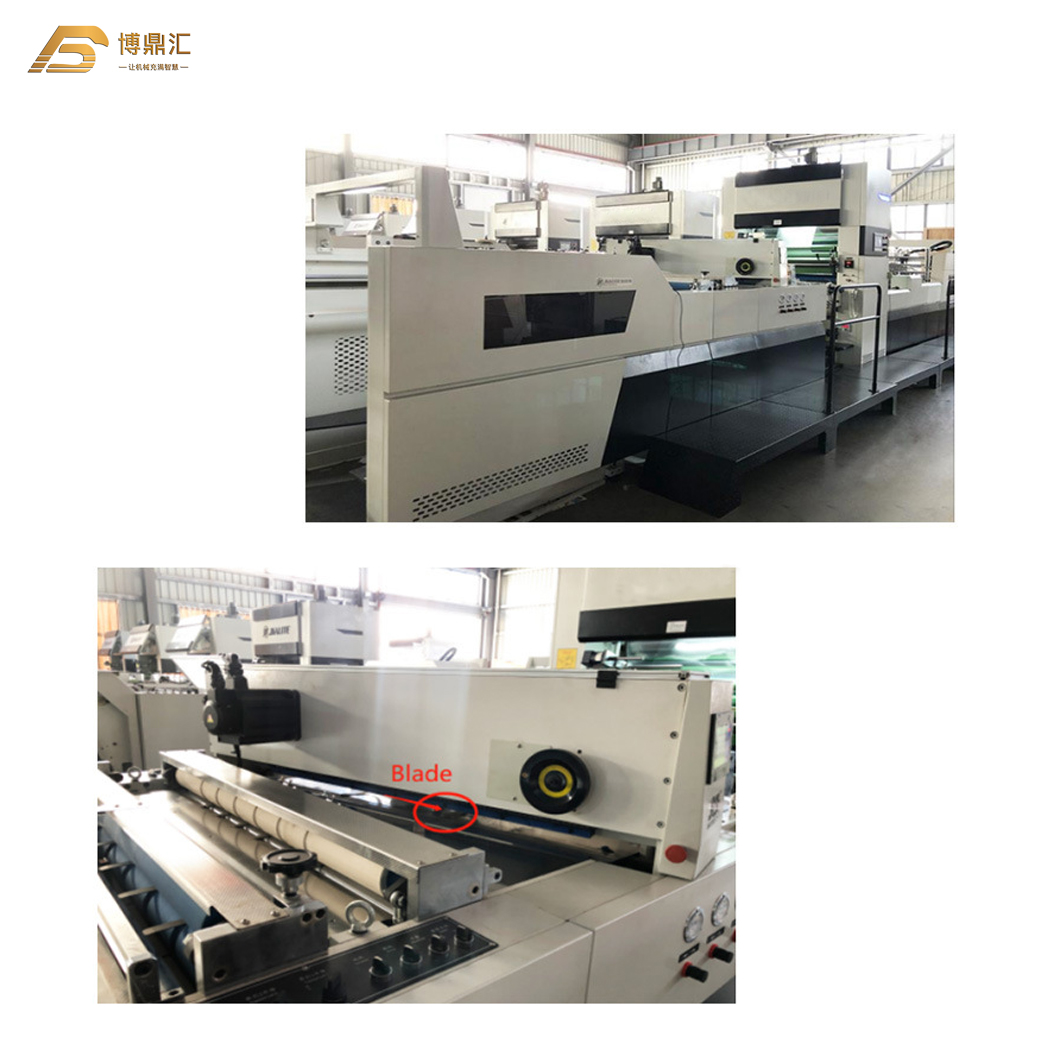

8. High Accurate Slitting System: Adopt disc knife, coordinated with pneumatic pull and separating device, can slit BOPP and OPP film perfectly. (If you use PET or thin foil, we have Chain knife and Hot knife cutting device optional.)
9. Anti-Curvature System: Adopt corrugrated delivery and anti-curvature system, especially designed for thin paper, avoid paper curvature.
10. Automatic Stacker:Equipped with IR sensor, automatically count the sheets. Three-direction high speed pneumatic stacker can collect the sheets automatically and flat without stopping.
Parameter:
| Max Paper width (X) | 1080mm/1380mm/1580mm |
| Max paper Length (Y) | 880mm/1100mm/1250mm/1450mm/1650mm |
| Min Paper Size | 360*290mm |
| Speed | 10-100m/min |
| Paper Thickness | 80-500gsm(Above 100gsm easy to adjust, E type corr |
F&Q
Who are we?
A: As a leading manufacturer of packaging equipment, Shanghai Bodinghui Automation Packaging Machinery specializes in designing and producing high-performance packaging systems for industries worldwide.
With over 15 years of experience, we deliver cutting-edge technology combined with worldwide reliable engineering.
How do I know which machine I need?
A: Please provide your requirements and circumstances in as much detail as possible. This information is basic and important to help us recommend the right machine for you.
What details should I provide?
A: Usually, we need to know the details of your product, the material, size, shape of the bag, the weight of the package and so on. Good communication is very important, so if you have questions, don't hesitate to ask and get in touch.
Where is your factory located?
A: We are located in the Jinshan District of Shanghai. We are always here to welcome you.
How about your warranty?
A: Our warranty is 12 months.
Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spare parts could be provided at any time.
