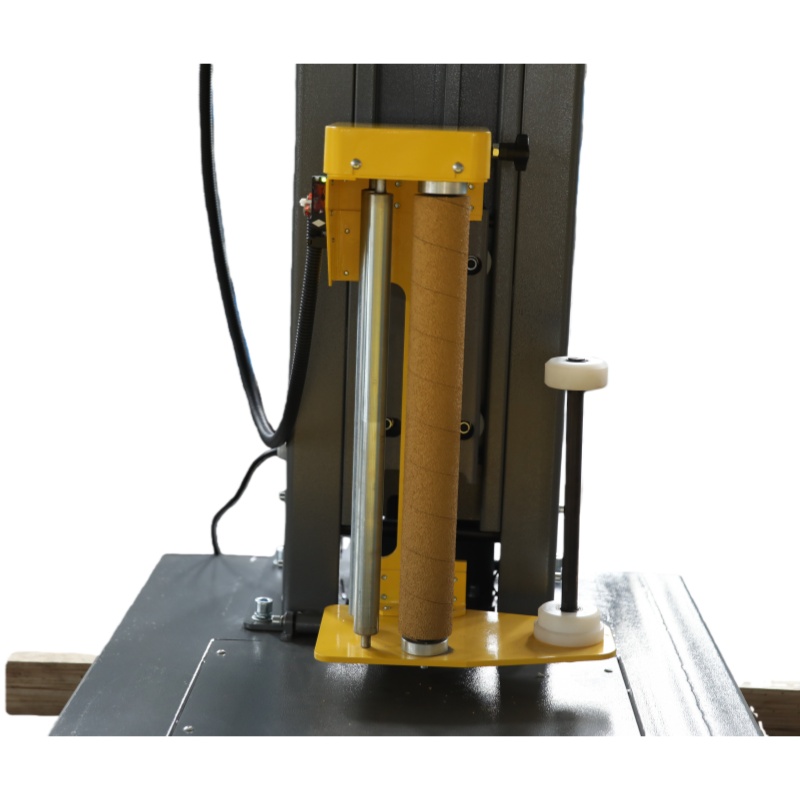

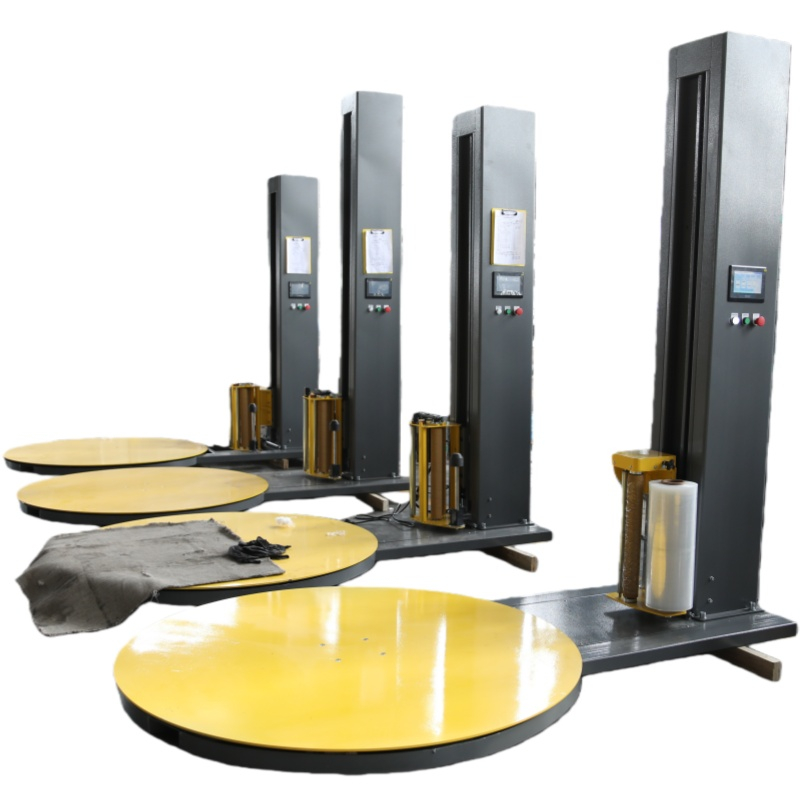

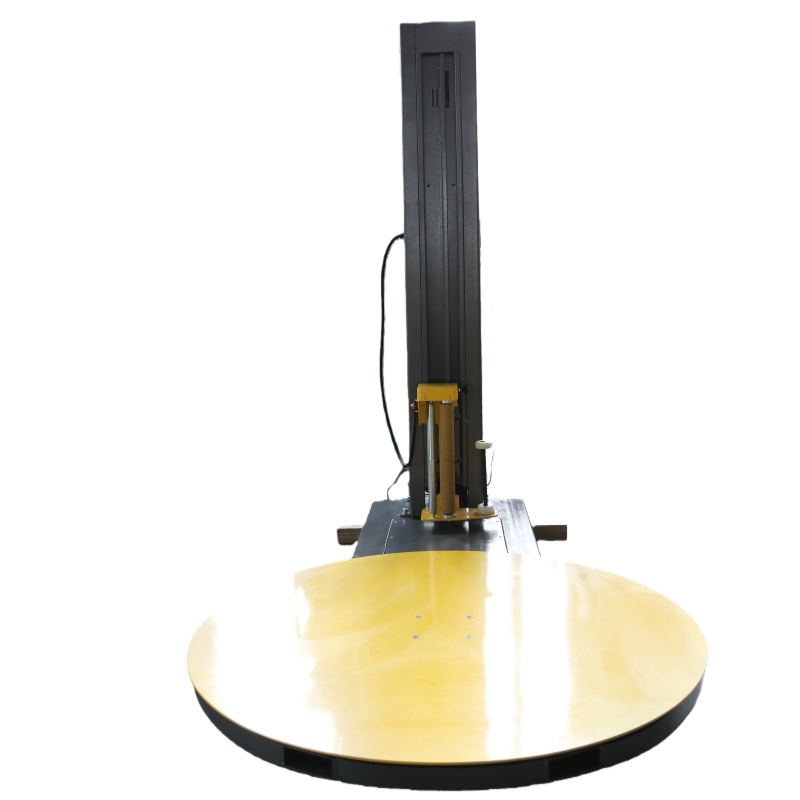

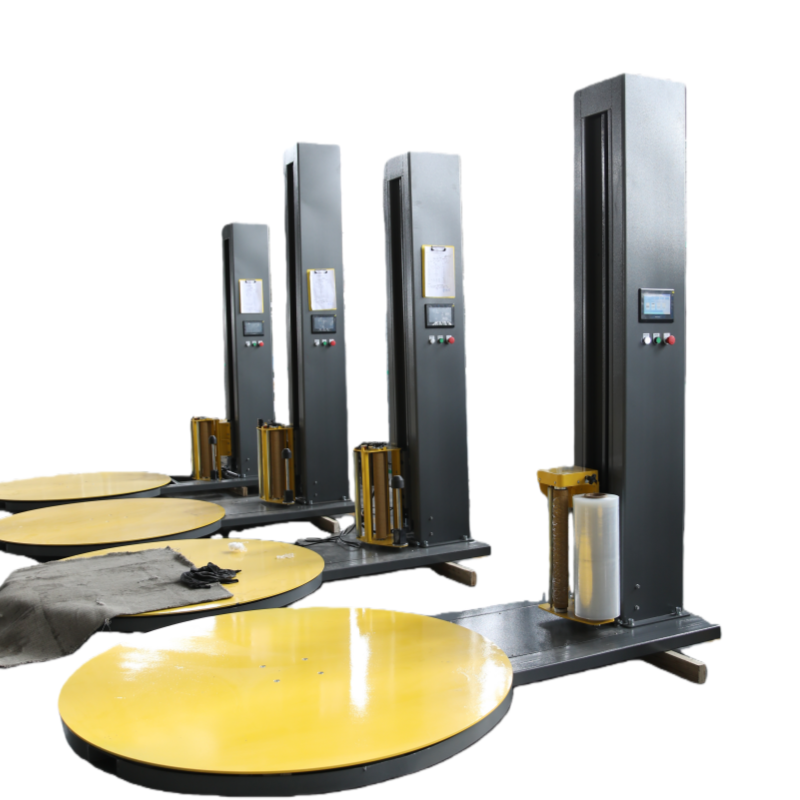

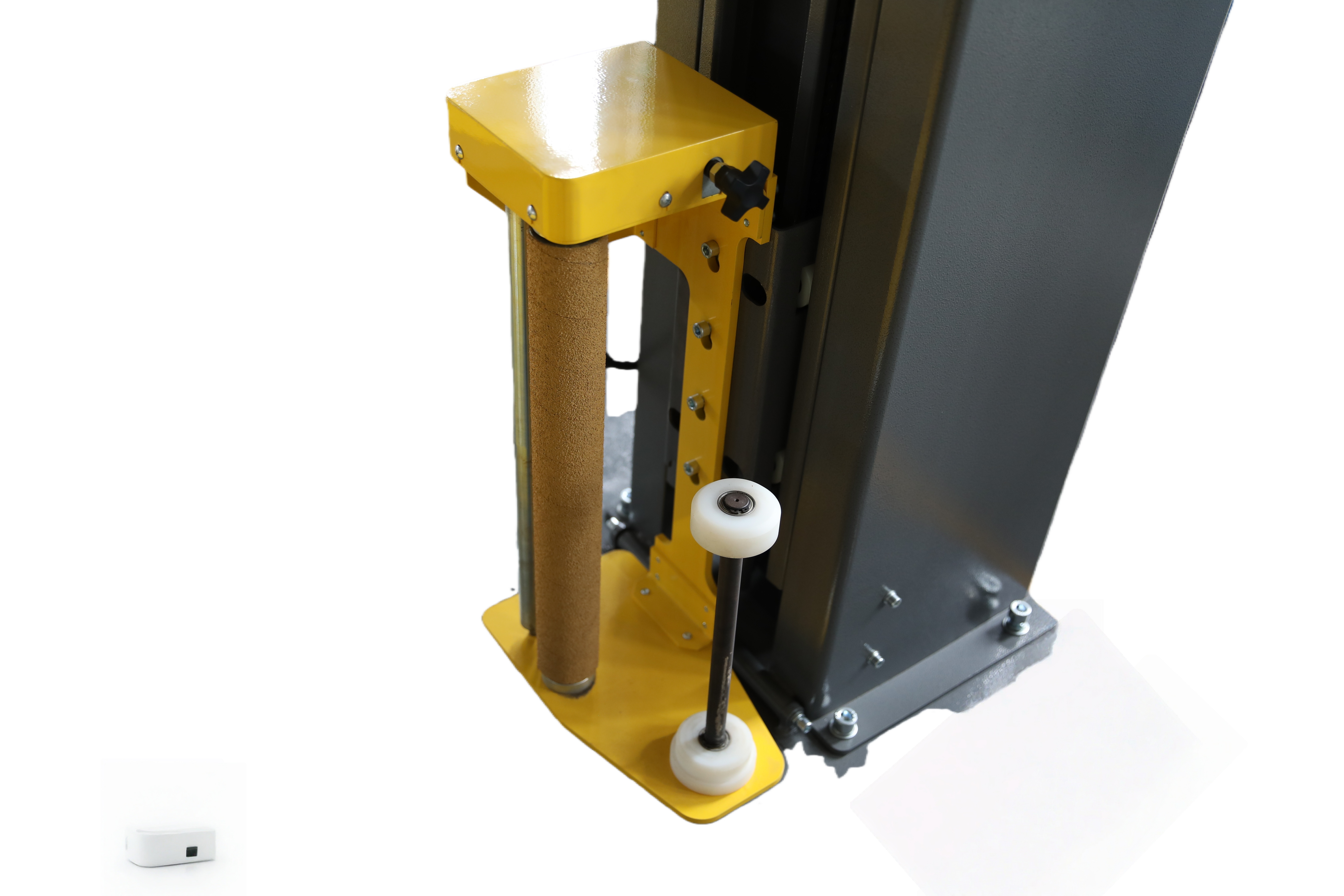

The drag-type winding machine is a packaging machinery that controls the winding film pulling speed by adjusting the friction damping of the drag-retraction mechanism. It belongs to the drag-retraction type models under the classification of winding packaging equipment.
This equipment reduces costs through the structural design of arranging the motor and control box on the outside of the column. It makes the passive pulling speed of the film slower than the rotation speed of the palletized goods, and is suitable for various film materials.
It is equipped with a pre-stretching device to achieve a stretching ratio of 250%.
It is suitable for packaging bulk goods and has functions such as dust and moisture prevention, enhanced transportation stability, and reduced labor intensity. It can realize efficient and low-consumption winding operations.

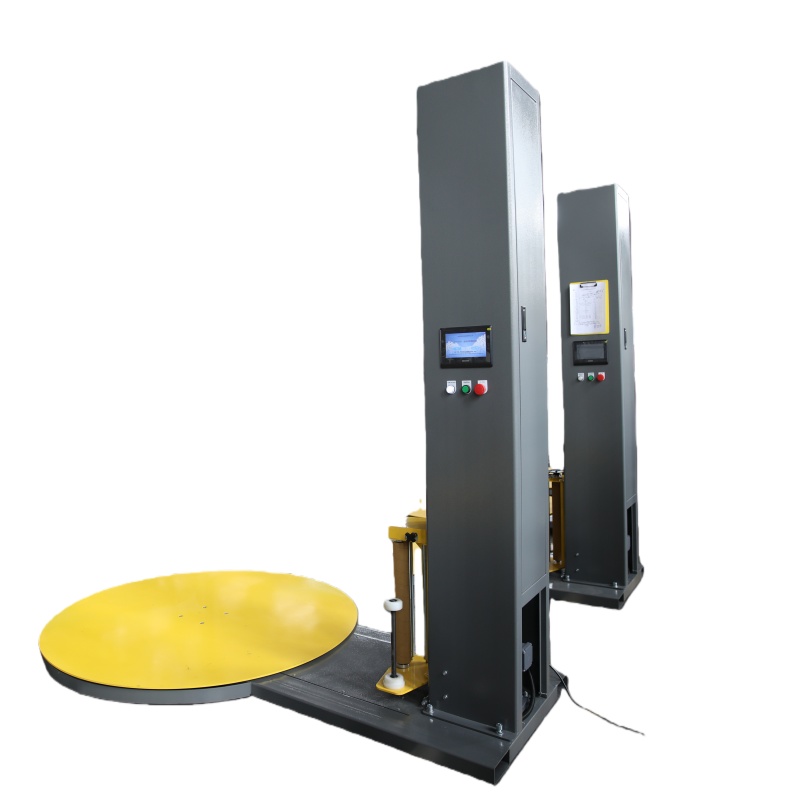

The control system is equipped with PLC programmable modules and a button panel, offering manual/automatic winding modes and 10 preset programs. It also supports height detection by photoelectric switches. This model is widely used in food cold storage, chemical raw materials, electronic appliances and building materials industries. Through optimized structural design, it reduces surface scratches of packaging materials and significantly improves the overall packaging firmness.
Technical Specifications
The turntable automatically resets to ensure accurate positioning for the pallets when entering and exiting. It is controlled by programmable technology (using frequency converters), featuring reliable performance, easy operation, and the ability to automatically measure the height of the goods. It is suitable for heavier pallets.
Turntable diameter: ￠1500mm (optional: ￠1650mm/￠2000mm, etc.)
Column height: H2400mm (Options available: 2000/2700/2900/3000/3100 etc.)
Film type: LLDPE Film, with width ranging from 280mm to 500mm.
Tray dimensions: The turntable can bear a weight of 2000kg;
the maximum height = column height - 400mm
Package dimensions: 2650 x 1650 x 800 mm
Gross Weight / Net Weight: 800kg / 750kg Optional Accessories:
1. Ramp 2. Control Panel 3. Control Box 4. Magnetic Brake
