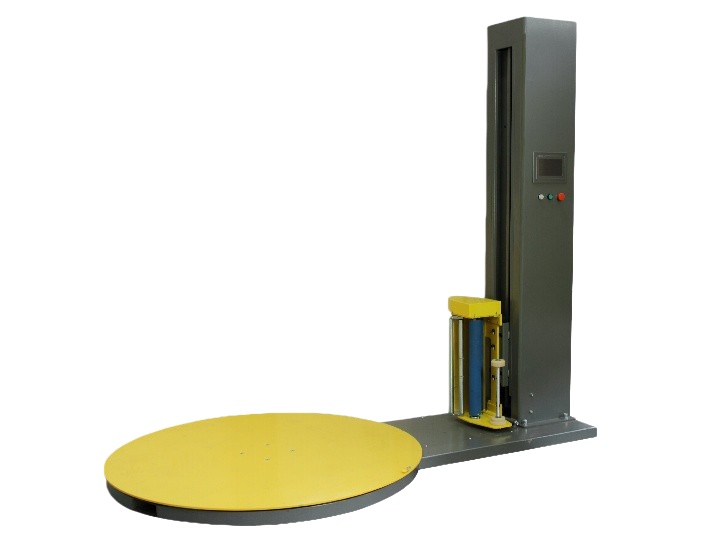

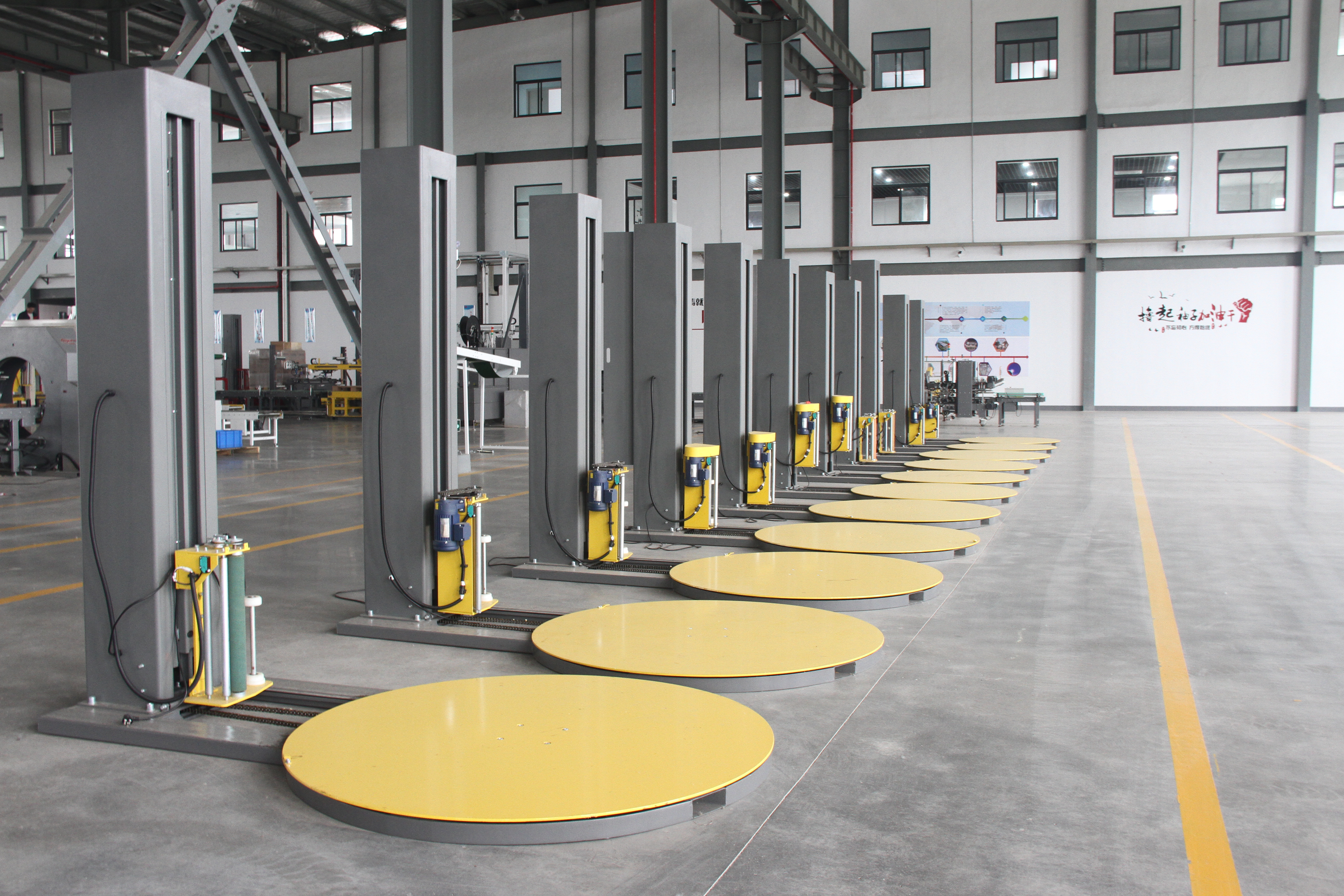

The pre-stretch type wrapping machine, in simple terms, is a device that stretches the film in advance in the mold frame during the product wrapping process. This can maximize the stretching ratio, make full use of the film, and use the film's rebound property to tightly wrap the item tray. It not only saves materials, reduces packaging costs for users, but also increases the tightness of the packaging and enhances the safety for users.
The pre-stretch wrapping machine adopts programmable control and frequency converter control, with reliable performance and convenient operation. The machine's structure design is stable and has a long service life. The slow start, stop and reset devices effectively protect the goods from falling during the working process, effectively ensuring the safety of the goods. The equipment is controlled by human-machine touch screen, and the operation is simple. The upper and lower layer packaging can input the number of packaging layers for setting. The equipment is equipped with frequency control, which can effectively regulate the packaging speed of the equipment and ensure the packaging progress.
Technical Specifications
- Disk Diameter 1650mm (not applicable for black or highly reflective galvanized products)
-Packaging Height 2000mm
- Disk Height 80mm (without film wrapping)
-Disk Load Capacity 100 - 1500 kg
-Machine Weight 500 kg
- Overall Dimensions 2650*1650*2430mm
- Machine Power 1.32KW (3 motors)
- Power Supply Voltage 220 V (single phase)
- Suitable Film Specifications Film width 500mm, outer diameter of film ≤ 220mm, film thickness 18
- 25 μm, inner diameter of paper core 76mm
Main Performance
- All dangerous devices such as motors, wires, chains are built-in to ensure the safety of operators.
-PLC programmable control, optional winding program.
- Multi-functional human-machine interface text control display system, real-time display of equipment operation status.
- German Beckhoff photoelectric switch automatically senses the height of goods.
-The number of winding layers, running speed, film tension can be adjusted arbitrarily, operation is convenient and simple.
-Independent variable frequency control pre-stretching automatic film feeding system, tension can be freely adjusted.
- The number of winding circles at the top and bottom can be controlled separately, freely adjustable from 1 to 9.
- Automatic or manual switch, almost no daily maintenance required.

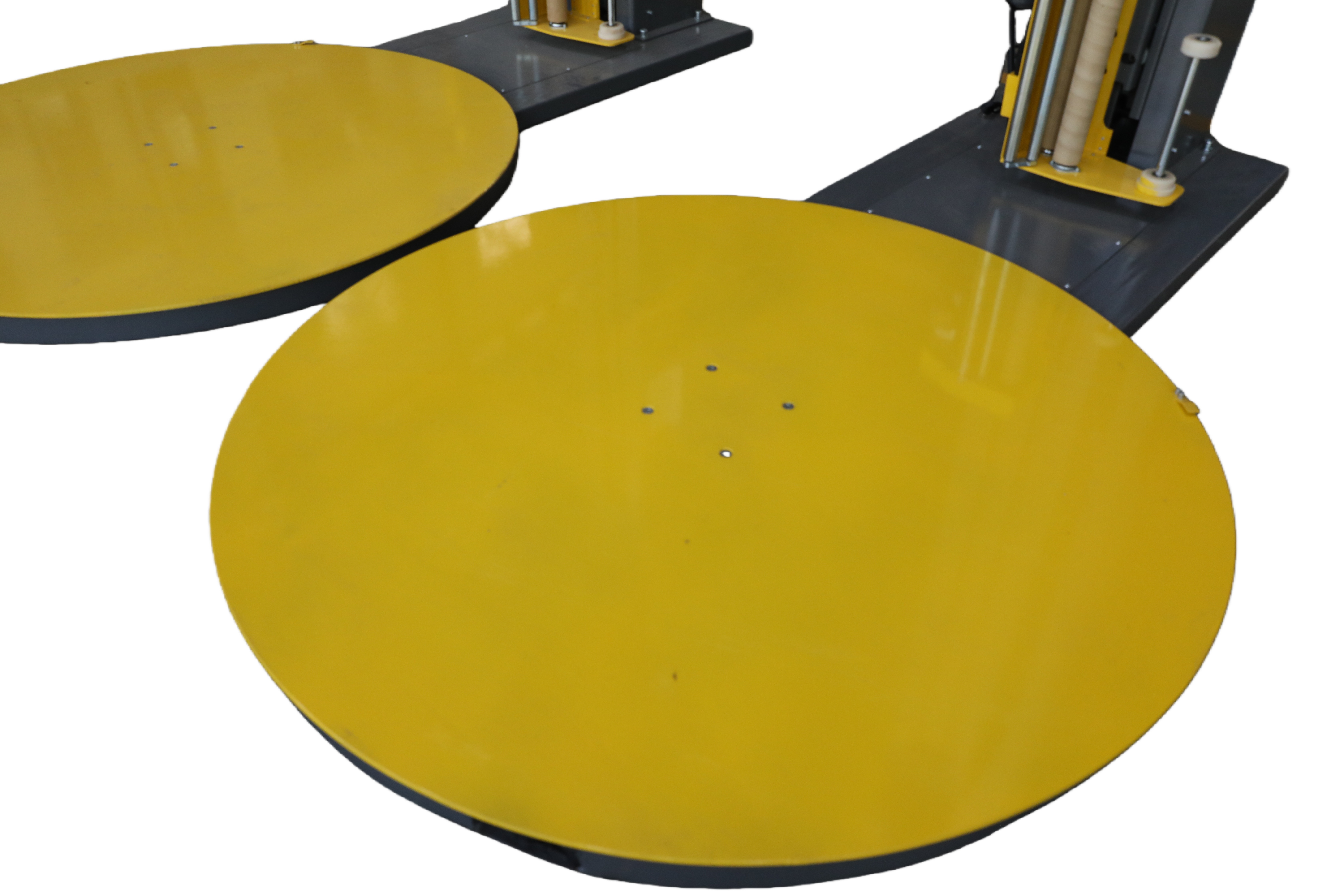

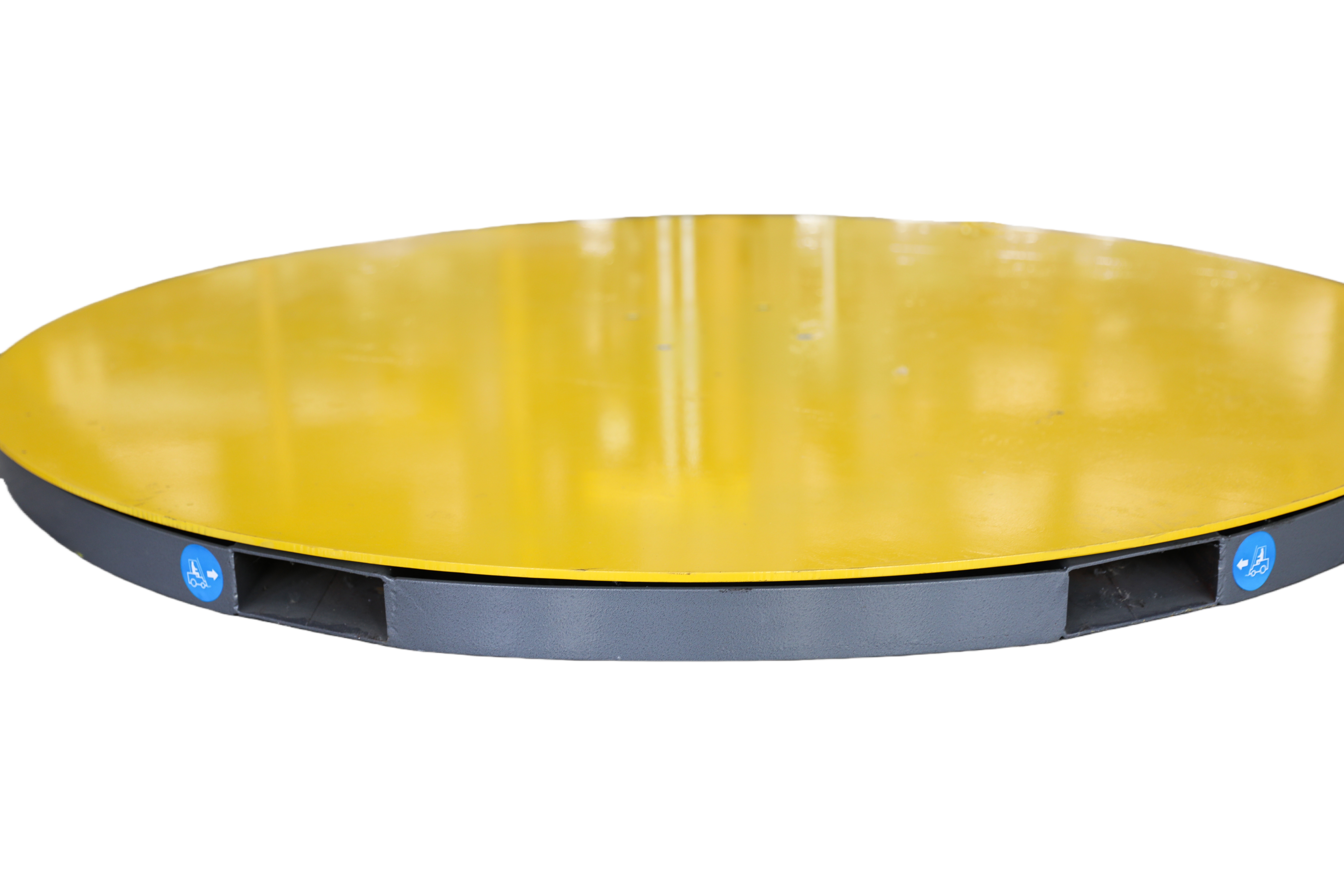

Disk Drive:
- 5-piece 58-tooth large gear load-bearing design, minimizes wear on vulnerable rollers and reduces noise.
- Disk variable frequency speed regulation 0 - 12 rpm/minute adjustable.
- Disk slow start, slow stop, automatic reset.
- Disk uses pure high-quality carbon structural steel wear-resistant material, longer service life.

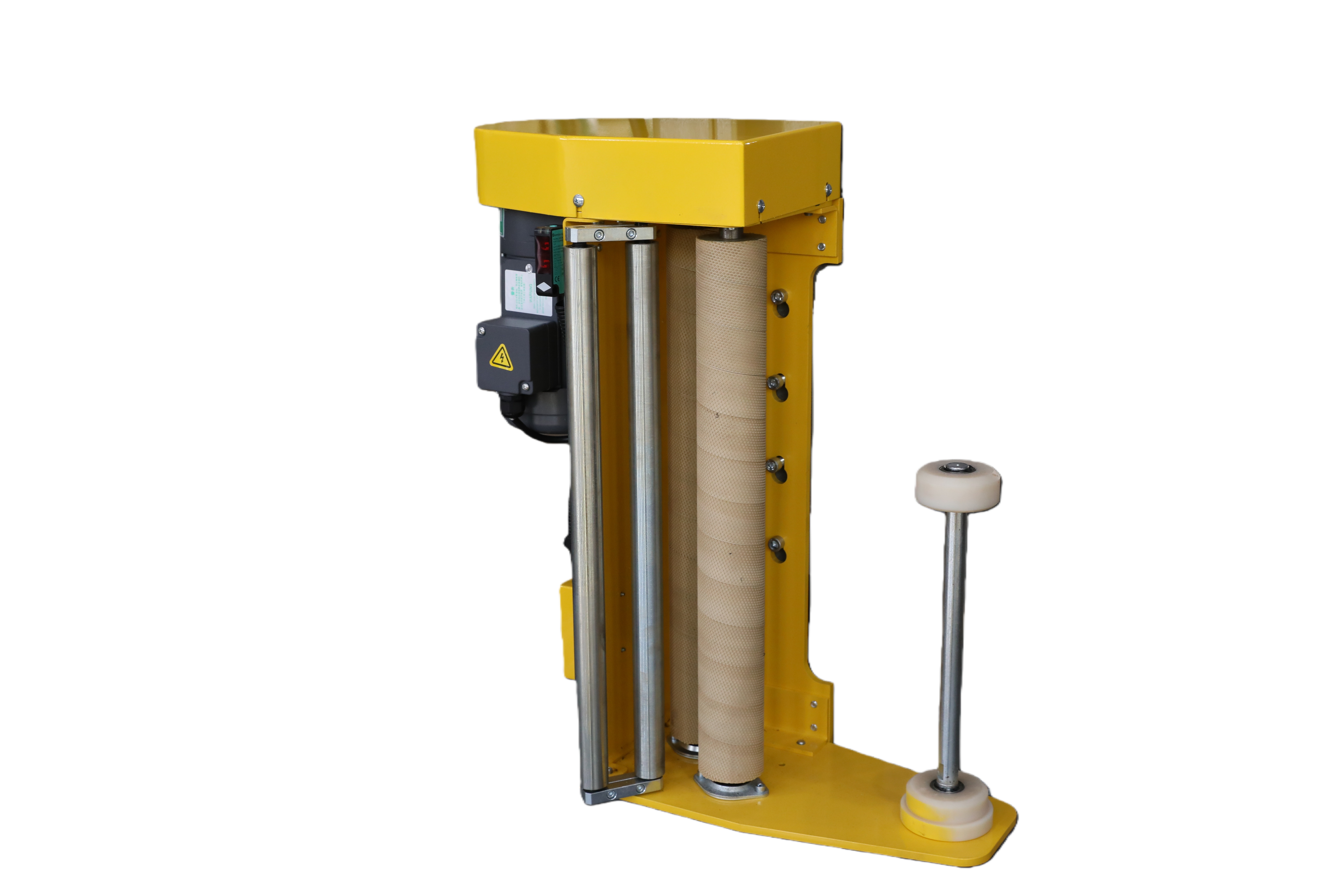

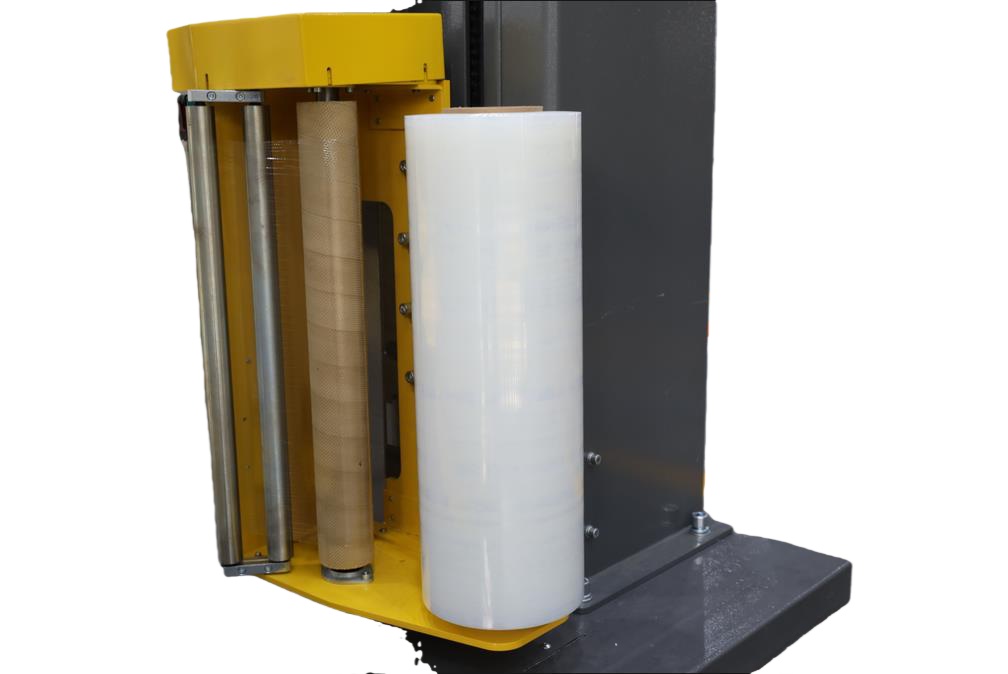

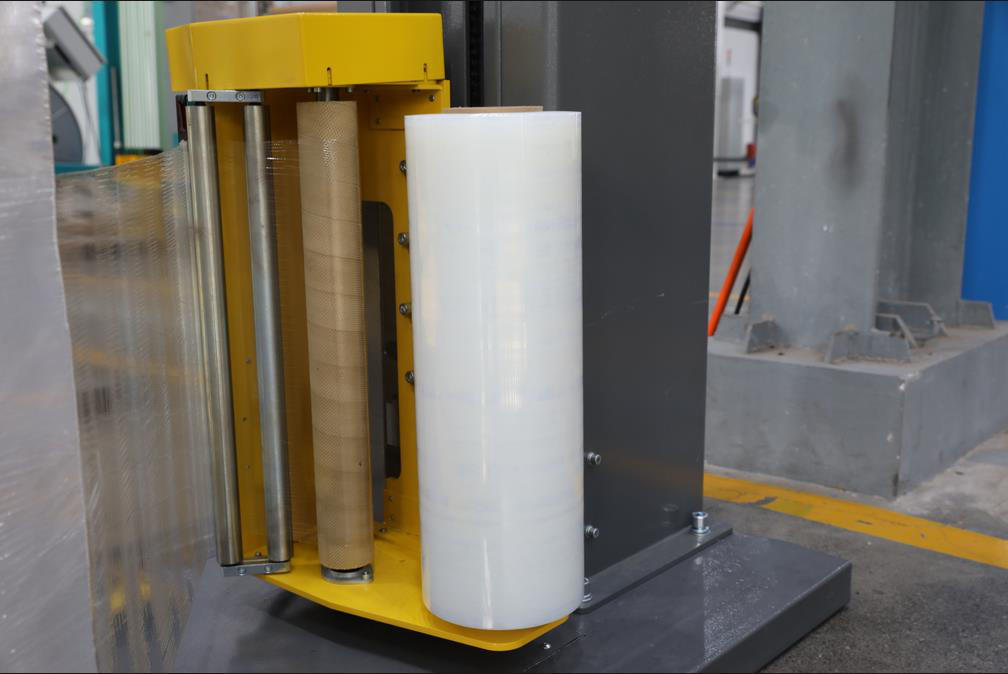

Film System:
- Film frame power variable frequency pre-stretching mechanism, pre-stretching up to 200%, reduces film consumption.
-The rising and falling speed of the film frame can be adjusted separately, nylon wheel type guide rail runs smoothly, lightweight and durable.
- Film feeding speed variable frequency adjustable, tension control more precise, stable and convenient.
- The number of winding circles at the top and bottom can be controlled separately.
- Film frame is made of carbon steel, lightweight and stable.
- Wear-resistant rubber rollers are selected, longer service life.
- The lifting column is of chain structure, stable and reliable.
