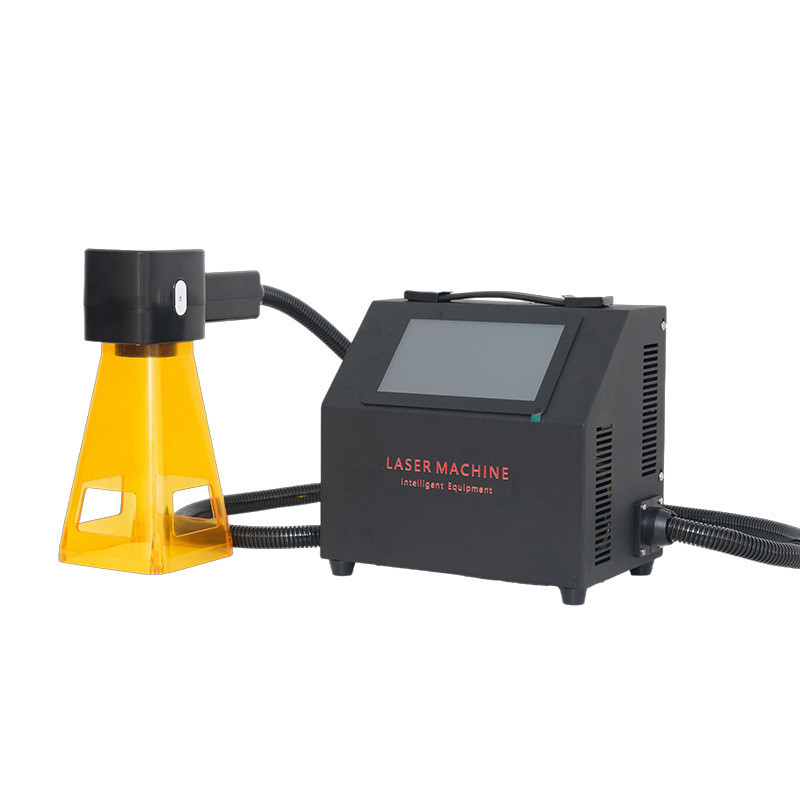

Metal Plastic CE Certified 20W/30W/50W Handheld Fiber Laser Marking and Engraving Machine
Our Handheld Fiber Laser Marking Machine is a premium, CE-certified industrial tool designed for permanent, high-contrast marking on a wide range of materials, including metals, plastics, and more. Engineered for ultimate portability and performance, it is the ideal solution for direct part marking (DPM), product identification, branding, and traceability applications such as adding dates, logos, serial numbers, QR codes, and expiry dates.
1. Superior Optical Performance & Precision
Laser Power Options: Choose from three robust fiber laser sources: 20W, 30W, or 50W average power to match your material and required marking speed or depth.
Exceptional Beam Quality: Featuring a near-perfect beam quality (M² < 1.5), the system focuses laser energy into an extremely fine spot, enabling crisp, high-resolution marks with sharp edges and fine details.
Stable & Adjustable Output: Benefit from excellent power stability (<2% instability) and a wide, gradually adjustable power range (30%-100%), providing consistent results and precise control over mark contrast and depth.
Pulsed Operation: The pulsed laser (pulse width: 90±10ns) with high single-pulse energy (up to 1.1mJ) is highly efficient for creating dark/annealed marks on metals and clean engravings on plastics without excessive heat.
2. Optimized for Handheld Operation & Mobility

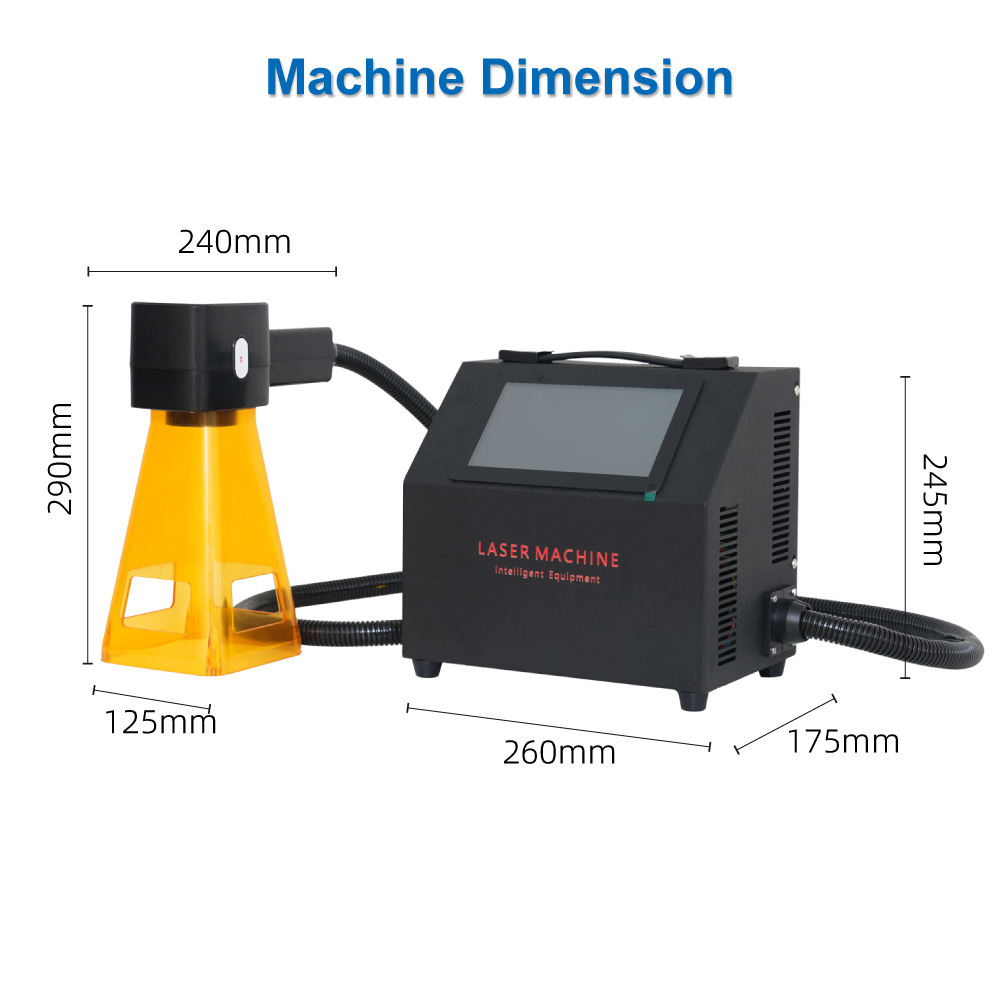

Lightweight & Ergonomic: The marking handpiece weighs less than 0.9kg, minimizing operator fatigue during extended use. The entire system is compact, with a total weight of approximately 7.8kg including its integrated battery.
True Cordless Freedom: Powered by a high-capacity 10AH lithium battery, the device delivers 4 to 8 hours of continuous marking work, eliminating the need for a constant power connection and enabling operation in remote or field locations.
Flexible Power Options: For stationary use, it can also be operated directly from standard 220V AC power.
3. Reliable Mechanical & Scanning System

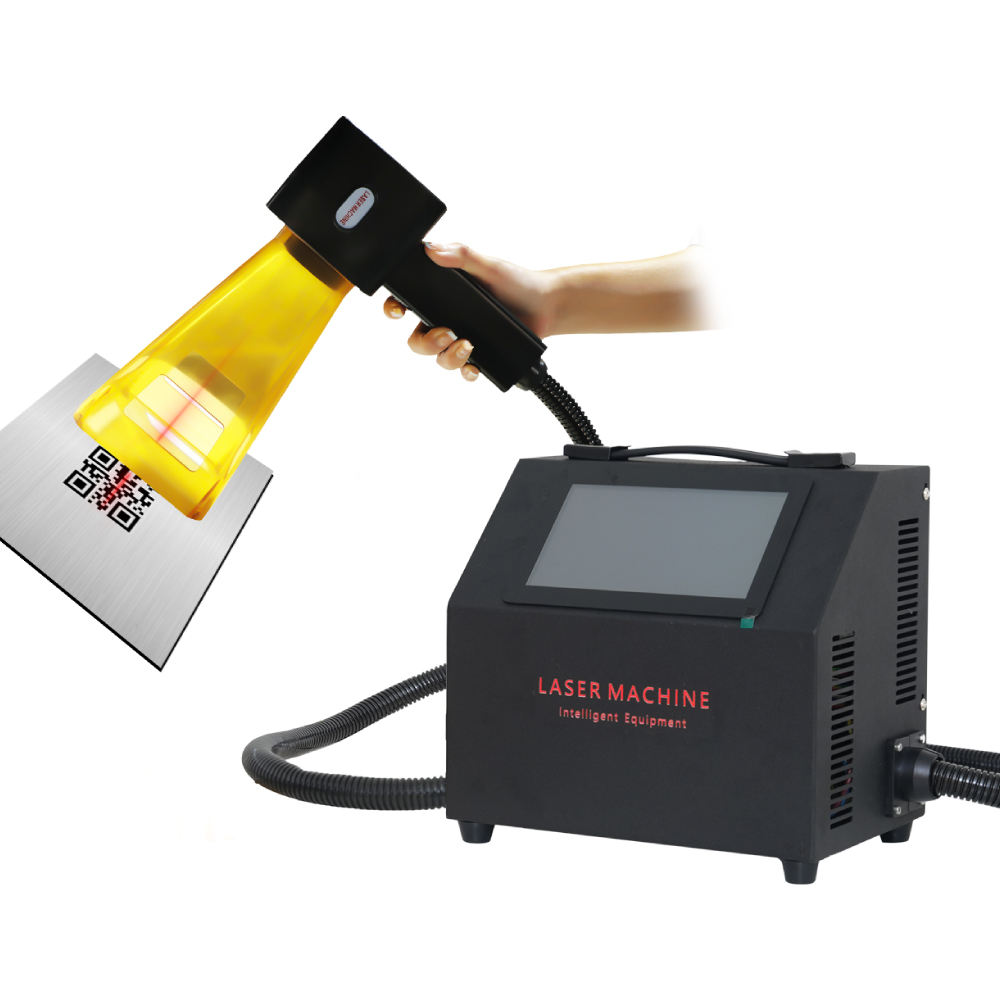

Handheld Scanning: The integrated galvanometer scanner in the handpiece allows for a generous marking area of 100mm x 100mm without moving the device, offering great flexibility for marking irregular or large objects.
Field Lens Options: Equipped with a standard 100mm or optional 160mm focal length lens, providing a suitable working distance and focus depth (approx. 2mm) for various applications.
Durable Construction: Built to withstand industrial environments within an operating temperature range of 0°C to 40°C and up to 80% humidity.
4. User-Friendly Features & Efficiency
Intuitive Control: Easy-to-use software allows for quick import and editing of graphics, text, barcodes, and sequential numbering.
Adjustable Parameters: The marking frequency is widely adjustable from 27 kHz to 60 kHz, and power is finely tunable, allowing optimization for different materials and desired effects.
Maintenance-Free & Cool: The solid-state fiber laser source requires no consumables and uses efficient air-cooling, ensuring low maintenance and quiet operation with a total power consumption under 200W.
Ideal For: Automotive part marking, tool identification, electronics serialization, medical device traceability, packaging expiry date printing, custom signage, artwork, and any application requiring durable, high-quality portable marking.
This handheld laser marker combines industrial-grade laser performance with unmatched portability, making professional-grade marking accessible anywhere.
This versatile and portable handheld fiber laser marking system is engineered to meet the demands of modern industry, offering reliable, high-quality permanent marking across a wide range of materials and settings. Its combination of precision, portability, and power makes it an indispensable tool for various applications.
1. Manufacturing & Industrial Part Traceability
Automotive & Aerospace: Permanently mark VIN numbers, part numbers, QR codes, and batch information on engine components, chassis parts, tools, and aircraft fittings. Ensures compliance with stringent traceability standards.
Machinery & Tools: Engrave logos, serial numbers, and specifications directly onto metal tools, molds, dies, and equipment for asset identification, inventory control, and anti-counterfeiting.
2. Electronics & Precision Engineering
Consumer Electronics: Mark serial numbers, model info, regulatory logos (CE, FCC), and unique IDs on smartphones, laptops, appliances, and internal components like circuit boards (using low power settings).
Medical Devices: Create clean, permanent, and biocompatible marks on surgical instruments, implants, and device housings. Essential for UDI (Unique Device Identification) compliance, lot tracking, and sterilization cycle tracking.
3. Packaging & Product Branding
Expiry Date & Batch Coding: Directly mark "use-by" dates, batch codes, and lot numbers on plastic containers, bottles, caps, and packaging without inks or labels. Ideal for food, beverage, pharmaceutical, and cosmetic industries.
Logo & Decorative Engraving: Add high-resolution brand logos, decorative patterns, or customized artwork to promotional items, awards, nameplates, and retail products made of metal, plastic, or coated surfaces.
4. Field Service, Maintenance & Repair
On-Site Asset Tagging: Technicians can mark asset tags, service dates, or inspection codes directly onto equipment, pipes, valves, and electrical panels in factories, power plants, or construction sites without bringing parts to a fixed station.
After-Market Modifications: Add serialization or specific identifiers to parts during repair, refurbishment, or customization processes in the field.
5. Customization & Personalization Workshops
Gift & Souvenir Personalization: Engrave names, dates, messages, or designs on metal pens, jewelry, keychains, trophies, and plastic gadgets.
Artisan & Craftsmanship: Used by artists and makers for detailed engraving on metal artworks, leather accessories (with special settings), acrylic displays, and other crafted items.
6. Logistics & Warehouse Management
Pallet & Container Marking: Mark tracking numbers, handling instructions, or company logos directly onto metal or plastic shipping containers, pallets, and racks for improved logistics visibility.
Key Advantages for These Applications:
Portability: Battery-operated design enables marking anywhere—on the production floor, in the warehouse, or at a customer's site.
Permanent & High-Quality Marks: Creates wear-resistant marks that withstand abrasion, heat, and chemicals.
Non-Contact & Low Heat: The laser process minimizes material stress or deformation, crucial for precision parts and delicate plastics.
Fast & Flexible: No consumables (like inks or dyes) are needed, reducing operating costs and downtime. Marking content can be changed instantly via software.
Compliant & Safe: CE-certified and designed for industrial use with appropriate safety features (requires standard laser safety eyewear and training).
Whether for regulatory compliance, brand enhancement, operational efficiency, or creative customization, this handheld laser marker provides a robust and adaptable solution for modern marking challenges.
