Manufacturer Cheap Multi Heads Automatic Inner Outer Filter Pape Packing Machine for Nylon Pyramids Sachet Triangle Tea Bag

Manufacturer Cheap Multi Heads Automatic Inner Outer Filter Pape Packing Machine for Nylon Pyramids Sachet Triangle Tea Bag

The DCK-N4 and DCK-W are advanced packaging machines designed for efficient and precise packaging of granular products such as tea, coffee, and pharmaceuticals. The DCK-N4 is a triangle inner and outer bag packaging machine capable of dosing small quantities (1–7g) and forming bags with both ultrasonic and heat sealing technologies. The DCK-W is a dedicated outer bag packaging machine that automatically packs pre-made triangle inner bags into outer bags at a speed of 25–35 bags per minute, depending on the material. Both machines are built with user-friendly controls and robust construction to meet industrial packaging needs.

Model:
BDH-11
Brand:
BodingHui

Availability:

Quantity:



Inquire Add to Basket

Product Description

5d7803df917c9f3ba9b0508a9ba47830 H15021f054d9a4b02ba7808d188edaf3dR_副本 H43adf2dea17941de857c6ce6f4078fc7S O1CN01prifpt23isOVs9lSi_!!2220300667290-0-cib_副本 O1CN01XX0KhH2HQ0iBhxS5l_!!966109144-0-cib_副本 O1CN01vX6vZo2HQ0iDCGln5_!!966109144-0-cib_副本-1 H43c0ca70ffd4423a9d4f92c969ccb214O

Detailed Equipment Introduction

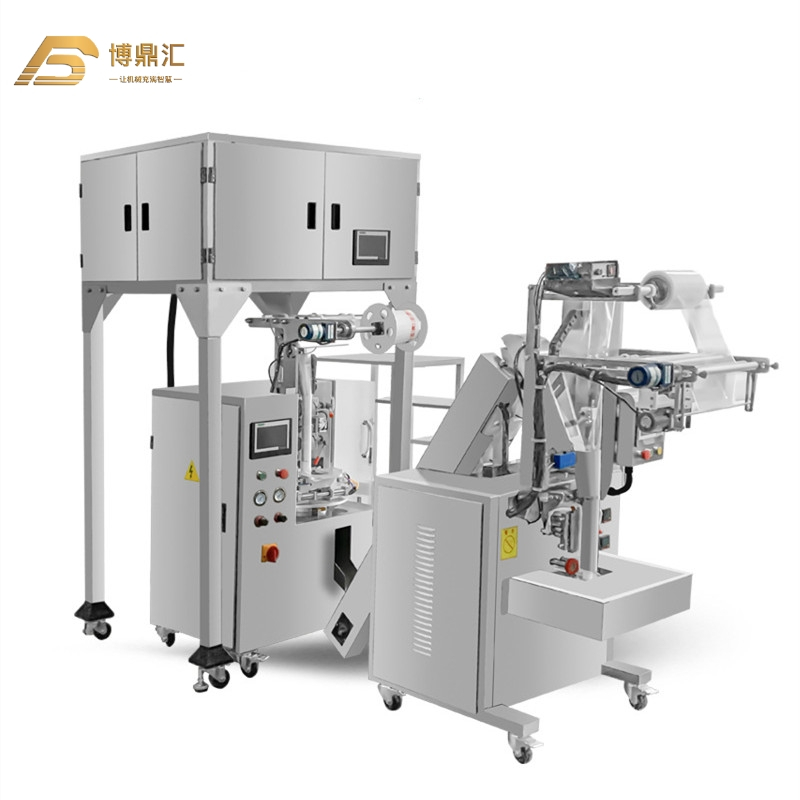

The DCK-N4 is a versatile packaging machine that integrates multiple functions for producing triangle-shaped inner and outer bags. It features a hopper for material storage, a packaging film roll holder, and a drive stepper motor for precise film feeding. The machine is equipped with a cursor registration system for accurate bag cutting, bag pulling rollers, and both ultrasonic and heating sealing mechanisms to ensure strong and clean seals. An emergency stop switch and universal wheels enhance safety and mobility. The control panel and operation panel allow easy adjustment of parameters. With a dosing range of 1–7g and a power requirement of 220V/2200W, the DCK-N4 is ideal for small-dose packaging. Its dimensions are 115×95×210 cm, and it weighs 650 kg.

The DCK-W is an outer bag packaging machine specifically designed to pack triangle inner bags into outer bags. It includes a conveyor belt with a switch for transporting inner bags, a drive stepper motor, and a control panel for operation. The machine features vertical and horizontal heat sealing bars for forming outer bags, ventilation holes for heat dissipation, and a finished product outlet. It operates at a production capacity of 25–35 bags per minute (depending on material) and can produce bags with lengths of 85–150 mm and widths of 80–130 mm. It runs on 220V/50Hz power, measures 70×150×170 cm, and weighs 300 kg.

Both machines are built with durable materials and are designed for easy maintenance and long-term reliability. The specifications are manually measured and may have slight deviations; refer to the actual product for exact dimensions.

Technical Parameters

DCK-N4 (Triangle Inner & Outer Bag Packaging Machine)

Parameter	Specification
Product Name	DCK-N4
Production Capacity	—
Measuring Range	1–7 g
Bag Dimensions	—
Voltage / Power	220V / 2200W
Air Source	—
Machine Weight	650 kg
Air Consumption	—
Machine Dimensions	115 × 95 × 210 cm
Notes	Manual measurement may have slight deviations. Actual product prevails.

DCK-W (Outer Bag Packaging Machine)

Parameter	Specification
Product Name	Outer Bag Packaging Machine (Model: DCK-W)
Production Capacity	25–35 bags/min (depending on material)
Measuring Range	Triangle inner bag
Bag Dimensions	Length: 85–150 mm, Width: 80–130 mm
Voltage / Power	220V / 50Hz
Air Source	—
Machine Weight	300 kg
Air Consumption	—
Machine Dimensions	70 × 150 × 170 cm
Notes	Manual measurement may have slight deviations. Actual product prevails.

Product Uses

Application Scenarios and Industries

Tea Industry: Both machines are widely used for packaging tea granules into individual triangle bags and then into outer pouches for retail.
Coffee Packaging: Ideal for portioning ground coffee into small inner bags and sealing them in outer packages.
Pharmaceuticals: Suitable for packaging powdered or granular medicines in precise doses.
Health Foods: Used for packaging herbal supplements, nutritional powders, and similar products.
Snack Foods: Can handle small granular snacks that require airtight inner and outer packaging.

FAQ

1. What types of materials can be used with these machines?
Both machines are designed for heat-sealable packaging films such as laminated paper, aluminum foil, and plastic films commonly used for food and pharmaceutical products.

2. What is the difference between the DCK-N4 and DCK-W?
The DCK-N4 is a combined inner and outer bag machine that forms triangle bags and fills them with product (1–7g). The DCK-W is specifically for packing pre-made triangle inner bags into outer bags, offering higher output for the final packaging stage.

3. How do I maintain the machines for optimal performance?
Regular cleaning of the sealing bars, checking the film tension, and lubricating moving parts as per the manual are recommended. Ensure the emergency stop and sensors are functional before each use.

4. Can the machines handle different bag sizes?
Yes, the DCK-W allows adjustable bag dimensions (length 85–150 mm, width 80–130 mm). The DCK-N4 bag size may be adjustable but is not specified; consult the manufacturer for custom requirements.

5. What are the power requirements for installation?
The DCK-N4 requires a 220V/2200W power supply, while the DCK-W needs 220V/50Hz. Both should be connected to a stable power source with proper grounding. Air source specifications are not provided, so check with the supplier if pneumatic components are needed.
