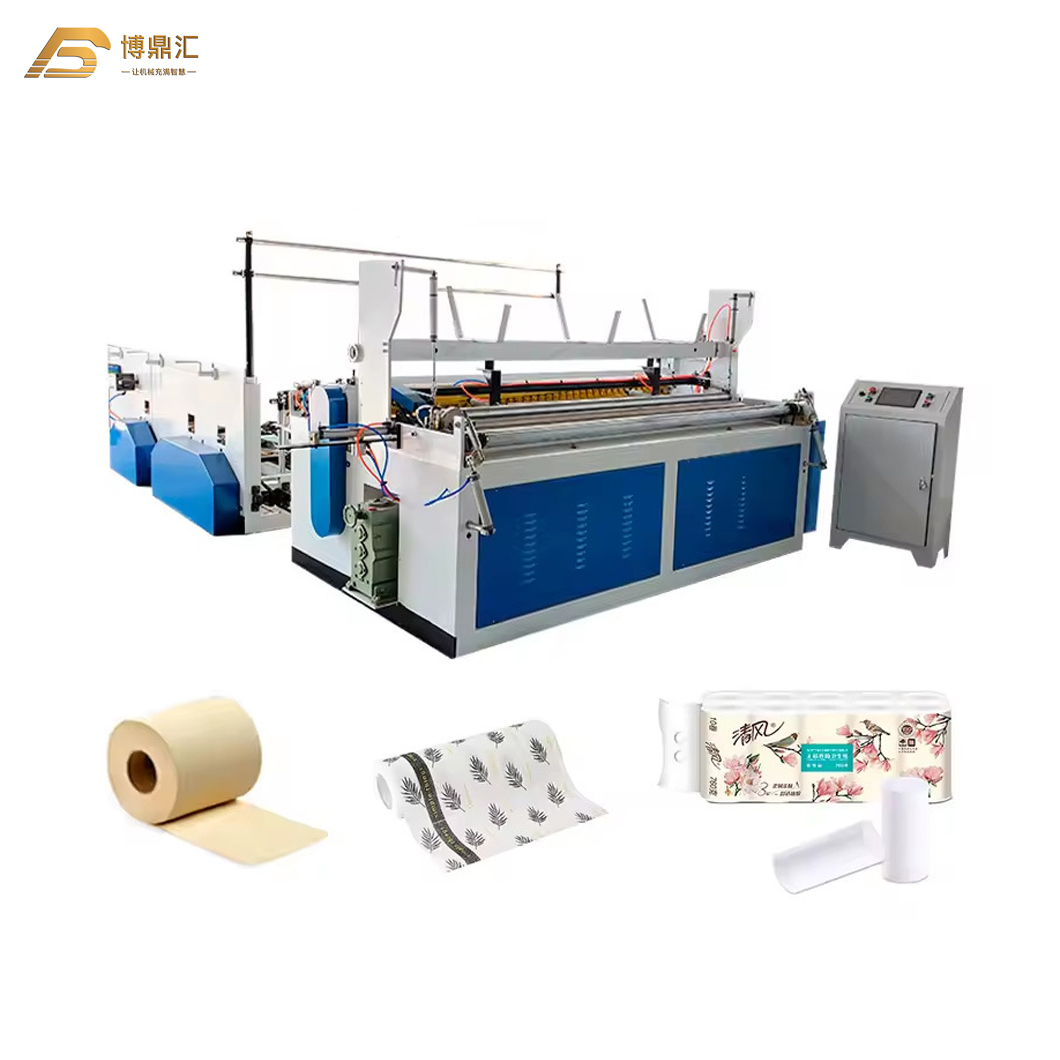

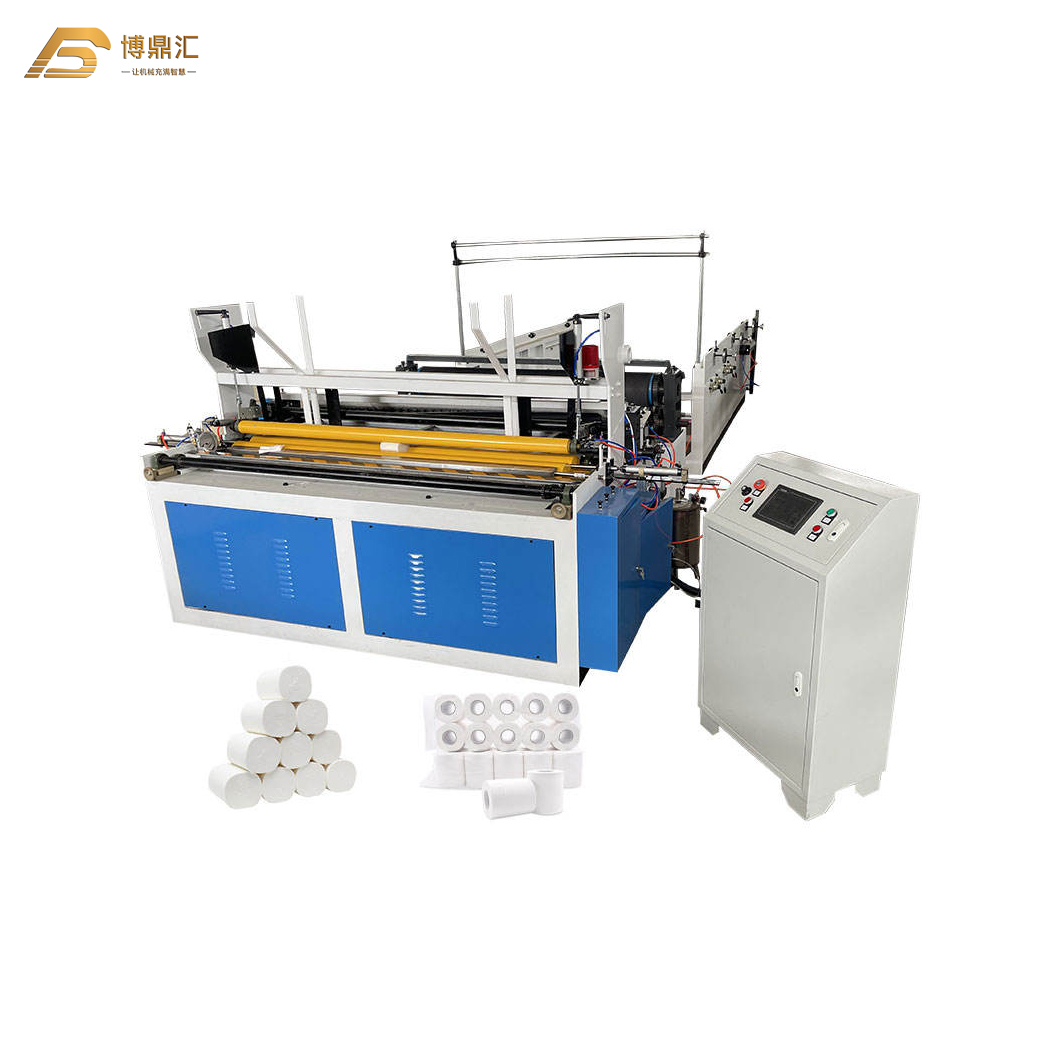

Jumbo Roll Rewinder Toilet Tissue Paper Automatic Making Machine

Jumbo Roll Rewinder Toilet Tissue Paper Automatic Making Machine

    A toilet paper rewinding machine is a core piece of equipment in the tissue paper converting industry. It automatically transforms large parent rolls (jumbo rolls) of base paper into finished consumer-ready toilet paper rolls. The process typically involves unwinding, embossing, ply bonding (for 2-ply or more), printing (if applicable), precise length cutting, log sawing, core insertion, and rolling into final rolls. Modern machines are highly automated, ensuring high production efficiency, consistent product quality (tight winding, accurate sheet count), and minimal material waste. Key features often include servo-driven controls, automatic splicing for continuous operation, defect detection systems, and user-friendly touchscreen interfaces for parameter adjustment.

    Instead of the traditional line trimming,automatic toilet paper making machine realizes new traimming margin.

1.This machine is for making toilet paper rolls,the whole structure is wall-type,which make machine running stable at high speed,and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system,automatic pushing the log after rewinding,then rewinding the new log again.
4. Automatic edge-trimming,glue spraying and sealing synchronously in one time.Leaving 10-18mm tail,easy to rewind again,so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique,man-machine interface operation,data set and parametric fault shows om touch screen.
6. Adopts 4 pieces high Precision spiral knives,low noise,clear perforation,adopt gearbox to have bigger range.
7. Two wall type back stands,pneumatic lifting system,with wide driving flat belts;each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper,easy and safe to operate.
