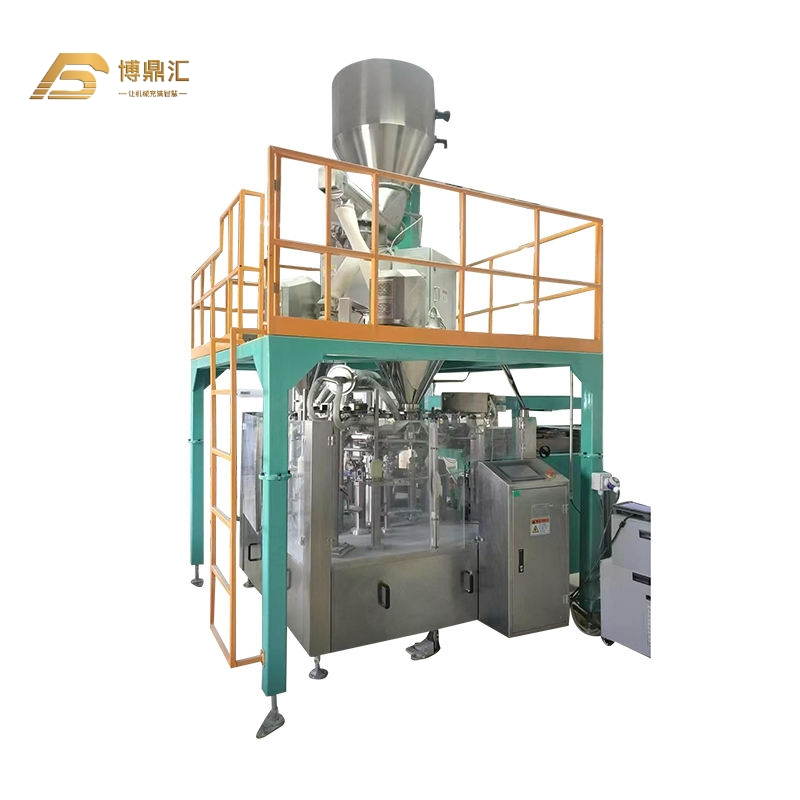

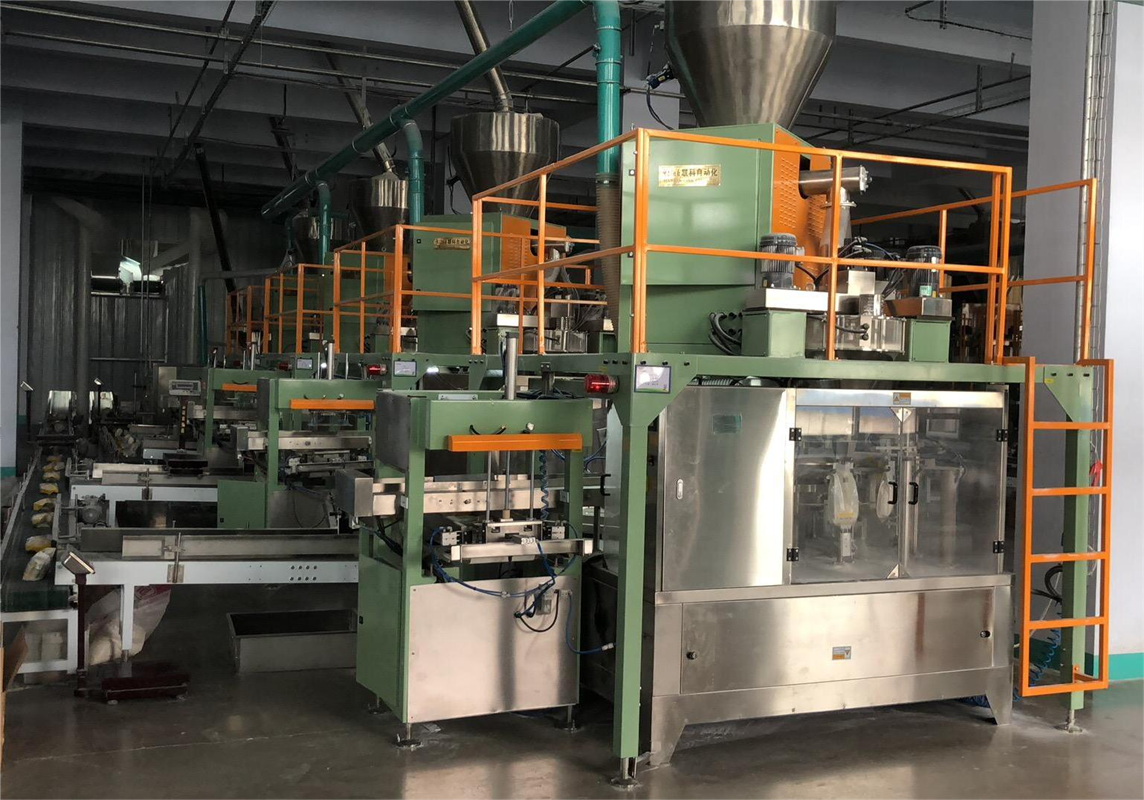

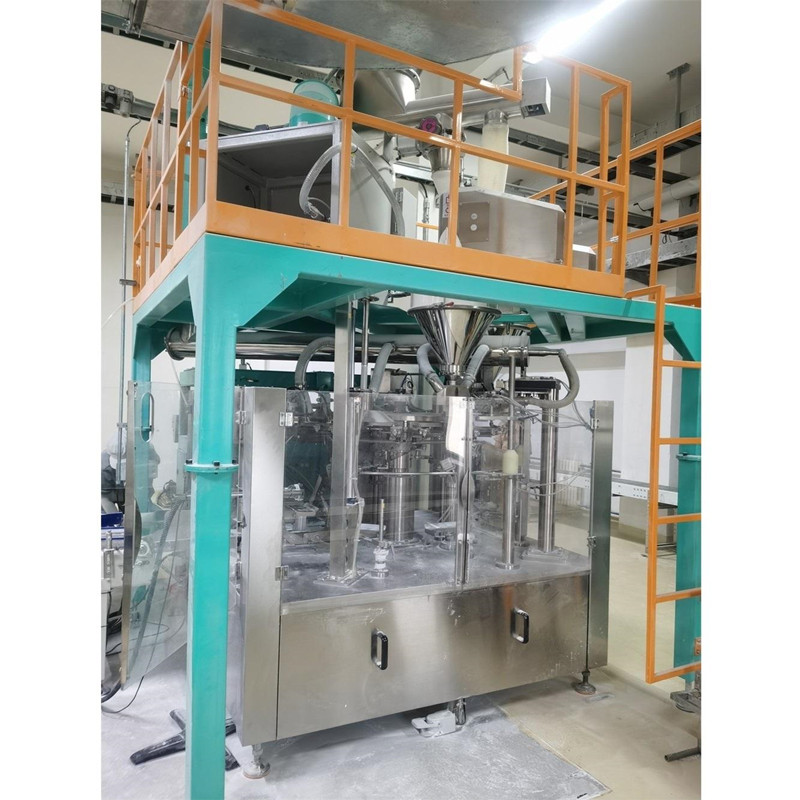

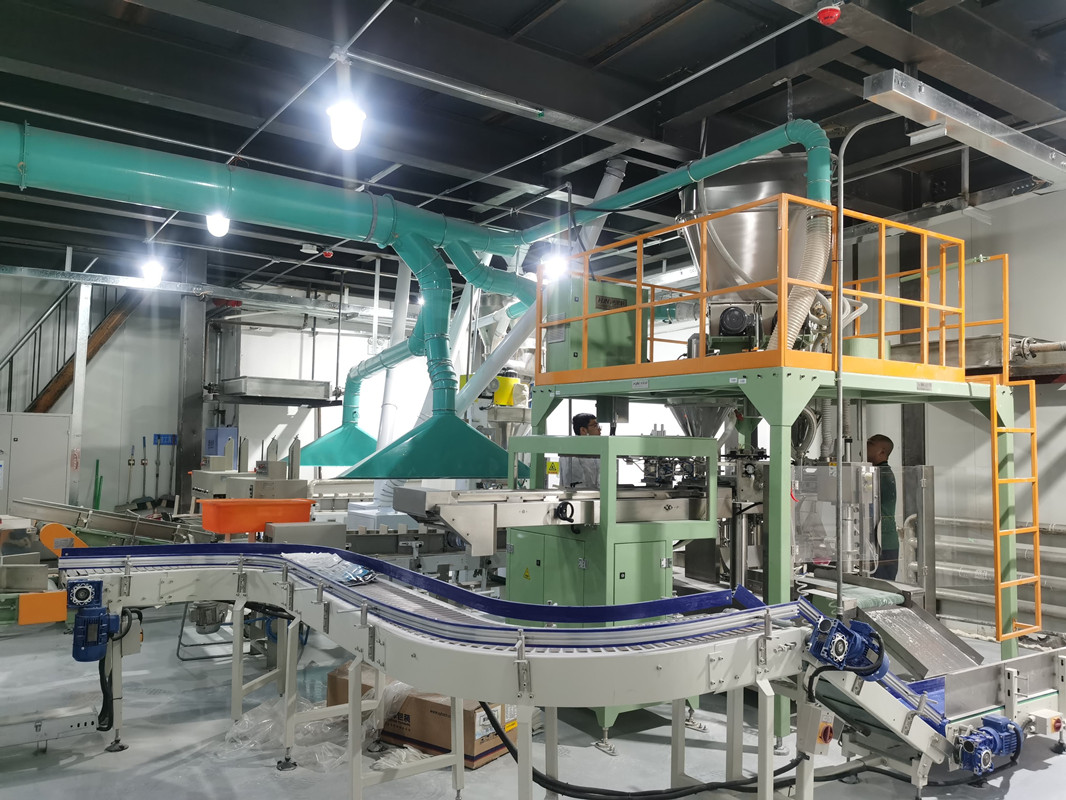

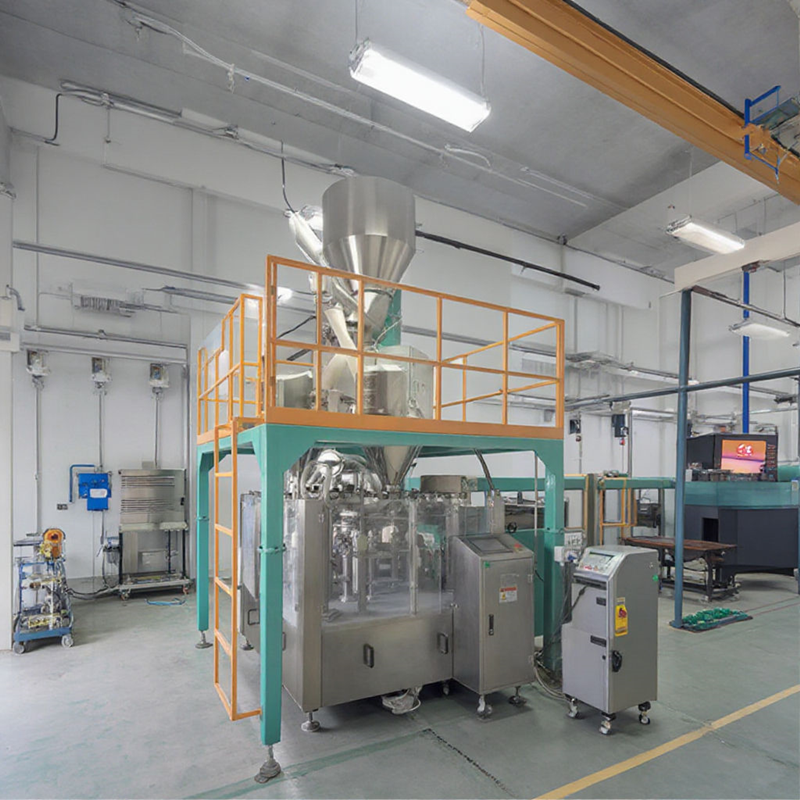

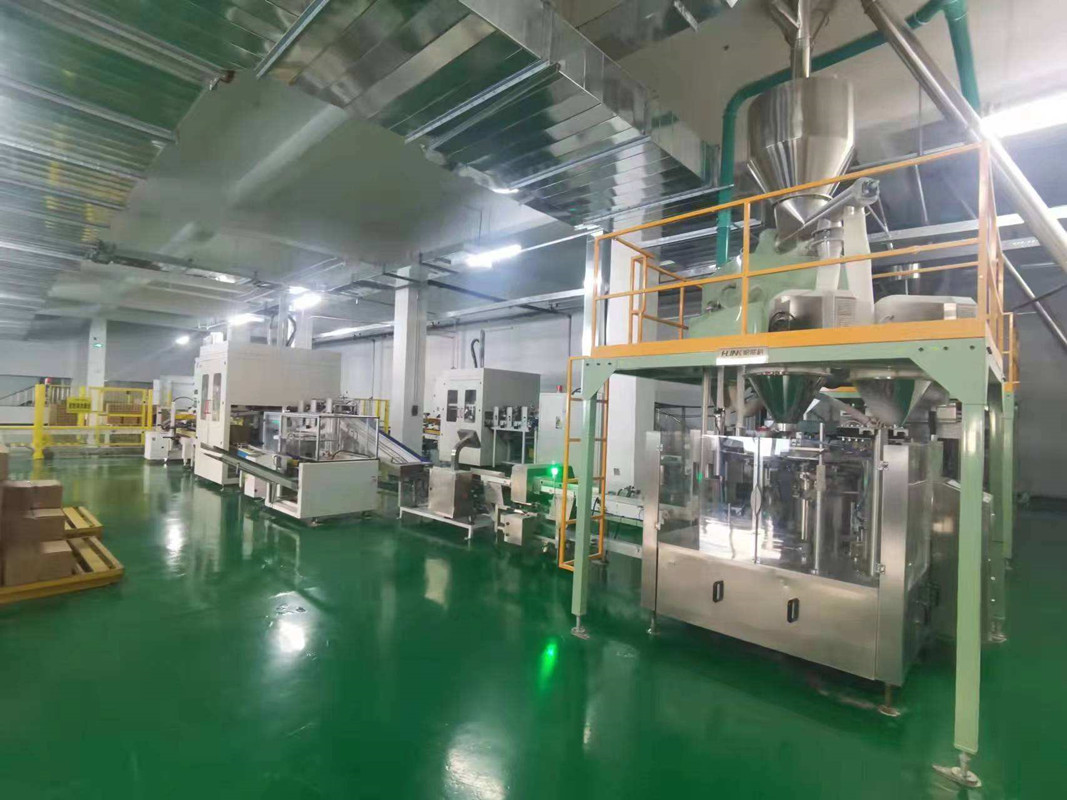

High Speed Multistation Multihead Weigher Automatic Powder Packaging Machine for PE Bag 1kg 2.5kg 5kg

High-Speed Multi-Station Powder Packaging Machine for PE Bags (1kg, 2.5kg, 5kg)

The BDH-LINK 8×2.5ZCF is a fully automatic, multi-head weighing and packaging machine designed for high-speed and accurate filling of powdered materials into PE bags. Ideal for flour, maize flour, bran, soybean meal, feed, wheat middlings, and various food, chemical, and cosmetic powders, it delivers precision within ±2% dynamic accuracy.

Key Features:

• High-Speed Multi-Station Design: Enables simultaneous bag picking, opening, filling, and sealing with mechanical positioning and pneumatic robotic arms.

• Advanced Weighing Technology: Combines screw-type volumetric pre-filling with servo-driven precision weighing for fast and accurate measurements.

• Vibration Compaction & Exhaust System: Uses a reverse-cleaning microporous exhaust rod to remove air from the bag, ensuring compact and stable powder packing.

• Wide Bag Range: Handles PE and other film/plastic/paper/foil bags from 1 kg to 5 kg.

• Robust Performance: Operates reliably in temperatures from -10°C to 40°C, with low gas consumption (≥3 m³/h at ≥0.6 MPa).

Specifications:

• Power: 8.37 kW (220V/380V)

• Machine Size: 3950 × 2500 × 4000 mm

• Weight: 2300 kg

• Packaging Speed: Efficient multi-head operation for continuous production.

Built for durability and automation, this machine is a reliable solution for industries seeking efficiency, consistency, and high-quality powder packaging.

**FAQ: BDH-LINK 8×2.5ZCF Automatic Powder Packaging Machine**

**1. What types of materials is this machine suitable for packaging?**

This machine is specifically designed for powdered materials. It is ideal for packaging flour, maize flour, bran, soybean meal, feed, wheat middlings, and various powders in the food, chemical, cosmetic, and animal feed industries.

**2. What is the packaging accuracy?**

The machine employs a combined weighing technology that integrates screw-type volumetric pre-filling with servo-driven precision weighing. It achieves a high dynamic weighing accuracy of **±2%**, ensuring consistent and reliable bag weights.

**3. What bag sizes and types can it handle?**

It is configured to handle PE bags in common weights of **1kg, 2.5kg, and 5kg**. The machine is also compatible with bags made from other materials such as film, plastic, paper, and foil composites.

**4. Does the machine require compressed air? What are the requirements?**

Yes, it requires a compressed air supply. The operational requirements are a gas pressure of **≥0.6 MPa** and a gas volume of **≥3 m³/h**. A stable and clean air source is recommended for optimal performance.

**5. Are there any limitations on the operating environment temperature?**

The machine is built to operate reliably within a broad ambient temperature range of **-10°C to 40°C**, making it suitable for most standard production facility environments.

**6. What are the electrical power requirements?**

The total power consumption is **8.37 kW**. The machine can be powered by either **220V or 380V** electrical supply, and can be configured to match the specific power conditions available at the user's site.
