High-Speed Automatic Vertical Liquid Packaging Sealing Filling Machine for Small Pouch Sachet Pure Water Juice Bag Making

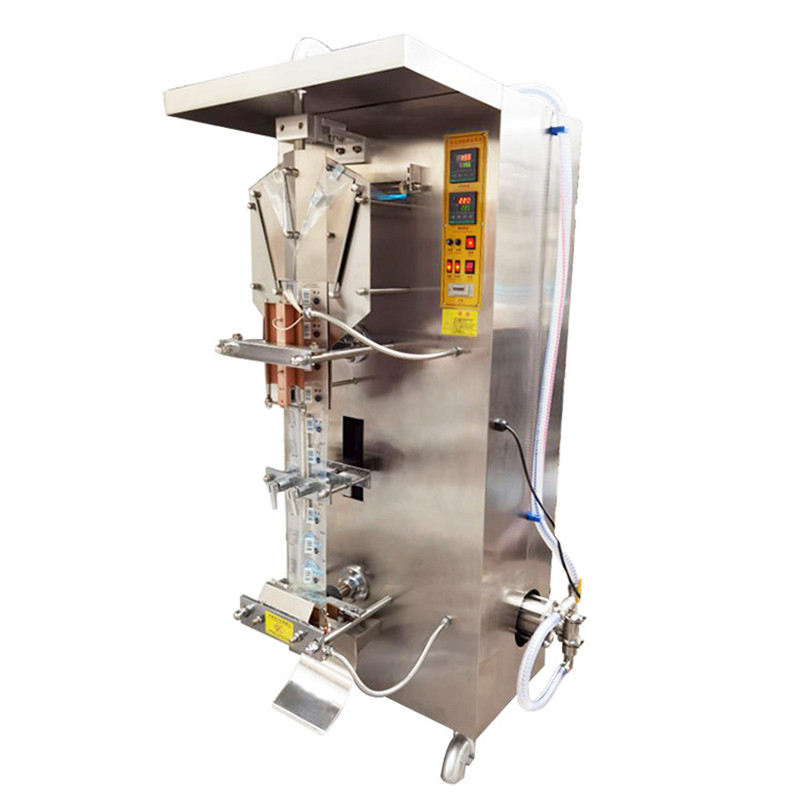

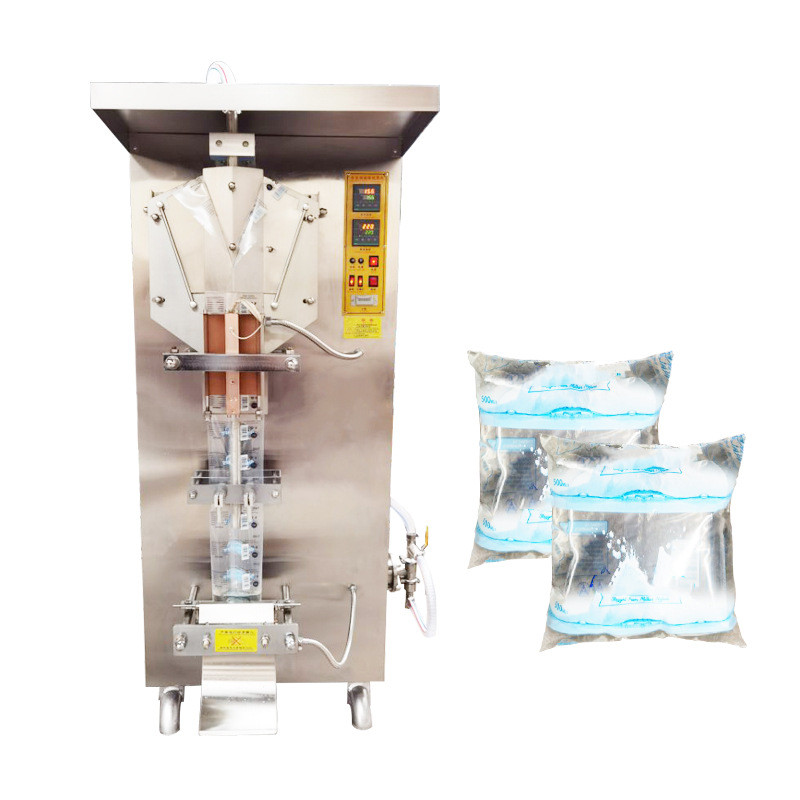

The BDH-BF1000 Automatic Liquid Packaging Machine represents a blend of robust engineering and intelligent design, aimed at optimizing the packaging of liquid products. Its construction from high-grade stainless steel guarantees longevity and compliance with strict sanitary standards, making it suitable for sensitive industries like food and pharmaceuticals.

Core Specifications & Performance:

• Model: BDH-BF1000

• Packaging Speed: 1100–1300 bags/hour

• Bag Dimensions: Length 50–150mm; Width 65–150mm

• Filling Capacity: 50–500ml

• Film Compatibility: Width 150–320mm

• Power & Weight: 2.1Kw power consumption; Net weight 370Kg

• Dimensions: 1050mm (W) × 850mm (D) × 2050mm (H)

Operational Excellence:

• End-to-End Automation: The machine autonomously manages the entire bagging cycle. It starts by forming the film into a tube, then performs bottom sealing, liquid filling, top sealing, and finally cuts and separates the finished bags.

• Advanced Metering System: Employs precise filling mechanisms (such as pump or time-pressure control) to ensure each bag contains the exact programmed volume, minimizing product giveaway and ensuring consistency.

• Integrated Printing & Counting: An integrated batch numbering system prints essential production details directly onto each bag, while the automatic counter tracks output for inventory management.

• User-Friendly Adjustments: The control interface allows operators to quickly adjust bag length and filling parameters to accommodate different product runs without extensive mechanical reconfiguration.

• Material Efficiency: Designed to handle standard packaging films efficiently, reducing waste during the forming and sealing process.

This machine is designed for businesses looking to scale their production capacity while maintaining the integrity and presentation of their liquid products.

Application Industries & Market Demand Scenarios
The versatility and sanitary design of the BDH-BF1000 make it a valuable asset across multiple sectors:

• Dairy Industry: Specifically designed for packaging milk, yoghurt drinks, and liquid dairy alternatives.

• Beverage Sector: Ideal for bottling alternatives like water, soft drinks, wines, and spirits in convenient pouch formats.

• Food Processing: Essential for portioning condiments such as cooking oil, vinegar, liquid seasoning, and sauces.

• Pharmaceutical & Healthcare: Suitable for packaging oral liquids, syrups, and saline solutions in a sterile environment.

• Agrochemical & Industrial: Used for packaging liquid fertilizers, pesticides, and industrial detergents (with appropriate material checks).

Market Drivers:

• The global shift towards sustainable and lightweight packaging solutions, with pouches using less material than rigid bottles.

• Growing demand in the food service industry for pre-portioned condiments and single-serve beverages.

• Increased regulatory focus on hygiene in processing, pushing manufacturers toward automated, easy-to-sanitize stainless steel machinery.

• The expansion of private-label brands requiring flexible, small-to-medium batch production capabilities.

Q1: What kind of sealing system does this machine use?
A1: The SJ-BF1000 utilizes a thermostatic heat-sealing system. The sealing jaws are precisely temperature-controlled to create strong, leak-proof seals on the bottom and top of each bag, ensuring product integrity during transport and storage.

Q2: Can this machine run different widths of film roll?
A2: Yes, the machine is designed to accommodate a range of film widths from 150mm to 320mm. This flexibility allows you to produce different bag widths without needing a new machine, simply by adjusting the forming tube and related components.

Q3: What happens if the machine runs out of film during production?
A3: The machine is typically equipped with a film run-out sensor. When the film roll is depleted or breaks, the sensor triggers an automatic alarm and stops the machine, preventing incomplete bags from being formed and reducing material waste.

Q4: How do I ensure the correct fill volume for different liquids?
A4: The machine features an adjustable filling system. Operators can fine-tune the fill volume via the control panel. For viscous products like syrups, the filling mechanism may need specific adjustments compared to water-like liquids to ensure accuracy and prevent dripping.

Q5: What is the recommended cleaning procedure for this machine?
A5: It is recommended to flush the filling system with clean water or a suitable cleaning solution after each production run, especially when changing products. The stainless steel exterior should be wiped down. Detailed disassembly and cleaning instructions for the filling pump and nozzles are provided in the maintenance manual to ensure hygiene.
