BDH-PC-02
BodingHui
| Availability: | |
|---|---|
| Quantity: | |

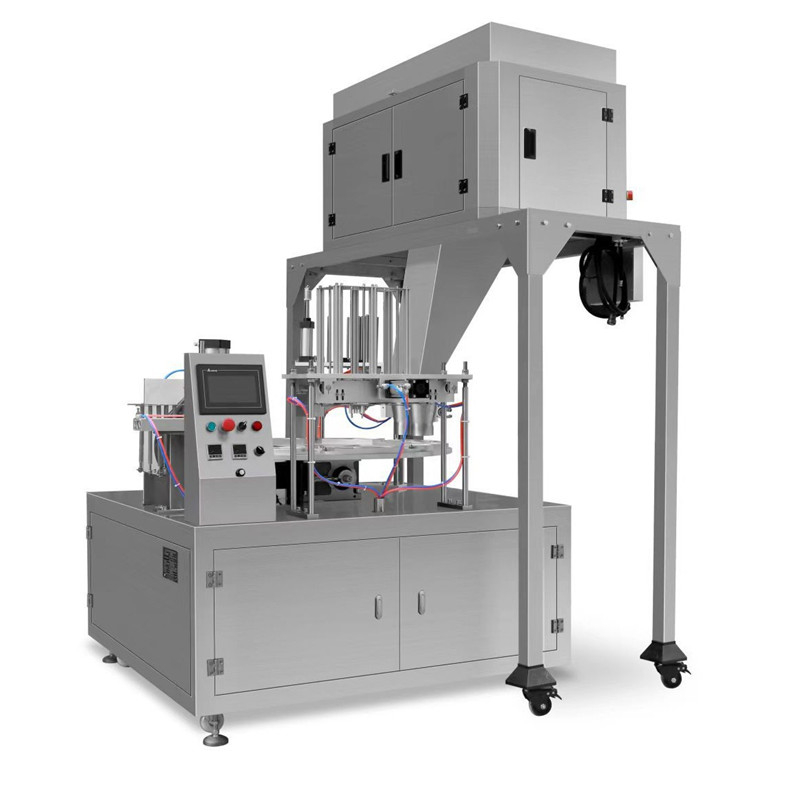

The High-Accuracy Heat Sealer Vertical Weigher Rotary Plastic Paper Cup Filling Sealing Machine, manufactured by Rongjun Packaging Machinery Co., Ltd, is a versatile and efficient packaging system engineered for the food industry. Suitable for sealing plastic or paper cups containing snacks, potato crisps, yogurt, coffee, and similar products, this machine integrates advanced heat-sealing technology with vertical weighing and rotary filling mechanisms to ensure precision and consistency in packaging.
Key features include customizable film and packaging box sizes to meet specific product requirements, along with precise temperature control ranging from 0 to 400°C for optimal seal quality. The machine operates at a speed of 1200–1400 units per hour, supporting high-volume production without compromising accuracy. Its compact dimensions (1400×1400×1540 mm) allow for easy integration into existing production lines.
The system requires a gas source pressure of 0.6–0.8 MPa and runs on a 2 kW power supply at 220V/50Hz, ensuring energy-efficient operation. Designed for reliability and user-friendly performance, this machine is an ideal choice for food manufacturers seeking to enhance packaging efficiency, ensure product freshness, and maintain hygiene standards. For detailed specifications and customization options, please contact customer service.
| Item | Parameters |
| Model | BDH-PC-02 |
| Maximum Speed | 1200~1400per/h |
| Gas source pressure | 0.6~0.8Mpa |
| Rated Power of Motor | 2KW |
| Voltage/Frequency | 220V/380V |
| Machine size | 1400x1400x1540mm |
| Temperature control | 0~400°C |
| Packaging box size | Customized according to requirements |
| Core Components | Motor, PLC, Gear, Bearings, etc. |
| Applicable Scenarios | Food and beverages, Fruits and vegetables, Fresh produce, Cosmetics |


This versatile and high-performance packaging machine is engineered to meet the diverse needs of the modern food and beverage industry. Its precision, speed, and adaptability make it an ideal solution for a wide range of applications, particularly in packaging small to medium-sized portions in rigid containers. Below are the primary application areas:
1. Snack Foods:
Potato Chips & Crisps: Perfect for creating single-serve, airtight bags or sealing filled cups to maintain crispness and freshness.
Nuts, Pretzels, & Crackers: Ensures accurate weighing, filling, and sealing to protect against moisture and staleness.
Popcorn & Puffed Snacks: Provides a reliable seal for various bag or cup formats, preserving flavor and texture.
2. Dairy & Yogurt Products:
Drinking Yogurt & Pudding Cups: Offers hygienic, secure sealing for plastic or paper cups, essential for product safety and extended shelf life.
Custards & Dairy Desserts: The precise heat control ensures a clean, consistent seal without damaging the product or container.
3. Beverage & Instant Mixes:
Instant Coffee & Tea Portions: Ideal for single-serve sachets or small cups, with accurate filling and sealing to preserve aroma.
Powdered Drink Mixes & Creamers: Ensures portion control and protects hygroscopic powders from clumping due to humidity.
Liquid Coffee Creamers: The vertical weigher/filler can be adapted for liquid dosing into small sealed cups.
4. Confectionery & Desserts:
Jellies, Mousses, & Fruit Cups: Provides tamper-evident and leak-proof sealing for ready-to-eat desserts.
Sauce & Topping Portions: Useful for packaging small servings of syrup, chocolate sauce, or jam for inclusion in larger meal kits.
5. Dry Food Ingredients & Toppings:
Cereal Portions, Granola, & Toppings: For single-serve breakfast cups or hotel buffet presentations.
Spices, Sugar, & Condiments: Enables precise packaging of small quantities for food service or travel kits.
6. Ready-to-Eat & On-the-Go Products:
Salad Toppings (Croutons, Bacon Bits): Keeps components fresh and separate until consumption.
Portion-Controlled Meal Components: Suitable for packaging ingredients in meal prep or delivery services.
Key Application Advantages:
High Accuracy & Consistency: The integrated vertical weigher ensures each package meets exact weight specifications, crucial for quality control and cost management.
Material Versatility: Capable of heat-sealing lidding film to both plastic and paper-based cups, supporting sustainable packaging choices.
High-Speed Production: With an output of 1200–1400 units/hour, it efficiently meets the demands of continuous production lines.
Hygienic & Airtight Sealing: Protects product integrity, prevents contamination, and extends shelf life—critical for perishable food items.
Compact Footprint: Its relatively small size allows for flexible integration into existing factory layouts without requiring extensive space.
Conclusion:
The High-Accuracy Heat Sealer Vertical Weigher Rotary Filling and Sealing Machine is a robust and adaptable asset for any food manufacturer looking to automate the packaging of cup-based products. It combines precision filling with reliable sealing technology, making it a cornerstone for ensuring product quality, freshness, and presentation across a broad spectrum of the food industry.
1. What types of products is this machine suitable for?
This machine is designed for packaging a variety of food products, including snacks, potato crisps, yogurt, coffee, and similar items in plastic or paper cups.
2. What is the packaging speed of the machine?
The machine operates at a speed of 1200–1400 units per hour, making it suitable for medium to high-volume production.
3. Can the packaging film and box size be customized?
Yes, both the film and packaging box size can be customized according to your specific product requirements.
4. What is the temperature range for sealing?
The machine offers precise temperature control ranging from 0 to 400°C, ensuring strong and consistent seals for different materials.
5. What are the electrical and gas requirements?
The machine requires a 220V/50Hz power supply with a power consumption of 2 kW. It also needs a gas source pressure of 0.6–0.8 MPa.
6. Is the machine easy to integrate into an existing production line?
Yes, with its compact size (1400×1400×1540 mm) and standard industrial interfaces, it can be easily integrated into most production setups.
