Fully-Automatic Hydraulic Pressure Hopper Type Mold Hollow Block Concrete Brick Making Machinery

The QT4-35C Hydraulic Pressure Hopper Type Mold Concrete Block Making Machine is a semi-automatic machine designed for efficiently producing a wide variety of concrete blocks, including hollow blocks, pavers, and curb stones. With a power of 7.5KW and an output of up to 4500 pieces of 400x200x200mm hollow blocks per day, it offers reliable performance. It operates with a short 30-second cycle time and requires only 2-3 personnel for operation. The machine is versatile and facilitates easy mold changes to produce different block designs as shown in the catalog.

Model:
BDH-JT002
Brand:
BodingHui

Availability:

Quantity:



Inquire Add to Basket

Product Description

4be7446a06bcd13a37d126adc1c1b6df fe266937-321f-41db-8ac6-23d4a5849bf0_副本 68655f66-96cf-4175-960e-6e3dc5f5ee52_副本 988dcf05-cb96-42e6-9fcc-f23d4c4dbddc_副本

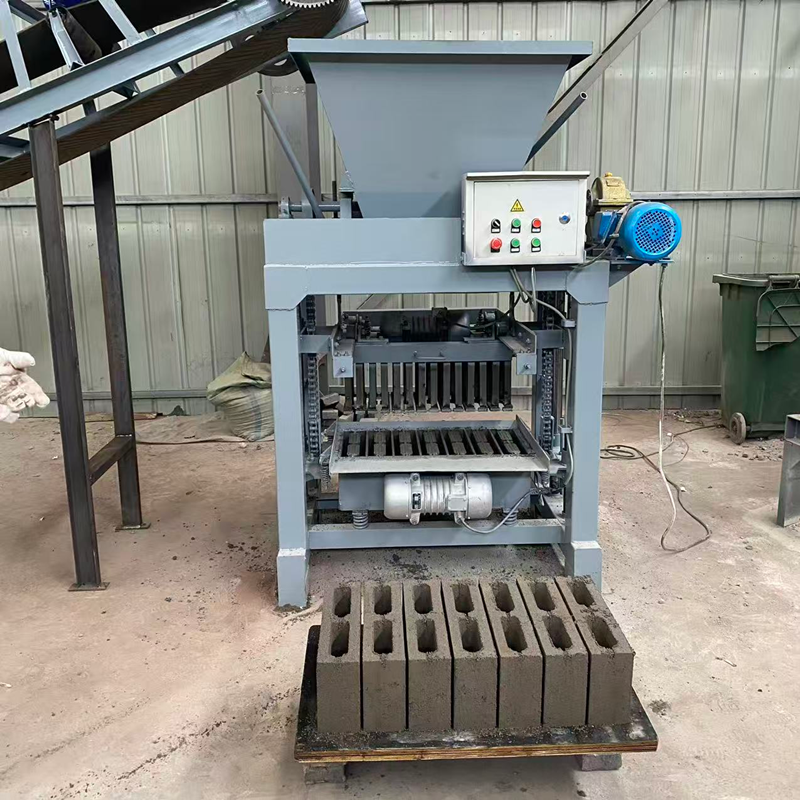

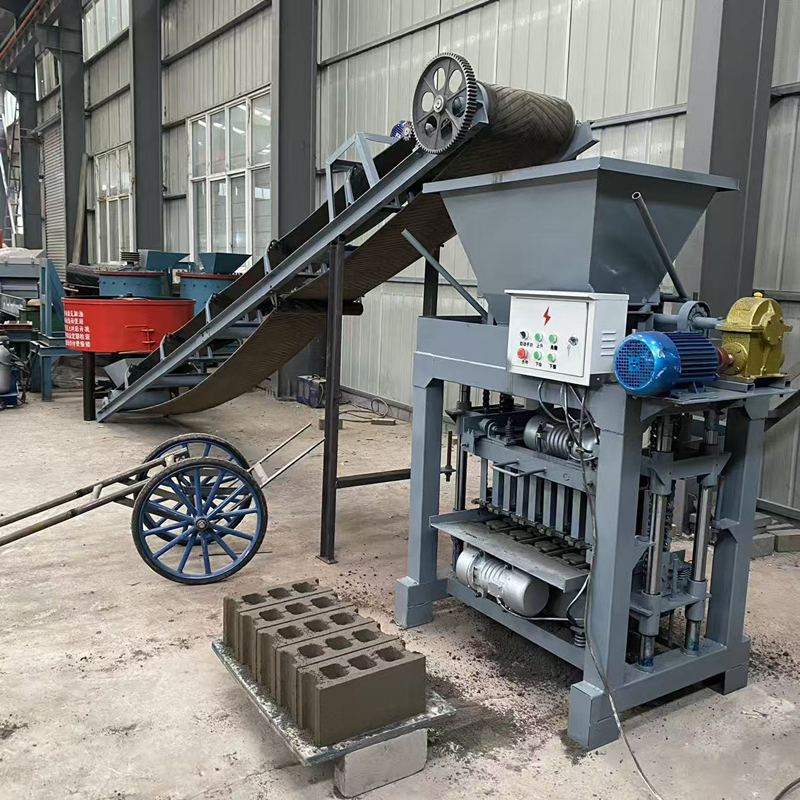

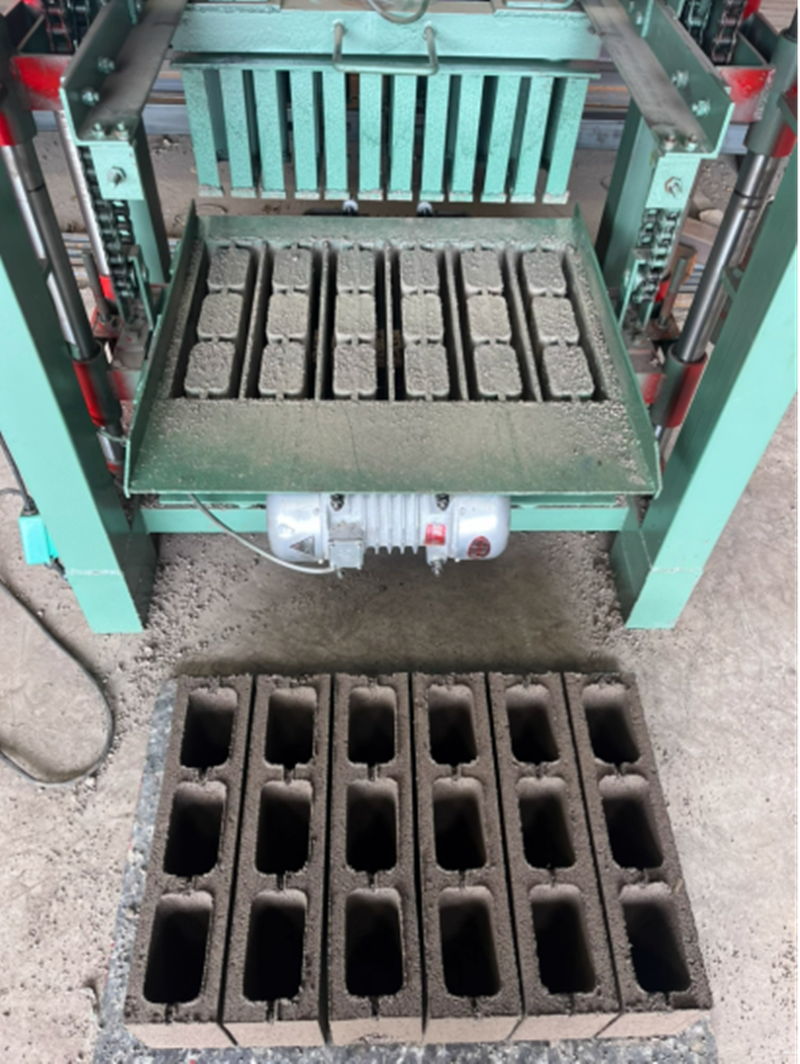

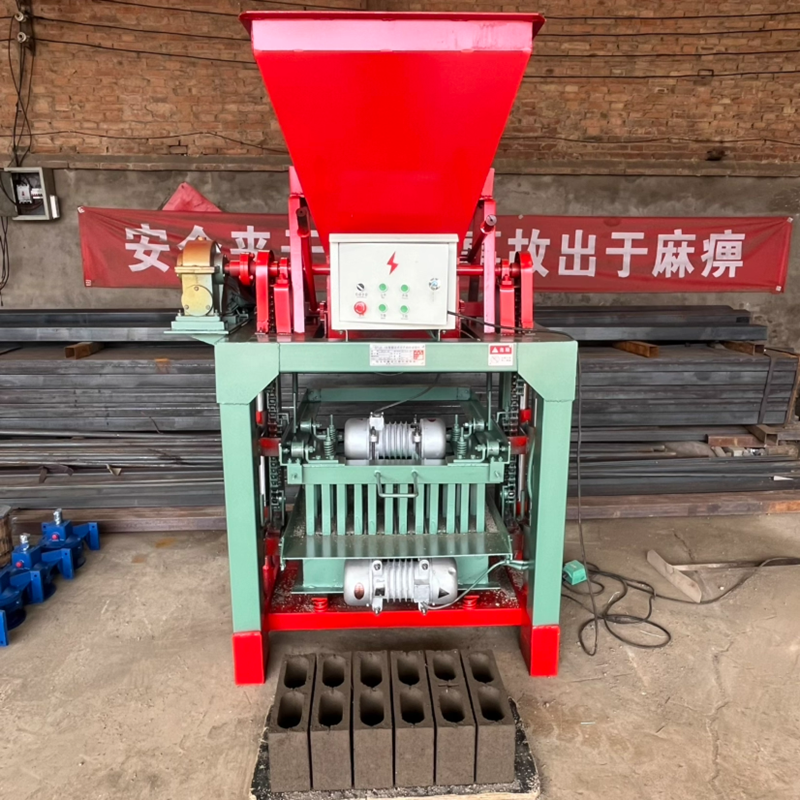

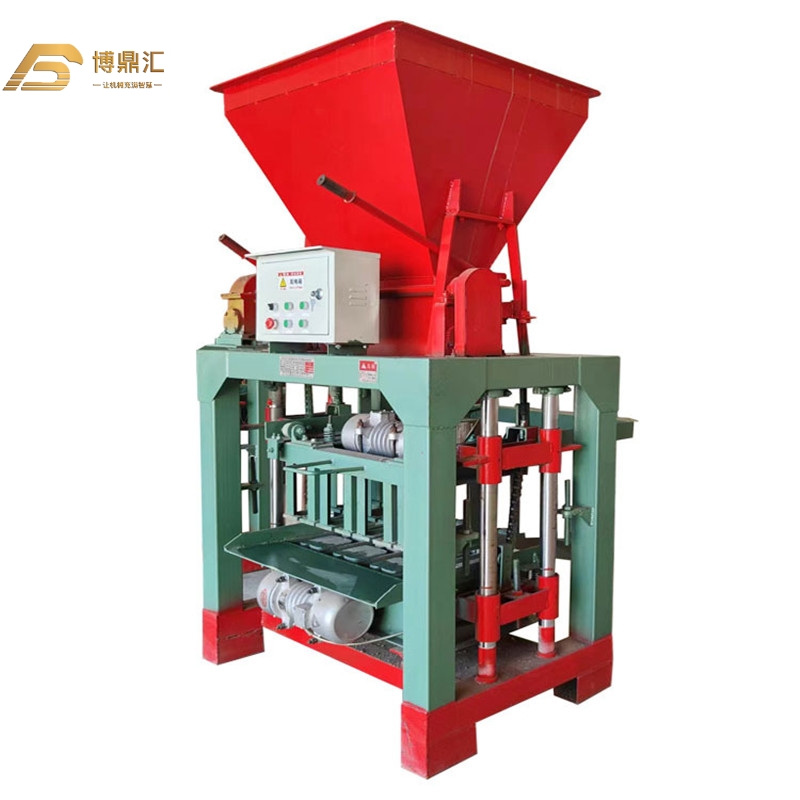

The QT4-35C Hydraulic Pressure Hopper Type Mold Hollow Block Concrete Brick Making Machine is a robust, semi-automatic production unit engineered for high-efficiency manufacturing of various precast concrete products. Combining hydraulic pressure technology with a user-friendly hopper-fed mold system, this machine ensures consistent quality, durability, and operational ease in block production.

Key Specifications & Performance:

Model: QT4-35C Semi-Automatic Block Forming Machine
Power: 7.5 KW, compatible with 380V/220V power supply.
Machine Dimensions (approx.): 1500mm (L) x 1400mm (W) x 2200mm (H).
Weight: 750 KG, providing stable operation.
Production Output: Capable of producing up to 4500 units of standard 400x200x200mm hollow blocks per day.
Cycle Time: A fast 30-second molding cycle enhances productivity.
Manpower: Efficiently operated by a small team of 2-3 persons.

Core Features & Advantages:

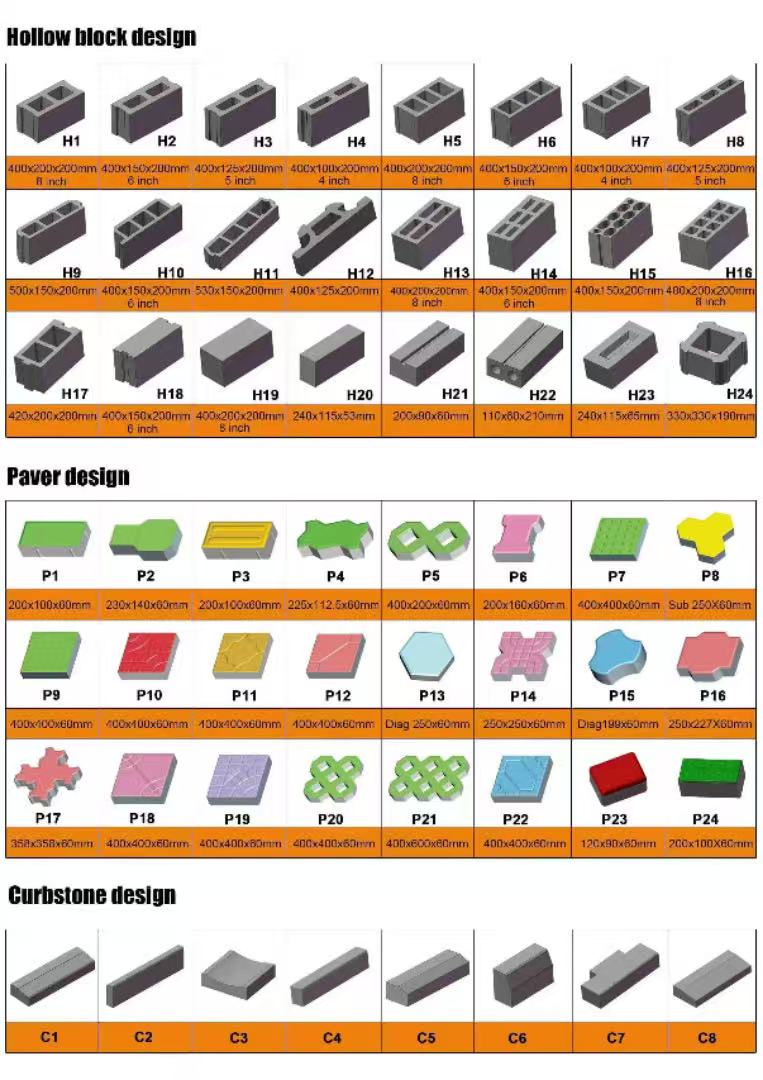

Excellent Forming Quality & Versatility: The hydraulic system delivers high, uniform pressure, resulting in densely compacted blocks with excellent strength, smooth surfaces, and precise dimensions. It is adept at producing a comprehensive range of products, including multiple designs of hollow blocks, paving stones (interlocking, hexagonal, etc.), and curb stones, as detailed in the accompanying design catalog.
Efficient Mold Change System: A standout feature is the ease of mold replacement. The hopper-type mold design allows for quick switching between different product shapes and sizes (e.g., from 6-inch to 4-inch hollow blocks or various paver patterns), minimizing downtime and maximizing production flexibility for market demands.
Semi-Automatic Operation: This machine strikes an optimal balance between automation and manual control. It automates the critical processes of compaction and vibration while allowing manual handling of material feeding and product removal. This design makes it highly productive yet accessible, requiring less specialized skill to operate compared to fully manual machines.
Durable Construction: Built with a weight of 750kg, the frame is sturdy and vibration-resistant, ensuring long-term reliability and consistent performance even under continuous operation.

Ideal Application:
The QT4-35C is perfectly suited for small to medium-sized block manufacturing plants, construction companies producing their own materials, and entrepreneurs entering the concrete products industry. Its combination of good forming effect, mold-changing convenience, and efficient output makes it a cost-effective and practical solution for producing high-quality concrete blocks, pavers, and landscaping stones.

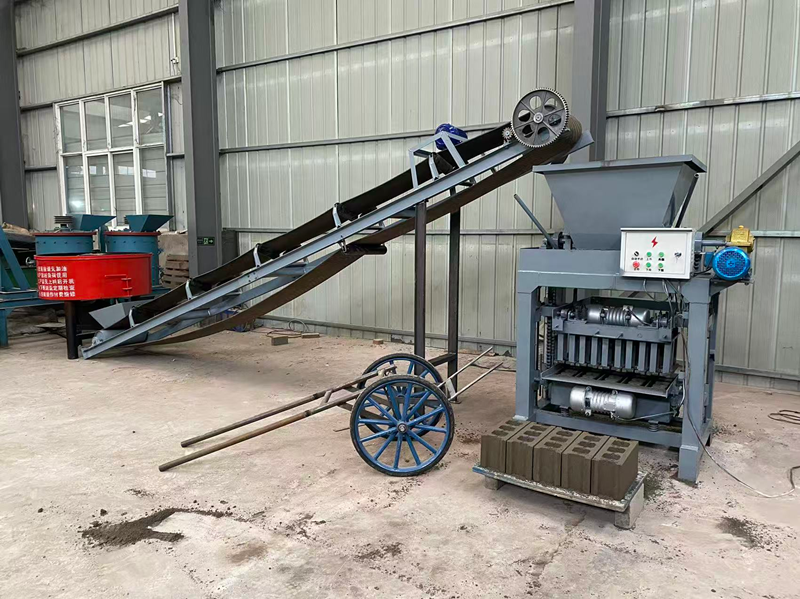

Technical Parameters

20b4586593b4ff212bf89765e3ca89d1 4895c178-1428-403b-bba9-9e49259c7ade_副本

Machine Parameters:

Machine Model		BDH-JT002
Power Supply		220/380V
Size		150014002200mm
Weight		750KG
Hollow block		4500PCS/8H
Operation person		2-3 persons
Forming time		30s
Capacity		400200200mm

FAQ

Q1: What is the main production capacity of the QT4-35C machine?
A: The QT4-35C can produce approximately 4500 pieces of standard 400x200x200mm hollow blocks in one working day (typically 8 hours). The quick 30-second cycle time ensures continuous and efficient production.

Q2: What types of concrete products can this machine make?
A: It is highly versatile. Beyond standard hollow blocks, the machine can produce a wide variety of products, including various hollow block designs (different thicknesses like 4-inch and 6-inch), numerous paver designs (like interlocking, hexagonal, and rectangular), and several curbstone profiles. Changing between these products is done by replacing the mold.

Q3: Is the machine fully automatic?
A: No, the QT4-35C is a semi-automatic machine. It automates the core processes of compaction and vibration via a hydraulic system, but operations like raw material feeding into the hopper and removing the finished blocks are done manually. This design offers a great balance of efficiency, ease of use, and affordability.

Q4: What are the electrical requirements to run this machine?
A: The machine requires a power supply of 7.5 KW. It is compatible with both 380V (three-phase) and 220V (single-phase) industrial power standards, which makes it adaptable to different workshop electrical setups.

Q5: How many workers are needed to operate this machine effectively?
A: The machine is designed to be operated efficiently by a team of 2 to 3 workers. One can manage the machine controls and operation, while the others handle material preparation and block removal/palletizing.

Q6: How easy is it to change the mold to produce a different product?
A: Mold changing is designed to be straightforward and relatively quick. The "hopper-type mold" system simplifies the process. This feature is a key advantage, allowing producers to switch between different block, paver, or curbstone designs with minimal downtime, enabling flexible production to meet diverse customer orders.
