Fruit Juice Ketchup Red Ginseng Syrup Concentrated Triangle Pouch Packing Machine for Powder Spice Coffee Beverages Foods

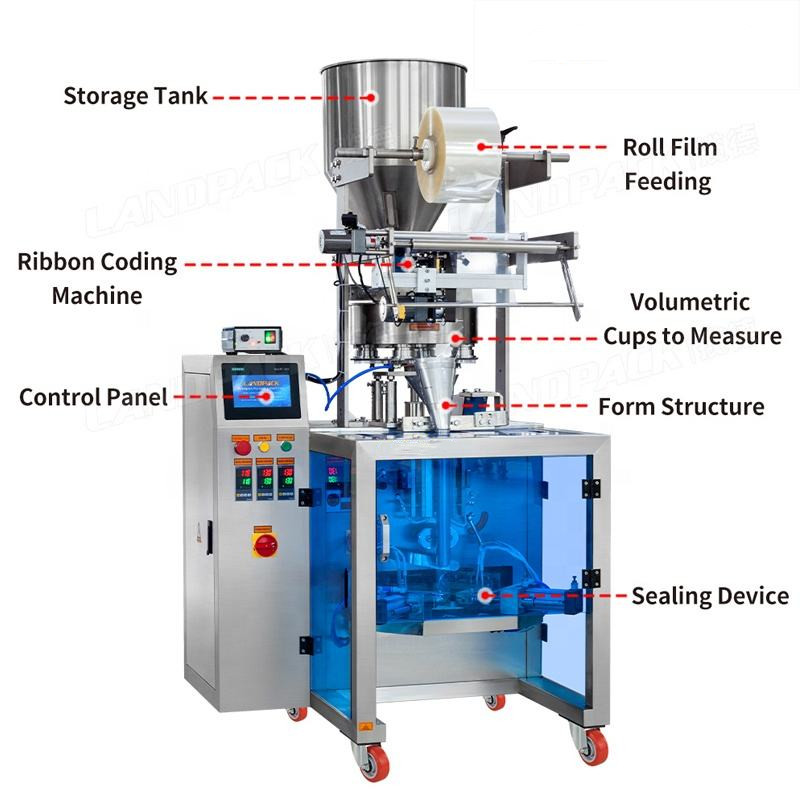

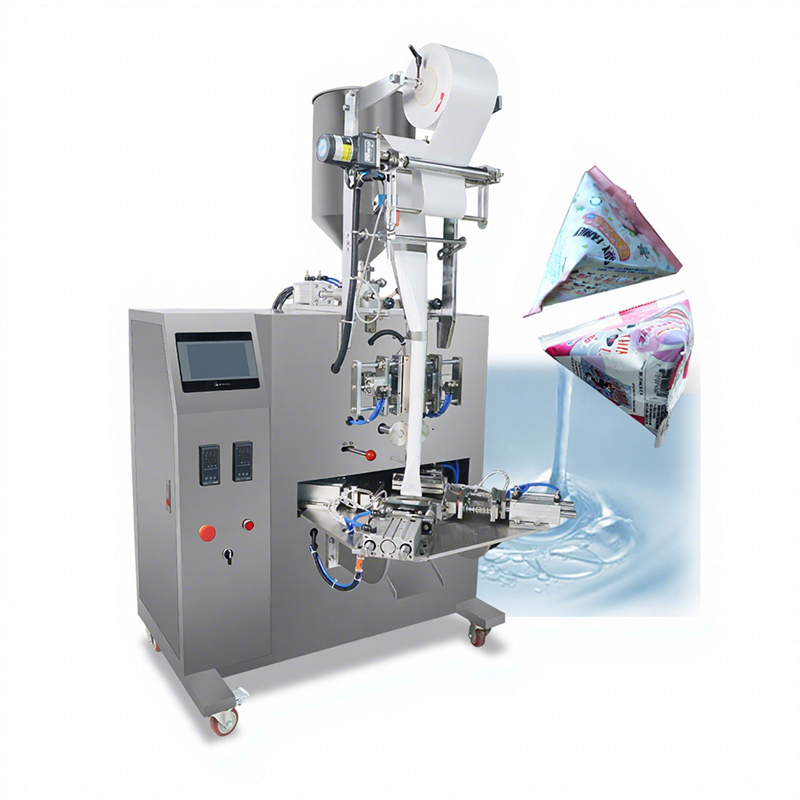

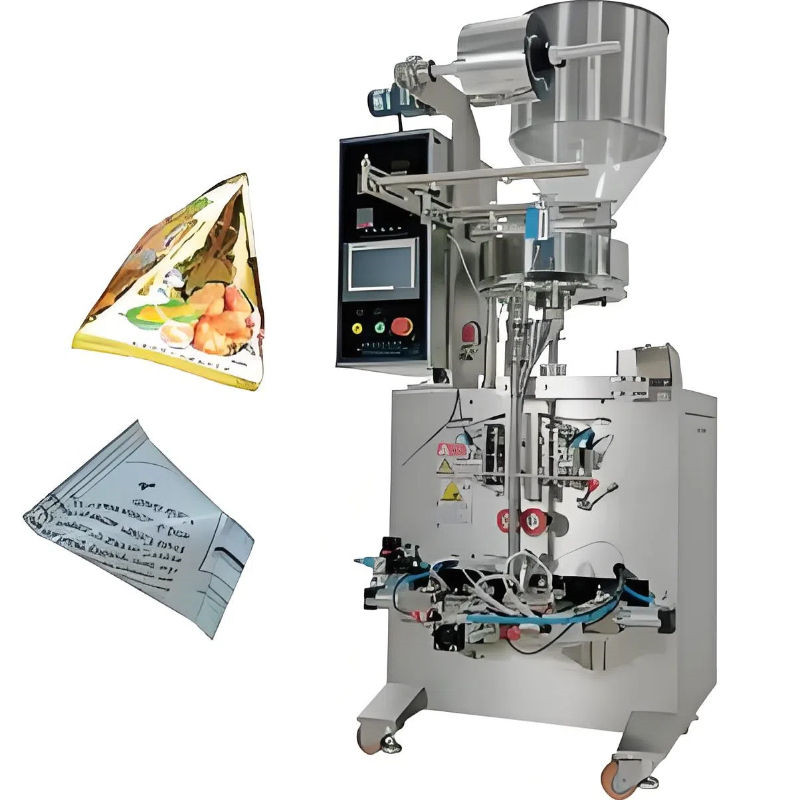

The BDH-12 is a high-performance packaging solution engineered for businesses seeking efficient and attractive triangle pouch packaging for liquid products. Built with durability and hygiene in mind, this machine automates the entire process—from film feeding to finished product output.

Key Technical Specifications:

• Model: BDH-12

• Packaging Speed: 20-40 bags/minute

• Filling Range: 1-50ml (Volumetric/Piston Pump)

• Bag Size Range: Length 40-100mm, Width 40-90mm

• Sealing Type: Triangle Bag (Stand-up Pouch style)

• Total Power: 1.5 Kw

• Machine Weight: 400 kg

• Dimensions: 115cm (L) x 97cm (W) x 170cm (H)

Core Features:

• Precision Filling: Equipped with a pneumatic piston pump to handle various viscosities, ensuring accurate doses for products like lotions and oils.

• Intelligent Control: Smart touch screen PLC system allows for precise adjustments to temperature, cutting length, and speed.

• Sturdy Build: Full stainless steel casing (304 grade) resistant to moisture and corrosion, making it ideal for food and cosmetic environments.

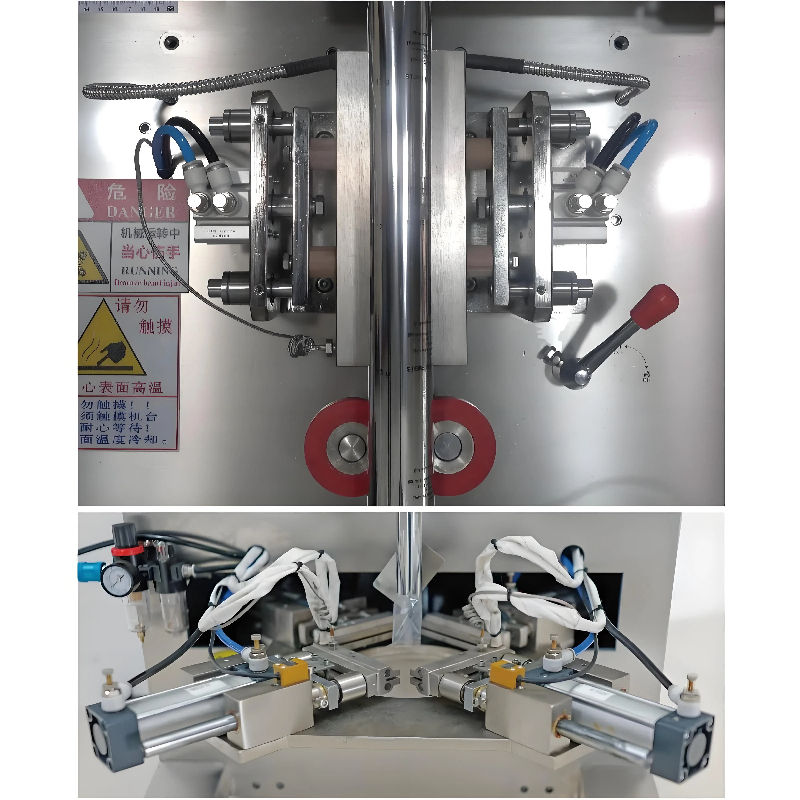

• High-Quality Seals: Produces strong, leak-proof triangle seals that enhance product shelf-life and shelf appeal.

• Photoelectric Registration: Automatically corrects the position of printed film to ensure perfect design alignment on every bag.

• Compact Footprint: Small size (115cm length) fits easily into tight production spaces.

Industries & Applications

The BDH-12 is versatile enough to serve a wide range of industries requiring liquid portion packaging:

• Food Industry:

• Cooking Essentials: Edible oil, vinegar, soy sauce, liquid condiments.

• Sweeteners: Honey, chocolate syrup, condensed milk.

• Preserves: Jam, fruit puree, tomato paste.

• Beverages: Drinking water, juice shots.

• Cosmetics & Personal Care:

• Hair Care: Shampoo, conditioner, hair serum samples.

• Skin Care: Facial cleanser, toner, moisturizing cream, sunscreen lotion.

• Bath Products: Shower gel, liquid hand soap, body wash.

• Household Chemicals:

• Liquid laundry detergent, fabric softener, dishwashing liquid.

• Food Service & Retail:

• Perfect for creating single-use sachets for restaurants, hotels, or sample distribution.

•


Q1: What types of packaging film can I use with this machine?
A: The BDH-12 is compatible with various heat-sealable flexible films, such as laminated rolls (PET/AL/PE), paper/PE, or aluminum foil. For best results with pre-printed designs, ensure the film has a photoelectric mark (eye mark) for the sensor to read.

Q2: How do I change the filling volume from 5ml to 50ml?
A: Adjusting the volume is simple. The machine uses a piston pump. You can easily adjust the piston stroke length through the touch screen interface or by manually adjusting the cylinder position to increase or decrease the suction and discharge volume.

Q3: Is it difficult to clean the machine when switching from oil to honey?
A: No, it is designed for easy maintenance. The parts that come into contact with the product (like the piston pump, hopper, and filling nozzles) are detachable and should be rinsed thoroughly with warm water or a cleaning solution when changing products to prevent cross-contamination.

Q4: What voltage does the machine use?
A: The standard configuration is 220V Single Phase, but it can be customized to meet the specific electrical requirements of your country (e.g., 110V or 380V). Please confirm your local voltage when placing an order.

Q5: Does the machine come with a coding device to print expiry dates?

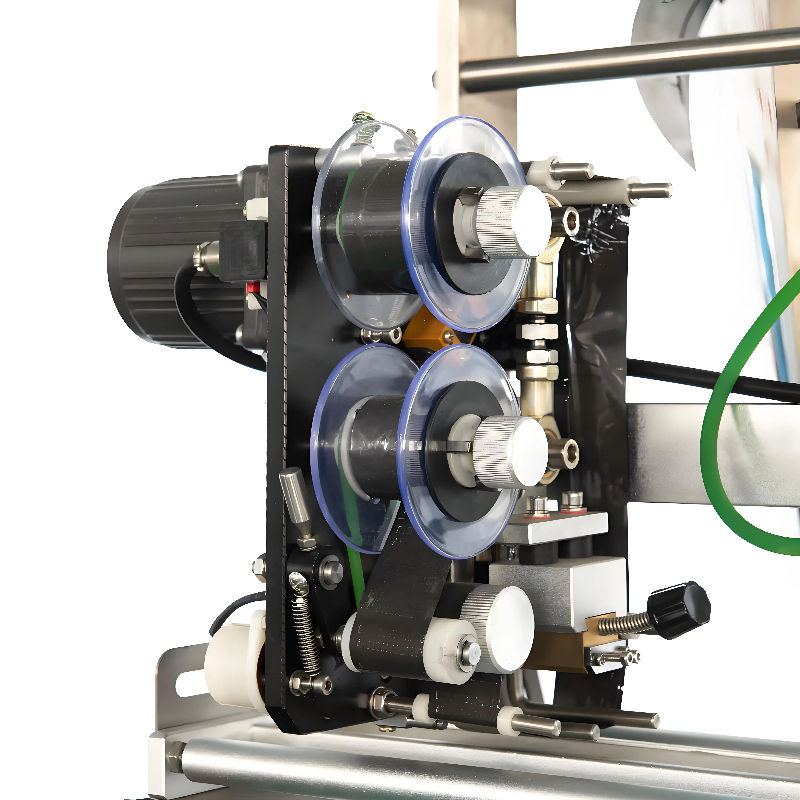

A: While the standard machine focuses on sealing and filling, it is designed to be compatible with an optional Ribbon Coding Machine (Hot Stamper) that can be installed on the film path to print batch numbers and expiry dates on each pouch automatically.
