Food Grade High Viscosity Rotary Lobe Pump Filler Semi-Automatic Filling Machine With Hopper for Honey Chocolate Cream Paste Cosmetic

Food Grade High Viscosity Rotary Lobe Pump Filler Semi-Automatic Filling Machine With Hopper for Honey Chocolate Cream Paste Cosmetic

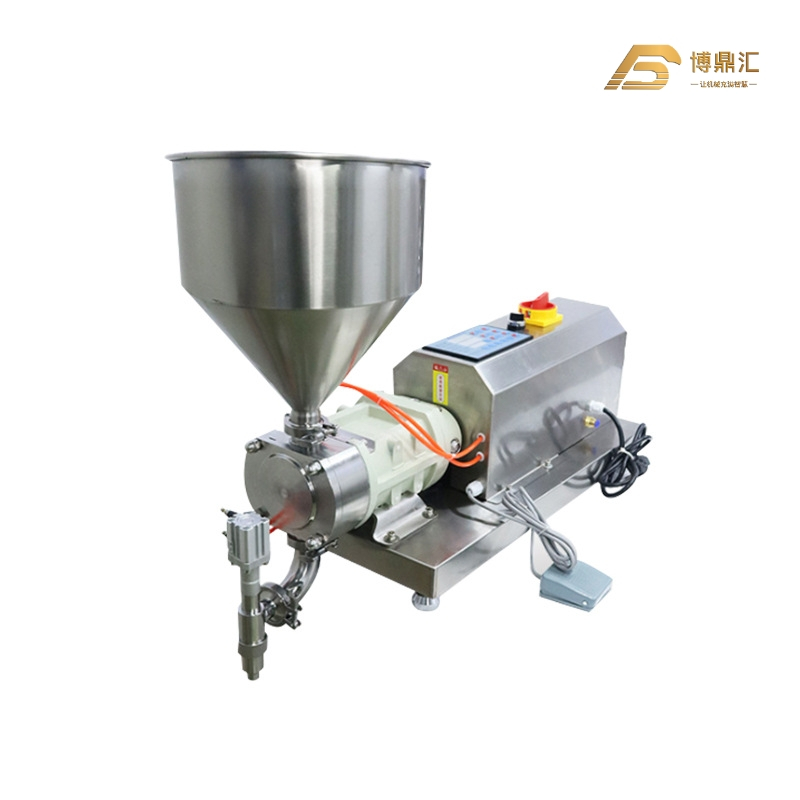

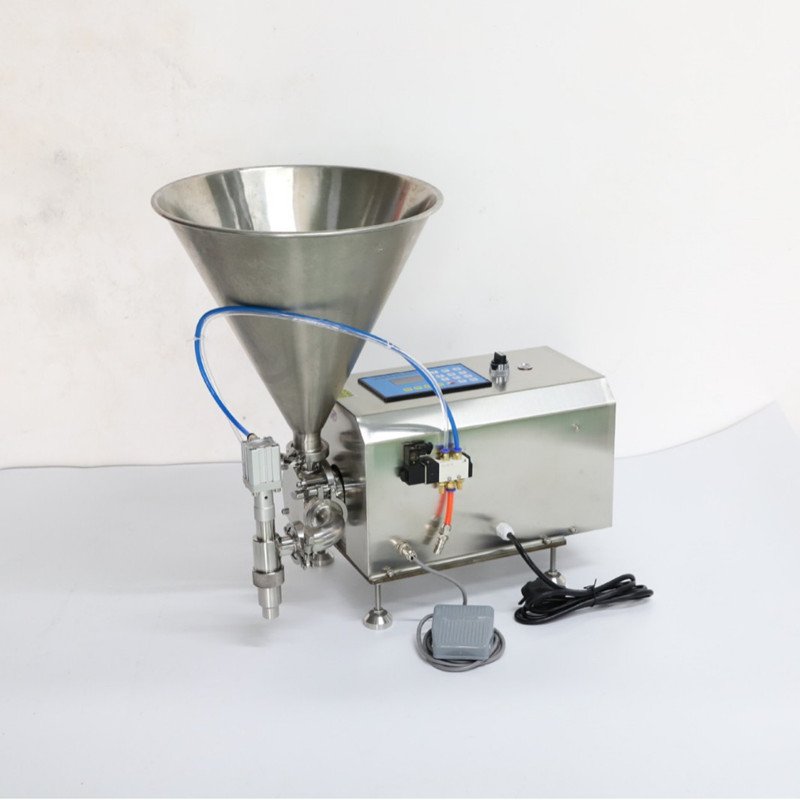

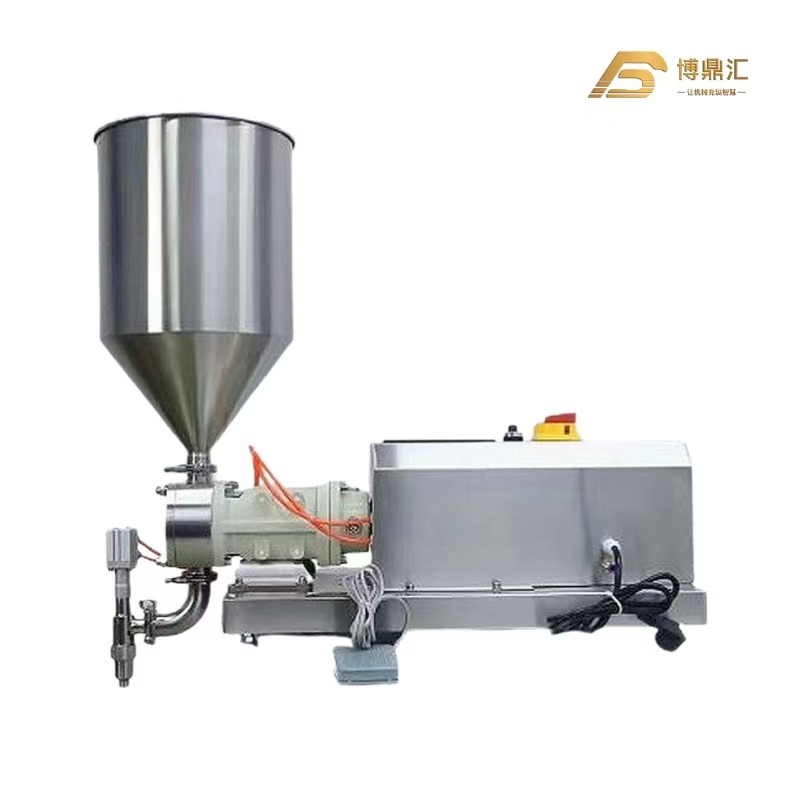

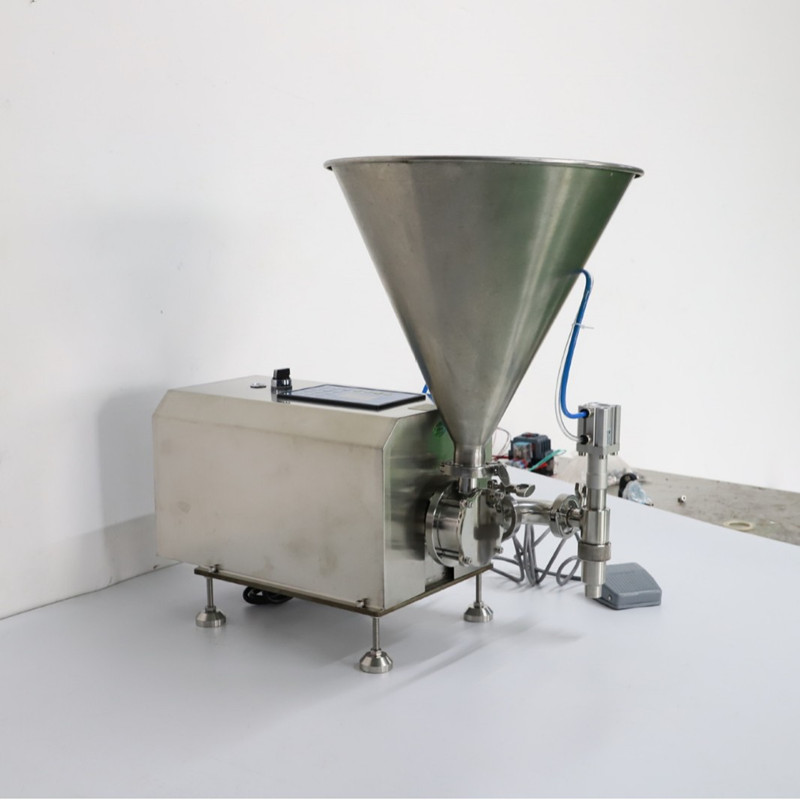

The BDH-DN32 Rotary Lobe Pump Filling Machine is a semi-automatic, food-grade filling solution designed for handling high-viscosity products such as honey, chocolate, cream, paste, and cosmetic formulations. It features a robust stainless steel construction, precise lobe pump technology, and versatile filling modes to ensure accurate, hygienic, and efficient packaging. With a filling range from 30ml to 90,000ml and a speed of up to 100 bottles per minute, this machine is ideal for small to medium-scale production requiring consistent quality and reliability.

Model:
BDH-DN32
Brand:
BodingHui

Availability:

Quantity:



Inquire Add to Basket

Product Description

29cf4275bd29b318d8fae97d5843cb6e b092bbe4b7e23f289056960cc5869eb0 O1CN01abLgx02Mm3o3YGaIy_!!2200734189869-0-cib_副本 53627f1296c127fe6f5119c32ca655cc_副本

Detailed Introduction

The BDH-DN32 Rotary Lobe Pump Filling Machine is a high-performance, semi-automatic filling system engineered for the precise handling of viscous and semi-solid products. Designed to meet food-grade and cosmetic industry standards, this machine is ideal for filling honey, chocolate, creams, pastes, lotions, and similar substances.

Key Features:

Wide Filling Range
Capable of handling volumes from 30ml to 90,000ml, making it suitable for diverse container sizes and product types.
High Filling Speed
Achieves up to 100 bottles per minute, enhancing production efficiency without compromising accuracy.
Excellent Accuracy
Delivers filling accuracy within ±1g, ensuring consistent dosing and reducing product waste.
Multiple Operating Modes
Supports automatic, manual, jog, and foot pedal operation for flexible control and ease of use.
Pneumatic Anti-Drip System
Equipped with a sealing mechanism that prevents leaks and drips, maintaining cleanliness and product integrity.
Durable & Hygienic Construction
All wetted parts are made of 304 stainless steel, ensuring corrosion resistance, easy cleaning, and compliance with hygiene standards.

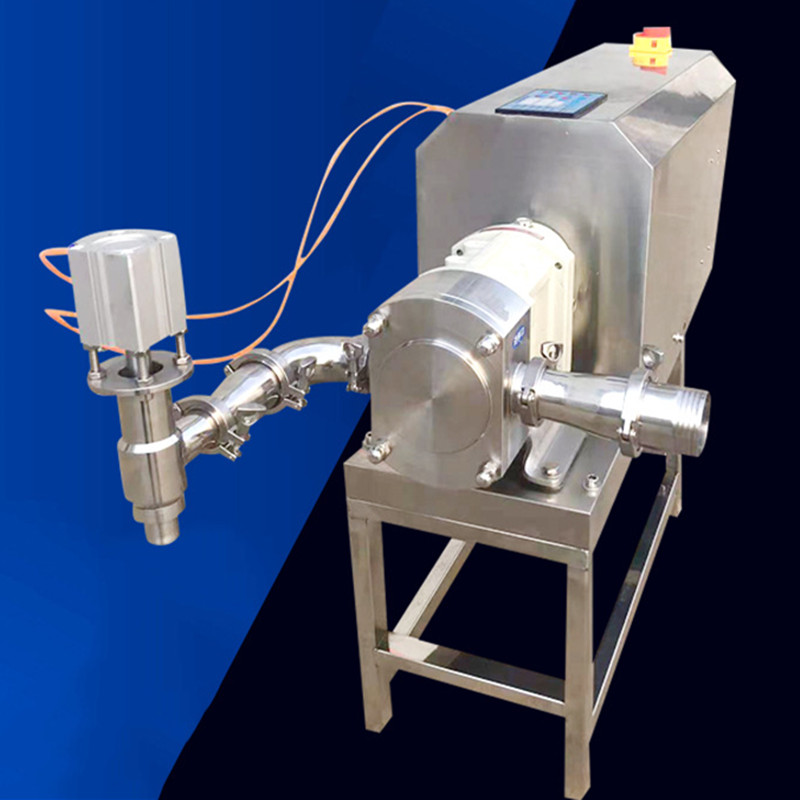

LX Rotary Lobe Pump Head
Provides precise metering and can handle low to high-viscosity fluids, including those containing solid particles.
Long Service Life
Features Teflon seals or optional mechanical seals for extended durability and reduced maintenance.

Technical Specifications:

Model: BDH-DN32
Motor Power: 750W
Voltage: 220V, 50Hz
Pump Port Diameter: DN32mm
Filling Speed: Approx. 100 bottles/min
Accuracy: ±1g
Material: 304 Stainless Steel (wetted parts)

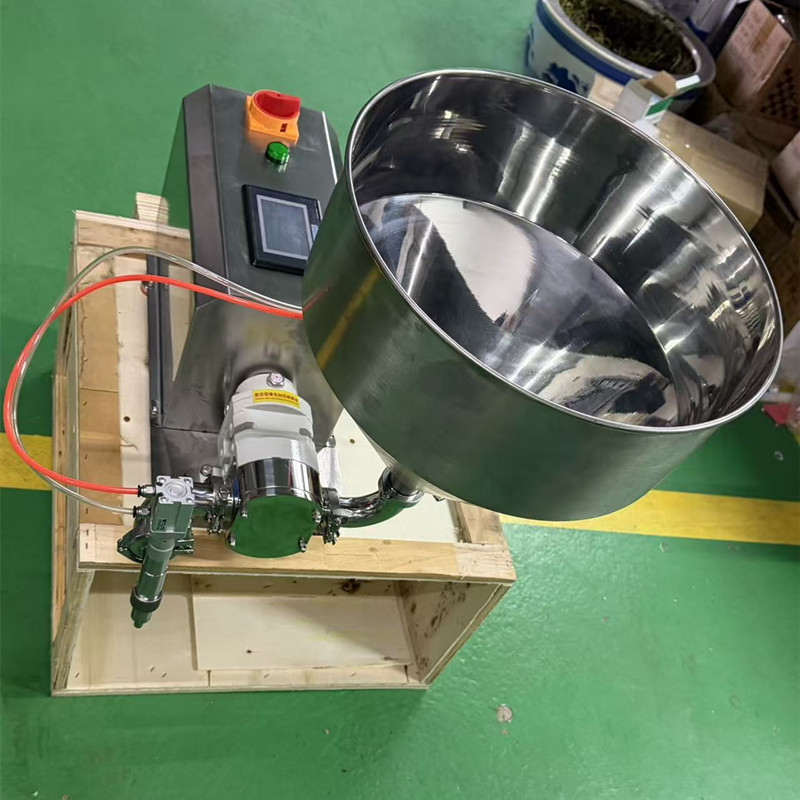

Packaging: 2 wooden cases
Total Weight: 50kg

Applications:
Ideal for food, beverage, cosmetic, pharmaceutical, and chemical industries where precise, hygienic, and efficient filling of viscous or semi-solid products is required.

This machine combines reliability, precision, and ease of operation, making it a valuable asset for production lines seeking to improve packaging consistency and throughput.

Technical Parameters

Machine Parameters:

Machine Model	BDH-DN32
Motor power	750W
Voltage	220V,50Hz
Pump port diameter	DN32mm
Filling range	30ml-9000ml
Filling speed	about 100 bottles/min
Accuracy	filling error ±1g
Multiple Filling Modes	Automatic, Manual, Jog, Foot Pedal
Pneumatic Anti-Drip System	Excellent Sealing Performance
Material	All Wetted Parts Made of 304 Stainless Steel
Packaging size	2 wooden case/660300350mm 430430420mm
Total weight	50kg

FAQ

Food Grade High Viscosity Rotary Lobe Pump Filler (BDH-DN32)

1. Q: What types of products is this filling machine suitable for?
A: This machine is specifically designed for high-viscosity and semi-solid products, including honey, chocolate, cream, paste, cosmetic lotions, shampoo, condiments, and fluids containing solid particles.

2. Q: What is the filling accuracy, and how is it achieved?
A: The machine guarantees a high filling accuracy of ±1 gram. This precision is achieved through its LX-type rotary lobe pump head, which ensures consistent volumetric displacement, coupled with a reliable pneumatic control system that minimizes drips and variations.

3. Q: What are the different ways to operate the machine?
A: It offers versatile operation modes for different production needs:

Automatic: For continuous, high-speed filling.
Manual: For operator-controlled single fills.
Jog: For precise positioning and setup.
Foot Pedal: For hands-free operation, allowing the operator to hold the container.

4. Q: Is the machine easy to clean and maintain?
A: Yes. All wetted parts are constructed from 304 stainless steel, which is corrosion-resistant, non-reactive, and easy to clean. The pump design allows for quick disassembly, and it features durable Teflon seals (with optional mechanical seals) for long service life and simplified maintenance.

5. Q: What is the "Pneumatic Anti-Drip System," and why is it important?
A: This system uses air pressure to create an immediate seal at the nozzle at the end of each filling cycle. It is crucial for preventing product dripping, which maintains a clean work area, reduces waste, and ensures accurate fill levels and neat package presentation, especially for sticky products.

6. Q: What power supply is required, and what is the production capacity?
A: The machine operates on a standard 220V, 50Hz power supply. With a motor power of 750W, it can achieve a filling speed of approximately 100 bottles per minute, making it an efficient solution for small to medium-scale production batches.
