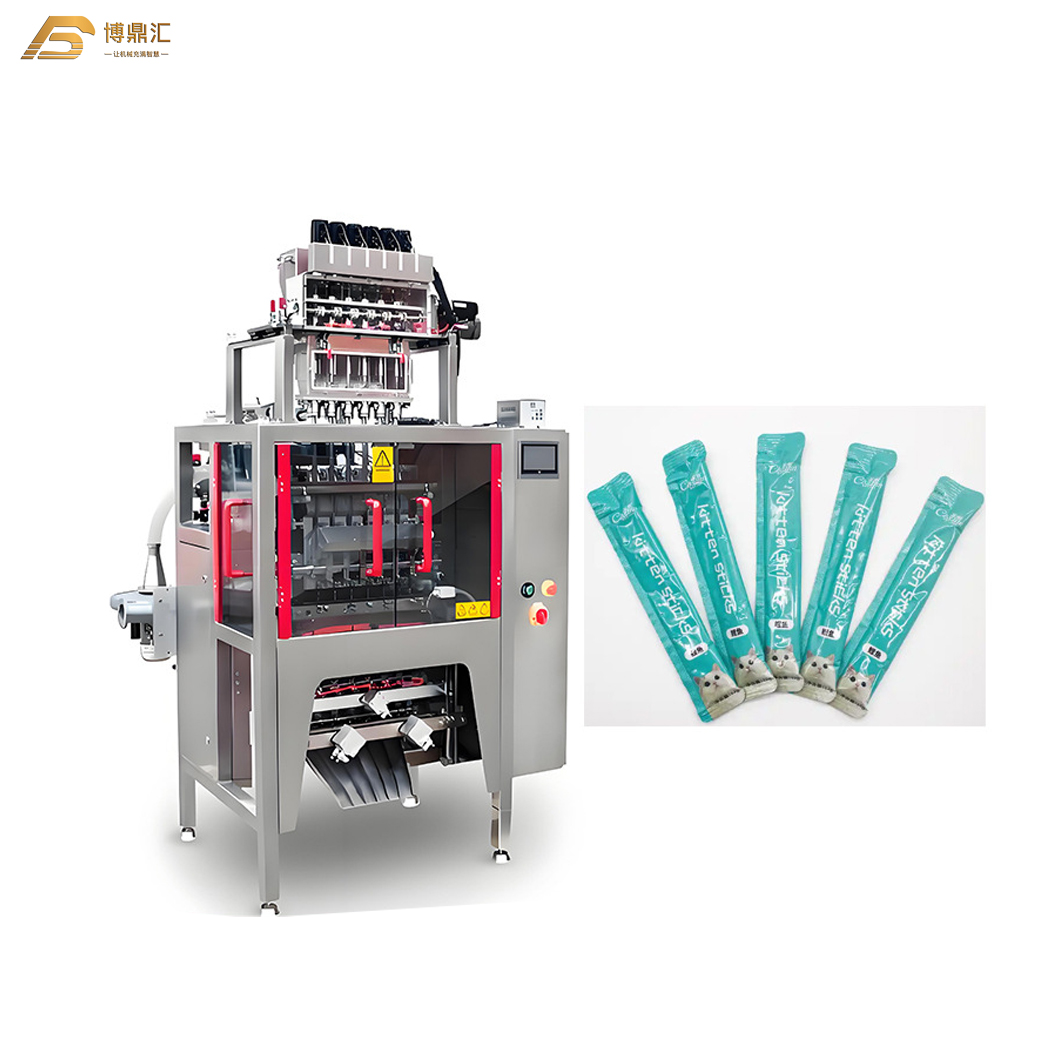

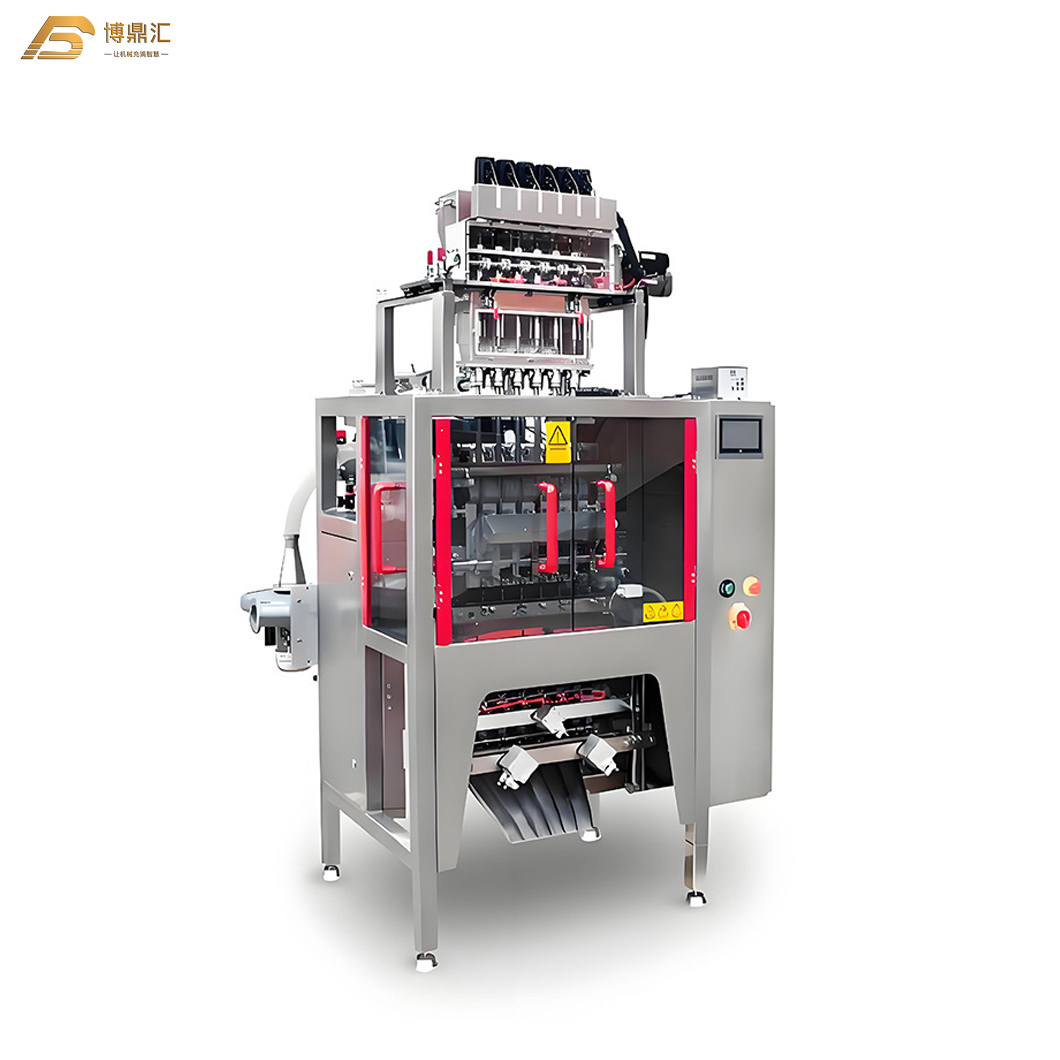

The Fast VFFS 6 Lanes Vertical Ketchup Butter Salad Dressing Packaging Machine redefines operational efficiency for high-volume production facilities. Crafted from heavy-duty, food-grade stainless steel, the machine's exterior gleams with a polished, industrial finish that speaks to its robust durability and sanitary design. When in operation, the rhythmic, synchronized hum of the servo-driven cross-sealing mechanism demonstrates absolute mechanical precision, seamlessly transforming flat film rolls into perfectly formed, tightly sealed stick packs. This equipment is specifically engineered to handle challenging, highly viscous materials—from rich, dense butter and creamy salad dressings to thick ketchup and specialized pet squeeze treats—without the frustrating dripping, stringing, or inconsistent dosing that plagues lesser machinery.
By integrating up to six independent packaging lanes into a single, cohesive framework, this vertical form fill and seal powerhouse drastically reduces the spatial footprint required compared to deploying multiple standalone units. The advanced central programmable logic controller ensures that every drop of product is meticulously measured and dispensed, protecting your profit margins from material waste and overfills. The tactile feedback of the responsive human-machine interface allows operators to effortlessly adjust thermal parameters and pull lengths, ensuring smooth transitions between different product runs. Investing in this sophisticated packaging architecture means securing a reliable, high-yield asset that continuously delivers flawlessly sealed, market-ready pouches, ultimately elevating your brand's physical presentation and operational profitability.
Model number | BDH-HC260 | BDH-HC360 | BDH-HC460 |
Lane quantity | 4 lanes | 6 lanes | 8 lanes |
Pouch shape | stick pack | ||
Capacity | 40-50pcs/min/lane | ||
Bag width | 20-70mm | 20-95mm | 20-105mm |
Bag length | 50-180mm | 50-180mm | 50-180mm |
Film thickness | 0.07-0.1mm | ||
Sealing type | back sealing | ||
Electricity | AC-380V/50Hz/3 phase | ||
Power | 3.5KW | 5.5KW | 7.5KW |
Air consumption | 0.8M3/min | ||
Weight | 800KG | 1000KG | 1100KG |
Engineered to conquer the most demanding production schedules, this multi-lane packaging architecture brings unprecedented control and speed to your facility. Every mechanical component is designed to minimize downtime and maximize yield.
Independent Lane Control: Each lane operates with its own dedicated forming tube and longitudinal sealing mechanism, ensuring that a minor adjustment in one lane does not halt the entire production line.
Synchronized Cross-Sealing: A singular, servo-driven cutting and sealing jaw moves with absolute precision across all lanes simultaneously, creating uniform, leak-proof top and bottom seals with a satisfying, crisp cut.
Rapid Roll Integration: The film feeding system smoothly separates a single master roll into individual webs, maintaining perfect tension to prevent wrinkling, snapping, or misalignment during high-speed runs.
Tool-less Changeovers: Operators can swiftly swap out forming collars and adjust sealing jaws without heavy tools, drastically reducing the time required to switch between different pouch dimensions.
Scaling up output without expanding your facility's physical footprint is a critical challenge. This multi-lane system is the definitive answer for high-capacity operations looking to optimize their spatial and financial resources.
Exponential Output: By running 4 to 8 lanes concurrently, the machine achieves a staggering output volume, with each lane independently processing 40 to 50 pouches every single minute.
Spatial Economy: Consolidating multiple packaging lines into one compact, vertical frame frees up valuable factory floor space for other critical operations or storage.
Resource Optimization: Shared utilities, such as centralized compressed air and a unified power supply, significantly lower the energy consumption and overhead costs per packaged unit.
Streamlined Supervision: A single operator can easily monitor the entire multi-lane process from one station, drastically reducing labor costs and improving workforce allocation.
Inconsistent dosing leads to lost revenue and compromised product integrity. This equipment utilizes a highly sophisticated digital brain to guarantee absolute precision across every single pouch produced.

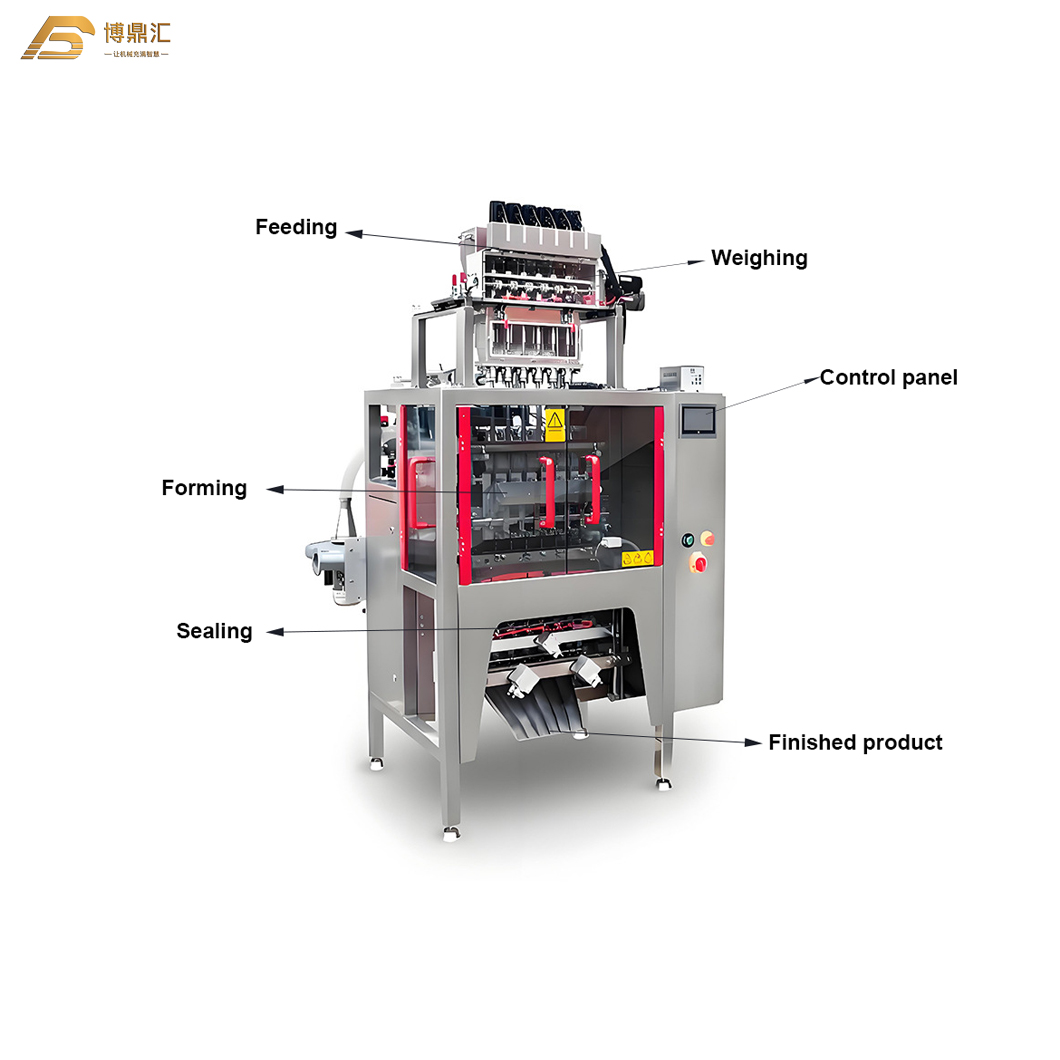

Advanced PLC Integration: The central Programmable Logic Controller acts as the nervous system of the machine, flawlessly coordinating film pulling, product injection, and thermal sealing without lag.
Intuitive HMI Touchscreen: The responsive, high-resolution interface allows operators to input parameters with a simple tap, providing real-time diagnostics and visual feedback on production metrics.
Servo-Driven Precision: The cross-sealing and cutting mechanisms are powered by robust servo motors, ensuring millimetric accuracy and eliminating the jarring vibrations found in older pneumatic-only systems.
Zero-Drip Technology: The specialized dosing system features an advanced anti-drip mechanism that cleanly cuts off viscous liquids, preventing seal contamination and costly material waste.
When handling consumables like ketchup, mayonnaise, and dietary supplements, sanitation is non-negotiable. This machine is constructed to meet and exceed the most stringent global hygiene protocols.
Premium Stainless Steel Build: The entire main frame and all product-contact parts are forged from high-grade 304 stainless steel, offering exceptional resistance to corrosion from acidic sauces and harsh cleaning agents.
Sanitary Design Architecture: Smooth, sloped surfaces and seamless welding prevent the accumulation of product residue and bacterial growth, ensuring a pristine packaging environment.
Effortless Washdown: The dosing pumps and filling tubes are engineered for quick disassembly, allowing sanitation crews to perform thorough cleaning routines in a fraction of the standard time.
Compliance Certified: Built to align strictly with CE and GMP manufacturing standards, providing complete peace of mind for food, cosmetic, and pharmaceutical applications.
A compromised seal destroys product shelf life and damages brand reputation. This system guarantees hermetic seals while offering the flexibility to run various economic and premium film structures.
Independent Temperature Zones: Dedicated PID temperature controllers for both vertical and horizontal sealing jaws maintain exact thermal parameters, preventing film scorching or weak bonds.

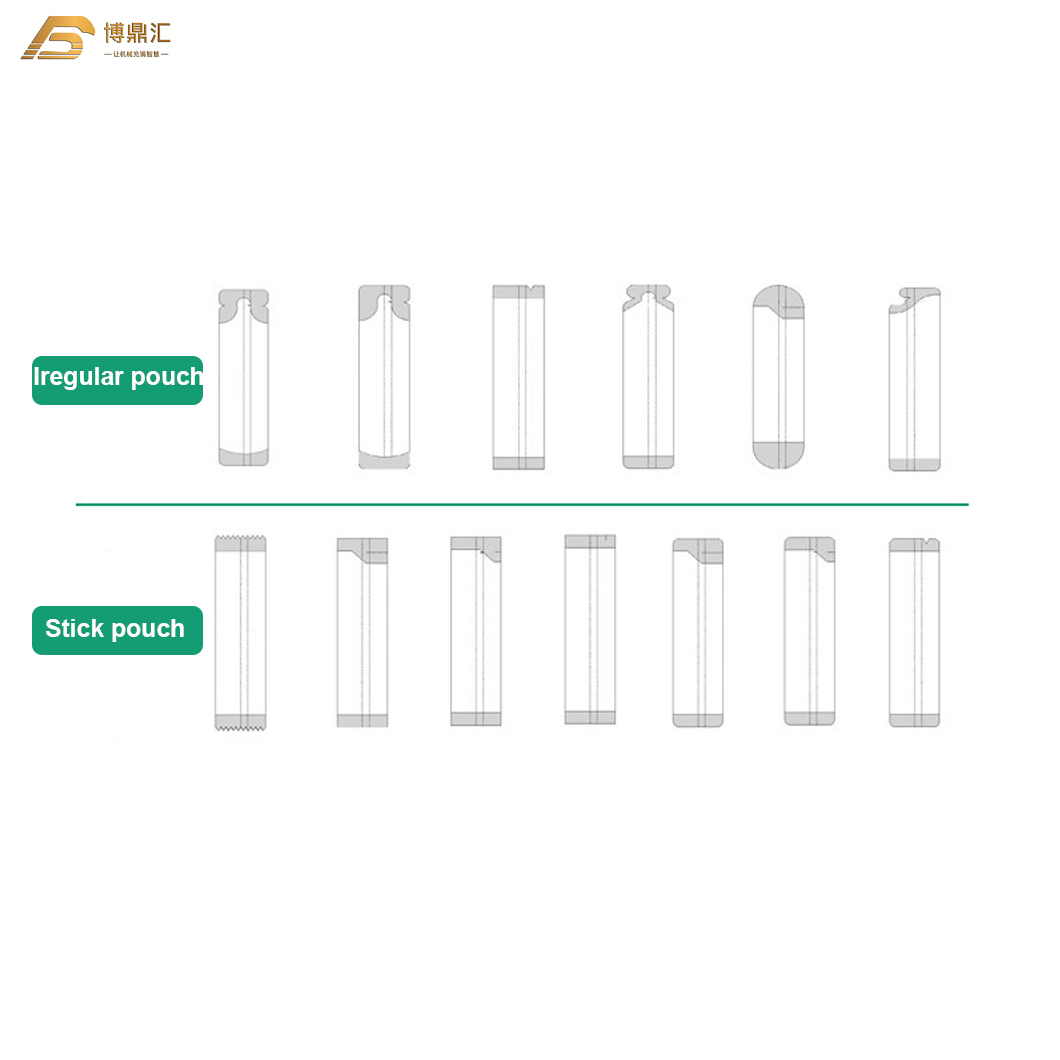

Flawless Stick Pack Formation: The forming collars shape the film with minimal friction, resulting in tight, aesthetically pleasing back-sealed pouches that stand out on retail displays.
Broad Material Compatibility: Effortlessly processes a wide spectrum of laminated films ranging from 0.07mm to 0.1mm in thickness, accommodating foil composites, PET, and PE structures.
Leak-Proof Guarantee: The high-pressure sealing mechanism ensures that even oily or highly viscous products like butter and salad dressing remain securely contained under transport stress.
Market demands shift rapidly, and your packaging equipment must adapt. This versatile platform is engineered to handle an impressive array of product types and pouch dimensions with minimal reconfiguration.
Viscosity Mastery: The robust dosing systems (including piston pumps and augers) effortlessly handle everything from free-flowing liquids to dense, sticky pastes and pet squeeze treats.
Dynamic Sizing: Easily adjust packaging dimensions to meet specific campaign requirements, accommodating bag widths from 20mm up to 105mm and lengths from 50mm to 180mm.
Cross-Industry Utility: While perfect for the food sector, its precision makes it equally capable of packaging chemical detergents, cosmetic creams, and pharmaceutical gels.
Future-Proof Design: The modular nature of the dosing and forming components means the machine can be upgraded or reconfigured as your product portfolio expands.
Procuring heavy industrial machinery is a long-term commitment. We provide an impenetrable support network to ensure your production lines operate continuously, year after year, regardless of your geographic location.
Comprehensive Warranty: Every machine is backed by a full 1-year warranty covering all major components, protecting your investment from day one.
Round-the-Clock Assistance: Access our dedicated team of technical experts 24/7 for immediate troubleshooting, minimizing unexpected downtime and keeping your output on schedule.
Visual Installation Guides: Receive detailed, step-by-step video tutorials that simplify the installation and calibration process for your in-house engineering team.
On-Site Global Support: Optional dispatch of our master engineers to your facility for hands-on installation, comprehensive system tuning, and rigorous operator training.
Selecting the right equipment partner is just as critical as the machinery itself. We are dedicated to engineering solutions that directly impact your bottom line, combining robust manufacturing with unparalleled industry expertise.
Proven Engineering Heritage: Decades of specialized experience in designing vertical form fill and seal technologies ensure that every machine we produce is built on tested, reliable mechanical principles.
Stringent Quality Control: Before leaving our facility, every unit undergoes rigorous stress testing with actual product simulations to guarantee flawless performance upon arrival.
Tailored Customization: We do not believe in one-size-fits-all. Our engineering team works closely with you to customize dosing systems and lane configurations to match your exact product characteristics.
Global Supply Chain Reliability: We utilize internationally recognized, commercially available electrical and pneumatic components, ensuring that spare parts are always easily accessible in your local market.
Commitment to Innovation: We continuously invest in research and development, integrating the latest automation and servo technologies to keep your production facility ahead of the curve.
Explore our comprehensive technical answers to understand how this multi-lane packaging system integrates into your specific production environment.
The equipment utilizes a specialized pneumatic piston pump dosing system designed specifically for high-viscosity materials. The robust suction force draws the thick paste accurately, while a rotary valve and anti-drip nozzle ensure a clean cut-off. This prevents product stringing, ensuring the sealing area remains completely clean for a hermetic seal.
Yes, the sealing jaws are equipped with highly sensitive, independent PID temperature controllers. This allows operators to precisely tune the heat application, making the machine fully compatible with a wide range of laminated films, including PET/PE, Alu-foil composites, and nylon-based structures, provided the thickness remains between 0.07mm and 0.1mm.
Changing the pouch width requires swapping out the forming collar and tube assembly for the specific lane, which is designed for tool-less, quick release. You will also need to adjust the film slitting blades to match the new web width. With a trained operator, a complete size changeover across all lanes can typically be executed swiftly to minimize production downtime.
The machine relies on a centralized, high-speed Programmable Logic Controller (PLC) that acts as the master brain. It sends simultaneous digital pulses to the servo motors controlling the film pull belts and the cross-sealing jaws. This electronic gearing guarantees that every lane advances the exact same length of film and seals at the exact same millisecond.
Daily maintenance involves a standard washdown of the food-contact parts (hoppers, pumps, and nozzles) using the quick-dismantle fittings. Weekly routines should include inspecting the Teflon coating on the sealing jaws, checking the tension of the film-pulling belts, and ensuring the pneumatic filters are drained of moisture. A comprehensive maintenance schedule is provided via the HMI touchscreen.
