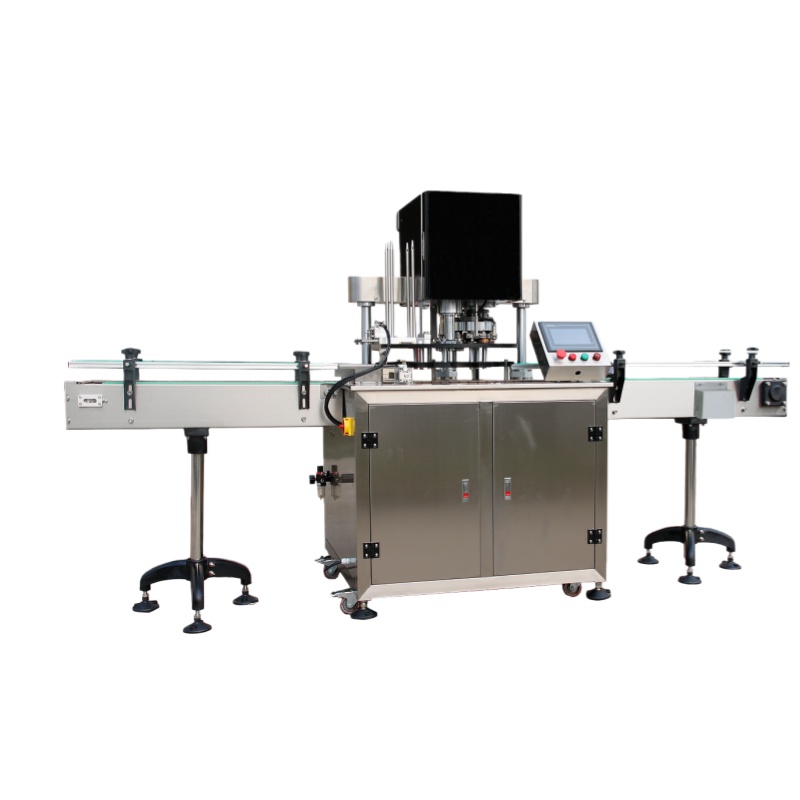

CG100-2 Equipment Performance Description and Features
1. The diameter of the lid ranges from φ40 to φ130 mm, and the height of the bottle is from 50 to 220 mm; the height of the lid: 5 to 15 mm. The lid must not deform and should have good hardness.
2. The production efficiency can be adjusted, and the maximum can reach 50 cans per minute.
3. The main material of the overall appearance is stainless steel 304, with a thickness of 1.2 mm.
4. The acrylic material is imported acrylic, with a thickness of 10 mm, which is elegant and grand.
5. There is an alarm for missing lids and a function to add lids, ensuring the equipment works efficiently and continuously.
6. It is designed with PLC intelligent program and touch screen control, which is convenient and simple to use.
7. The lower lid cover can cover approximately 100 lids at a time.

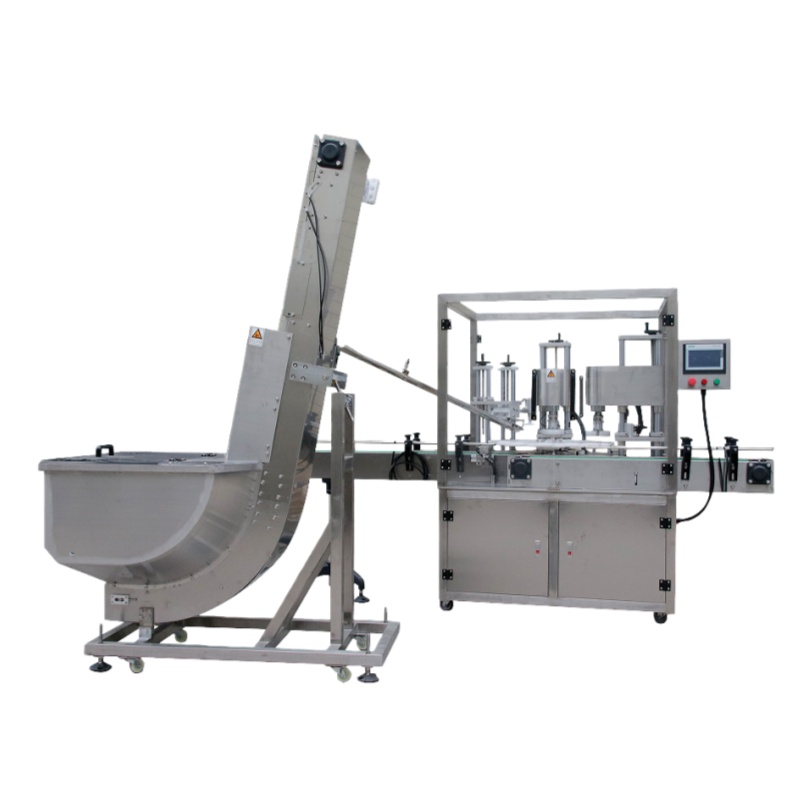

8. According to the actual situation of the lid, an additional lifting lid sorting machine or vibration plate lid sorting machine can be configured.
9. Changing different diameters does not require replacing parts; only the storage lid slot, lower lid slot, guardrail, height of the lid locking head adjustment screw, clamping width, pressing wheel width, and adjustment time need to be adjusted, which takes about 20 minutes.
10. The conveyor belt is 1.9 meters long, 0.9 meters high, and the width of the chain plate is 114 mm.
11. The equipment size is 1.9 meters in length, 0.8 meters in width, and 1.7 meters in height. The packed size is 2 meters × 1 meter × 1.8 meters.
12. The net weight is approximately 200KG, and the gross weight is approximately 250KG.
13. The power of the two clamping motors is 0.24KW/220V, the conveyor belt motor is 0.2KW/220V, and the total power is: 0.68KW.
14. The conveyor belt material is nylon POM.
15. The machine needs to be connected to an air compressor for use. To ensure the equipment works continuously and quickly, it is recommended to connect an air compressor with a power of 5KW. Please have the customer prepare it themselves.
16. This product is mainly applicable to various PET plastic, iron, aluminum, and paper round bottles for dust-proof and adhesive lid sealing. The product design is advanced, the structure is reasonable, and the operation is simple. It is an ideal packaging equipment for the food, medicine, tea, and chemical industries.
