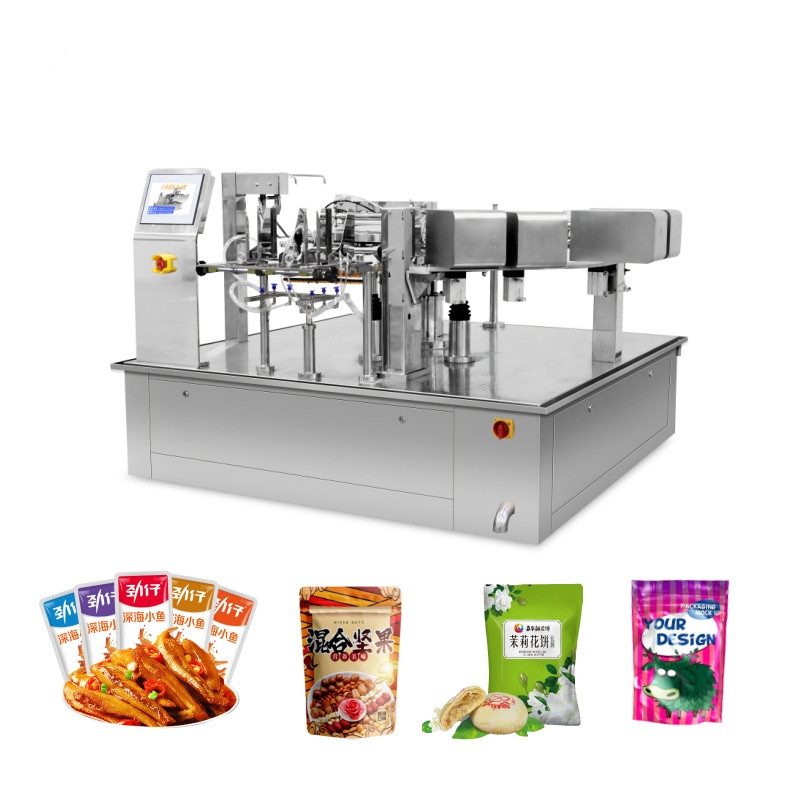

Precision servo controls ensure accurate filling and sealing, while its universal bag adaptability handles stand-up, flat, and gusseted pouches. The user-friendly HMI allows quick adjustments, and auto-jam detection reduces downtime. Constructed with food-grade stainless steel, it meets strict hygiene standards. Energy-efficient motors lower operating costs, and tool-free changeovers enable rapid product switching. Ideal for snacks, powders, and granules, it delivers high-speed, consistent packaging with minimal waste.
Max Speed:90 bpm
Min Bag Size:70 mm W x 60 mm L
Max Bag Size:160 mm W x 300 mm L
Features：
1. PLC adopts the German Siemens brand, and the pneumatic components adopt well-known brands such as German Festo, Japanese SMC, and Taiwan Yadeke, with strong program compatibility, strong durability, and friendly human-computer interface;
2. The action of the whole machine adopts the working principle of full cam, with only one power motor, strong synchronization, and avoids the risk of collision;
3. High-strength carbide cam, 21 precision machining, small wear, easy to maintain and clean, long service life.
4. Adjust the size of the machine clip with one click on the touch screen, which realizes convenient and fast adjustment of the bag width.
Optional：
Bag Bottom Vibrator
Bag Clamping Detection Device
Bottom Bag Openning Device
Double Cylinder Patting Device
Simple Flushing Device
Empty Bag Circulation Device
Bag Mouth Dust Removal Device
Empty Bag Rejection Device
Zipper Closing device
Zipper Openning Device
Side-to-side Leveling Device
Ribbon Coding Machine
Rotary Flushing Device
Safety Door Switch
Stainless Steel Hopper Vibrator
Steel Stamping Coder
Electric Bag Magazine
Dust Collector
Enclosed Frame
Enclosed Frame With Gap
Heat Sealing Device
Horizontal Bagging Device
Independent Electrical Cabinet
Material Poker
Automatic Oiling Device
Bag Drag-chain
Side Motor Flaping Vibrator
Simple Extraction Device(with Vacuum Pump)
Top Tray
Transformer
Machine Parameters：

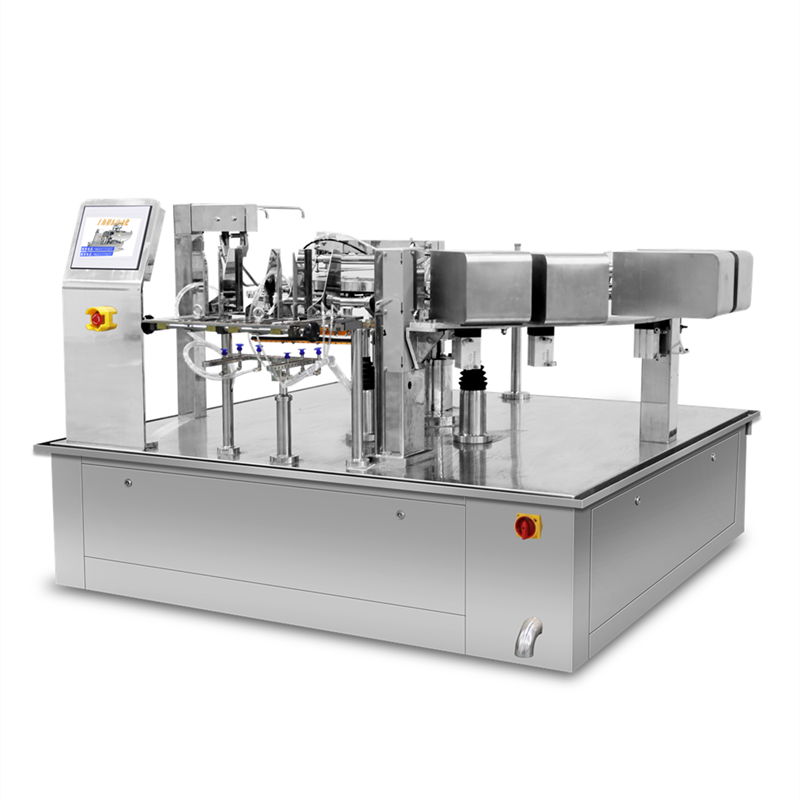

Machine Model | BDH-YDZDH-8S-160 |
Materials of Equipment | 304 stainless steel (food contact parts) |
Pneumatic Component | Germany FESTO (standard parts), Taiwan Yadke (non-standard parts) |
Driving Mode | Mechanical transmission (cam gear lever full mechanical mode) |
Measurement Method | Liquid filling, Paste filling, etc (optional) |
Applicable Materials | Salted Duck Eggs, Ingredient Soup Mix Packs, Hot Pot Soup Base, Shrimp Paste,Liquid Soup,Liquid Soup,Liquid Soup, etc.(Non-Vacuum Sealed). |
Workflow | ① Bag up ② Reserve space ③ Open bag, stretch bag ④ Material 1 ⑤ Material 2 ⑥ Material ⑦ Straighten ⑧ Seal 1 ⑨ Seal Seal two ⑩ seal three |
Sealing Method | According to the product, two seals can be used to ensure that the seal is beautiful and firm |
Packaging Speed | 60-90 bags/min (depending on the product and feeding method) |
Packaging Bag Material | Self-standing bag, zipper bag, four-sided sealed bag, three-sided sealed bag, paper bag (surface covered with paper) and so on |
Packaging Bag Specifications | Width 70mm-160mm Length 60mm-300mm |
Aggregate Capacity | The main engine power is about 5.2KW |
Gas Consumption | 0.6m3/min |
Drive Power Supply | Three-phase 380V 50Hz (non-standard three-phase 380V 60Hz) |
Machine Shape | 2020mm*1909mm*1528mm(L*W*H) |
Machine Weight | 2.2T (mainframe) |
Severe Environment | Room temperature 10℃~40℃ 30~90%RH, no dew, no corrosive gas, no dust and other harsh environment |
Industries Applications:
· Baked Goods (Biscuits & Cakes)
· Cannabis
· Coffee
· Condiment (ketchup/Mustard Sauce/Jam/mayonnaise/tahini/butter/soy sauce)
· Confectionery (candy/chocolate)
· Dairy Products（Cheese/milk powder）
· Frozen Food (Prawn/Shrimp/Fish/Scallops/Chiken/Peas/Corn/Dumpling/Burger/samosas）
· Fruit & Vegetable（Fresh fruit/Dried Fruit/Peas）
· Food Grains & pulses (Rice/Whole Wheat/rolled oats/millet/corn kernels/legumes/noodles)
· Kimchi & Pickles
· Meat & Poultry (Chicken/pork/beef/beef jerky)
· Pet Food
· Snacks & Chips (Nuts / seeds）
· Seasonings & Spices (seaoning mix/chilli powder/Galic Powder/curry power/Turmeric Powder/salt/)
· Granule(Rice/peas)
· Liquid & Paste(Beverage /Liquor)
· Powder (Milk/Coffee/Spices/Salt/ajinomoto/)
· Agricultural (Fertilizer/)
· Beauty & Cosmetic(Facial Mask)
· Chemical(Detergent Powder/hygiene products)
· Electric Products
· Pharmaceutical & Medical Devices（Medical Devices/Syrnge needles）

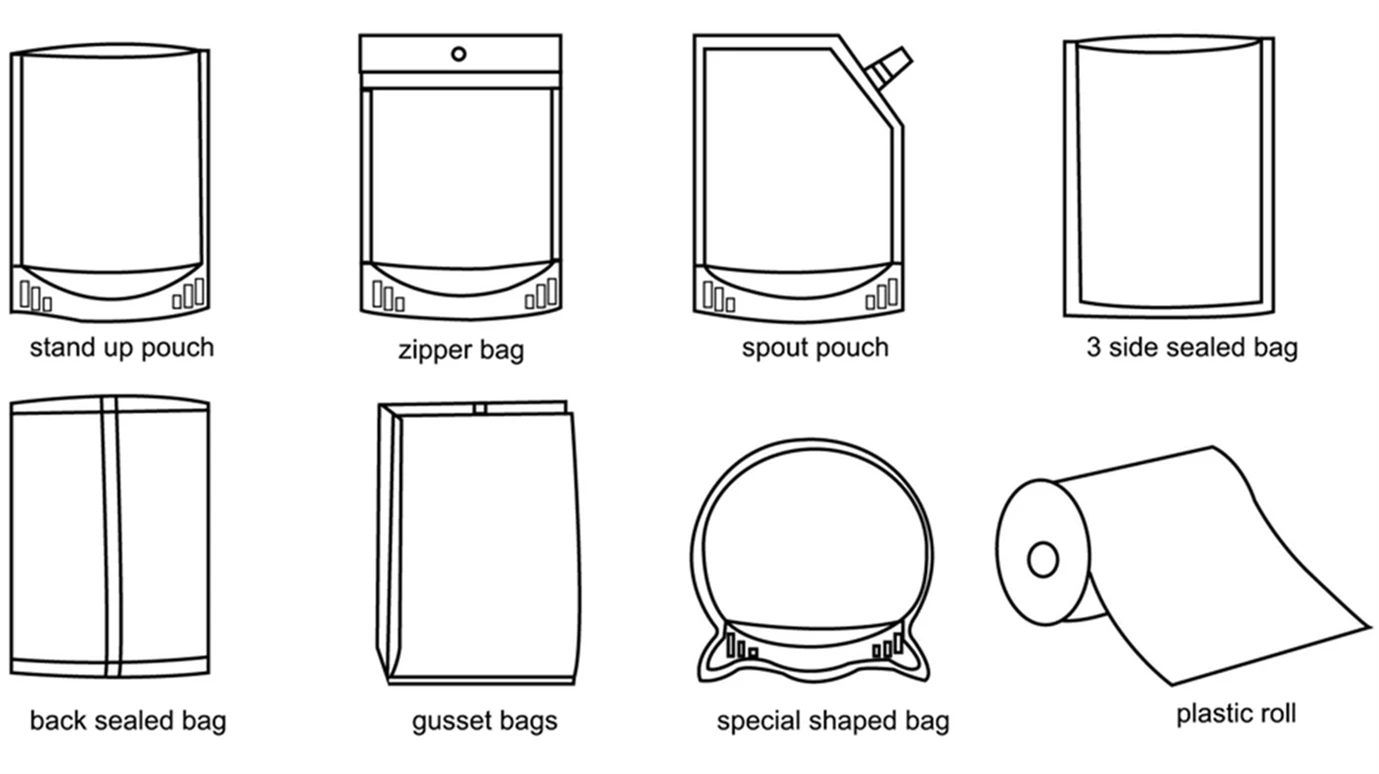

Pouch & Bag Styles
· Flexible pouches have become extremely popular over the past few years . This is beacuse many of them are resealable, environmentally friendly, and cheaper than alternatives like glass, metal, and cardboard containers.
· A multiple of flexible package styles and formats are available to suit a broad variety of product applications and consumer preferences.
· Flexible Packaging Solutions include the popular Standup Pouch With Or Without Spout, Gusseted Pouches (side gusset and bottom gusset), Three side seal pouches, Quad seal side gusset pouches (inserted or folded gussets),Pillow pouches, block Bottom pouches, Zip-Lock Reclose able pouches,Single Serve Portion Packet and all type of Head Sealable Performed Side Seal Bags, Fin Seal Bags and so on.
· Many of these styles incorporate consumer convenience features including zippers, “slider” zippers, spouts, fitments, specialty closures and handles. Unique shapes can be provided to add personality or character, as well as improved functionality to any flexible pouch packaging application.
· Whenever you have a request, we are here to support you with the best machinery solution suited to your specific production requirements. We will associates you access to the market quickly, and enable you the opportunity to evaluate your personal marketing results before investment.
· All machine versions can be fitted with accessories to handle pouches with spout, Zip, Valve, Special Shate, etc.
