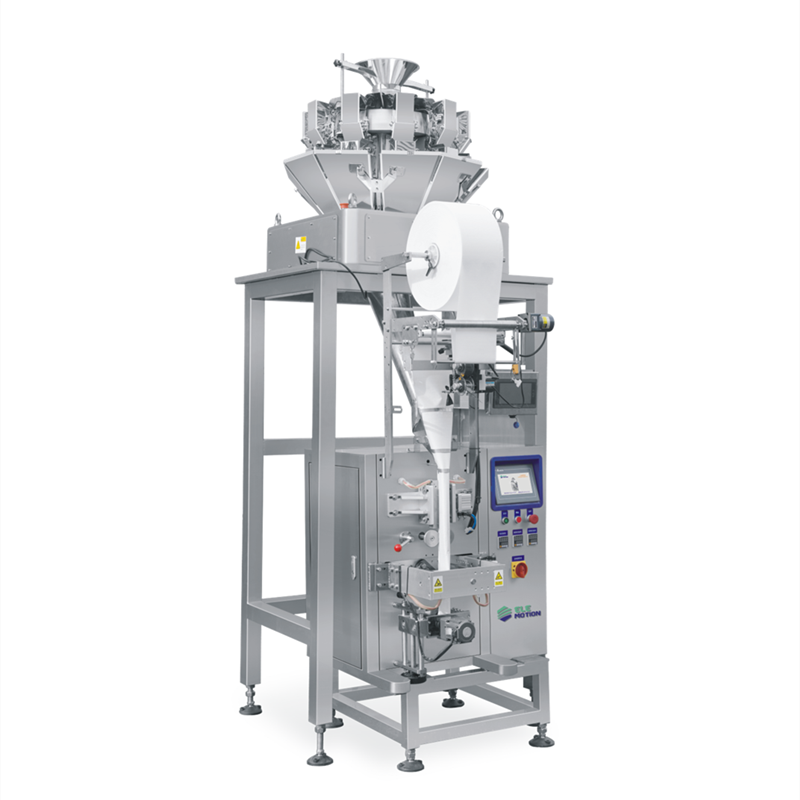

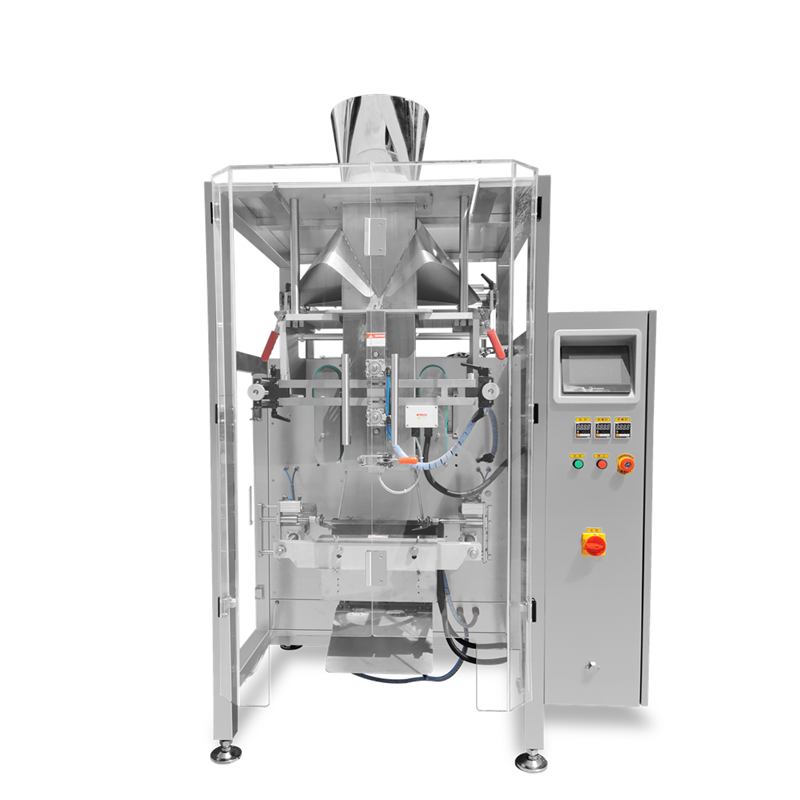

The BDH-YD-720 Vertical Form Fill Seal (VFFS) Machine is engineered for large-scale production, specializing in flexible bags up to 350mm wide and 450mm long. With a maximum speed of 40 bags per minute (BPM), this continuous motion machine integrates measuring, filling, bagging, and counting into a single automated process. Its robust structure (1650×1400×1900mm) and 4KW power supply deliver industrial-grade performance, while the PLC servo control system ensures precision and intelligence.
Constructed with high-quality steel and food-grade components, the BDH-YD-720 meets hygiene standards for food and pharmaceutical packaging. The single-belt film transport system reduces wear on packaging materials, ensuring smooth operation and consistent bag formation. Safety features include protective covers and fault detection systems, complying with global enterprise safety standards.
The global VFFS machine market is projected to grow at a CAGR of 6.8% through 2028, driven by the food and beverage industry’s need for high-speed, automated packaging. Large food manufacturers, snack producers, and condiment brands are increasingly adopting vertical form fill seal machines to streamline production, reduce labor costs, and improve packaging consistency. The BDH-YD-720 caters to these needs with its 40 BPM speed and versatility across product types.
Unlike standard VFFS machines, the BDH-YD-720 offers dual bag options (pillow or perforated bags) and supports both small (170×150mm) and large (350×450mm) bag sizes, making it adaptable to diverse product lines. Its touchscreen interface with stored settings enables quick product changes, a key advantage for manufacturers producing multiple SKUs. The machine’s fault display function also minimizes downtime, a critical factor for high-volume production.
With a maximum speed of 40 BPM, the BDH-YD-720 outperforms entry-level VFFS machines, handling large batches of cereal, candy, nuts, and frozen foods efficiently. The single-belt film transport system ensures stable feeding, reducing misalignments and waste.
The PLC servo system enhances precision in bag forming and filling, reducing product giveaway and ensuring consistent bag weights. The touchscreen interface stores up to 50 product settings, allowing operators to switch between products in seconds without manual reconfiguration.
Equipped with safety protection features that meet enterprise safety standards, the machine includes emergency stop buttons, protective guards, and electrical shock prevention. The robust frame and high-quality components ensure stable operation even during extended production runs.
The BDH-YD-720 produces pillow or perforated bags as needed, adapting to retail and bulk packaging requirements. Optional features include inflation/exhaust functions (for freshness preservation) and hook hole drilling (for hanging display), expanding its application scope.
The machine’s 40 BPM speed meets the demands of high-volume manufacturers, reducing labor costs by automating measuring, filling, bagging, and counting. For example, a snack producer can package up to 2,400 bags per hour, significantly increasing output compared to semi-automatic systems.
The PLC servo control system ensures bag dimensions are consistent within ±1mm, while the smart temperature control delivers neat, leak-proof seals. This precision meets industry standards for product quality and consumer trust.
Designed for the food industry, the BDH-YD-720 handles granular (rice, nuts), powdered (milk powder, spices), and semi-solid (sauces, jams) products. Its food-grade components comply with FDA and EU hygiene regulations, making it suitable for global markets.
Choose from optional features like inflation/exhaust systems (for extending shelf life), hook hole drilling (round or irregular holes), and discharge conveyors to integrate the machine into your existing production line. We also provide compressed air systems and nitrogen generators for modified atmosphere packaging (MAP).
Our team provides on-site installation, operation training, and maintenance guidance to ensure your staff can maximize the machine’s performance. We also offer spare parts delivery within 48 hours for critical components, minimizing production downtime.
The machine supports bag sizes ranging from 170mm (W) × 150mm (L) to 350mm (W) × 450mm (L), making it suitable for large flexible bags for snacks, cereal, and frozen foods.
No. The touchscreen interface is user-friendly, and we provide comprehensive training. Operators can learn to set up and run the machine in 1-2 days, even without prior VFFS experience.
Yes! The BDH-YD-720 is compatible with liquid and paste products like sauces, jams, and beverages when equipped with the optional liquid filling module. The machine’s leak-proof sealing ensures no product waste.
It operates on AC 220V, 50~60Hz, with a total power of 4KW. We can also provide voltage customization for markets with different electrical standards.
This model is capable of true production speeds up to 40 BPM. It is widely used in packaging Cereal, Candy, Condiments, Cookies, Nuts and seeds and so on.
Max Speed:40 bpm
Max Bag Size:350 mm W x 450 mm L
Min Bag Size:170 mm W x 150 mm L
· Safety protection meets enterprise safety standards.

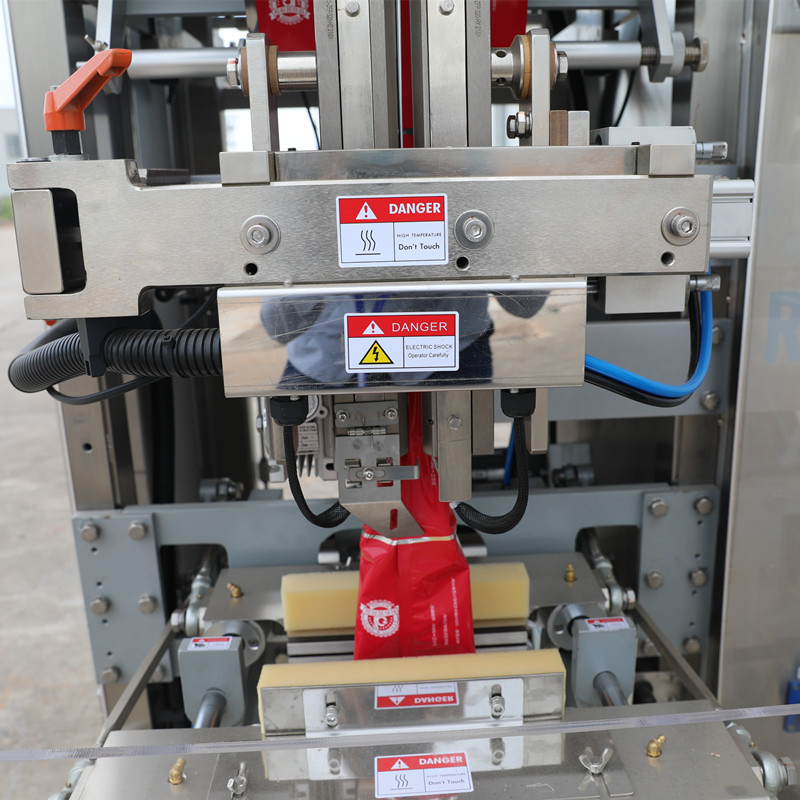

· Smart temperature control ensures neat sealing.
· PLC servo system enhances precision and intelligence.
· Auto-completes measuring, filling, bagging, and counting.
· Touchscreen stores settings for quick product changes.
· Fault display aids prompt troubleshooting.
· Produces pillow or perforated bags as needed.

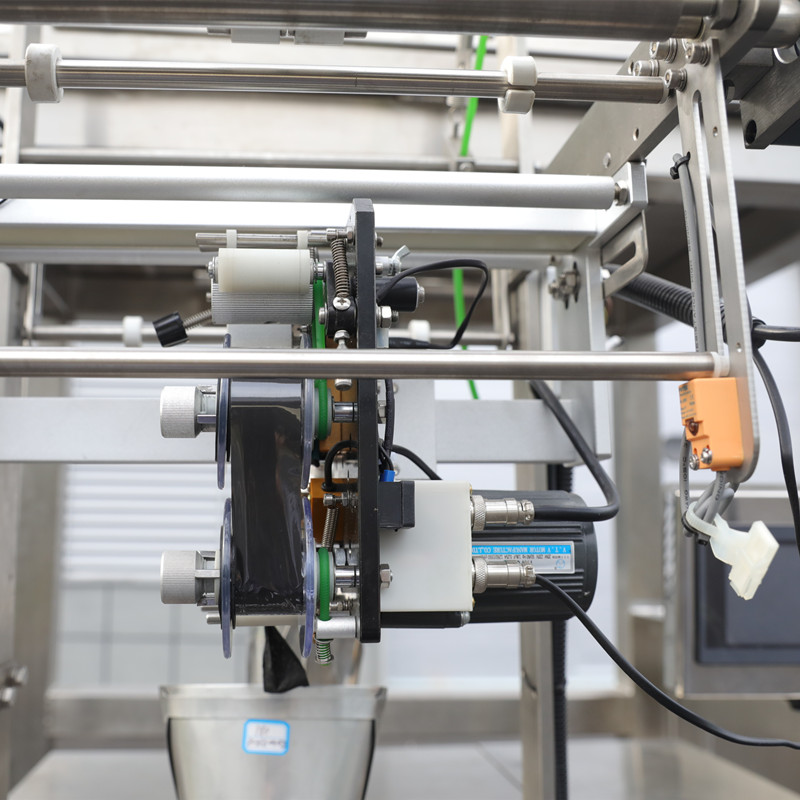

· Single-belt film transport: fast, stable, low wear.
Optional
· Continuous package or multi package with short package cut-off function;
· Hook hole drilling function (round holes and various irregular holes can be drilled);
· Supporting discharge conveyor;
· Various automatic or semi-automatic metering and conveying mechanisms;
· Inflation and exhaust function;
· Compressed air system and nitrogen generator;
Machine Model | BDH-YD-720 |
Bag size | L:150mm*450mm; W:150mm*350mm |
Packaging Speed | ≤40 Packet/min |
Power supply and power | AC220V, 50~60 HZ, 4 KW |
Compressed air consumption | 6~8 Kgf/cm2, 0.6 m3/min |
Overall dimension | 1650mm*1400mm*1900mm(L*W*H) |
· Baked Goods (Biscuits & Cakes)
· Cannabis
· Coffee
· Condiment (ketchup/Mustard Sauce/Jam/mayonnaise/tahini/butter/soy sauce)
· Confectionery (candy/chocolate)
· Dairy Products（Cheese/milk powder）
· Frozen Food (Prawn/Shrimp/Fish/Scallops/Chiken/Peas/Corn/Dumpling/Burger/samosas）
· Fruit & Vegetable（Fresh fruit/Dried Fruit/Peas）
· Food Grains & pulses (Rice/Whole Wheat/rolled oats/millet/corn kernels/legumes/noodles)
· Kimchi & Pickles
· Meat & Poultry (Chicken/pork/beef/beef jerky)
· Pet Food
· Snacks & Chips (Nuts / seeds）
· Seasonings & Spices (seaoning mix/chilli powder/Galic Powder/curry power/Turmeric Powder/salt/)
· Granule(Rice/peas)
· Liquid & Paste(Beverage /Liquor)
· Powder (Milk/Coffee/Spices/Salt/ajinomoto/)
