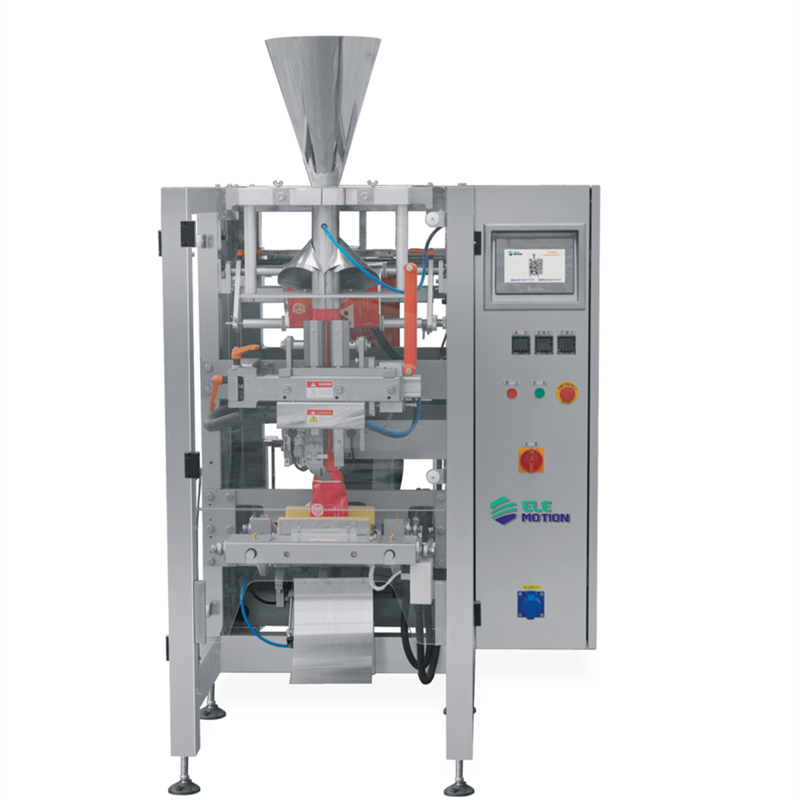

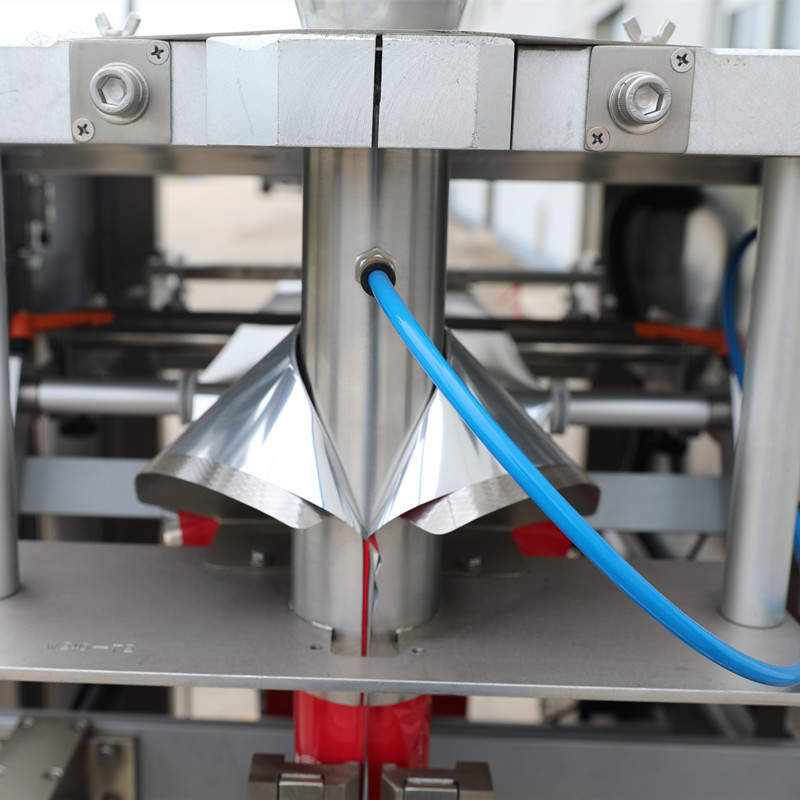

The BDH-YD-420 is a high-speed automatic vertical form fill and seal machine designed for small pouch packaging, including stick packs, sachets, and pillow bags. It integrates measuring, filling, bag forming, sealing, and counting into a single process, adapting to almost all film types and a wide range of products—from coffee powder and milk powder to condiments, candies, and frozen foods. With a maximum speed of 85 packets per minute and a compact design, it is an ideal choice for food, beverage, and consumer goods industries seeking efficient small-batch or mass production of small pouches.
The global demand for small-package products is rising, driven by consumer preferences for convenience, portability, and portion control. Industries such as food, cosmetics, and pharmaceuticals are increasingly adopting small pouches to expand market reach, creating a surge in demand for high-speed, flexible packaging equipment. Manufacturers need machines that can handle multiple materials, adjust bag sizes quickly, and maintain consistent sealing quality.
The BDH-YD-420 stands out with its PLC servo system, which enhances precision and intelligence, and its single-belt film transport that ensures fast, stable operation with low wear. Unlike rigid machines limited to specific bag types, it supports pillow or perforated bags and offers optional functions like hook hole drilling and inflation, meeting diverse packaging needs. Its speed of up to 85 BPM outperforms many entry-level models, while its energy efficiency and compact size make it suitable for both small workshops and large factories.
High-Speed & Precision: Achieves up to 85 packets per minute with PLC servo control, ensuring consistent bag size and sealing quality.
Multi-Material & Film Adaptability: Handles powders, granules, liquids, and pastes, compatible with almost all film types for versatile application.
Intelligent Operation: Touchscreen interface stores product settings for quick switches, and fault display enables prompt troubleshooting.
Safety & Stability: Complies with enterprise safety standards, with smart temperature control for neat sealing and single-belt film transport for low wear.
This model is widely used in packaging coffee powder, milk powder, ketchup, Salad, Condiments, Candy, Biscuit, Fruit Block, Nuts and seeds, it adapts to almost any film type.
Max Speed:85 bpm
Max Bag Size:200 mm W x 300 mm L
Min Bag Size:80 mm W x 80 mm L
· Safety protection meets enterprise safety standards.
· Smart temperature control ensures neat sealing.
· PLC servo system enhances precision and intelligence.
· Auto-completes measuring, filling, bagging, and counting.
· Touchscreen stores settings for quick product changes.
· Fault display aids prompt troubleshooting.
· Produces pillow or perforated bags as needed.

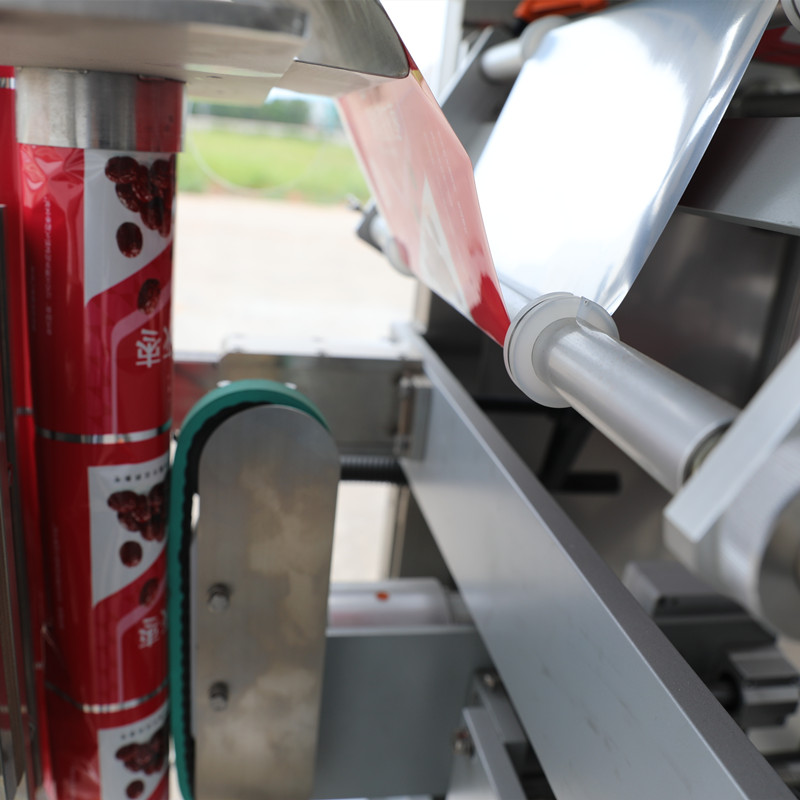

· Single-belt film transport: fast, stable, low wear.
Speed & Capacity: Max speed of 85 packets per minute meets the demands of high-volume small-pouch production.
Bag Size Flexibility: Supports bag lengths from 80mm to 300mm and widths from 80mm to 200mm, covering most small-package requirements.

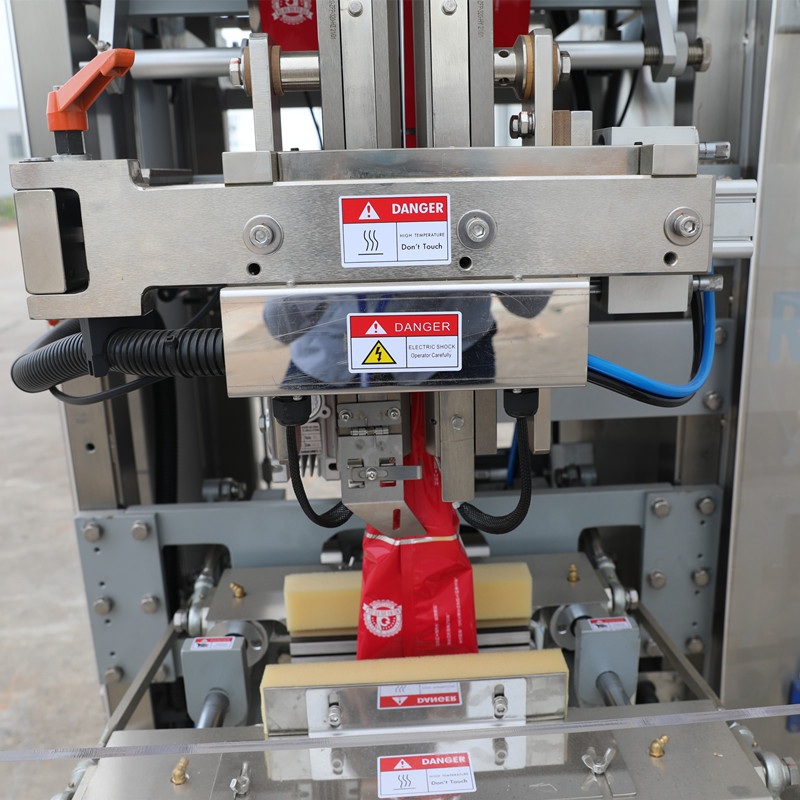

Sealing Quality: Smart temperature control ensures tight, neat seals without leakage, even for heat-sensitive films.
Energy Efficiency: Operates at 3KW power, consuming 6-8 Kgf/cm² compressed air, reducing operational costs.
Optional Functions: Offers continuous packaging, multi-package cut-off, hook hole drilling (round or irregular), and inflation/exhaust functions.
Metering & Conveying: Provides customized automatic or semi-automatic metering and conveying mechanisms for specific materials.
Bag Type Customization: Supports adjustments for pillow bags, perforated bags, or other special bag shapes based on product needs.
Auxiliary Equipment: Can be equipped with a discharge conveyor, compressed air system, or nitrogen generator for extended functionality.
It is suitable for coffee powder, milk powder, condiments, candies, biscuits, nuts, frozen foods, liquids, pastes, and more.
The maximum bag size is 200mm (W) x 300mm (L), and the minimum is 80mm (W) x 80mm (L).
It adapts to most film types, and the sealing temperature (0-300℃ adjustable) can be optimized for different film thicknesses.
The touchscreen stores multiple product settings, enabling instant switches without reconfiguration, saving time for batch production.
Optional
· Continuous package or multi package with short package cut-off function;
· Hook hole drilling function (round holes and various irregular holes can be drilled);
· Supporting discharge conveyor;
· Various automatic or semi-automatic metering and conveying mechanisms;
· Inflation and exhaust function;
· Compressed air system and nitrogen generator;
Machine Model | YD-420 |
Bag size | L:80mm*300mm; W:80mm*200mm |
Packaging Speed | ≤85 Packet/min |
Power supply and power | AC220V, 50~60 HZ, 3 KW |
Compressed air consumption | 6~8 Kgf/cm2, 0.15 m3/min |
Overall dimension | 1500mm*1035mm*1410mm(L*W*H) |
· Baked Goods (Biscuits & Cakes)
· Cannabis
· Coffee
· Condiment (ketchup/Mustard Sauce/Jam/mayonnaise/tahini/butter/soy sauce)
· Confectionery (candy/chocolate)
· Dairy Products（Cheese/milk powder）
· Frozen Food (Prawn/Shrimp/Fish/Scallops/Chiken/Peas/Corn/Dumpling/Burger/samosas）
· Fruit & Vegetable（Fresh fruit/Dried Fruit/Peas）
· Food Grains & pulses (Rice/Whole Wheat/rolled oats/millet/corn kernels/legumes/noodles)
· Kimchi & Pickles
· Meat & Poultry (Chicken/pork/beef/beef jerky)
· Pet Food
· Snacks & Chips (Nuts / seeds）
· Seasonings & Spices (seaoning mix/chilli powder/Galic Powder/curry power/Turmeric Powder/salt/)
· Granule(Rice/peas)
· Liquid & Paste(Beverage /Liquor)
· Powder (Milk/Coffee/Spices/Salt/ajinomoto/)
