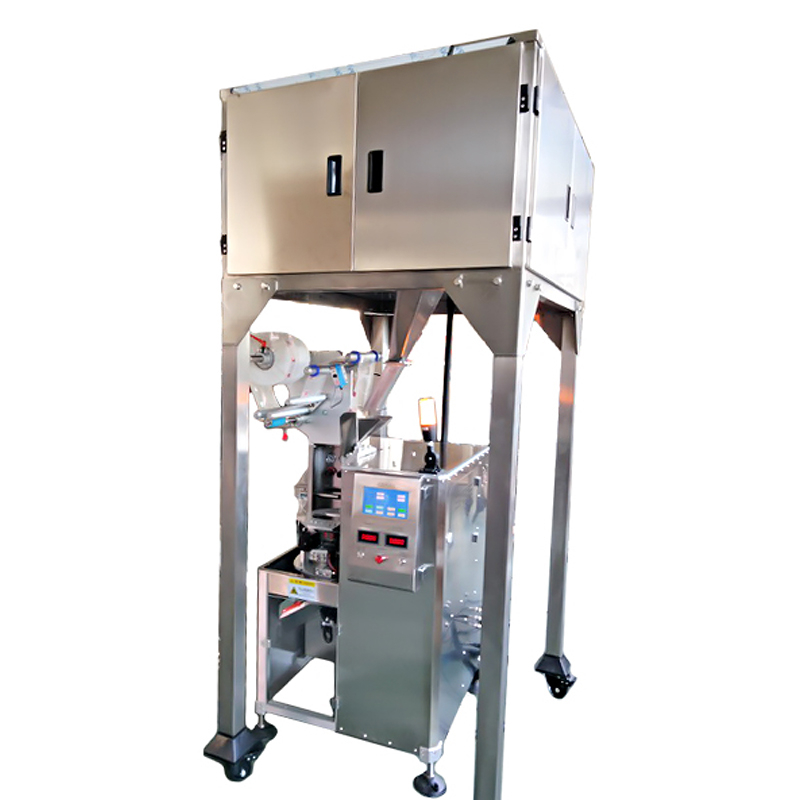

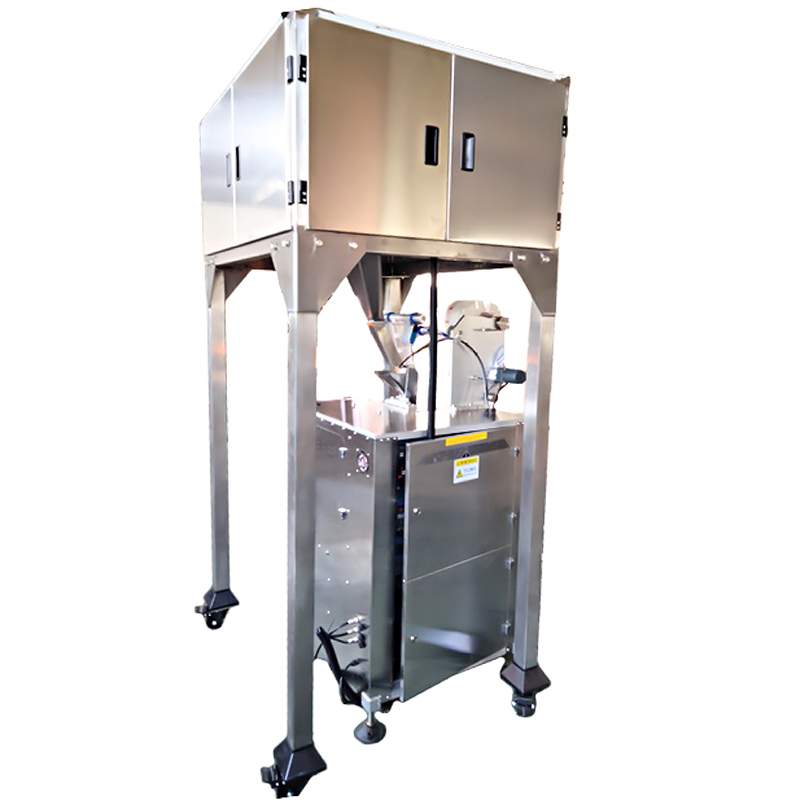

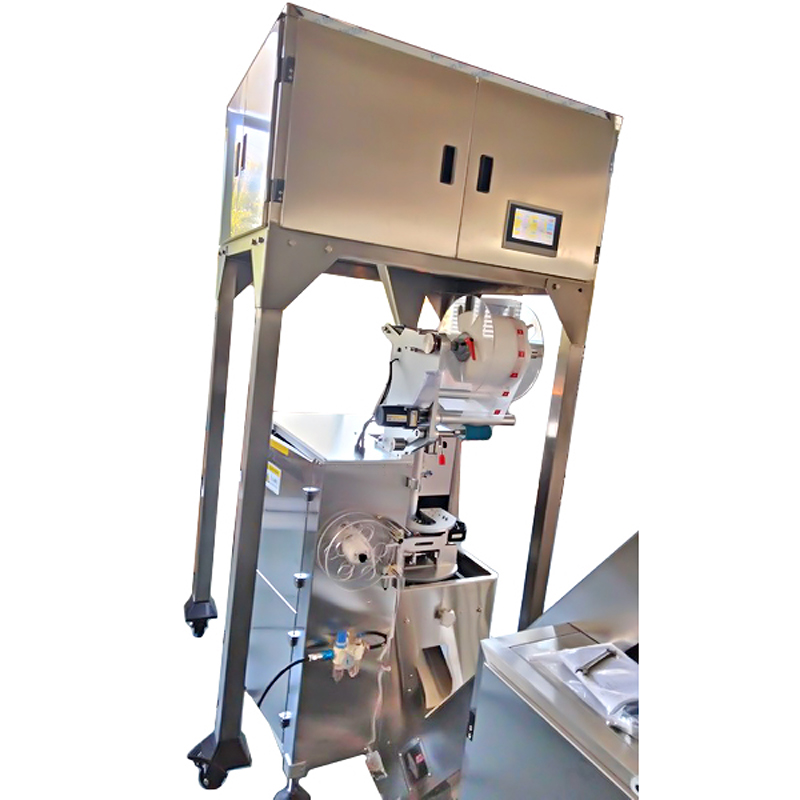

The YS-ZF90X-6S High-Speed Nylon Triangle Bag Packing Machine is a premium solution for tea, coffee, and herbal products, offering both flat and triangle bag packaging. Its high speed (70-100 bags/min) and electronic scale metering make it a top choice for specialty beverage brands.
This machine automates blanking, measuring, bag making, sealing, cutting, counting, and finished product conveying. It uses imported ultrasonic sealing and electronic scale metering, ensuring precise filling and airtight seals.
It handles green tea, black tea, scented tea, coffee, Chinese herbal tea, and granular health products (1-10g). The triangle bag design enhances brewing efficiency, while the flat bag option meets traditional packaging needs. Bag sizes range from 40-90mm W × 45-90mm L.
The global herbal tea and specialty coffee market is growing at 8.3% CAGR, with consumers prioritizing natural ingredients and convenient packaging. Triangle bags are gaining popularity for their aesthetic appeal and better flavor extraction.
Traditional tea packaging is labor-intensive, with low speed and inconsistent filling. The YS-ZF90X-6S increases production efficiency with 70-100 bags/min speed, ensures uniform weight with ±0.2% accuracy, and reduces labor costs via full automation.
Equipped with a high-performance motor and electronic scale metering, it achieves 70-100 bags per minute—30% faster than similar products. The three-dimensional sealing ensures no leakage, preserving product freshness.
Switch between triangle and flat bags without major modifications, adapting to different product positioning and market preferences. The food-grade packaging materials (nylon, polyester net, non-woven fabric, corn fiber) meet global hygiene standards.
With dimensions of 1320×1366×2160mm and weight of 260-410Kg, it fits in small workshops. The 2.0KW total power (AC220V/50HZ) reduces energy consumption, lowering operational costs.
The electronic scale metering ensures ±0.2% packaging accuracy, while the ultrasonic sealing prevents aroma loss. The high-speed operation meets large-scale production needs without compromising quality.
The intuitive control panel allows easy adjustment of bag size, filling weight, and speed. The machine requires minimal training, enabling quick staff onboarding.
We offer custom bag size adjustments, packaging type optimization (triangle/flat), and printing customization (logos, brewing instructions). For special materials (e.g., delicate tea leaves), we modify the feeding system to prevent damage. On-site technical support and maintenance guidance are provided.
1. This unit can perform either flat bag or triangle tea bag.
2. It can be automatically finish blanking, measuring, bag making,sealing,cutting,counting,finished product conveyor and other functions.
3. Adopt the imported ultrasonic sealing,use the electronic scale metering to cutting-stock,perfect sealing,cutting-stock accuracy.
4. Packing material：Nylon,Polyester net,non-woven fibries,corn fiber(Food grade).
Sealing Type
Three-dimensional sealing
Measuring Scope | 1 - 10 g |
Bag size | W 40 - 90mm L 45 - 90mm |
Packing Speed | 70-100 bags/min |
Dimension ( L * W * H ) | 1320 * 1366* 2160 mm |
Weight | 260-410 kg |
Total Power | AC220V / 50Hz / 2.0kw |
Gas source | ≥0.6m³/ min |
Method of feeding | Order according to material |
Measuring Scope | 1-10g |
Packaging accuracy | ≤± 0.2% |
Sealing Type | Three-dimensional sealing |
Packaging speed | 70-100 bags/min |
Power supply | AC220V / 50Hz |
Whole machine power | 2 KW |
Gas Source | ≥0.6m³/ min |
Prefab Bag size | L: 45 - 90mm W: 40 - 90mm |
Machine Dimension | 1320 * 1366* 2160 mm ( L * W * H ) |
Total Weight | 260-410KG |
