Product Overview

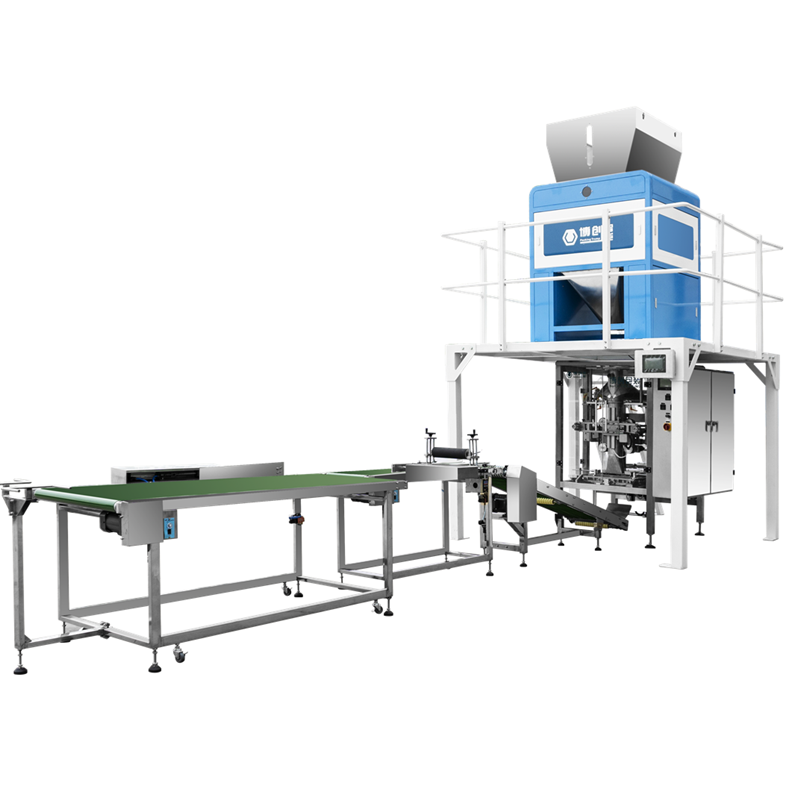

The VFS-740 Fully Automatic Film Roll Packaging Machine is a versatile solution for granular materials (100g-5000g), integrating bag making, weighing, filling, venting, sealing, printing, and counting. Its IoT-enabled design and high-precision control make it ideal for food, chemical, and daily necessities industries.

Characteristic Description

Core Function Integration

This machine uses film rolls to produce custom-sized bags, supporting both non-vacuum and vacuum packaging. It features servo motor-driven film pulling and electric push rod deviation correction, ensuring smooth, accurate bag making and sealing.

Applicable Industries & Materials

It is widely used in packaging snacks, grains, pet food, chemical granules, and hardware parts. The film width range of 150-730mm allows for flexible bag size customization, from small retail packs to large family-sized bags.

Market Research

Industry Demand Trend

The global packaging machinery market for consumer goods is growing at a CAGR of 6.1%, driven by the rise of e-commerce and the need for efficient, customizable packaging. IoT-enabled equipment is increasingly preferred for remote maintenance and production monitoring.

Market Pain Points Addressed

Businesses face challenges like high film waste, inconsistent bag quality, and difficult maintenance. The VFS-740 reduces film waste via precise deviation correction, ensures uniform bag shapes with servo-driven sealing, and offers remote maintenance via IoT.

Key Features

IoT Integration

Equipped with IoT functions, it supports remote maintenance, remote alarm, and software upgrades. Managers can monitor production data (e.g., speed, yield) and troubleshoot via mobile or desktop devices, minimizing downtime.

Advanced Control System

The INOVANCE PLC control system and 10-inch Chinese/English touch screen ensure stable performance and intuitive operation. Transverse and longitudinal seals are driven by servo motors, operating smoothly with low noise.

High-Quality Construction

Core parts in contact with materials are 304 mirror-finish stainless steel, resistant to corrosion and easy to clean. The carbon steel frame with plastic coating enhances durability, suitable for long-term industrial use.

Performance Meets

Speed & Precision

Non-vacuum packaging speed reaches 30-40 packs/min, while vacuum packaging is 15-20 packs/min (adjustable). The ±0.2% packaging accuracy meets international standards, ensuring consistent product weight.

Environmental Adaptability

Operating temperature ranges from -10℃ to +50℃ (with low-temperature protection), suitable for cold storage and high-temperature workshops. It requires 0.4-0.6 MPa gas pressure and ≤5KW power (380V, 50HZ), compatible with standard industrial facilities.

Customized Service

We offer tailored solutions, including film width adaptation, vacuum degree adjustment, and printing content customization (e.g., logos, batch numbers). For special materials, we modify the feeding system to prevent sticking or breakage. Technical teams provide on-site installation and training.

The advanced design ensures that the machine is suitable for use in various industries, and it is very convenient to adjust, operate and maintain during use.

1. The packaging bags are aesthetically pleasing and flat, with a wide range of bag-making sizes.
2. It uses a servo high-speed motor synchronous belt to pull the film and has an electric push rod deviation correction function.
3 PLC control components are all international brand products, reliable performance.
4. The transverse and longitudinal seals are sealed by servo motors, which operate smoothly and reliably.

5. The whole machine is equipped with Internet of Things functions, enabling remote maintenance, remote alarm and remote software upgrade, etc.

Technical parameters and related notes:

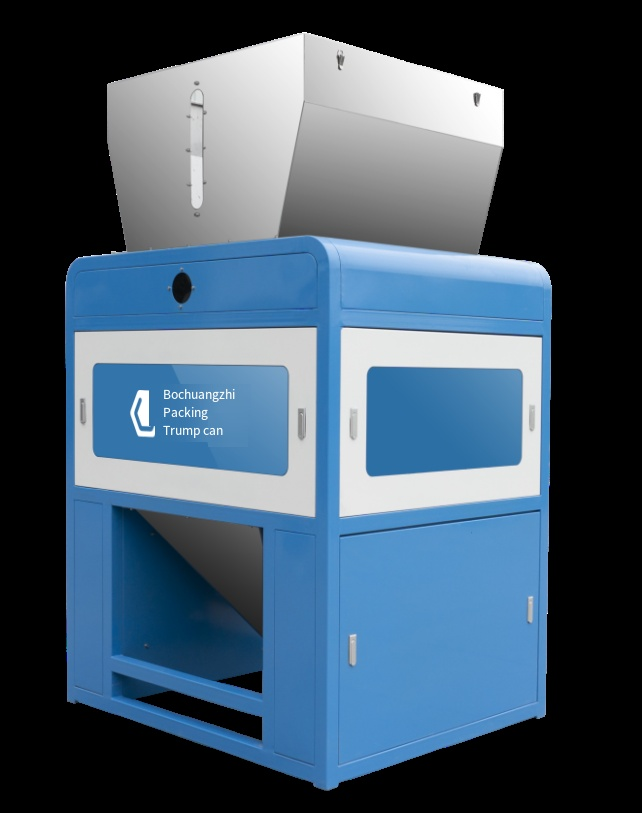

High-precision six-bucket measuring scale: Main components: Storage bin, feeding device, load sensor, bucket, opening mechanism, manually set the required weight through the control interface, after the start button is turned on, the feeding device sends the material from the storage bin to the sensor bucket, quickly reaches the set weight value, the opening mechanism releases the material and continues to the next round of weighing, This machine has six sets of weighing hoppers working in a cycle; Control Panel: Control the operation of the device, start/stop, weight setting, with a window showing the current weight.

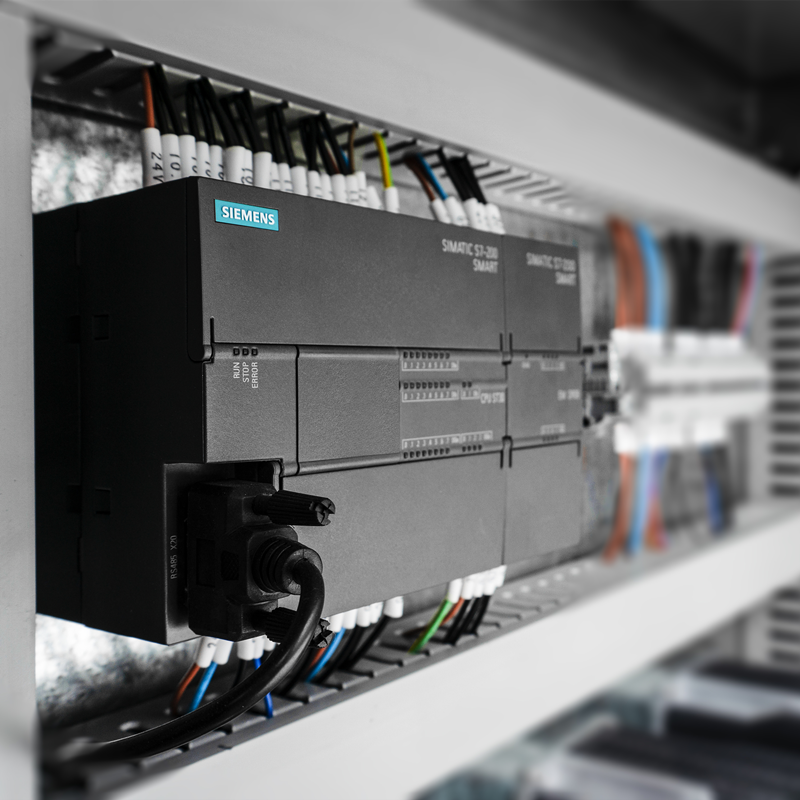

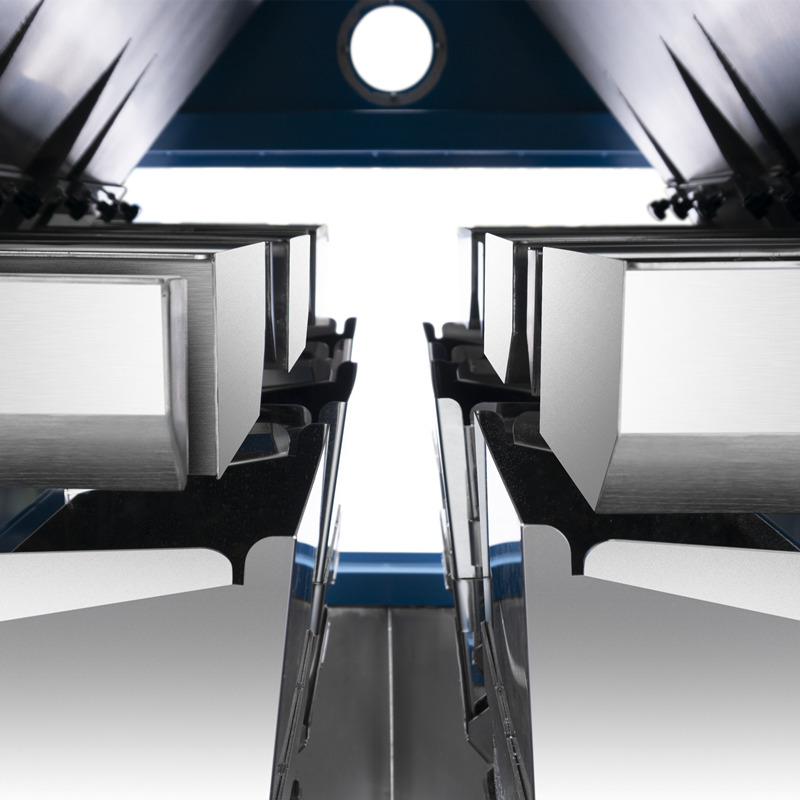

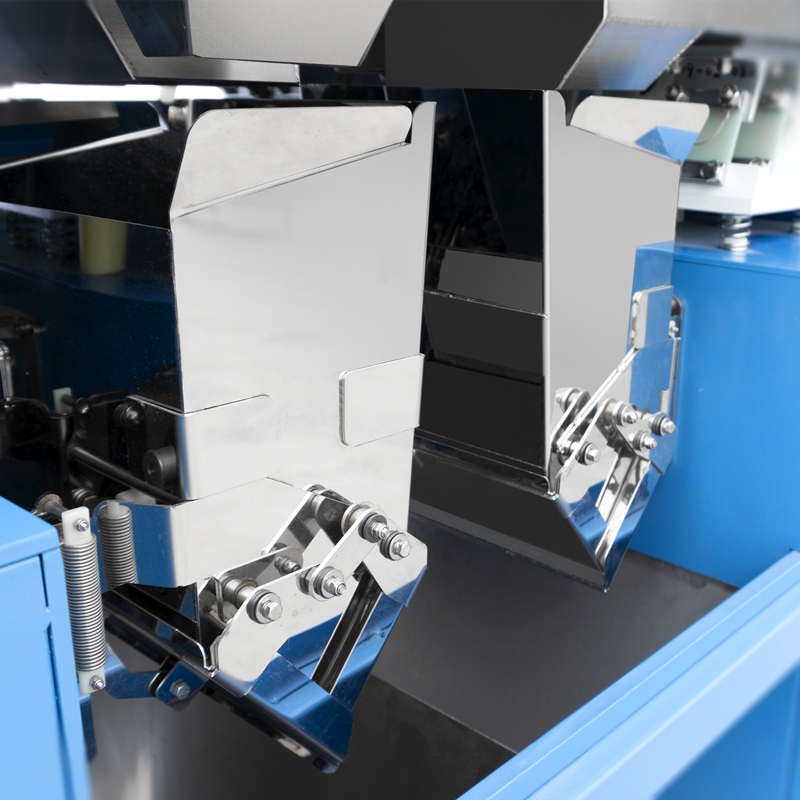

Our company 's independent intellectual property -PLC plus instrument dual control system makes the packaging scale more stable and fast during operation. The new scale has a relatively simple structure, is easy to disassemble and can be hung up directly. The double door structure allows for more thorough material placement without material concealment. The core components are Siemens PLC, American Transforce/Mettler Toledo load cells, with the most advanced PLC plus weighing instrument control, automatic control of amplitude size, simple and clear operation, high-quality processing technology stainless steel mirror double opening bucket design, which can ensure more thorough discharge without material accumulation, vibration trough closed discharge section This ensures no material spillage during operation and ensures weighing accuracy. The parts in contact with the material are made of 304 stainless steel.

BCJ-Z5F high-precision six-bucket scale operating screen:

How it works:

1. The three-stage vibration feeding and motor bucket opening form can prevent phenomena such as material breakage and material jamming. The separately designed weighing buckets can ensure smooth material flow and measurement accuracy, with low noise and other features.

2. Load-type high-precision sensors can effectively ensure accuracy.

3. The imported brand Schneider PLC and weighing operation module feature centralized operation and processing, which is faster, has strong anti-interference ability, high speed, high precision and strong stability. Taiwan EVIEW touchscreen operation interface makes operation simpler, parameter setting easier, and equipment failure rate lower.

4. The control system also adds zero tracking technology to ensure the stability of the original set values, significantly improving the weighing accuracy and speed.

5. The weighing control system is designed to meet IP54 (dust and water resistance) requirements.

6. You can set your own on/off password, set your own internal parameter data according to production conditions, and retrieve production-related data at will.

7. It is controlled by a digital analog module PLC (industrial computer), and the touchscreen operation interface greatly extends the service life of the product, is better applicable to poor dust environment, and has data storage, data sharing, fast computing speed, no need for complicated line query for maintenance, and all lines are simplified into a modular type, making it easy to identify the fault point.

Technical parameters and related descriptions:

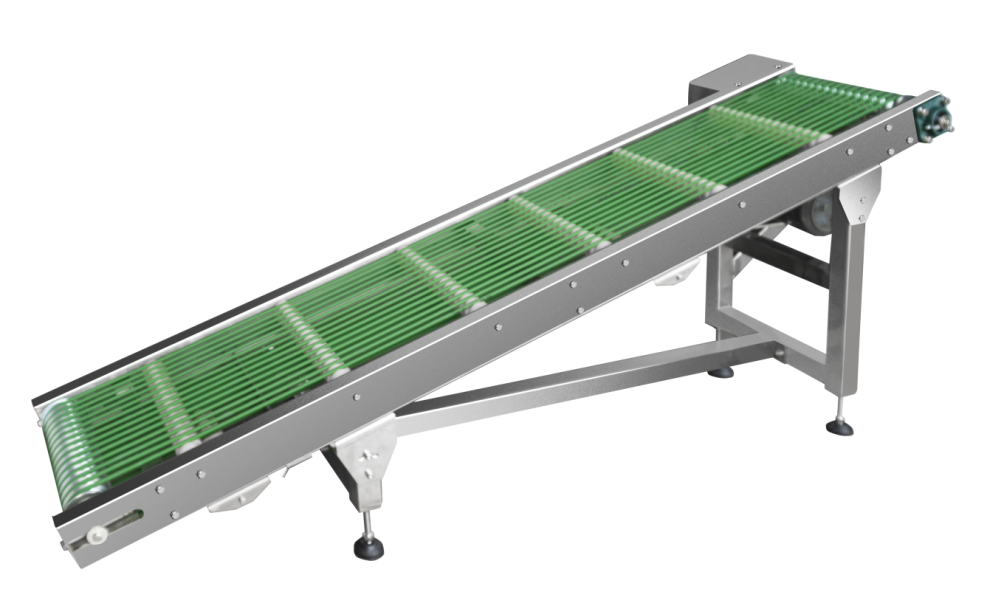

Conveyor section introduction:

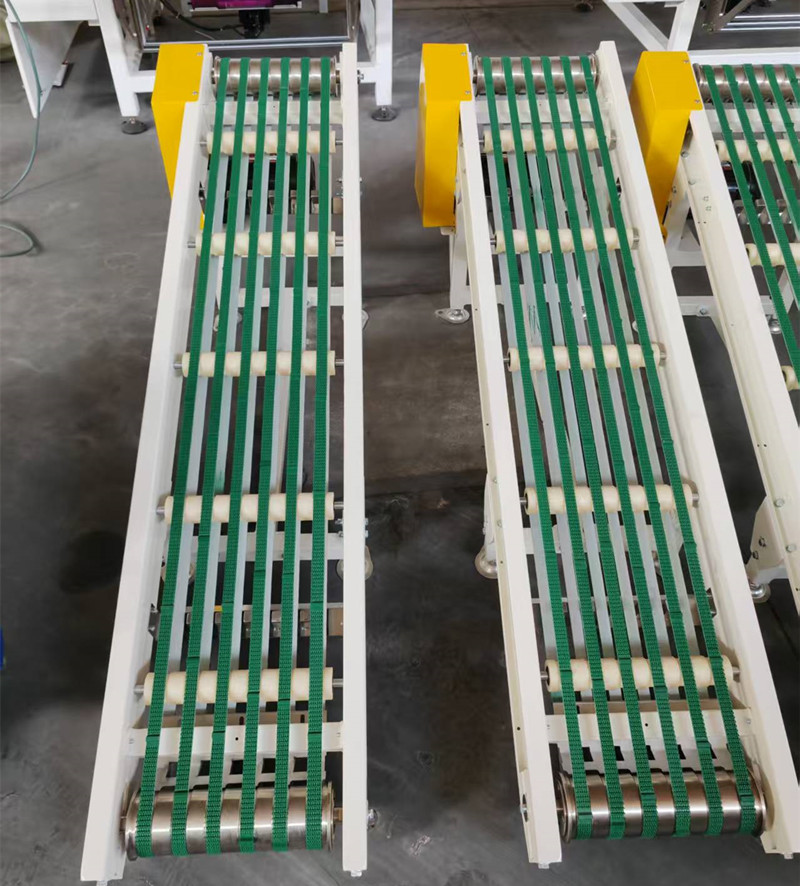

Advantages of the belt conveyor: This type of conveyor is designed not to slip or deviate, is sturdy and wear-resistant, has independent speed control, is easy to operate, and in case of bag breakage, the spilled seeds can fall into the storage box below through the gaps between the belts and will not be scattered everywhere with the inertia of the conveyor belt, affecting the workshop environment.
