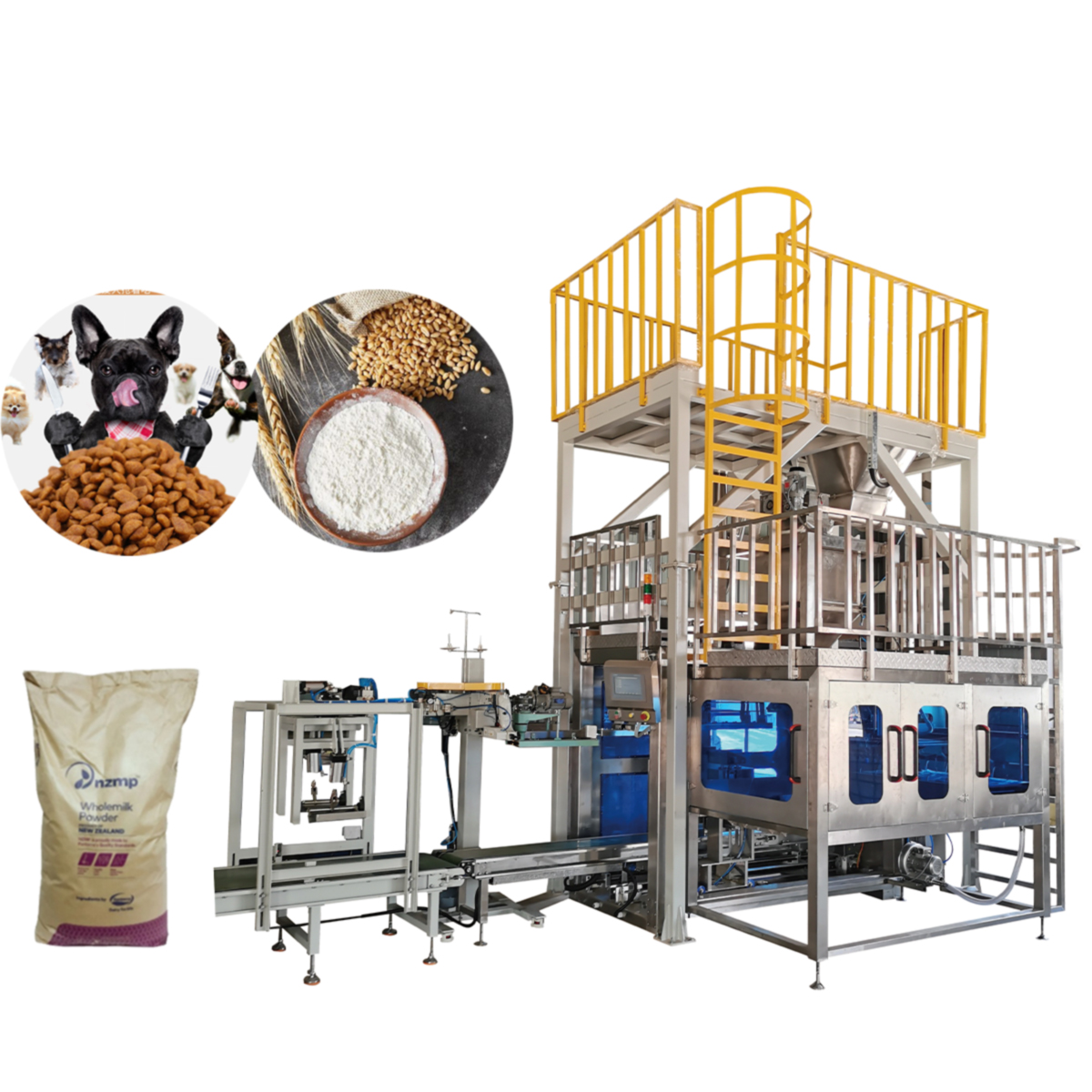

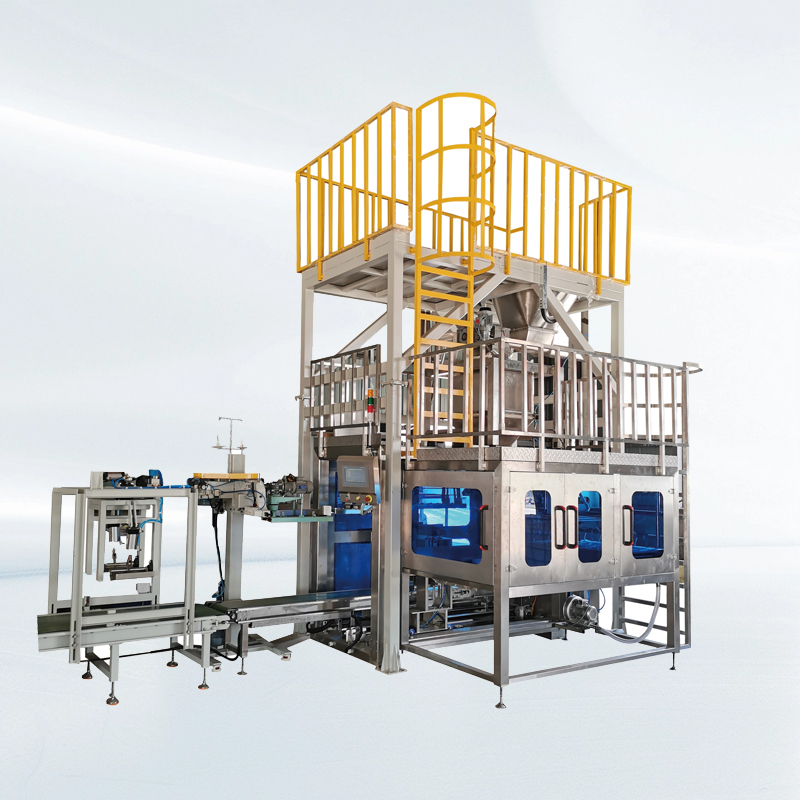

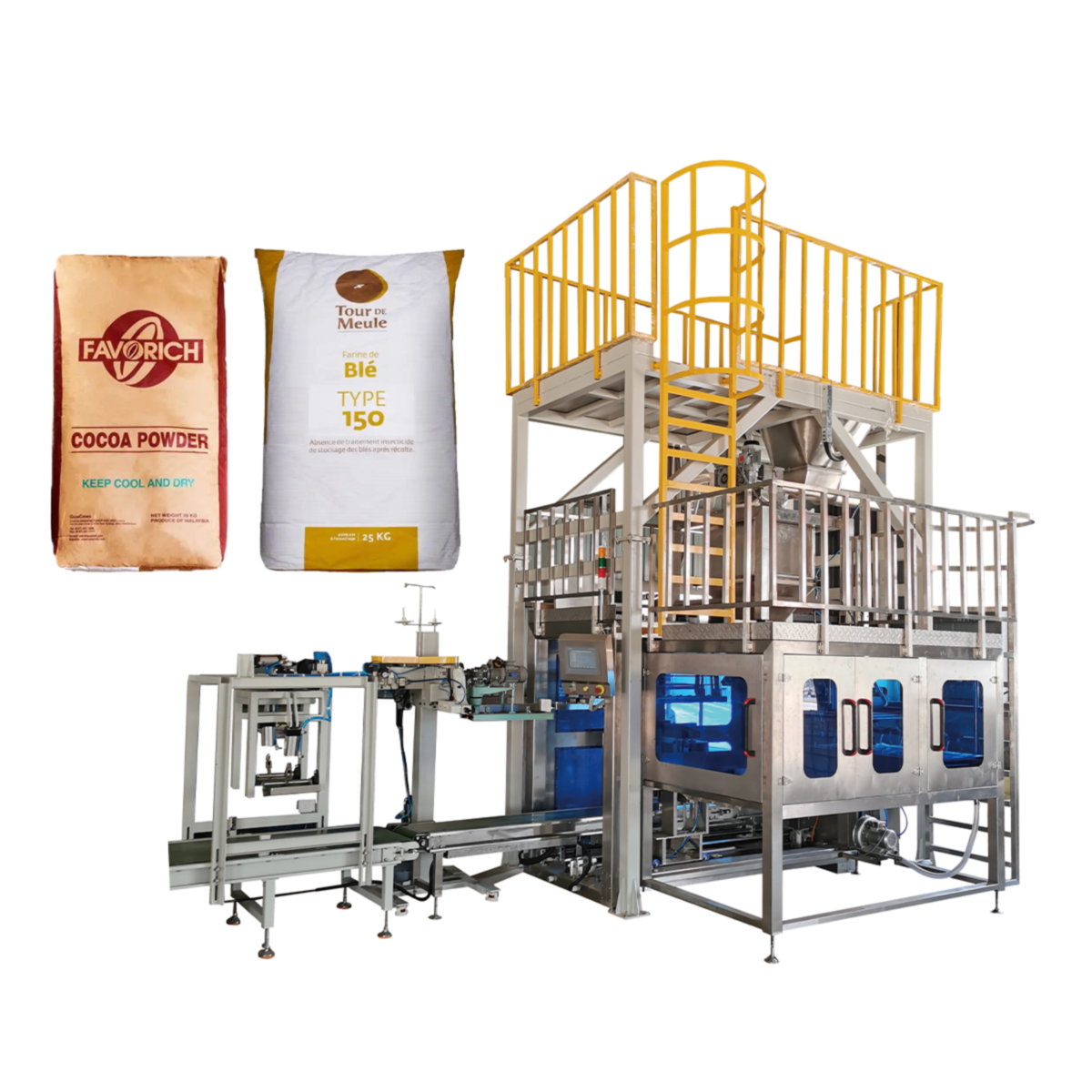

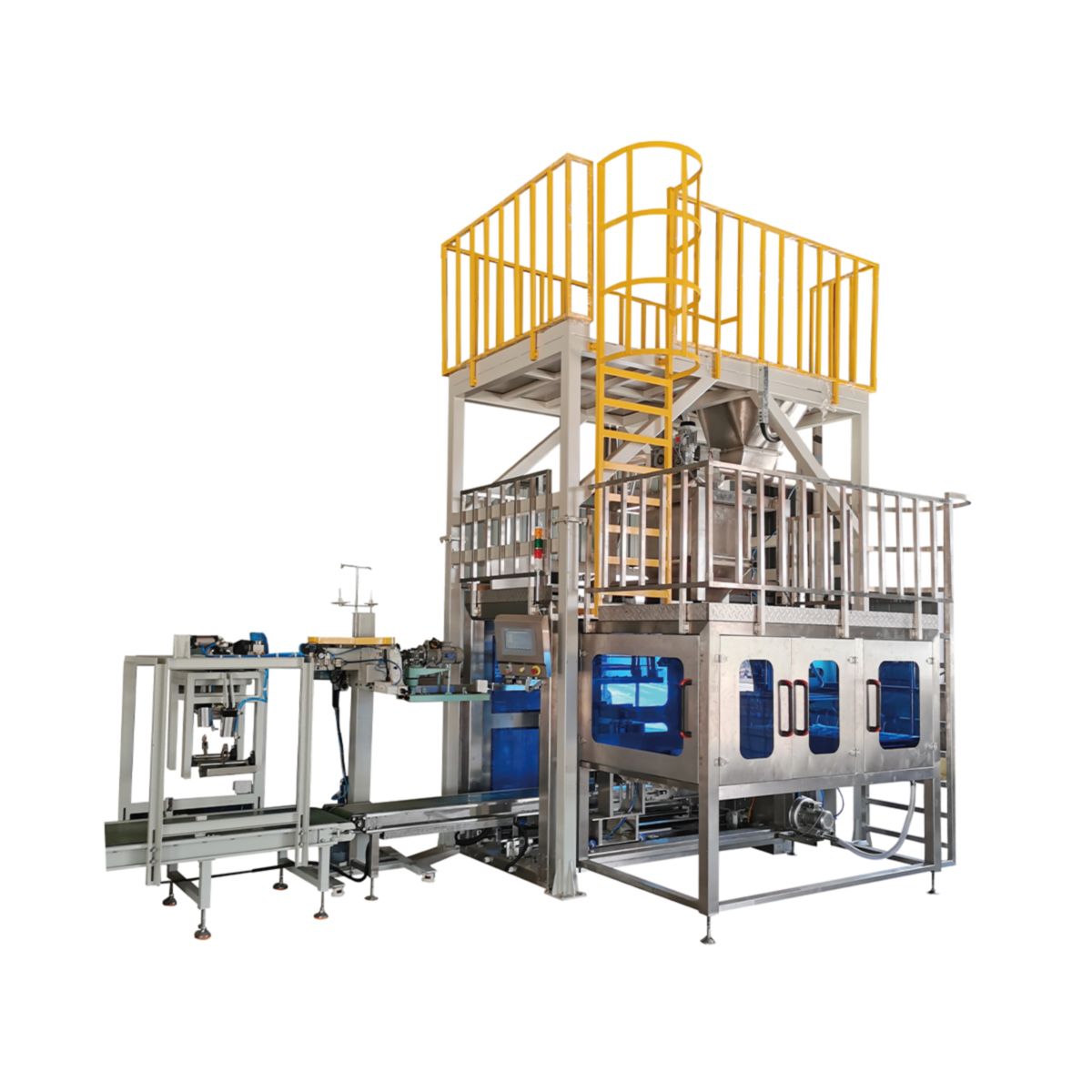

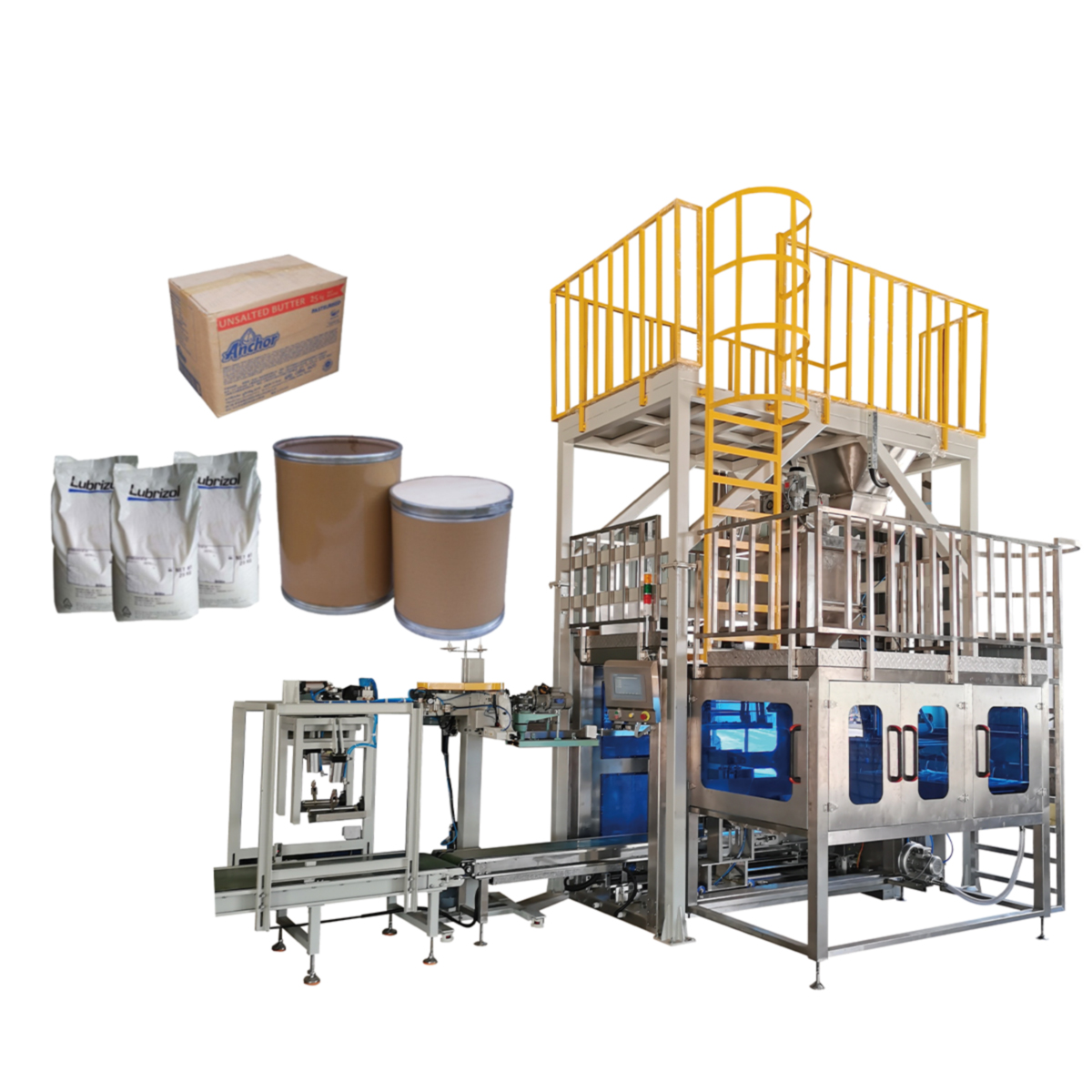

The DC-S25-SJ-1 fully automatic double helix powder packaging machine is a high-performance solution engineered for the chemical, food, and feed industries. Focused on large-specification powder packaging, it integrates automatic weighing, vacuum bag taking, filling, sewing, and conveying functions, enabling unmanned operation from material input to finished product output. The double helix feeding system is the core of its precision, ensuring stable material flow and consistent filling, while the intelligent control system monitors the entire process to guarantee reliability. This machine is particularly suitable for enterprises pursuing high efficiency and precision, as it addresses the challenges of packaging bulky, dusty, or high-precision powder materials.
In bulk powder packaging, enterprises often face issues such as low efficiency from single-station equipment, inaccurate filling leading to product waste, and labor-intensive operations increasing costs. Additionally, the need for compatibility with multiple bag types and materials further complicates equipment selection. For high-yield manufacturers, these pain points directly impact production capacity and profit margins.
The DC-S25-SJ-1 targets medium and large enterprises with high-volume packaging needs. Its double helix feeding ensures superior precision, while the 3-8 bags per minute speed outperforms many single-station competitors. By combining automation, versatility, and reliability, it fills the gap between low-cost, low-efficiency machines and high-priced, over-configured equipment, offering cost-effective value for industrial users.
High-Precision Double Helix Feeding: Delivers uniform material flow, reducing filling errors to ≤±0.1-0.2% and ensuring consistent product weight.
Vacuum Bag Taking & Automatic Sewing: Vacuum suction cups efficiently retrieve bags from the warehouse, and the automatic sewing function completes sealing without manual intervention, improving efficiency.
Intelligent PLC Control: Equipped with photoelectric switches and detection systems, it automatically alarms for bag shortages, jams, or weight deviations, ensuring continuous operation.
Multi-Material Compatibility: Adapts to various powder and granular materials, from food additives to chemical powders, with strong environmental adaptability.
Flow of work
The bag mechanism uses the vacuum suction cup to take the bag from the bag warehouse, the automatic bag on the bag manipulator, the bag filling bag to automatically import the automatic sewing bag, the whole process is accompanied by the detection system, the whole process is controlled by PLC, photoelectric switch intelligence, detection and alarm. Ensure that the whole process is stable, reliable and continuous operation.
Scope of application

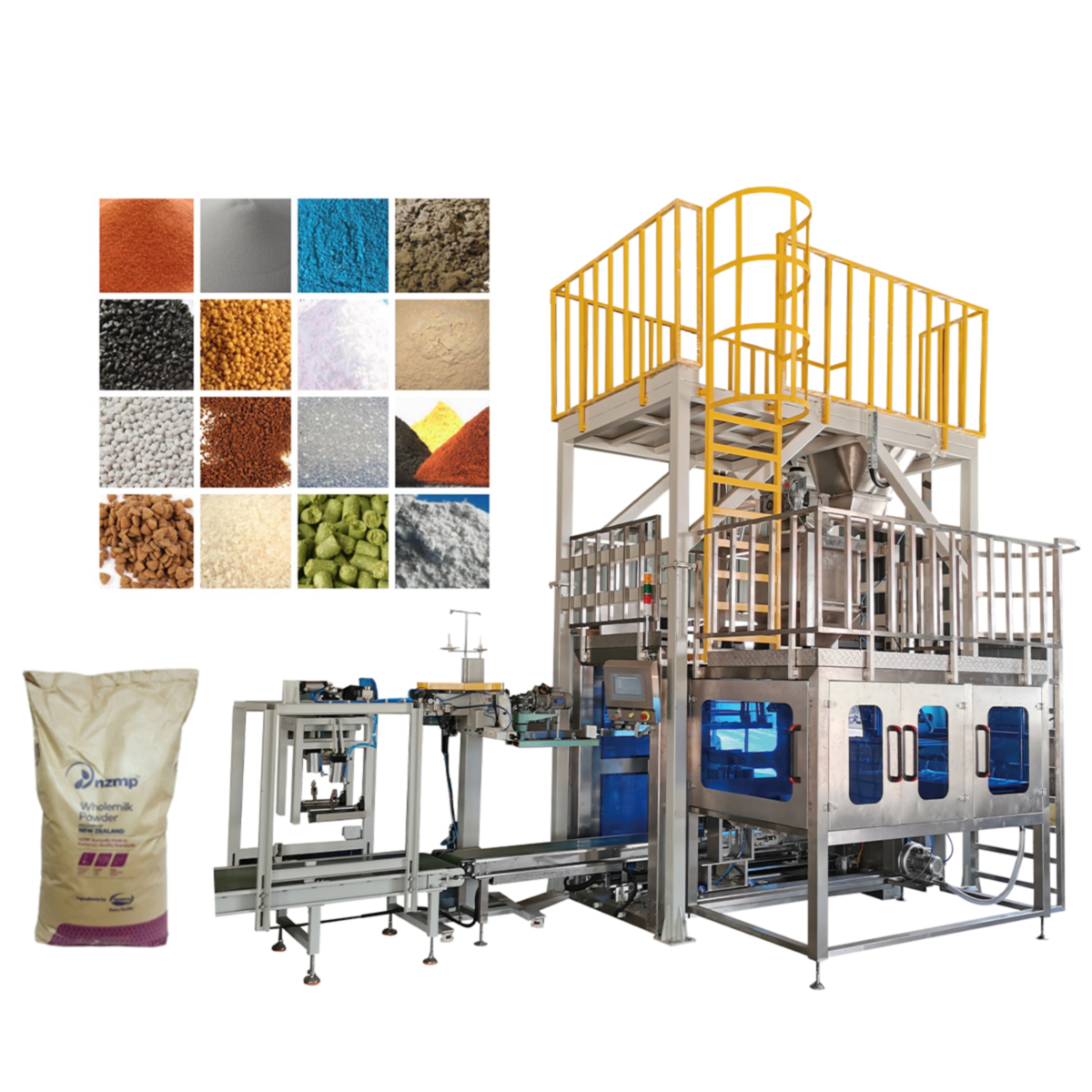

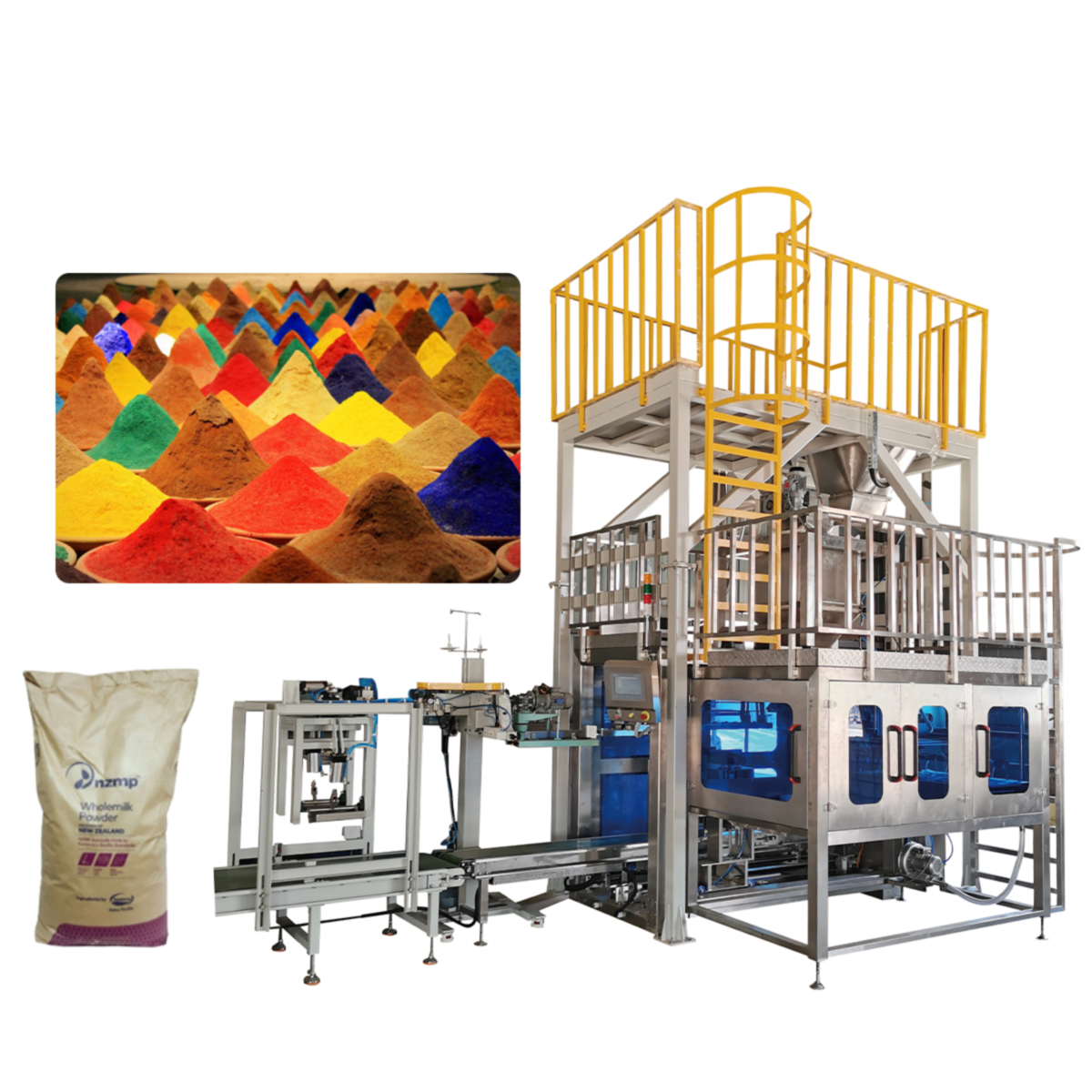

Suitable for packaging powder granular materials, such as food powder, veterinary medicine, solid medicine, pesticides, dyes, metal powder, building materials, etc.
Method of feeding | Double helix feed |
Packing weight | 25kg |
Packaging accuracy | ≤±0.1-0.2% |
Packaging speed | 3-8 bags/min |
Power supply | 380/220V 50-60Hz(TN-S) |
Whole machine powder | 8KW |
Bag size | L:810mm-960mm W：410mm-650mm（Size can be customized） |
Bag material | Craft paper coated bag, woven bag (coated), plastic bag (0.2mm thick) woven bag (with PE plastic bag), etc |
Bag shape | Pillow open pocket |
Gas consumption | 6kg/cm2 0.4-0.6cm3/min |
Production Efficiency: Reaches 3-8 bags per minute for 25kg packages, meeting the high-yield requirements of large-scale production.
Packaging Precision: Maintains an error range of ≤±0.1-0.2%, complying with industry quality standards for food, pharmaceutical, and chemical products.
Operational Stability: The fully automated process reduces human error, with a continuous operation rate of over 95% in long-term use.
Energy & Air Consumption: Operates at 8KW power with air consumption of 6kg/cm² 0.4-0.6cm³/min, balancing performance with operational costs.
Bag Size Customization: Adjusts bag lengths (810mm-960mm) and widths (410mm-650mm) to match specific product packaging requirements.
Feeding System Optimization: Offers tailored modifications for special materials (e.g., high-viscosity, ultra-fine powders) to enhance feeding smoothness.
Production Line Integration: Provides customized connection solutions for mixers, conveyors, and other equipment to achieve end-to-end automation.
The standard packaging weight is 25kg, which is optimized for bulk industrial applications.
It works with craft paper coated bags, coated woven bags, 0.2mm-thick plastic bags, and woven bags with inner PE liners, covering most industrial packaging needs.
The double helix feeding system controls material flow precisely, and the PLC intelligent control system monitors weight in real time, adjusting filling speed to maintain accuracy.
The machine features a user-friendly interface, and we provide detailed operation manuals and online training support. No specialized technical background is needed for basic operation.
