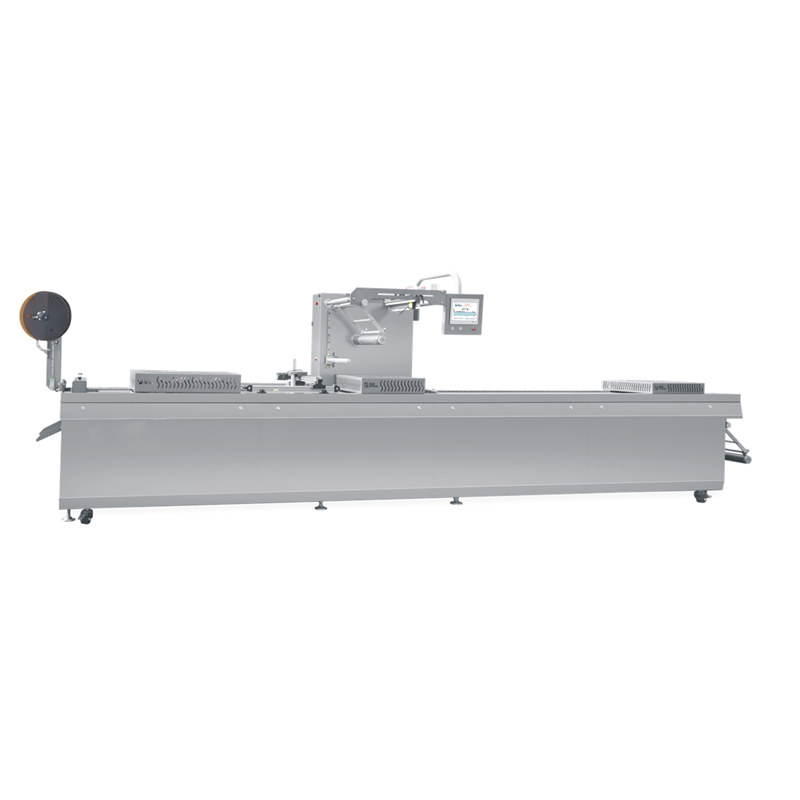

The BDH-DZDL-420 is an industrial horizontal vacuum packaging machine designed to seal pouches in a horizontal position, ensuring exceptional package flatness—ideal for bar-shaped or strip-shaped products. It integrates high-quality components including Busch vacuum pumps, Siemens PLC controls, and Festo pneumatic valves, forming a stable and reliable packaging system. The workflow follows a precise sequence: thermoformed bottom film is shaped in molds, products are loaded, top film is applied, and the system performs cross cutting, sealing, and rotary cutting to complete the packaging process.
This machine is compatible with multiple film materials: PA+PE, PET+PE, PVC+PE, and XPP. It accommodates films of varying specifications, from 20-micron soft films to rigid films above 240 microns, including 3-layer, 5-layer, 7-layer, 11-layer, 14-layer structures, and both full barrier and semi-barrier films. It’s widely used for packaging food items like cheese, frozen seafood, fresh and dried fruits, herbs, kimchi, and meat products, as well as non-food products such as medical devices, syringe needles, and electronic components.
Suitable Film Materials:PA+PE / PET+PE / PVC+PE / XPP
Max Speed:10 cycles/minut
Max Bag Size:395*422mm
· Food-grade SUS304 parts ensure hygiene and safety.
· User-friendly PLC/POD control with auto-recovery.

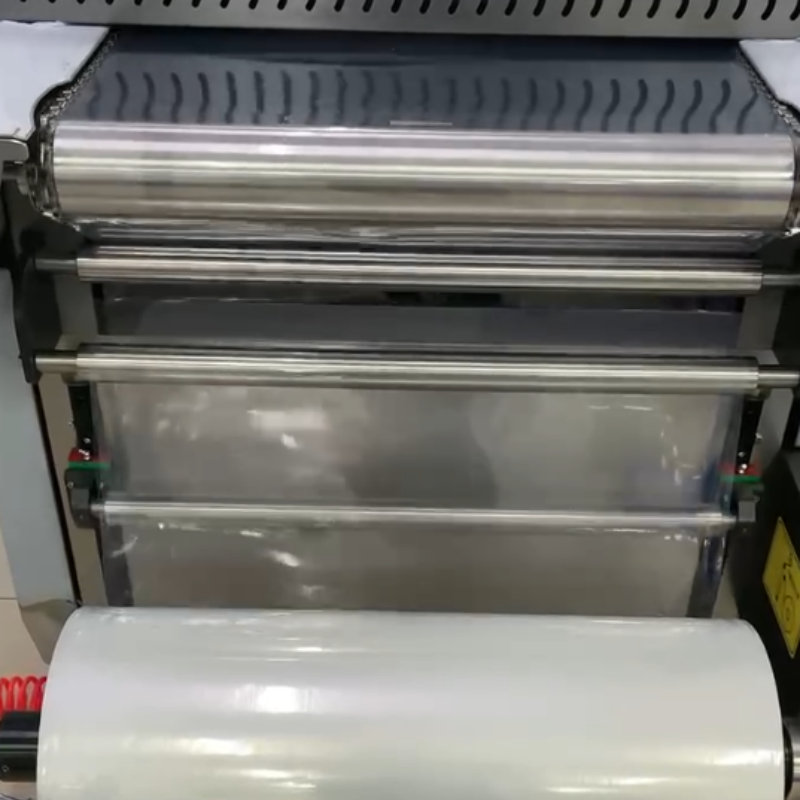

· Pre-tension film system ensures consistent tension.
· Knee-lift mechanism stabilizes forming/sealing efficiently.
· Upgraded vacuum valve boosts speed and durability.

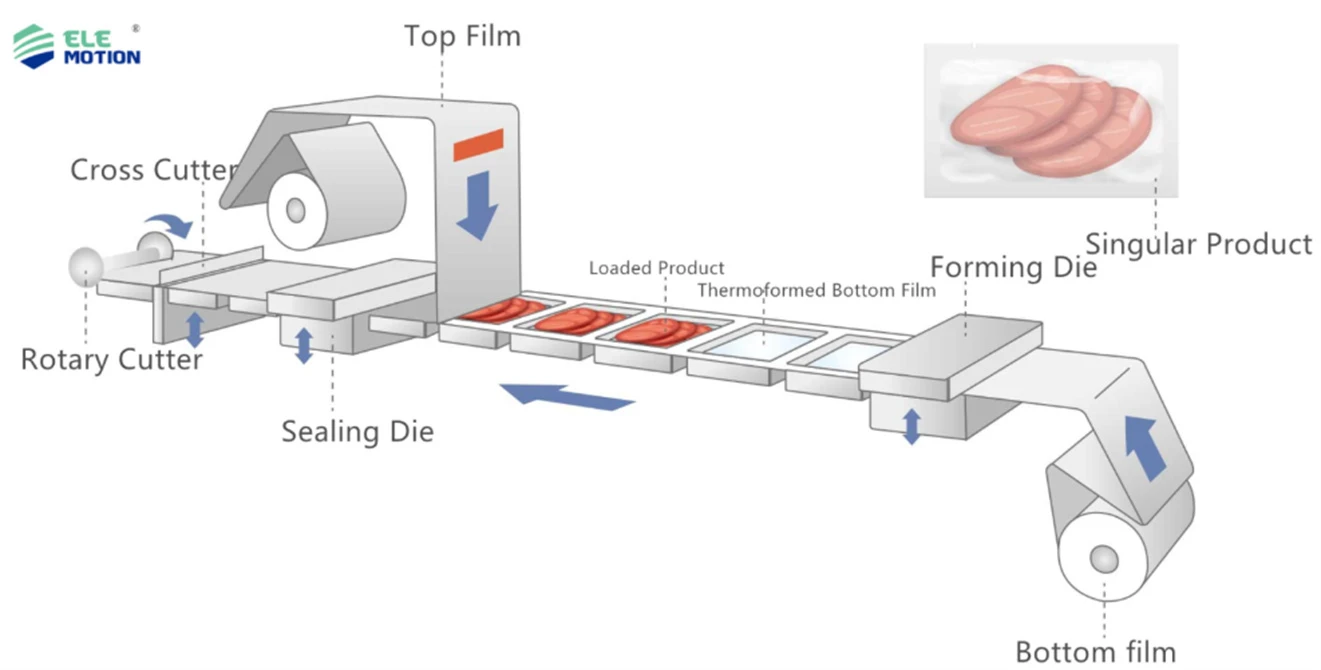

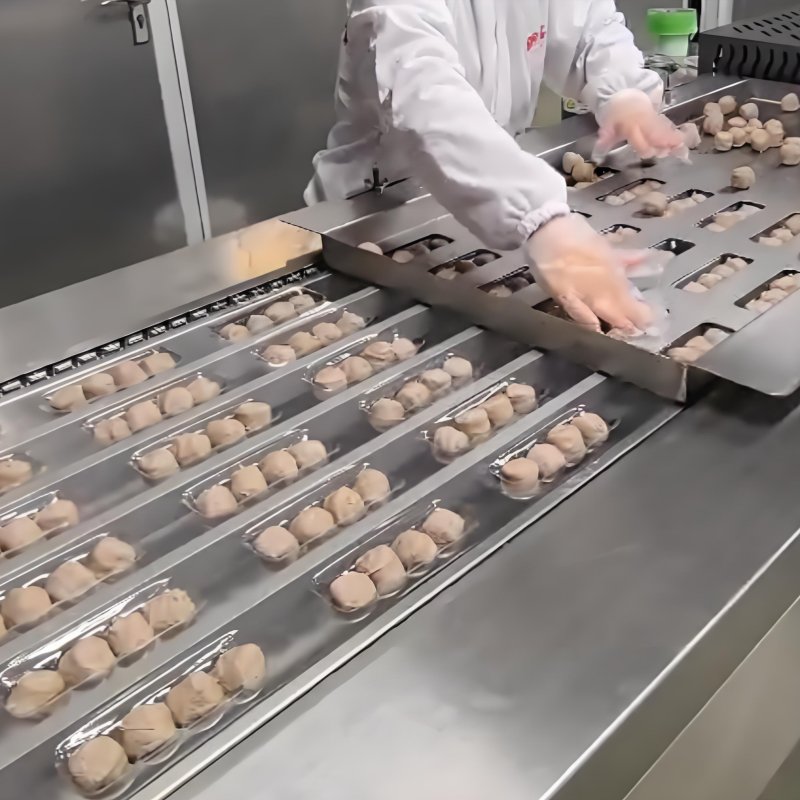

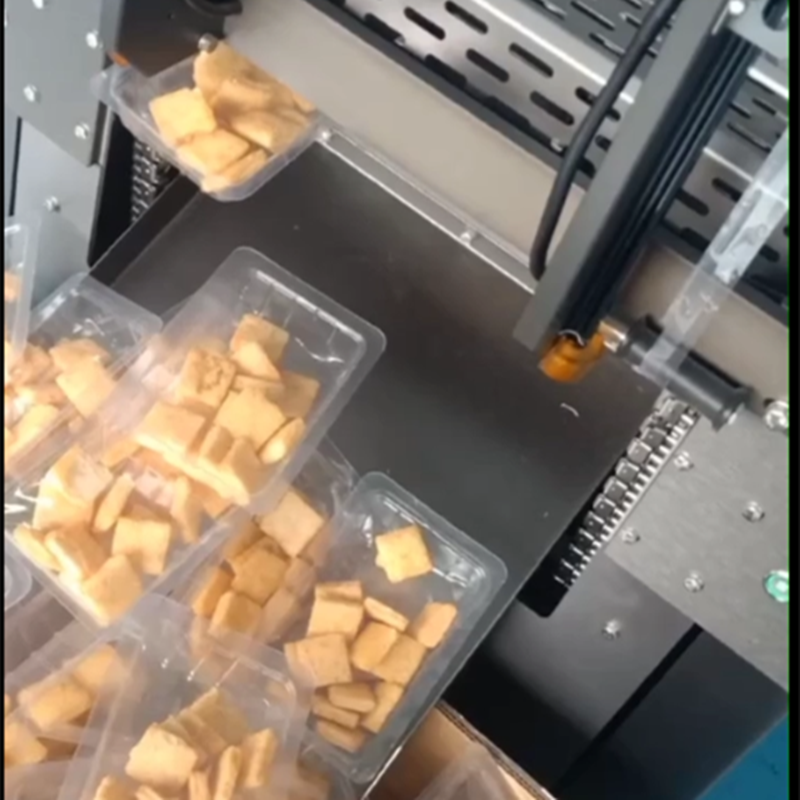

Machine Work Flow:
According to purpose:

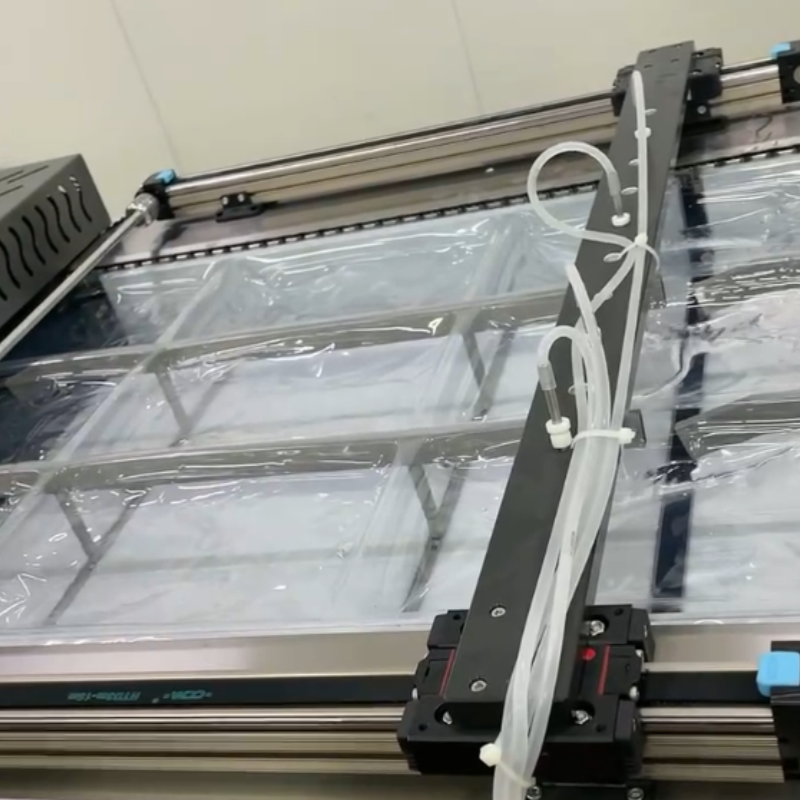

Bottom film – the film that forms inside certain molds that we fill with products;
Top film – used for sealing with the bottom film and doesn’t form.
According to thickness:
Soft film – from 20 to 240 microns;
Rigid film – from 240 microns onwards.
According to composition:
PA/PE – combination of polyamid and polyethylen;
PE/PA/EVOH/PA/PE – combination of polyethylen, polyamid and ethylvinyl alcohol;
PP/PA/EVOH/PA/PP – combination of polypropylen, polyamid and ethylvinyl alcohol.
According to layers:
3-layer, 5-layer, 7-layer, 11-layer, 14-layer, etc.
According to barrier properties:
Full barrier film;
Semi-barrer film.
Option:
· Date coder
· Gas flush Systems
· Discharge conveyor
· Dosing and product loading systems
· Metal detector
· CE certification
Machine Model | BDH-DZDL-420 |
Width of upper membrane | 395mm |
Lower membrane width | 422mm |
Vacuum degree | ≤200 Pa |
Air source pressure | 0.6~0.8Mpa |
Air source flow | ≥0.75 m3/min |
Power supply | 380V/50HZ |
Average power | 5.5~6.5 KW |
Packaging speed | 4~10 Cycles/min |
Effective size | 384*390mm |
Sealing form | Gasbag/cylinder |
Weight of complete machine | ≈1600 kg |
Overall dimensions | 6570mm*1016mm*1850mm |
The global food packaging industry prioritizes shelf-life extension, hygiene, and product freshness—driving high demand for reliable vacuum packaging solutions. The BDH-DZDL-420 meets these needs with food-grade construction and strong barrier film compatibility, addressing pain points for manufacturers of perishables like frozen food and meat products. Market data shows that industrial vacuum sealers with PLC controls are preferred for their consistency, a gap this machine fills effectively.
Non-food industries such as pharmaceuticals and electronics require contamination-free, airtight packaging to protect sensitive products. The BDH-DZDL-420’s precision sealing and hygiene-compliant design make it a viable option for medical devices and electronic parts, tapping into a growing market segment valued for quality and reliability.
All food-contacting parts are made of SUS304 stainless steel, ensuring compliance with hygiene standards and resistance to corrosion. The robust build supports long-term industrial use, with an overall machine weight of approximately 1600 kg for stability during high-speed operation.
Equipped with a user-friendly PLC/POD control system featuring auto-recovery functionality, the machine simplifies operation and minimizes downtime. The pre-tension film system maintains consistent film tension, while the knee-lift mechanism stabilizes forming and sealing processes, enhancing operational smoothness.
An upgraded vacuum valve boosts both speed and durability, achieving a vacuum degree of ≤200 Pa for optimal air removal. The gasbag/cylinder sealing form ensures tight, leak-proof seals, preserving product quality and extending shelf life.
With a vacuum degree of ≤200 Pa, the machine removes nearly all air from packages, preventing oxidation and spoilage. The consistent sealing quality, guaranteed by premium components, meets strict industry standards for food safety and product protection.
Running on a 380V/50HZ power supply with an average power of 5.5–6.5 KW, the machine offers energy efficiency for continuous use. It requires an air source pressure of 0.6–0.8Mpa and air flow of ≥0.75 m³/min, compatible with standard industrial air systems.
Customers can enhance functionality with optional add-ons: date coder for product traceability, gas flush systems for modified atmosphere packaging, discharge conveyor for automated material handling, dosing and product loading systems, metal detector for quality control, and CE certification for international markets.
The machine supports customization based on product characteristics, such as adapting to specialized film materials or adjusting packaging dimensions for unique product shapes. Technical teams collaborate with clients to optimize the machine for their specific production lines.
