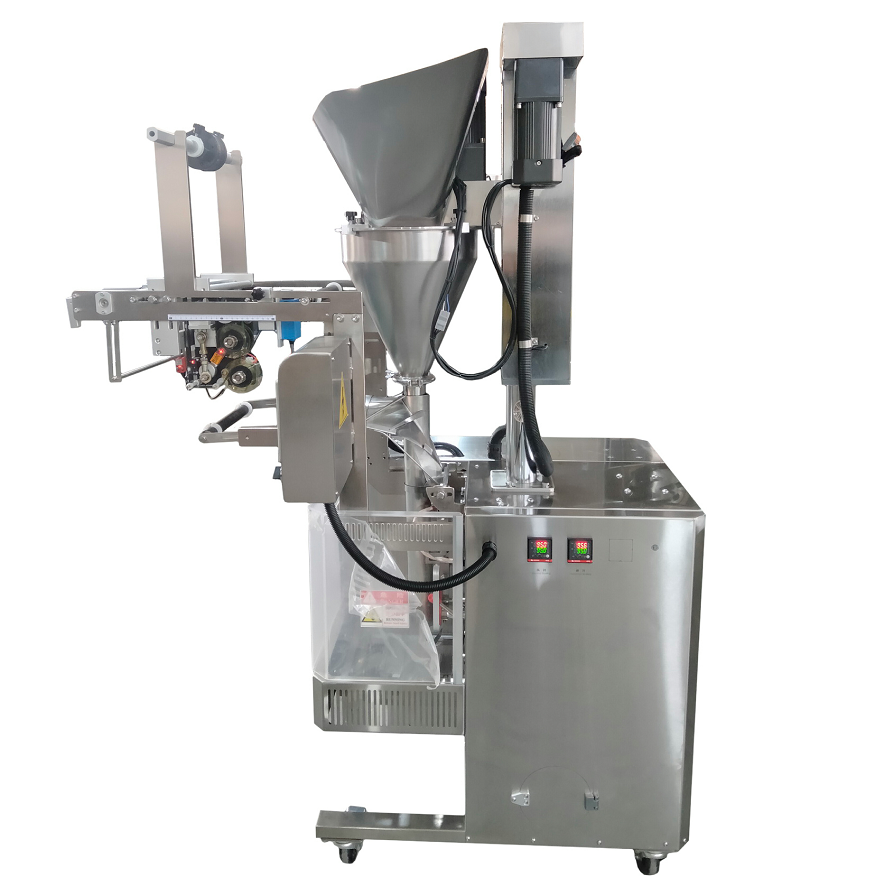

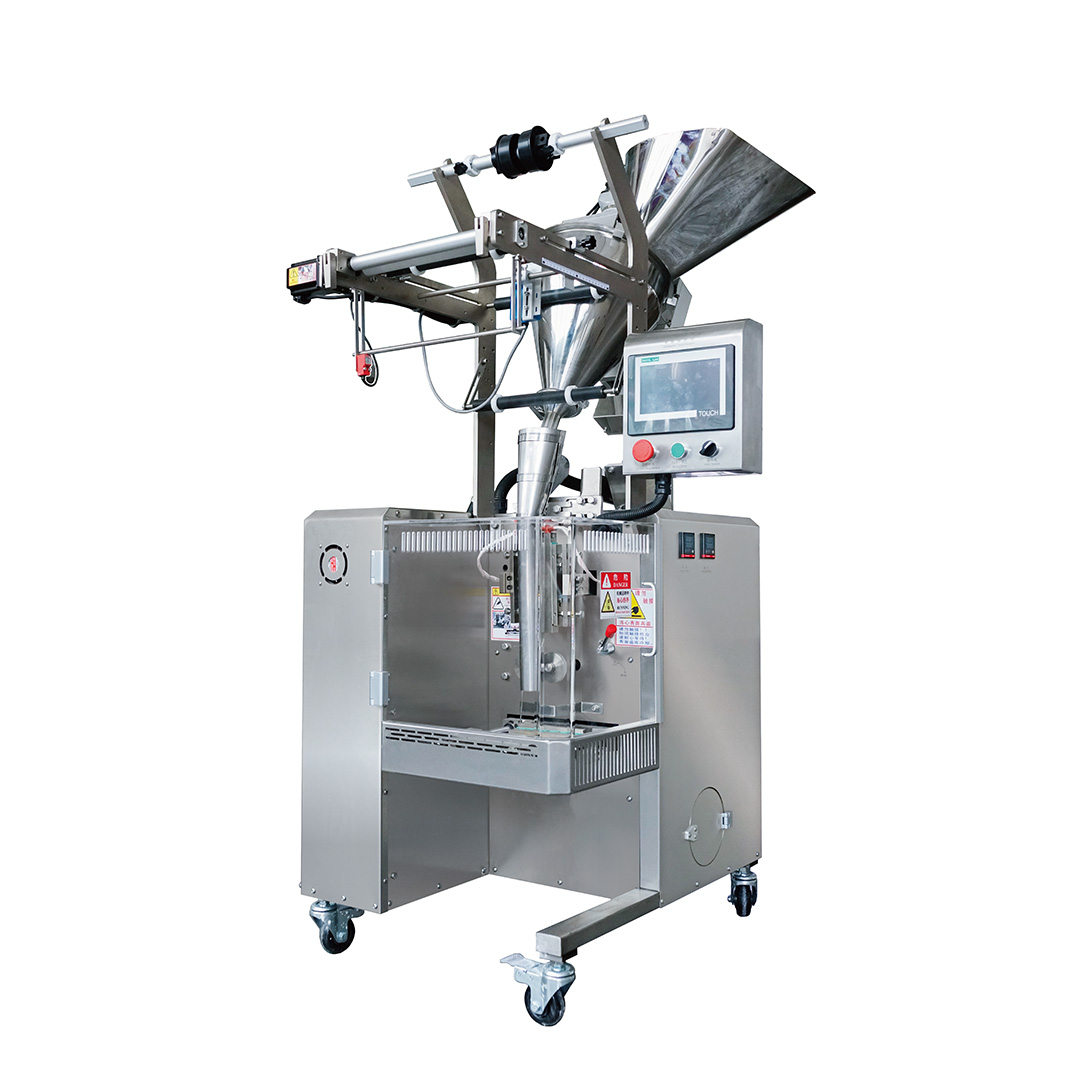

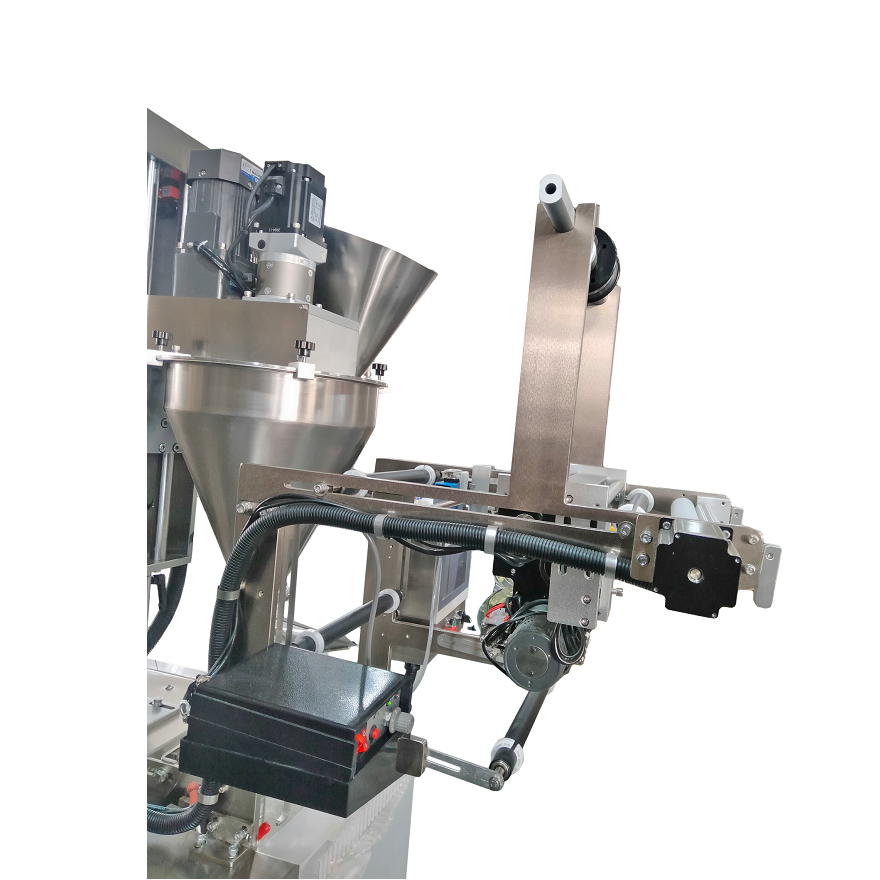

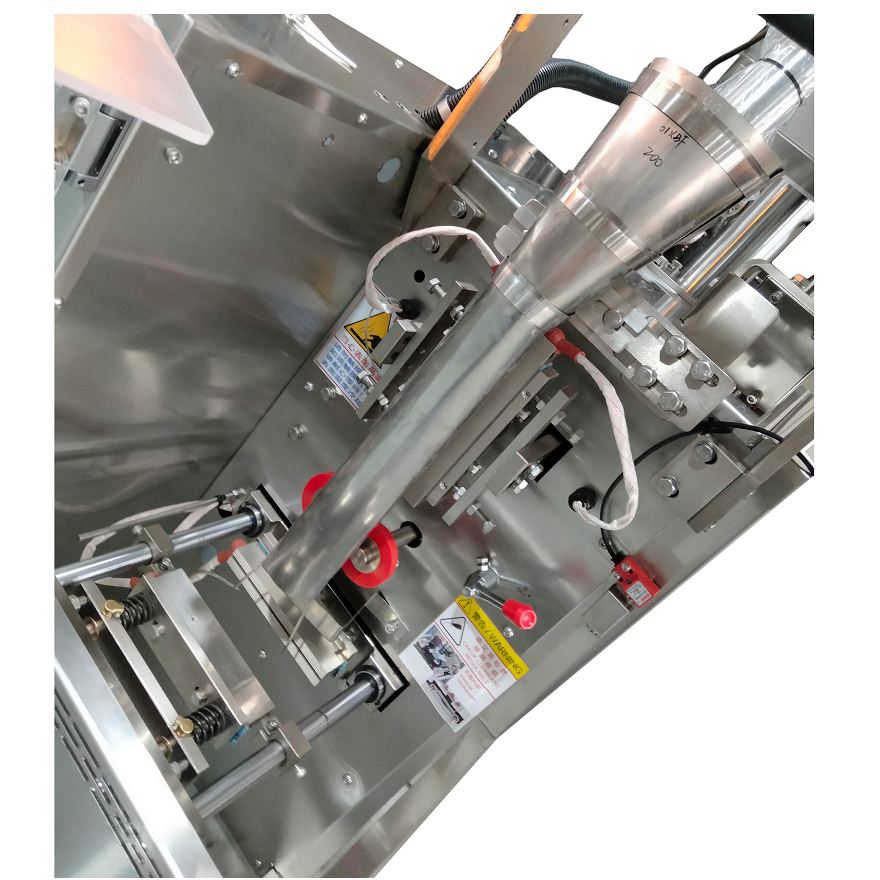

YS-61XBF Back Sealing Power Packing Machine is a fully automatic packaging solution designed for powder products in the food, medicine, chemical, and cosmetics industries. It integrates bag making, measuring, filling, sealing, cutting, and counting functions, with an optional batch number printing feature. Controlled by PLC and driven by a stepper motor, the machine ensures stable performance, accurate bag length control, and precise temperature regulation (error range ≤±1°C). Compatible with composite film packaging materials, it supports three sealing types (three sides sealing, four sides sealing, back sealing) and offers customizable bag sizes, making it ideal for packaging powders such as flour, milk powder, spice, and chemical powders.
The global powder packaging equipment market is growing due to the rising demand for standardized, hygienic, and efficient packaging in the food, pharmaceutical, and chemical sectors. Manufacturers are increasingly adopting automatic packaging machines to improve production efficiency, reduce labor costs, and ensure packaging accuracy. Consumers and regulatory bodies also emphasize product traceability, requiring machines to support batch number printing and precise measurement. YS-61XBF addresses these needs with its fully automatic workflow, high packaging accuracy (≤±0.2%), and flexible sealing options, positioning itself as a cost-effective choice for small to medium-sized powder product manufacturers.
Completes bag making, measuring, filling, sealing, cutting, and counting automatically, reducing manual intervention and improving production efficiency. Optional batch number printing function meets product traceability requirements.
PLC control and stepper motor drive ensure accurate bag length adjustment and stable operation. The intelligent temperature controller with PID control maintains a temperature error range within ±1°C, guaranteeing consistent sealing quality.
Supports three sealing types: three sides sealing, four sides sealing, and back sealing, adapting to different packaging design needs. Bag sizes can be customized (width: 30-130mm, length: 30-170mm) to match various product specifications.
Offers a measuring scope of 1-100g with a packaging accuracy of ≤±0.2%, ensuring precise powder filling. The packaging speed ranges from 30-70 bags/min, meeting the production needs of medium-scale operations.
Constructed with high-quality materials, the machine has a total weight of 230kg and dimensions of 730×1000×1600mm, ensuring stability during operation. The composite film compatibility ensures wide applicability across different industries.
1. All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
2. The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
3.
Packaging materials：composite film.
Sealing Type
Three sides Sealing
Four sides Sealing
Back sealing
Measuring Scope | 1 - 100 g |
Bag Size | W : 30 - 130 mm L : 30 - 170 mm |
Packing Speed | 30 - 70 bags/min |
Dimension ( L * W * H ) | 730 * 1000* 1600 mm |
Weight | 230 kg |
Total Power | 220V / 50-60Hz / 2.2kw |
Method of feeding | Order according to material |
Measuring Scope | 1-100g |
Packaging accuracy | ≤± 0.2% |
Packaging speed | 30-70 bags/min |
Sealing Type | Three sides Sealing/ Four sides Sealing/ Back sealing |
Power supply | 220V / 50-60Hz |
Whole machine power | 2.2 KW |
Bag size | L: 30mm-170mm W：30mm-130mm（Size can be customized） |
Machine Dimension | 730 * 1000* 1600 mm Dimension ( L * W * H ) |
Total Weight | 230KG |
Accuracy Standards: Packaging accuracy of ≤±0.2% meets the strict measurement requirements of the food, pharmaceutical, and chemical industries, avoiding product waste and ensuring compliance with regulatory standards.
Efficiency Targets: With a speed of 30-70 bags/min, the machine significantly improves production efficiency compared to manual packaging, reducing labor costs for manufacturers.
Sealing Quality: Precise temperature control (error ≤±1°C) ensures tight and leak-proof seals, preventing powder leakage and maintaining product freshness.
Versatility Needs: Supports multiple sealing types and customizable bag sizes, catering to the diverse packaging requirements of different powder products.
Bag size customization: Adjust bag width (30-130mm) and length (30-170mm) to match specific product packaging needs.
Sealing type selection: Choose between three sides sealing, four sides sealing, or back sealing based on product design and storage requirements.
Batch number printing: Add a customized batch number printing module to support product traceability.
Feeding method customization: Customize the feeding method according to the characteristics of the powder material (e.g., fluidity, viscosity).
