BDH Advanced Vacuum Packaging Equipment

Characteristic Description

Core Structure & Working Principle

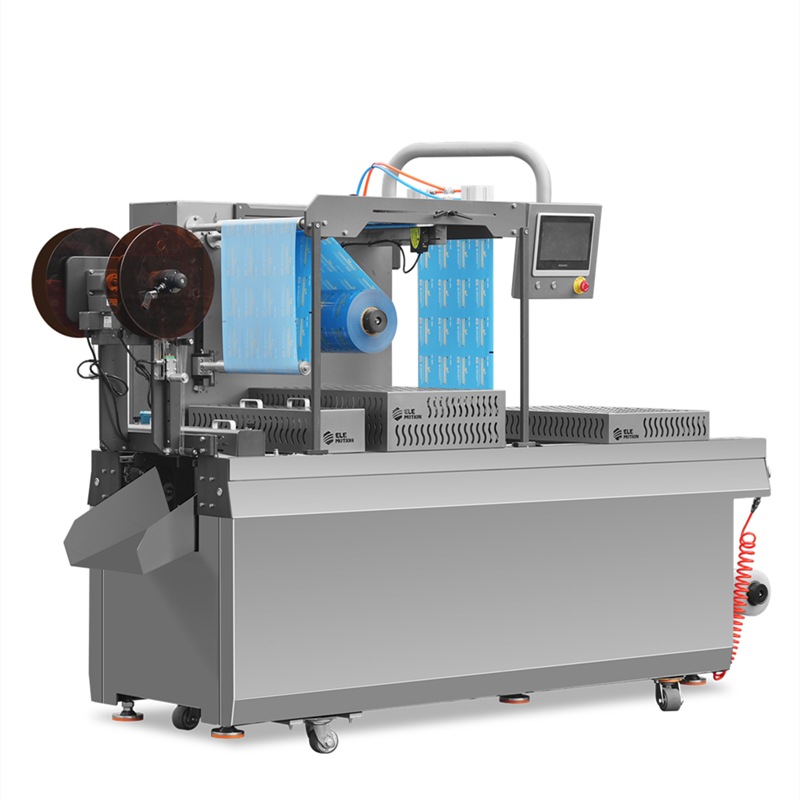

The BDH-DZDL-420C is a compact variant of the horizontal vacuum packaging machine, designed to deliver professional vacuum sealing while saving floor space. It retains the core working principle of horizontal pouch positioning—ensuring flat packages for bar-shaped or strip-shaped products—with integrated Busch vacuum pumps, Siemens PLC controls, and Festo pneumatic valves for consistent performance. The workflow includes thermoforming bottom film, product loading, top film sealing, cross cutting, and rotary cutting, all controlled by intelligent systems.

Suitable Materials & Product Types

Compatible with film materials such as PA+PE, PET+PE, PVC+PE, and XPP, the machine handles soft films (20–240 microns) and rigid films (≥240 microns), including multi-layer and barrier films. It serves food industries (cheese, frozen food, fruits, herbs, kimchi, meat) and non-food sectors (pharmaceutical devices, syringe needles, electronic parts), with a maximum bag size of 395*422mm.

Market Research

Demand for Space-Saving Industrial Equipment

Small and medium-sized enterprises (SMEs) and facilities with limited floor space increasingly seek compact packaging solutions that don’t compromise quality. The BDH-DZDL-420C’s compact dimensions and 800kg weight address this gap, offering industrial-grade performance in a space-efficient design.

Growing Need for Versatile Packaging Machines

Markets require machines that adapt to both food and non-food products, reducing equipment investment costs. This machine’s dual-industry compatibility and customizable features align with the trend of multi-purpose industrial equipment, appealing to manufacturers looking to streamline production lines.

Suitable Film Materials:PA+PE / PET+PE / PVC+PE / XPP

Max Speed:8 cycles/minut
Max Bag Size:395*422mm

· Food-grade SUS304 parts ensure hygiene and safety.

· User-friendly PLC/POD control with auto-recovery.

· Pre-tension film system ensures consistent tension.

· Knee-lift mechanism stabilizes forming/sealing efficiently.

· Upgraded vacuum valve boosts speed and durability.

Machine Work Flow:

According to purpose:

Bottom film – the film that forms inside certain molds that we fill with products;

Top film – used for sealing with the bottom film and doesn’t form.

According to thickness:

Soft film – from 20 to 240 microns;

Rigid film – from 240 microns onwards.

According to composition:

PA/PE – combination of polyamid and polyethylen;

PE/PA/EVOH/PA/PE – combination of polyethylen, polyamid and ethylvinyl alcohol;

PP/PA/EVOH/PA/PP – combination of polypropylen, polyamid and ethylvinyl alcohol.

According to layers:

3-layer, 5-layer, 7-layer, 11-layer, 14-layer, etc.

According to barrier properties:

Full barrier film;

Semi-barrer film.

Option:

· Date coder

· Gas flush Systems

· Discharge conveyor

· Dosing and product loading systems

· Metal detector

· CE certification

Key Features

Compact & Sturdy Design

With a smaller footprint than standard models, the machine fits into tight production spaces without sacrificing stability. Its SUS304 food-grade parts ensure hygiene and corrosion resistance, meeting industry standards for both food and non-food applications.

Intelligent Operation & Reliability

The user-friendly PLC/POD control system with auto-recovery minimizes operational errors and downtime. The pre-tension film system maintains consistent tension, while the knee-lift mechanism optimizes forming and sealing efficiency—critical for maintaining productivity in compact setups.

Enhanced Vacuum Valve & Sealing

An upgraded vacuum valve improves speed and durability, achieving a vacuum degree of ≤200 Pa for airtight seals. The gasbag/cylinder sealing form ensures leak-proof packaging, preserving product freshness and extending shelf life.

Performance Meets Industry Standards

Vacuum Degree & Sealing Consistency

The machine maintains a vacuum degree of ≤200 Pa, ensuring thorough air removal for optimal product protection. Its sealing system delivers consistent results, meeting food safety and non-food contamination control standards.

Speed & Production Adaptability

Operating at 4–7 cycles per minute, it balances speed with precision, suitable for SMEs and medium-scale production. The effective packaging size of 532mm*588mm accommodates a wide range of product dimensions despite its compact design.

Energy & Air Efficiency

Running on 380V/50Hz power with an average power of 5.5–6.5 KW, it offers energy-efficient operation. It requires an air source pressure of 0.75–0.85Mpa and air flow of ≥1 m³/min, optimized for consistent performance in compact setups.

Customized Service

Optional Functional Add-Ons

Customers can customize the machine with date coders, gas flush systems, discharge conveyors, dosing/loading systems, metal detectors, and CE certification—tailoring it to specific production needs.

Space & Application Adaptations

The machine supports adjustments for specialized film materials and product sizes, with technical teams providing guidance to integrate it into existing production lines, even in space-constrained environments.

Finished Packaging Samples
