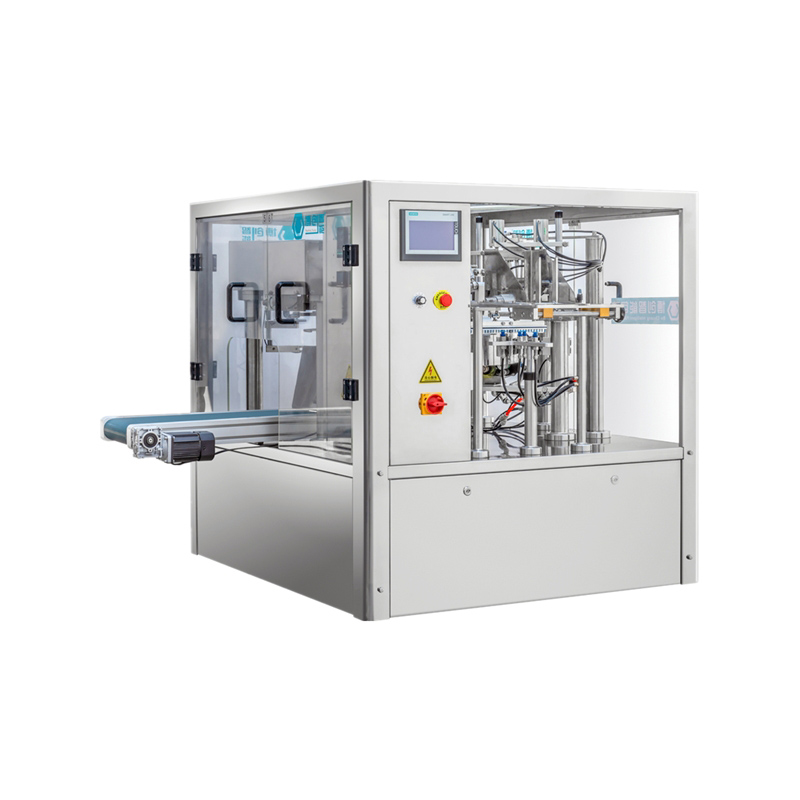

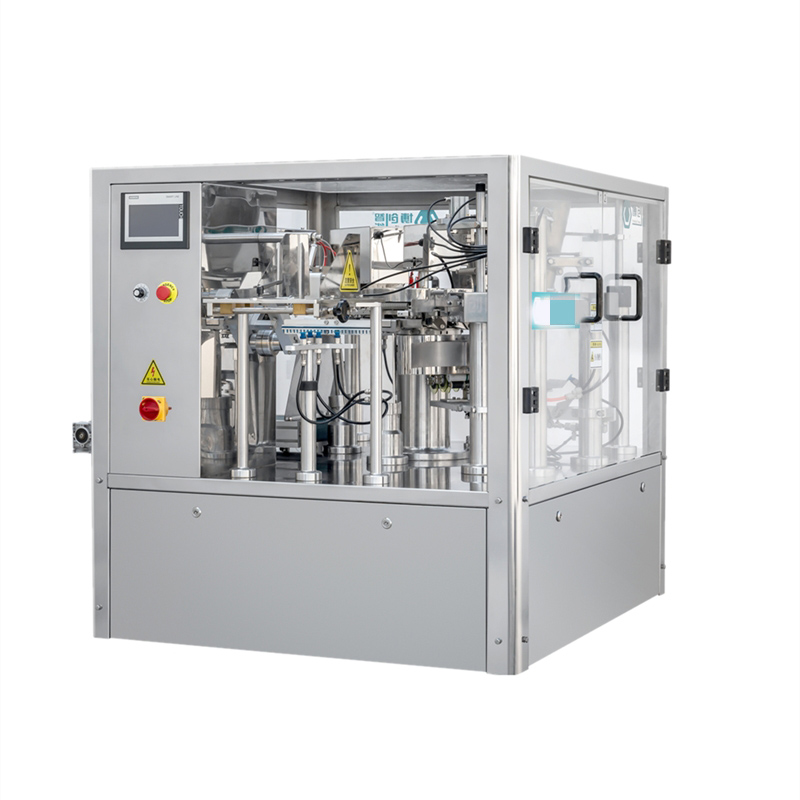

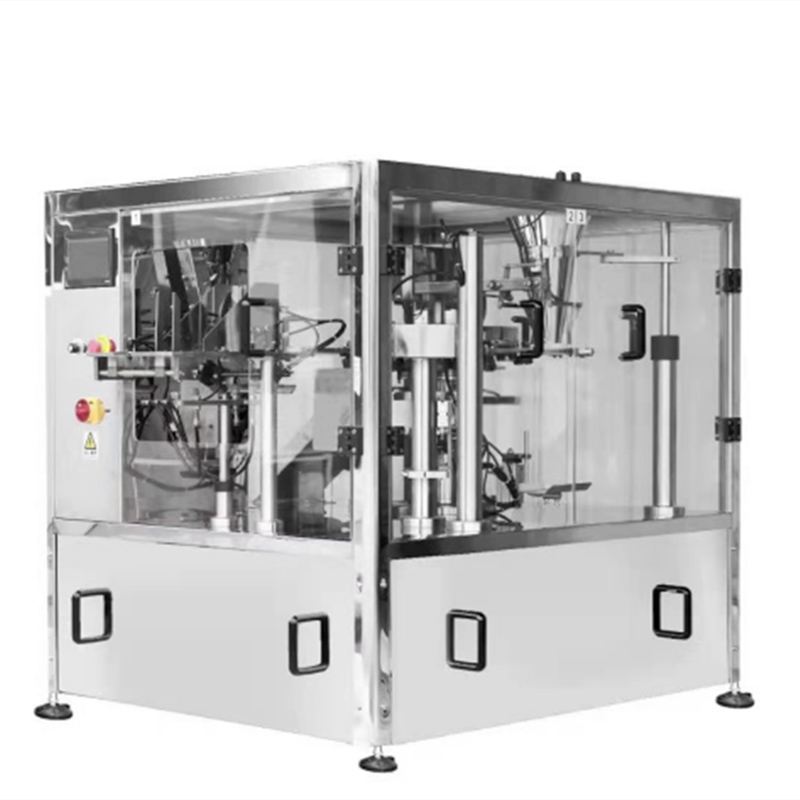

BC-GD Series Automatic Bag-Fed Packaging Machines

The new generation of pre-made bag automatic packaging machine, with high speed and stable performance. It is suitable for various shapes of pre-made bags, such as stand-up bags, stand-up spout bags, zipper bags, special-shaped bags, three-side sealed, four-side sealed, back-sealed bags, etc. It has various functions such as packaging, sealing, opening the zipper and closing the zipper. If combined with various metering and feeding systems, it can achieve fully automated metering and packaging of granules, liquids, powders and pastes.

Availability:

Quantity:



Inquire Add to Basket

Product Description

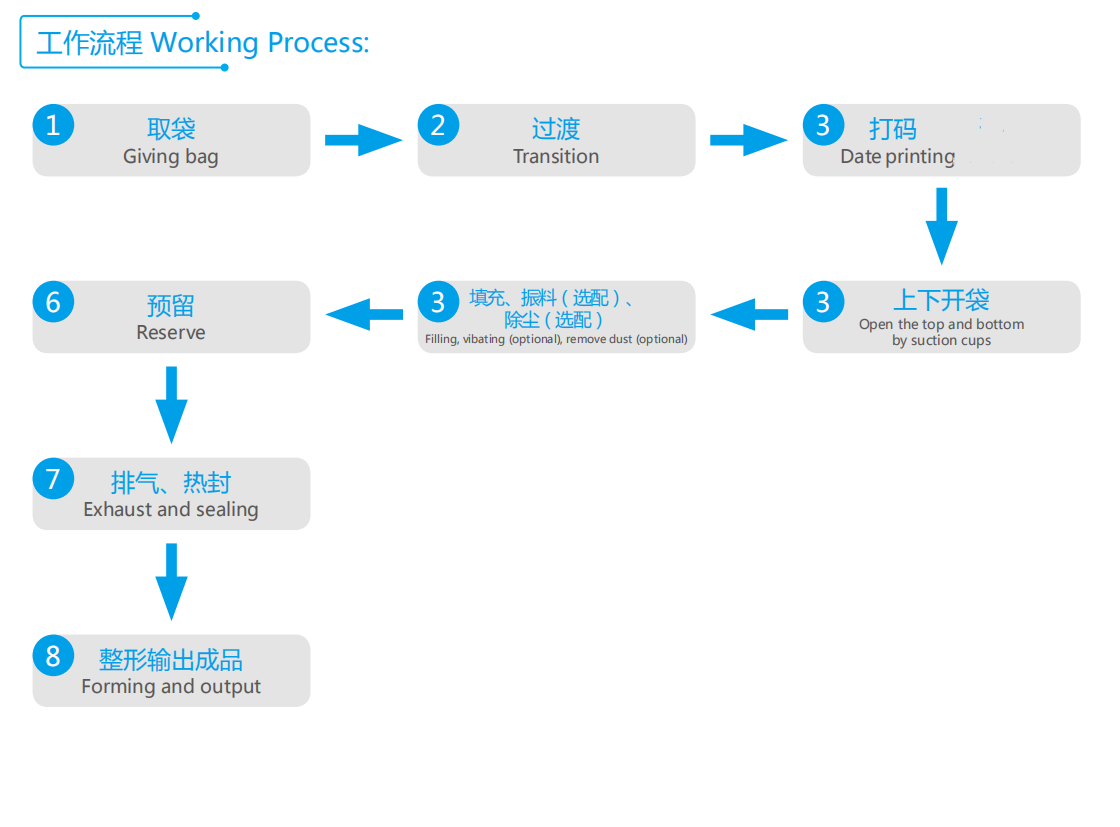

93fd4e48a52002bd1bf0bcee3942d16e

Performance features:

1. Easy to operate, with German Siemens PLC control and touch screen human-machine interface control system, easy to operate.

2. Variable frequency speed control: This machine uses a variable frequency speed control device, and the speed can be adjusted freely within the specified range.

3. Automatic detection function, such as when the bag is not opened or the bag is not opened completely, no feeding, no heat sealing, the bag can be reused, no waste of materials, save production costs for users.

4. Safety device that will give an alarm when the working pressure is abnormal or the heating tube is faulty.

5. Adjusting the bag width is controlled by a motor. Hold down the control button to adjust the width of the machine clamp, which is convenient to operate and saves time.

6. Equipped with plexiglass safety door to protect the operator.

7. Some imported engineering plastic bearings are used, no oiling is required, and contamination of materials is reduced.

8. Use oil-free vacuum pumps to avoid contamination of the production environment.

9. Low packaging material loss. This machine uses pre-made packaging bags with perfect patterns and good sealing quality, thereby enhancing the product grade.

10. In line with the hygiene standards of the food processing industry, the parts of the machine that come into contact with materials or packaging bags are made of stainless steel or other materials that meet food hygiene requirements to ensure the hygiene and safety of food.

Technical parameters and related notes:

Item	Parameters	Notes
Device model	BDH-BC-GD series automatic bag-feeding packaging machine
Operating Interface	7 "LCD touch screen with Chinese/English interface
Control system	PLC control	SIEMENS
Working environment temperature /℃	-20 ° C to +60 ° C
Bag material	Composite film, single-layer PE, PP
Bag type	Stand-up pouches, stand-up pouches, corner pouches, hand-held pouches, spout pouches, paper pouches, zipper pouches (optional)
Bag size	W:80-200mm L:100-300mm
Fill range /g	40-1000g
Pack precision /%	Plus or minus 0.2%
Packaging speed/pack/minute	20-50 bags per minute (speed is determined by the product itself and the filling weight)	Adjustable speed
Device size /mm	Length * width * height 160014001400mm
Total weight of the equipment /Kg	1500Kg
Air source pressure /MPa	0.6 MPa
Air consumption	After 0.4 m³/min
Total power of the equipment /KW	5.5 KW	380V,50HZ
Equipment material	The core parts in contact with the material are made of 304 mirror-finish stainless steel, and the frame is made of mirror-finish stainless steel.
