Automatic Pneumatic Rotary Cup Filling Sealing Machine for Beverage Coffee Fruit Juice Jam Chocolate Sauce Jelly Yogurt Ice Cream

Automatic Pneumatic Rotary Cup Filling and Sealing Machine for Diverse Food Applications

1. Product Overview:
The KIS Series Rotary Cup Filling and Sealing Machine is a state-of-the-art, fully automated packaging system engineered for high-speed, accurate, and hygienic packaging of various food and beverage products. It is particularly suitable for packaging beverages, coffee, fruit juice, jam, chocolate sauce, jelly, yogurt, ice cream, and other similar products in liquid, paste, oil, granule, or powder form.

2. Key Features & Functions:

• Fully Automated Process: Integrates and automates the complete packaging cycle: Cup Dropping → Pneumatic Piston Filling → Film Sealing / Lid Placing & Pressing → Output.

• High Flexibility: The machine's functions can be customized based on specific filling requirements and special needs. It can be equipped with auxiliary devices like automatic loaders and coders.

• Wide Application: Handles a diverse viscosity range, making it a versatile asset for many food processing industries.

• User-Friendly Operation: Equipped with a WeinVIEW Human-Machine Interface (HMI) and controlled by a Delta PLC, allowing for intuitive parameter setting, monitoring, and control.

• Robust Construction: Critical contact parts are made of 304 stainless steel, ensuring product safety, corrosion resistance, and easy cleaning. The sturdy frame guarantees long-term durability.

3. Technical Specifications:

• Model: KIS-1800

• Filling Speed: 1600 - 1800 cups/hour (depends on filling volume)

• Filling Volume Range: 10ml ~ 500ml (Customizable)

• Filling Accuracy: ±1% (as per specification sheet; other document states ±5% - please confirm required standard)

• Sealing Temperature Range: 0 - 300°C

• Air Consumption: 0.6 m³/min

• Power Supply: Standard 220V, 50Hz (Customizable for international voltages like 110V, 60Hz)

• Dimensions (L*W*H): 1060mm * 1060mm * 1850mm

• Weight: Approximately 350 kg

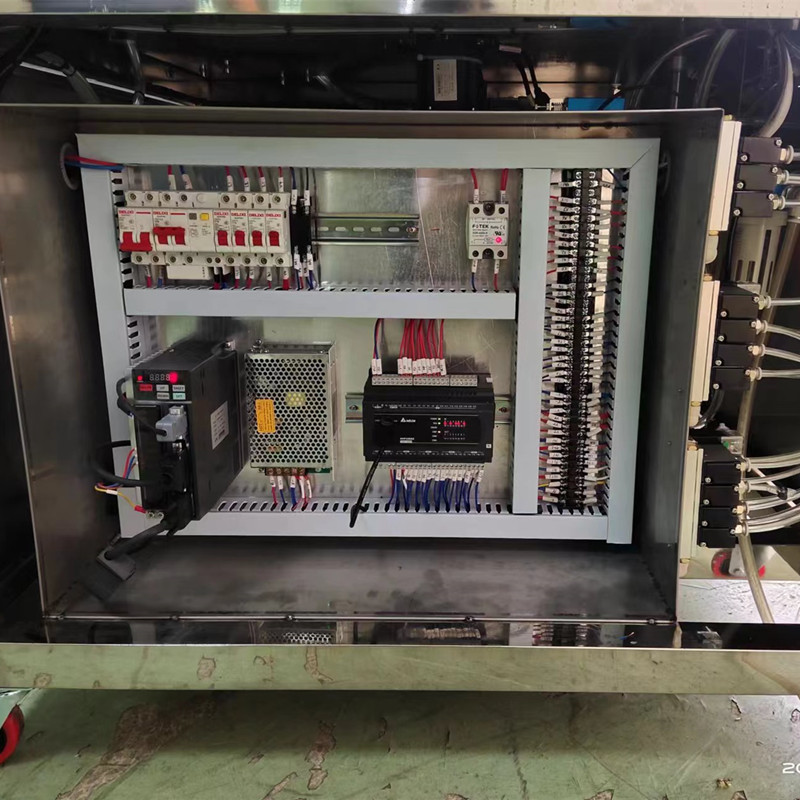

4. Core Component Configuration (Key Brands):
The machine's reliability is backed by high-quality components from industry-leading manufacturers:

5. Operational Advantages:

• High Efficiency: Rotary design enables continuous operation, maximizing output.

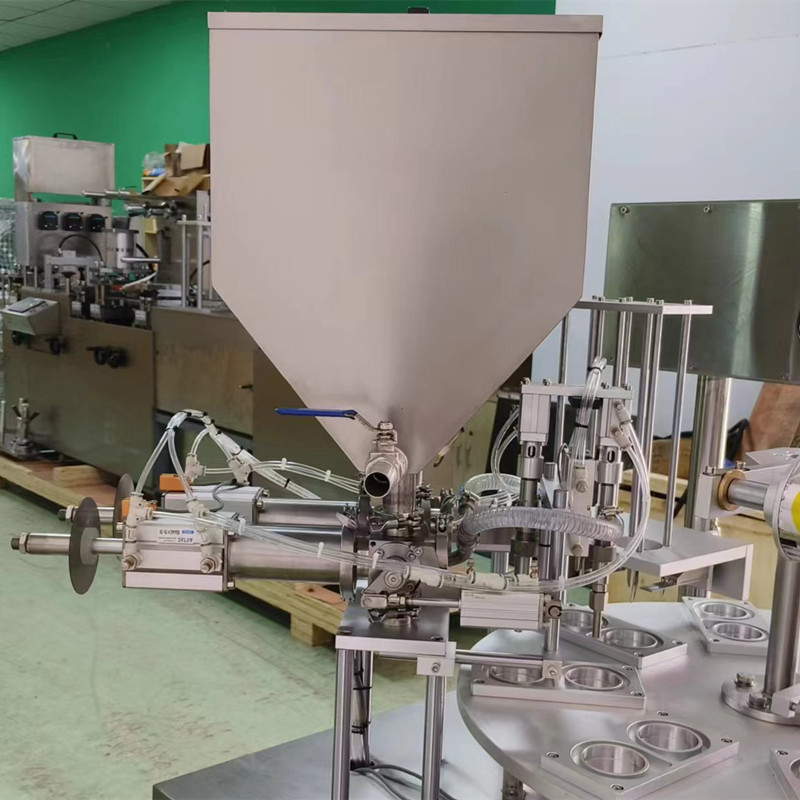

• Precision Filling: Pneumatic piston filler ensures consistent and accurate dosing for each cup.

• Secure Sealing: Adjustable heat sealing or mechanical capping provides a tight, tamper-evident, and leak-proof closure.

• Easy Maintenance: Modular design and accessible components simplify cleaning, changeover, and servicing.

• Compact Footprint: Its design optimizes floor space in production facilities.

This KIS Series machine is a comprehensive, reliable, and efficient solution for businesses looking to automate their cup packaging line with precision and speed.
