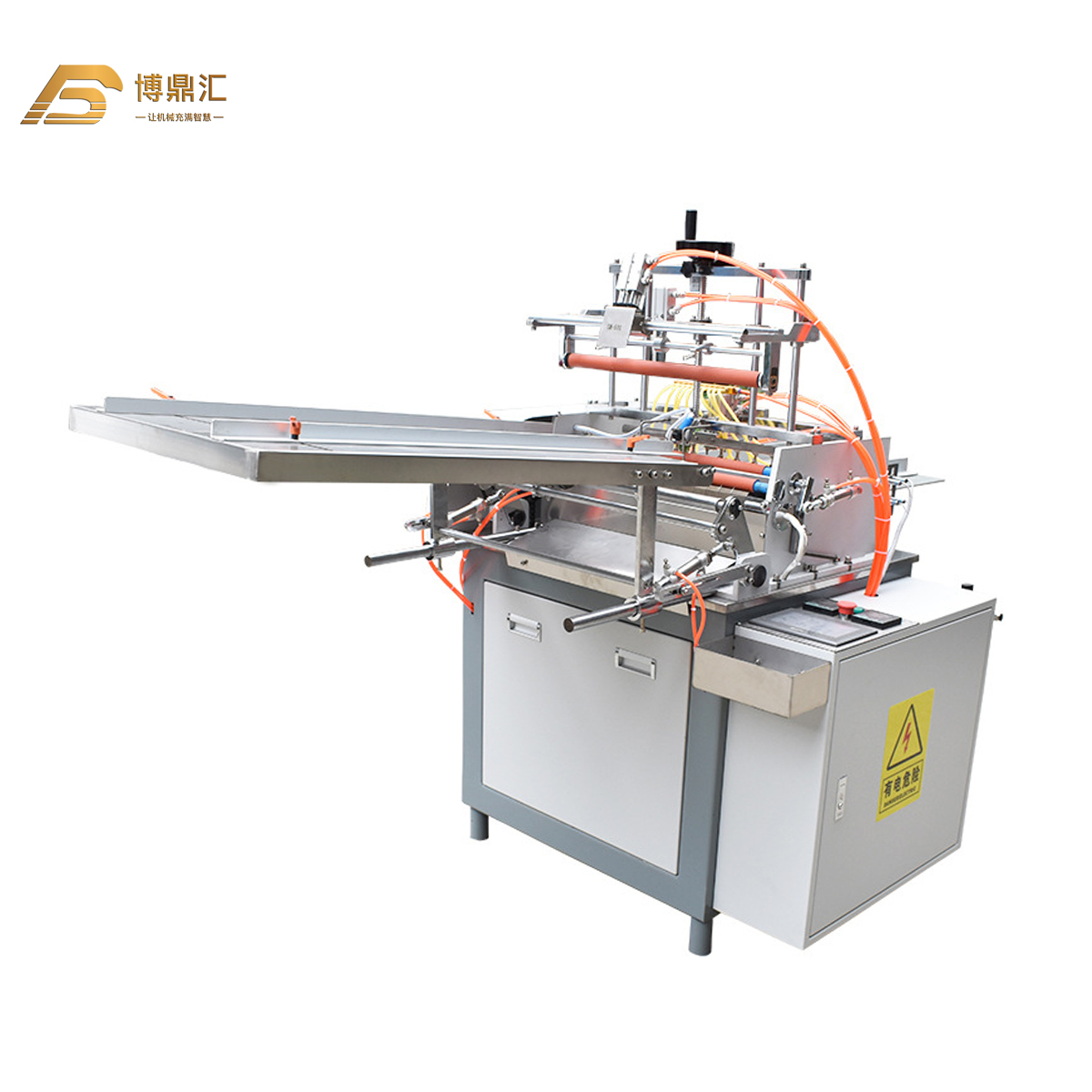

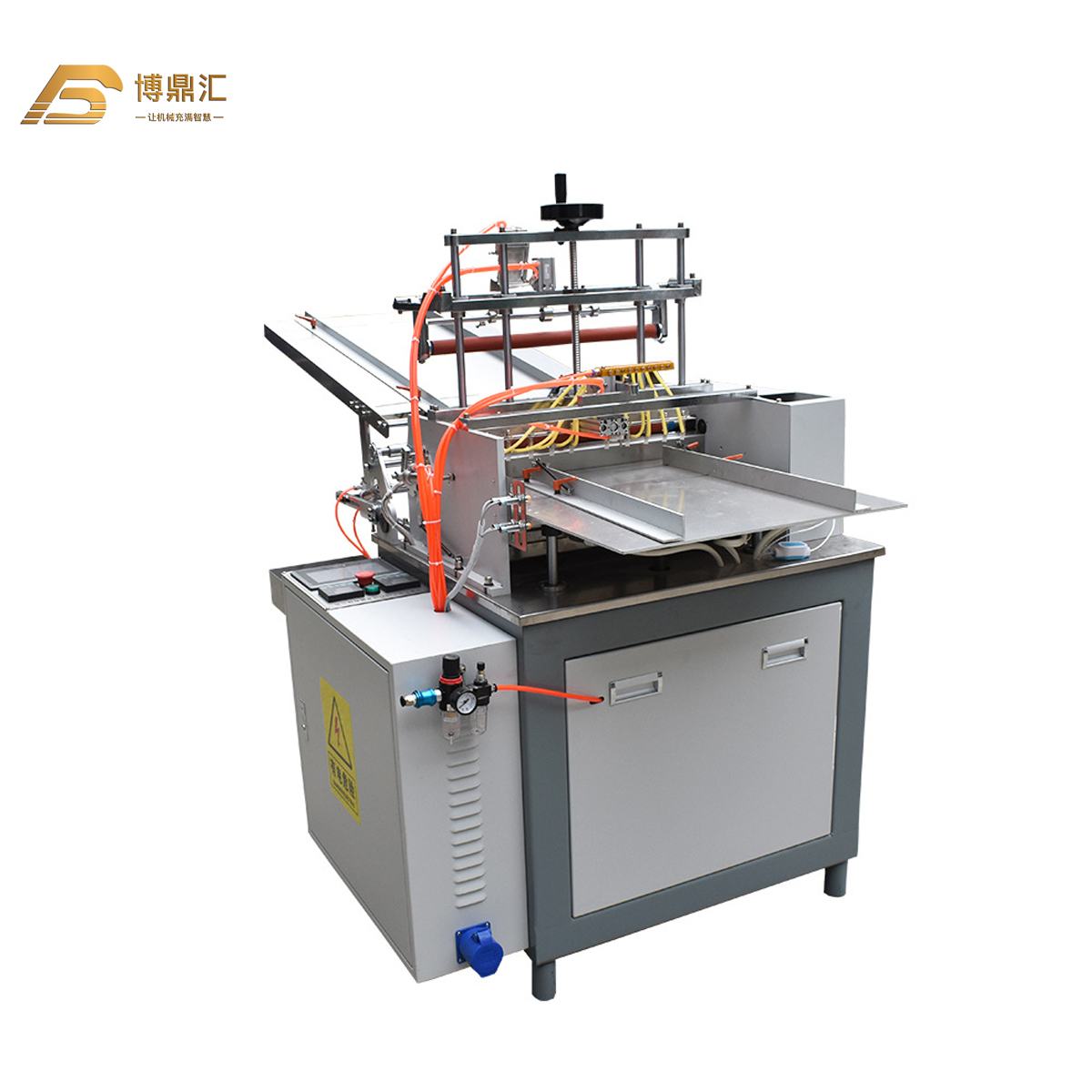

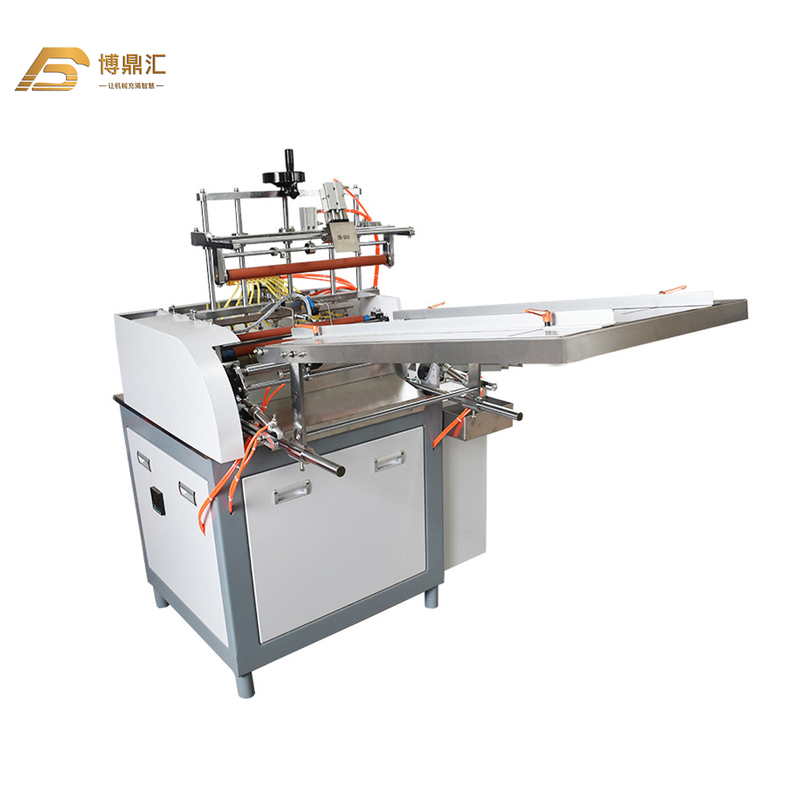

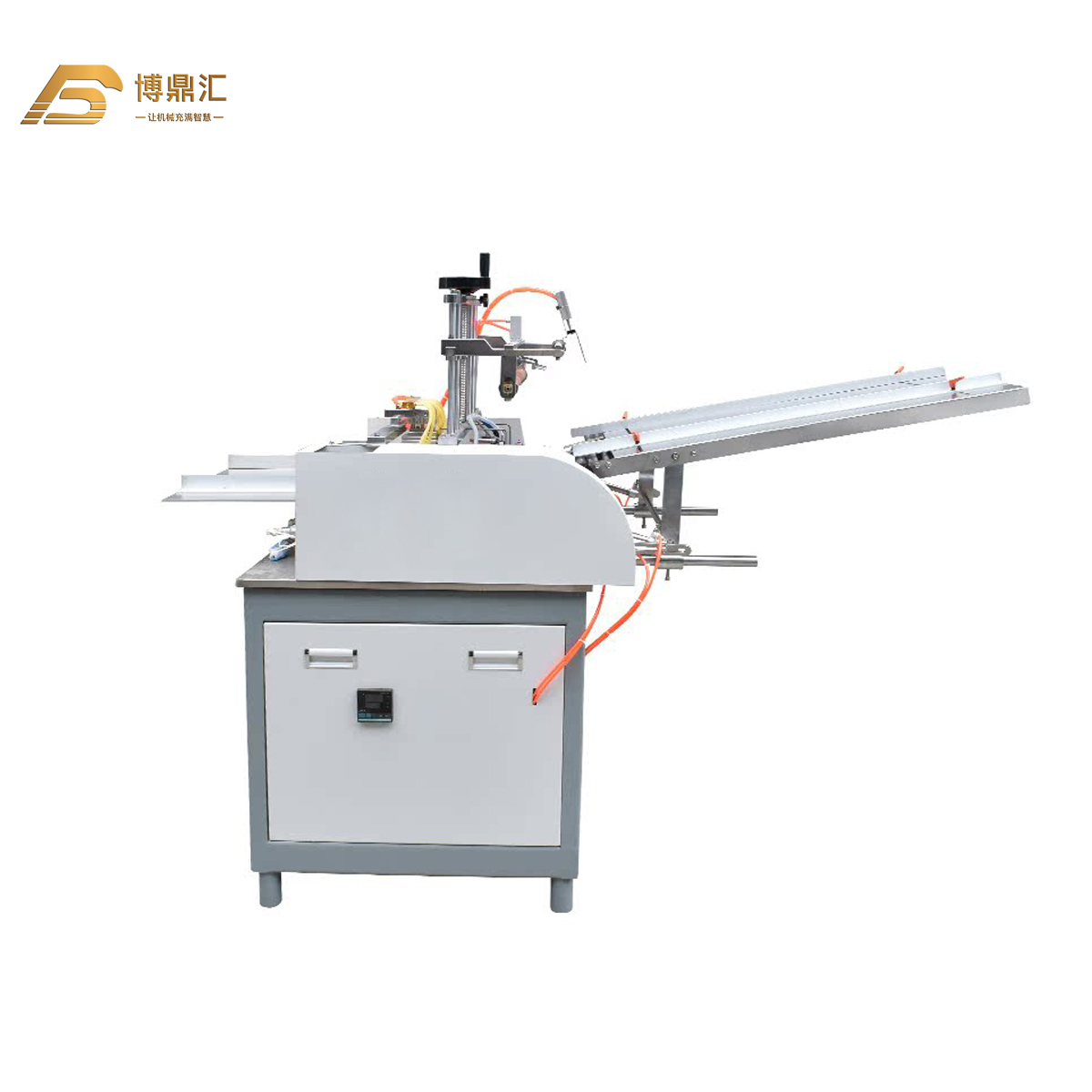

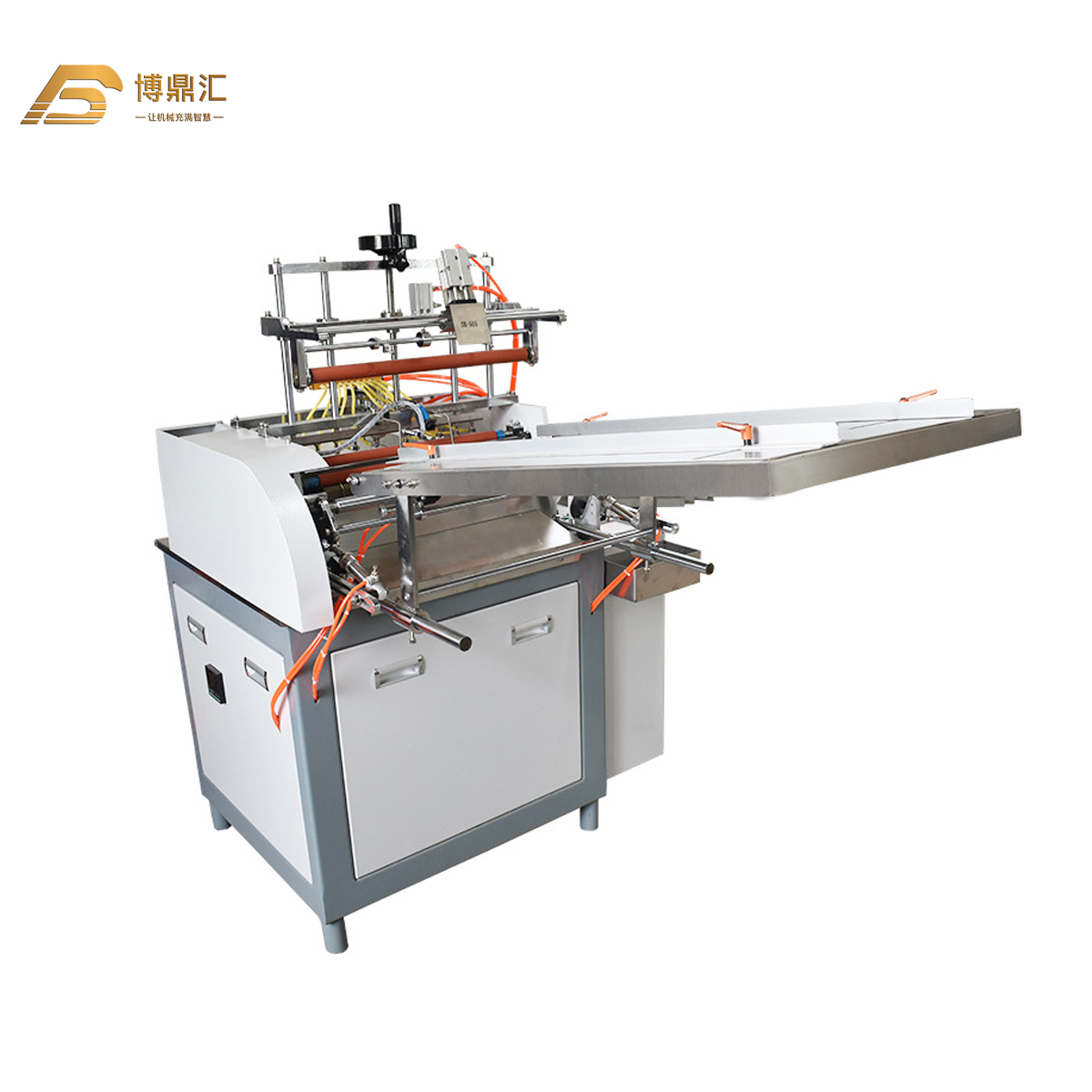

The Automatic Paper Tube Labelling Machine 500mm transforms the way packaging facilities handle cylindrical containers. When you approach this equipment on the factory floor, the first thing you notice is the solid, vibration-free hum of its 3KW motor, a testament to its robust construction and premium craftsmanship. The sleek, industrial-grade exterior feels cool to the touch, designed specifically to withstand the rigorous demands of continuous daily operation without succumbing to wear and tear. Instead of struggling with misaligned labels or bubbling adhesives, operators can rely on this machine to output perfectly wrapped tubes that look flawlessly professional. The mechanism grips each container with a firm yet gentle mechanical embrace, applying hot melt adhesive with a quiet, rhythmic precision.
Every applied label sits flush against the cardboard surface, creating a visually striking and tactilely smooth finish that elevates the perceived value of the final packaged goods. By integrating this automated solution, facility managers immediately eliminate the bottleneck of manual wrapping. The faint, clean industrial scent of heated adhesive dissipates quickly as the glue cures almost instantly upon application. This ensures that every batch meets strict quality control standards while drastically reducing material waste. The result is a highly efficient, aesthetically pleasing packaging process that directly supports your brand's commitment to excellence.
Applicable paper tube diameter: | 20-140mm |
Applicable paper tube height: | 50-500mm |
Paper tube thickness: | 1-5mm |
Paper weight: | 100-157gsm |
Speed: | 10-40pcs/min |
Machine weight: | 430KG |
Motor power: | 3KW |
Precision: | ±0.5mm |
Machine dimension: | 1600*1015*1105mm |
The architecture of this labeling system is built around maximizing uptime and minimizing operator fatigue. The tactile feedback of the responsive PLC touchscreen allows for immediate parameter adjustments without the need for heavy manuals or extensive reprogramming.
Heavy-Duty Construction: Weighing 430KG, the solid frame absorbs operational vibrations, ensuring acoustic comfort and mechanical longevity on the factory floor.
Intuitive Interface: The bright, glare-free PLC touchscreen provides real-time diagnostics and production metrics at a single glance.
Seamless Material Handling: The smooth feeding mechanism prevents scuffing or denting of delicate paper tubes during transit, preserving the integrity of your containers.
Consistent Thermal Application: The hot melt glue system maintains an exact temperature, ensuring optimal adhesive viscosity for a flawless bond.
Facilities handling diverse product catalogs require equipment that adapts instantly. This machine offers an exceptionally wide processing range, supporting cylindrical paper tubes with diameters from 20mm to 140mm and heights up to 500mm.
Accommodates tube thicknesses between 1-5mm without crushing the core.
Perfectly suited for tea canisters, gourmet food packaging, cosmetics, electronics, and gift boxes.
Eliminates the need for multiple single-purpose machines, saving valuable floor space.
Streamlines co-line production for varied product categories, allowing for highly flexible manufacturing schedules.
A misaligned label can instantly degrade a premium product's shelf appeal. Achieving a labeling precision of ±0.5mm, this system guarantees that every container looks immaculate. The rapid cooling and curing of the hot melt glue lock the label in place instantly.
Three-roller labeling system ensures a tight, seamless wrap around the entire circumference.
Premium rubber or silicone rollers apply even pressure, eliminating trapped air bubbles and surface imperfections.
Prevents label wrinkling, even when processing thicker 157gsm paper stock.
Enhances the tactile smoothness and visual grade of the finished packaging, directly boosting brand perception.
Production bottlenecks are costly and disruptive. This fully automatic system maintains a steady labeling speed of 10 to 40 pieces per minute, transforming raw tubes into finished components with rhythmic, unstoppable consistency.
Advanced photoelectric sensors automatically detect tube presence, preventing missed cycles and material jams.
Synchronized automatic feeding, precise gluing, and seamless discharging operate in perfect harmony.
Drastically reduces the need for manual intervention, allowing personnel to focus on higher-level tasks.
Elevates the overall throughput of your packaging assembly line, ensuring you meet tight delivery deadlines.
Managing operational expenses is crucial for large-scale manufacturing. This equipment directly addresses material waste by allowing infinitely variable glue thickness adjustments, ensuring you only use exactly what is needed for a secure bond.
Adjustable glue thickness (e.g., 0.05-0.15mm) resolves uneven application and cuts down on expensive adhesive waste.
Built-in automatic constant temperature control module prevents overheating and adhesive degradation.
Dual-layer thermal insulation retains internal heat, reducing electrical consumption by up to 50% once the target temperature is reached.
Significantly lowers the total cost of ownership through intelligent, proactive resource management.
Time spent reconfiguring machinery is time lost in production. The intuitive human-machine interface simplifies what used to be a complex engineering task into a few screen taps, making changeovers remarkably efficient.
Changeovers for different tube sizes require zero specialized mold replacements or heavy tooling.
Simple mechanical positioning and parameter updates complete the switch in just a few minutes.
Lowers the technical barrier for new operators, significantly reducing onboarding and training time.
Maximizes active production hours by keeping maintenance and changeover downtime to an absolute minimum.
Investing in heavy machinery requires confidence in long-term reliability. Backed by over 15 years of engineering excellence, this labeling solution is built to run continuously across demanding shifts, providing absolute peace of mind.
Engineered with globally recognized, highly reliable mechanical components for fail-safe operation.
Comprehensive 12-month warranty covers the entire machine, protecting your initial investment.
Permanent access to expert technical support ensures smooth operations year after year.
Readily available spare parts prevent extended maintenance delays, keeping your lines moving.
Partnering with the right equipment supplier is just as important as the machinery itself. As a dedicated manufacturer, we focus on delivering high-performance packaging systems tailored to the rigorous demands of global industries. Our facilities are equipped with cutting-edge manufacturing technology, ensuring every unit that leaves our floor is a masterpiece of industrial design.
Over a decade and a half of specialized experience in automation machinery and packaging solutions.
A proven track record of successful installations across diverse industrial sectors worldwide.
Rigorous internal quality control protocols ensure every machine meets and exceeds international standards.
Transparent communication and a consultative approach to match you with the exact equipment needed for your specific facility.
Dedicated after-sales teams ready to assist with permanent technical guidance and rapid response times.
Q1: How does the machine handle different paper weights and thicknesses?
The tension and roller pressure can be finely adjusted via the control system. This allows the equipment to smoothly process paper weights from 100 to 157gsm and tube thicknesses of 1 to 5mm without causing structural damage, denting, or label tearing.
Q2: What is the optimal operating environment for the hot melt glue system?
To maintain the ideal adhesive viscosity, the machine should be operated in a standard indoor industrial environment. The advanced dual-layer thermal insulation ensures the glue remains at a constant temperature internally, effectively neutralizing minor external temperature fluctuations.
Q3: Can the labeling speed be synchronized with an existing conveyor system?
Absolutely. The PLC control system allows operators to seamlessly adjust the labeling speed between 10 and 40 pieces per minute. This flexibility ensures perfect integration and pacing with your current upstream manufacturing and downstream packaging lines.
Q4: What routine maintenance is required to keep the labeling precision at ±0.5mm?
We recommend a weekly visual inspection of the photoelectric sensors to ensure they are free of paper dust, alongside a regular wipe-down of the pressure rollers. Keeping the mechanical transit paths clean prevents micro-slippage, ensuring the labels are applied with pinpoint accuracy every time.
Q5: If we need to switch from a 50mm height tube to a 500mm height tube, how long does the changeover take?
Due to the intelligent, tool-less adjustment design, an operator can complete this changeover in just a few minutes. It simply requires adjusting the physical mechanical guides to the new height and selecting the corresponding pre-set parameters on the touchscreen interface.
