Automatic L-Type Heavy Duty Stretch Film Horizontal Pallet Packaging Wrapping Machine for Industrial Large Wooden Box

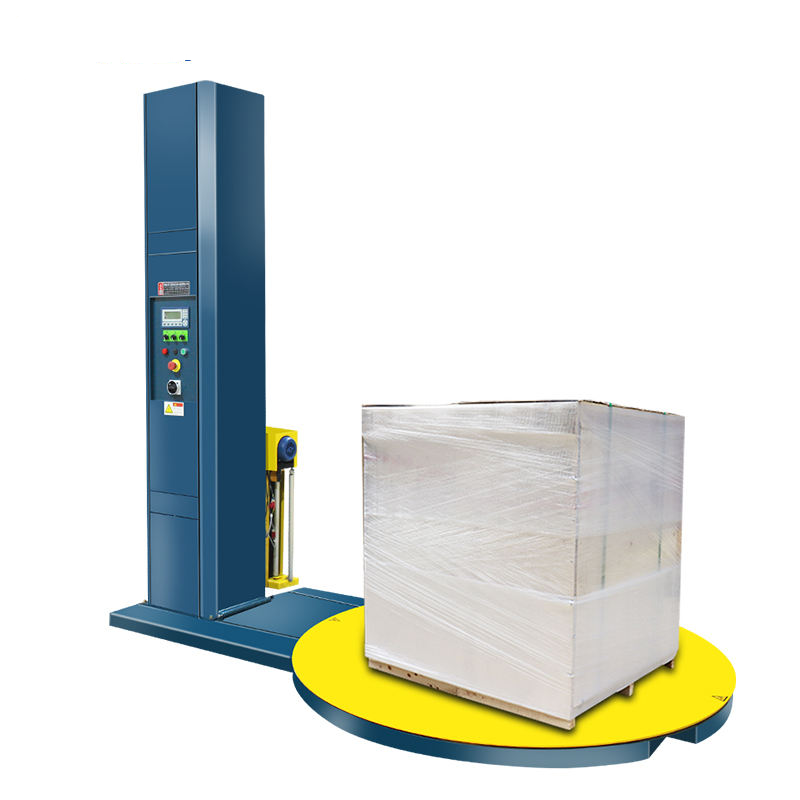

The BDH-YF001 Pallet Stretch Wrapping Machine is a robust and professional-grade industrial solution engineered for securing palletized goods in warehousing, logistics, and distribution environments. Built with a durable steel frame and utilizing LLDPE stretch film, it delivers consistent and reliable packaging performance.

This versatile machine features a heavy-duty rotary table available in three diameters (1500mm, 1650mm, or 1800mm) to suit different load sizes. It offers substantial load capacity, handling up to 1.5 tons in its standard configuration and up to 2 tons in the motorized type, ensuring suitability for a wide range of industrial applications.

With a solid column height of 2400mm, the machine achieves a maximum effective packing height of 2000mm (column height reduced by 400mm). Its overall footprint is compact at 2600mm (L) x 1500mm (W) x 2550mm (H), making efficient use of floor space while providing ample wrapping coverage.

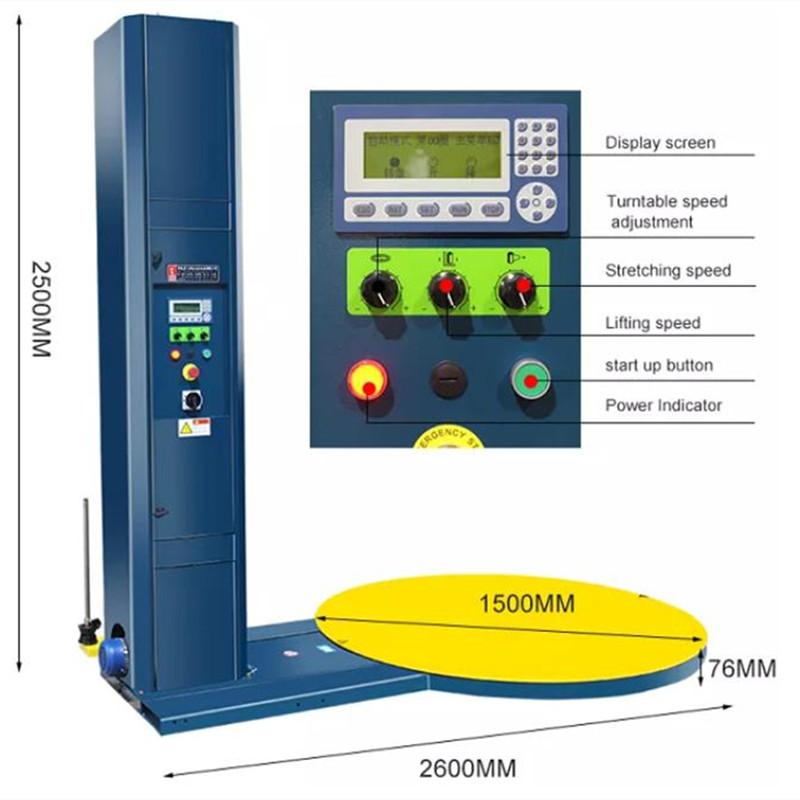

Operation is simplified through an intuitive user interface featuring a clear display screen and dedicated controls. Operators can precisely adjust the turntable speed (0–10 rpm), film stretching ratio (100%–250%), and lifting speed independently, allowing for customized wrapping cycles tailored to specific load requirements. The panel includes a prominent start button and power indicator for ease of use.

Designed for energy efficiency and operator comfort, the machine operates at a low noise level of under 75 dB(A). It is built for reliability in standard environmental conditions (temperature: -10°C to 40°C, humidity <90%) and requires minimal maintenance using general-purpose grease. The optional slope accessory enhances stability when wrapping irregular or unstable loads.

Ideal for businesses seeking to improve packaging consistency, load safety, and operational throughput, the BDH-YF001 combines durability, flexibility, and user-friendly controls into a single, cost-effective packaging solution.

Product parameter :

# FAQ – BDH-YF001 Pallet Stretch Wrapper

**1. What is the maximum load capacity of the machine?**

The standard version supports up to 1.5 tons, while the motorized version can handle up to 2 tons.

**2. What turntable sizes are available?**

Three diameters are available: 1500mm, 1650mm, and 1800mm to accommodate different pallet sizes.

**3. What is the maximum wrapping height?**

The maximum wrapping height is the column height minus 400mm. For example, with a standard 2400mm column, the maximum height is 2000mm.

**4. Is the machine easy to operate? What speed settings are adjustable?**

Yes, it is user-friendly. The control panel allows independent adjustment of turntable speed (0–10 rpm), film stretch ratio (100%–250%), and lifting speed.

**5. What film specifications are compatible?**

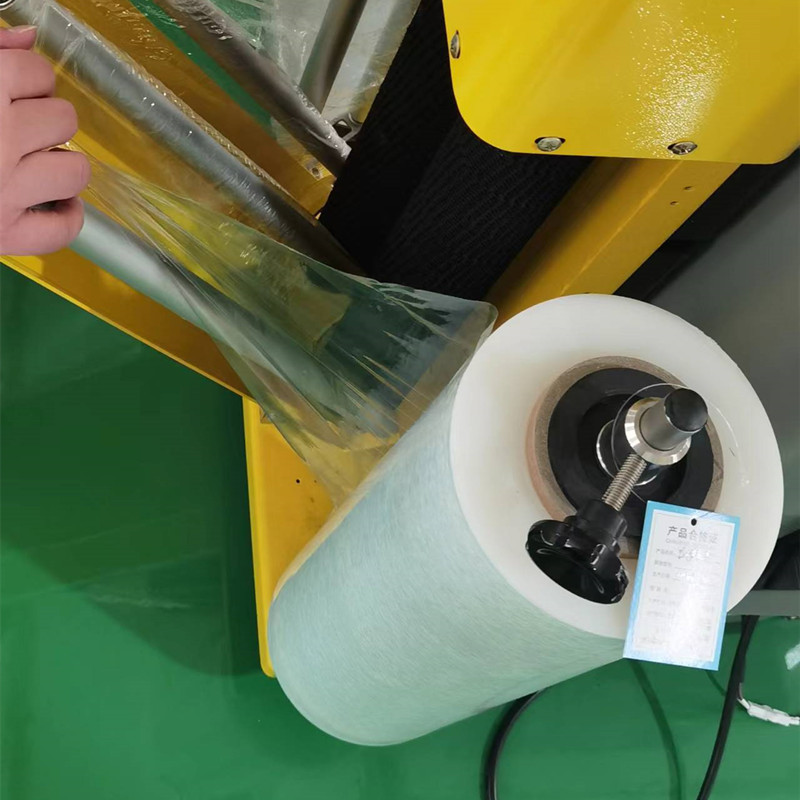

The machine is designed for LLDPE stretch film with a roll height of 100–500mm and a standard thickness of 17–25µm.

**6. How noisy is the machine, and what are the environmental requirements?**

Operating noise is below 75 dB(A). It is suitable for environments with temperatures between -10°C to 40°C and relative humidity below 90%.

**7. Can it wrap irregular or unstable loads?**

Yes, an optional slope accessory is available to help stabilize irregular or unbalanced loads during wrapping.

**8. What maintenance is required?**

Regular lubrication with general-purpose grease (Grade 0) is needed, typically every 3–6 months depending on usage frequency.
