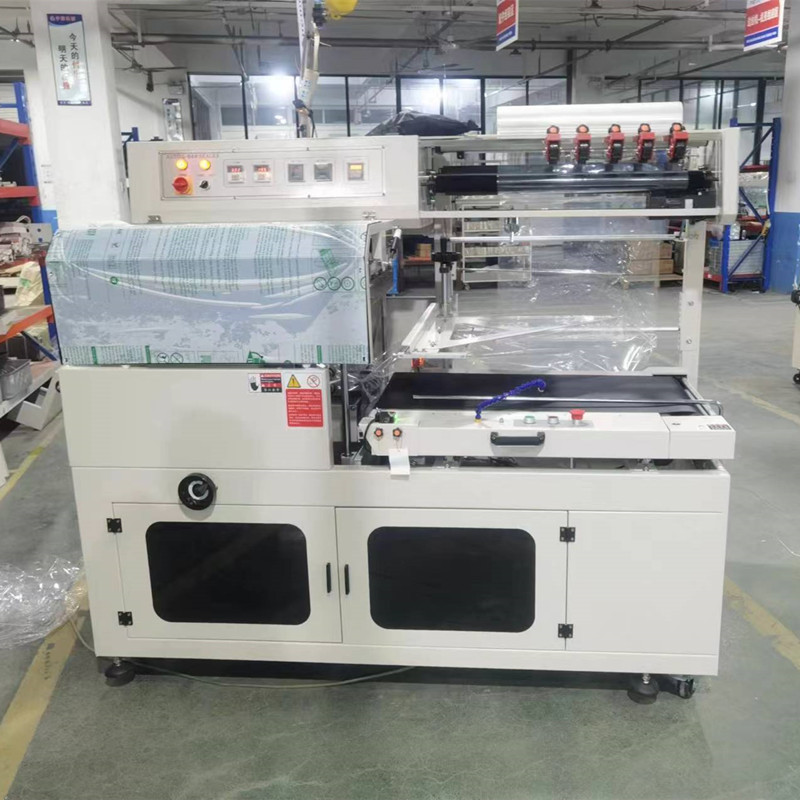

Automatic High Speed Water Soap Sweets Boxes Sealer Side Sealing and Heat Tunnel Shrink Wrap Packing Machine

**Automatic High-Speed Side Sealing and Heat Tunnel Shrink Wrap Machine**

This integrated packaging system is designed for high-efficiency, automatic sealing and shrink-wrapping of various products like water bottles, soap boxes, and sweets. It combines a **Film Side Sealing & Cutting Machine** with a **Heat Shrink Tunnel** to perform bagging, sealing, cutting, and shrinking in one continuous, automated process, significantly reducing labor costs and boosting output.

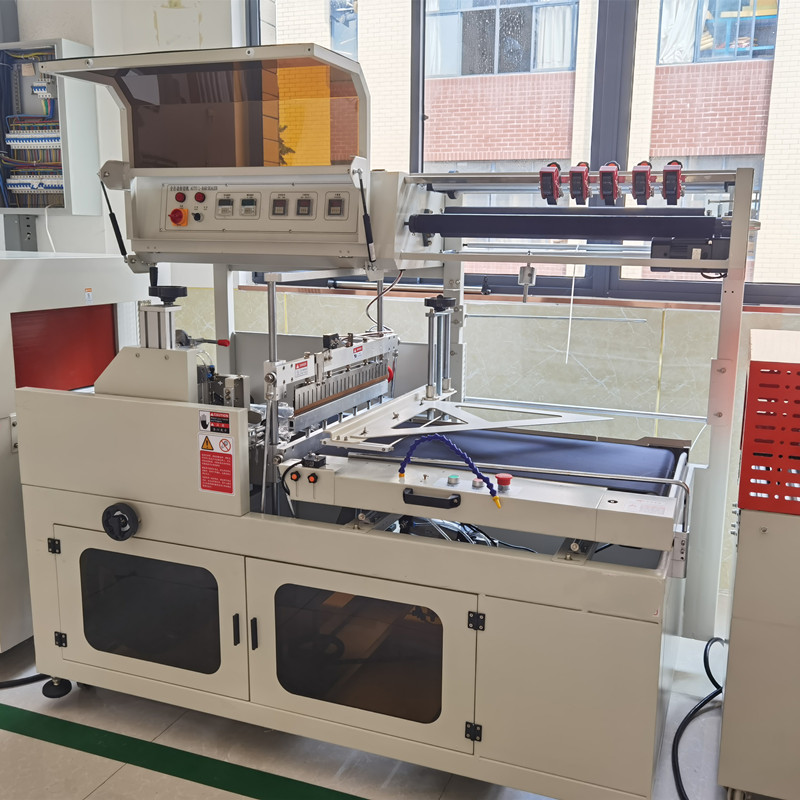

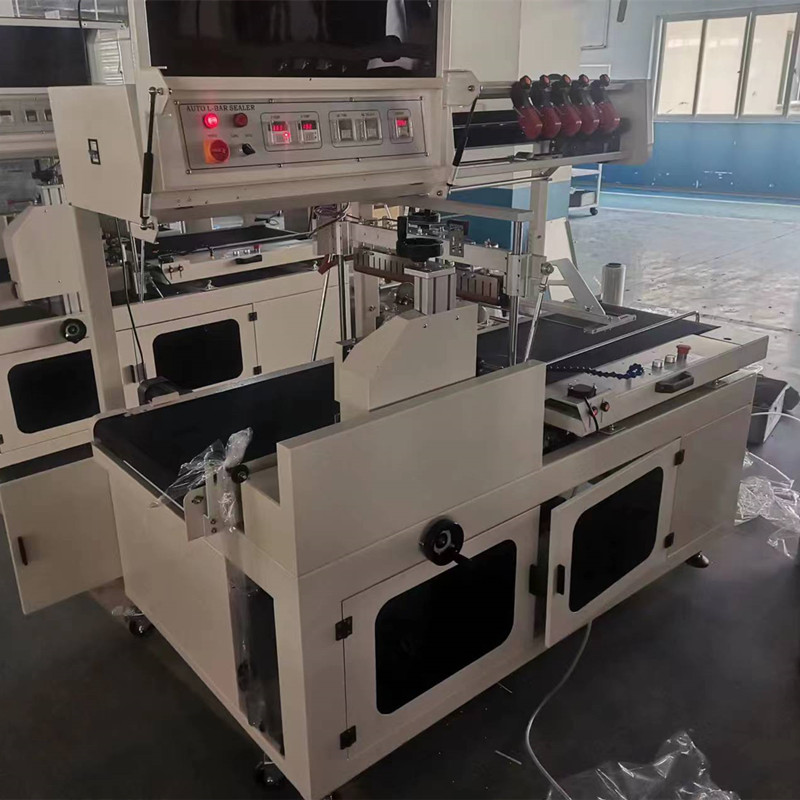

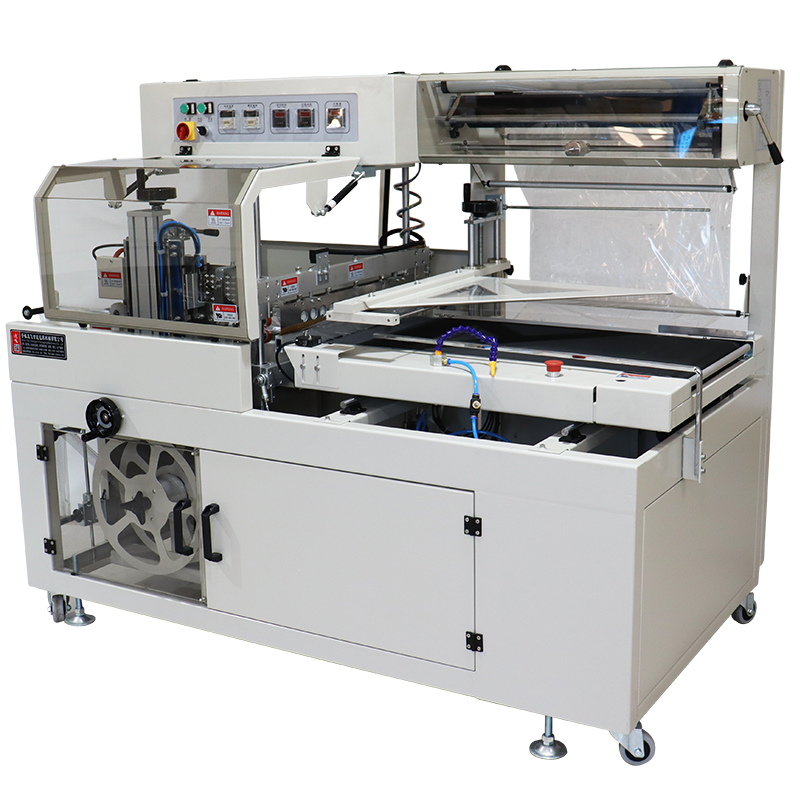

**1. Side Sealing & Cutting Machine Unit:**

This unit automatically forms bags from flat film, seals the product on three sides, cuts it, and transfers it to the tunnel. Key features include:

*   **High Speed:** Consistent packaging speed of up to **15 meters/min**.

*   **Flexible Sizing:** Multiple models accommodate different product dimensions.

   *   **Sealing Width:** Ranges from **45cm (BF-450)** to **75cm (BF-750)**.

   *   **Max Packaging Height:** Standard models handle items up to **15cm** tall, with "Higher" versions (e.g., BF-550/Higher, BF-650/Higher) supporting heights up to **25cm**.

*   **Unlimited Product Length:** The sealing length is not restricted by the machine.

*   **Power & Operation:** Runs on standard **220V, 50/60Hz** power with a low **1.5KW** consumption.

*   **Build:** Robust construction with machine weights from **310kg to 360kg**, ensuring stability and durability.

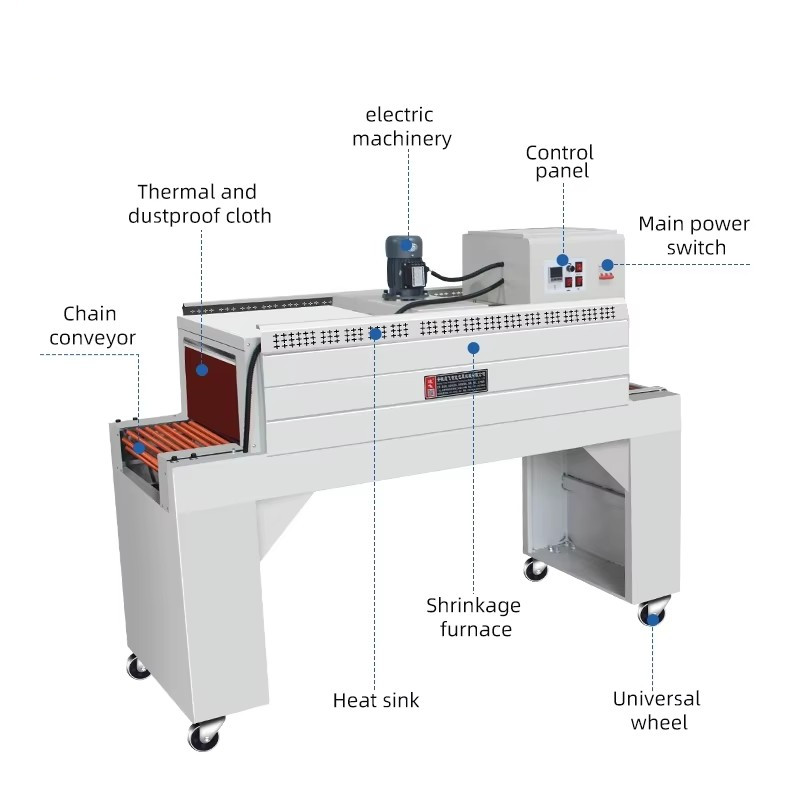

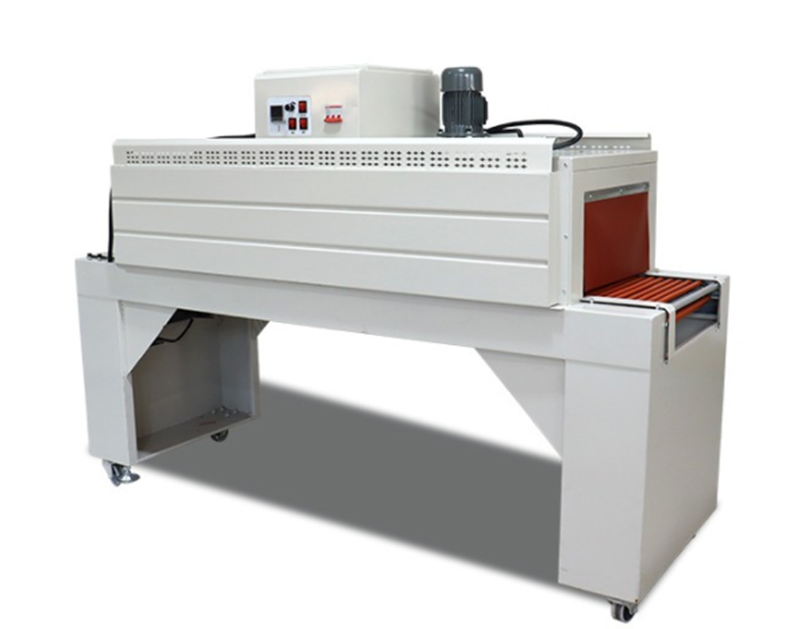

**2. Heat Shrink Tunnel Unit:**

This tunnel receives the sealed bags and applies controlled heat to create a tight, professional shrink wrap finish.

*   **Adjustable Speed:** Conveyor speed is variable from **0 to 10 meters/min**, synchronized with the sealer.

*   **Model Variety:** Available in several sizes to match the sealer's output and product dimensions.

   *   **Tunnel Cross-Section:** Options range from **45x22cm (BS4525N)** to **95x40cm (BS9540N)**.

   *   **Heating Power:** Ranges from **9.6KW to 12KW** for consistent, efficient heating.

*   **Industrial Power:** Operates on **380V** electrical supply.

*   **Durable Design:** Features a heavy-duty steel frame, with machine weights from **140kg to 200kg**. All models support a **30kg loading** capacity on the conveyor.

**System Advantages:**

*   **Complete Automation:** From flat film to fully wrapped product with minimal operator intervention.

*   **Efficiency & Savings:** High-speed operation drastically cuts labor requirements and increases packaging throughput.

*   **Reliable Performance:** Built with well-known brand components for better packaging results and long-term durability.

*   **User-Friendly:** Includes clear control panels, emergency stops, adjustable feet, and mobility options (universal wheels).

This machine is an ideal, cost-effective solution for businesses seeking to automate and streamline their packaging line for boxed or bottled goods.

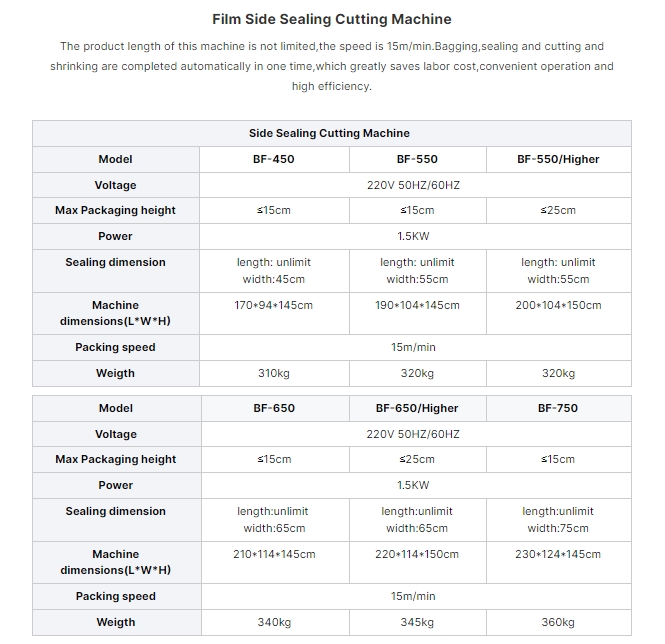

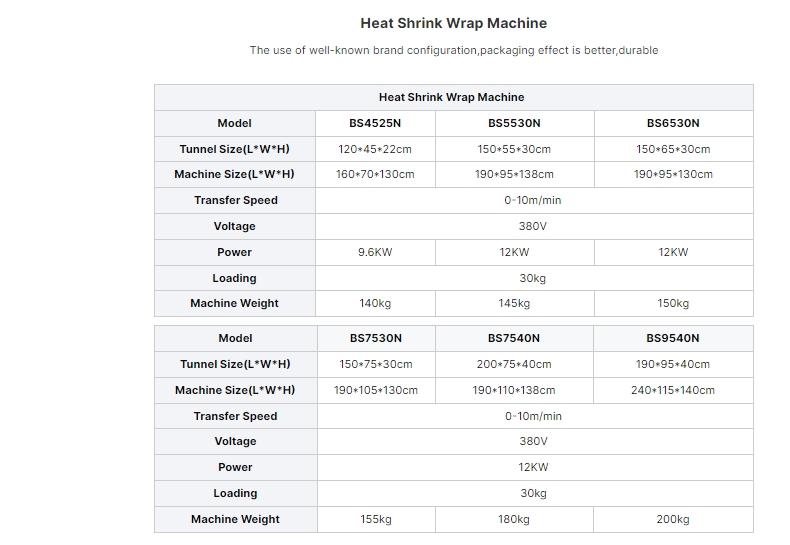

Technical Parameters:

FAQ:

**1. What products is this machine suitable for?**

This automated side sealing and shrink wrap system is ideal for packaging a variety of boxed, bottled, or solid items, including but not limited to bottled water, soap boxes, candy/sweets boxes, and other similarly shaped consumer goods.

**2. What is the maximum packaging speed of the entire line?**

The system's overall speed is governed by the Side Sealing Machine, which operates at a constant maximum speed of **15 meters per minute**. The Heat Tunnel's conveyor speed is adjustable from 0-10 m/min and should be synchronized to match the sealer's output.

**3. What are the power requirements for this machine?**

The system requires two separate power connections:

*   The **Side Sealing Machine** operates on standard **220V, 50/60Hz** single-phase power (1.5KW).

*   The **Heat Shrink Tunnel** requires an industrial **380V** three-phase power supply, with power consumption ranging from **9.6KW to 12KW** depending on the model.

**4. How do I choose the right model size for my products?**

Selection is based on your product dimensions:

*   **Sealer Width:** Choose the Side Sealing model (e.g., BF-550, BF-650) based on the maximum *width* of your product. Options range from 45cm to 75cm.

*   **Product Height:** Select a standard sealer (max 15cm height) or a "Higher" version (max 25cm height).

*   **Tunnel Size:** Match the Heat Tunnel's entrance (Tunnel Size) to the output size of your sealer and the dimensions of your sealed package to ensure smooth transfer.

**5. Is the product length limited by the machine?**

**No.** A key feature of the Side Sealing Machine is that the sealing and cutting length is **unlimited**, allowing you to package products of varying lengths without machine adjustment.

**6. What is the maximum weight the conveyor can handle?**

The conveyor belt on the Heat Shrink Tunnel has a maximum **loading capacity of 30kg** for all models, which refers to the distributed weight of products on the belt at any given time.

**7. What is the machine's construction and weight?**

Both units are built with heavy-duty steel frames for industrial durability.

*   Side Sealer weights range from **310kg to 360kg**.

*   Heat Tunnel weights range from **140kg to 200kg**.

All models are equipped with adjustable feet and most include universal wheels for mobility and leveling.

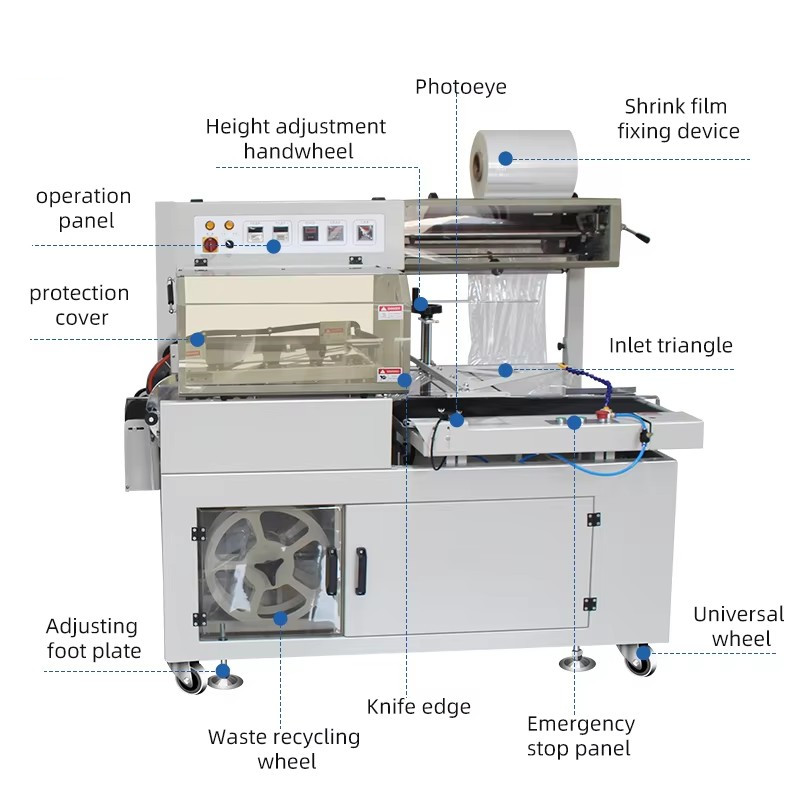

**8. Are the machines safe and easy to operate?**

Yes. The system includes user-friendly features such as centralized **Operation/Control Panels**, **Emergency Stop buttons**, and protective covers. The sealer also features safety devices like photoeyes. Basic operator training is recommended for optimal and safe use.
