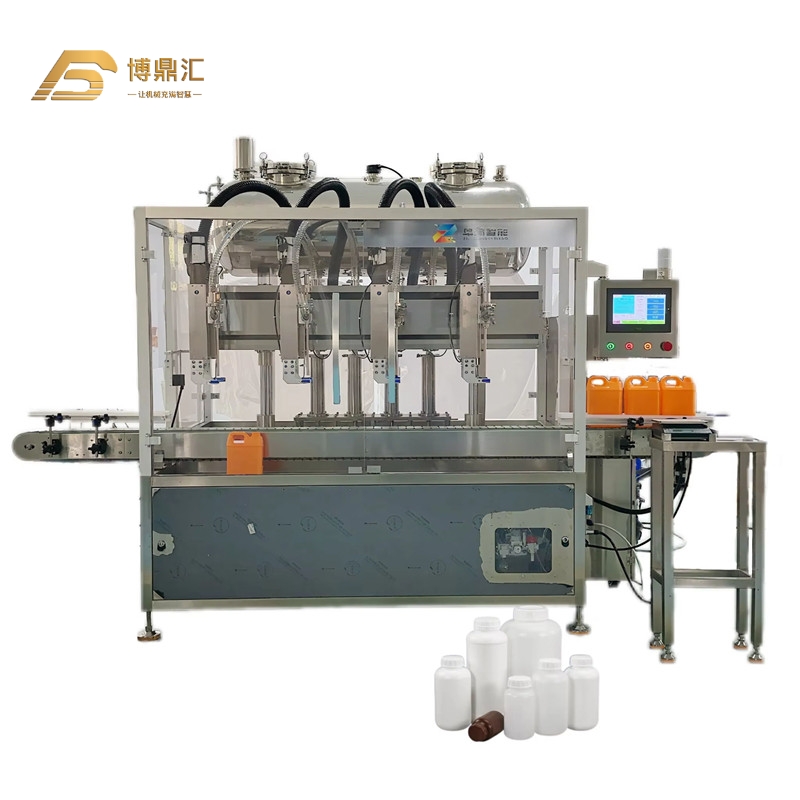

Automatic High Speed Paste Oil Liquid Bucket Bottle 4 Head Tracking Servo Piston Filling Machine for Shampoo Laundry Detergent

Automatic High Speed Paste Oil Liquid Bucket Bottle 4 Head Tracking Servo Piston Filling Machine for Shampoo Laundry Detergent

The Automatic High Speed Paste Oil Liquid Bucket Bottle 4 Head Tracking Servo Piston Filling Machine is designed for efficient and precise filling of various products like shampoo, laundry detergent, lotions, and other low-viscosity materials into containers of diverse shapes and sizes. Featuring four servo-driven filling nozzles with tracking technology, it allows for continuous, stable, and high-speed operation with an impressive accuracy of ±0.5%. Its robust construction includes a double stainless steel chain drive and quick-release connectors for easy maintenance. Controlled via an intuitive color touch screen, this machine is ideal for modern production lines seeking enhanced productivity and operational convenience.

Model:
BDH-ZY-4HFM
Brand:
BodingHui

Availability:

Quantity:



Inquire Add to Basket

Product Description

67a6238cb0c7baeac8f56da7cd62d5cb 结构_副本细节_副本活塞气缸_副本

The Automatic High Speed Paste Oil Liquid Bucket Bottle 4 Head Tracking Servo Piston Filling Machine is a state-of-the-art, fully automated filling solution engineered for high-performance manufacturing environments. Suitable for a wide range of low-viscosity materials—including shampoos, laundry detergents, oils, pastes, and lotions—it excels in handling diverse container types, from bottles to buckets.

Core Features & Technology:

Servo Tracking System: Each of the four filling nozzles actively tracks the container during the filling process, enabling continuous, uninterrupted filling. This ensures smooth container flow, operational stability, and optimal throughput, meeting high-speed production demands.
Servo Motor Drive: Powered by servo motors, the machine delivers precise and repeatable movement. Dual lead screws driven by high-power Panasonic servo motors, along with a durable double stainless steel chain drive, ensure quiet, stable, and highly accurate operation, outperforming traditional belt-driven systems.
Piston Filling Mechanism: The cylinder pistons are equipped with a quick-detach function, allowing one-touch cleaning to remove material residue. All connections feature quick-release fittings, facilitating fast disassembly, maintenance, and rapid changeover between different products, reducing downtime and maintenance costs.
User-Friendly Operation: An intuitive color touch screen panel displays key information, including production status, operational procedures, and filling methods. This simplifies operation, monitoring, and setup, making the machine accessible and easy to maintain.

Specifications:

Filling Nozzles: 4 (standard, customizable from 1 to 4 heads)
Filling Range: 50–1000 ml (customizable)
Filling Accuracy: ±0.5%
Speed: 60–70 bottles per minute (based on 500 ml lotion)
Power Supply: 220V, 50Hz
Power Consumption: 8.5 kW
Machine Dimensions: 2300 x 1300 x 2350 mm

Applications:

This machine is ideally suited for industries requiring high-speed, high-accuracy filling of liquid and semi-liquid products such as cosmetics, personal care items, household cleaners, lubricants, and food-grade liquids.

Benefits Summary:

High-speed, continuous filling capability
Exceptional precision and repeatability
Robust and low-maintenance mechanical structure
Easy cleaning and quick material changeover
User-friendly interface for simple operation and control

Ideal for enhancing production efficiency and product consistency, this filling machine is a reliable and advanced solution for modern, automated packaging lines.

Technical Parameters

Machine Parameters:

Machine Model	BDH-ZY-4HFM
Filling nozzles	4 nozzles (1,2,3,4 heads, customizable)
Filling range	50-1000 milliliters, customizable
Power supply	220V 50Hz
Power	8.5kw
Filling accuracy	±0.5%
Machine Size	2300X1300X2350mm
Speed	60-70 bottles per minute (500 ml, lotion)

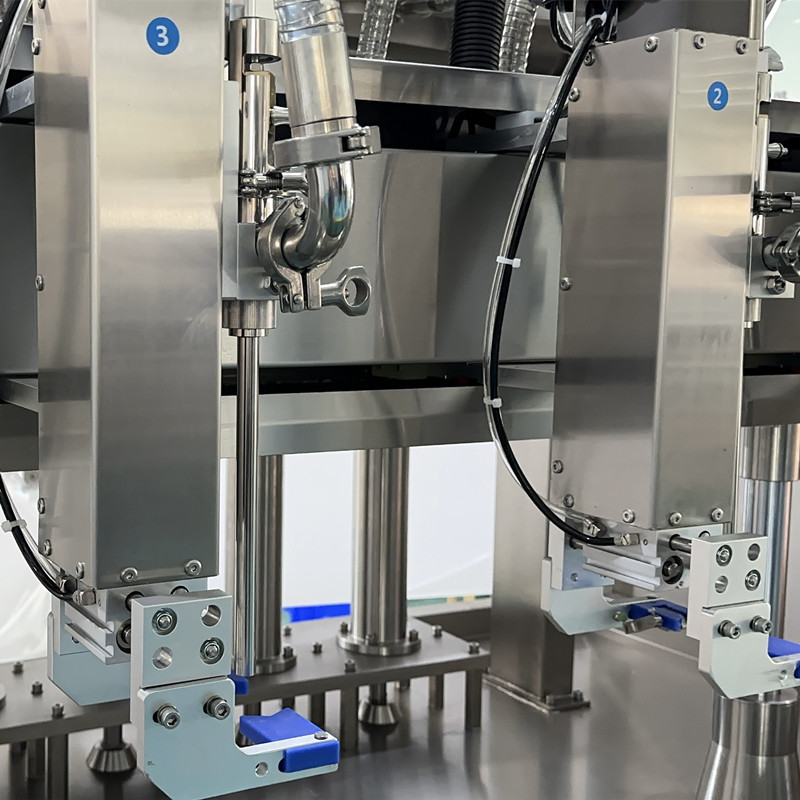

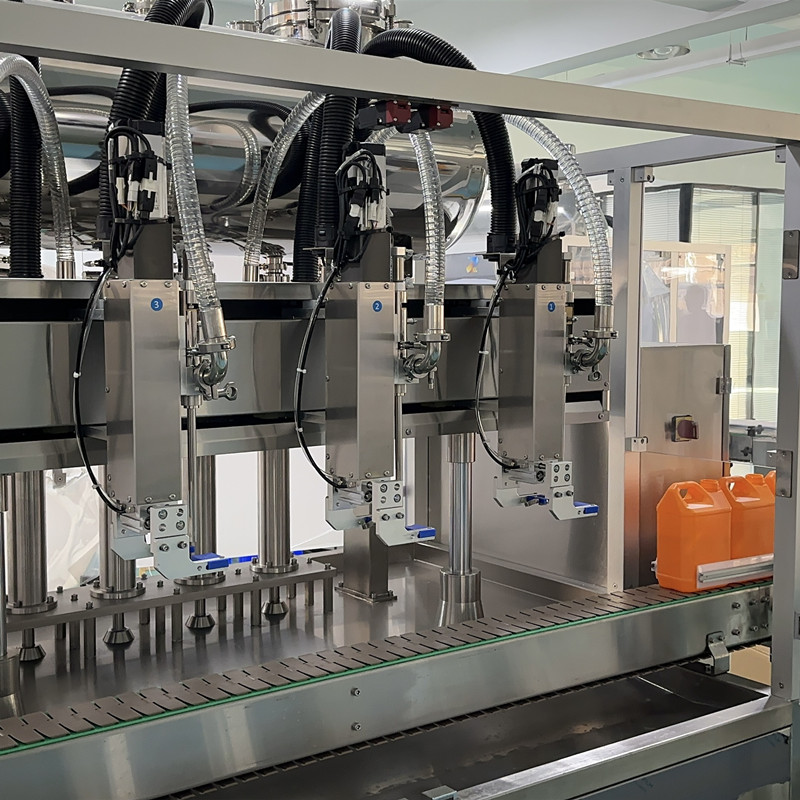

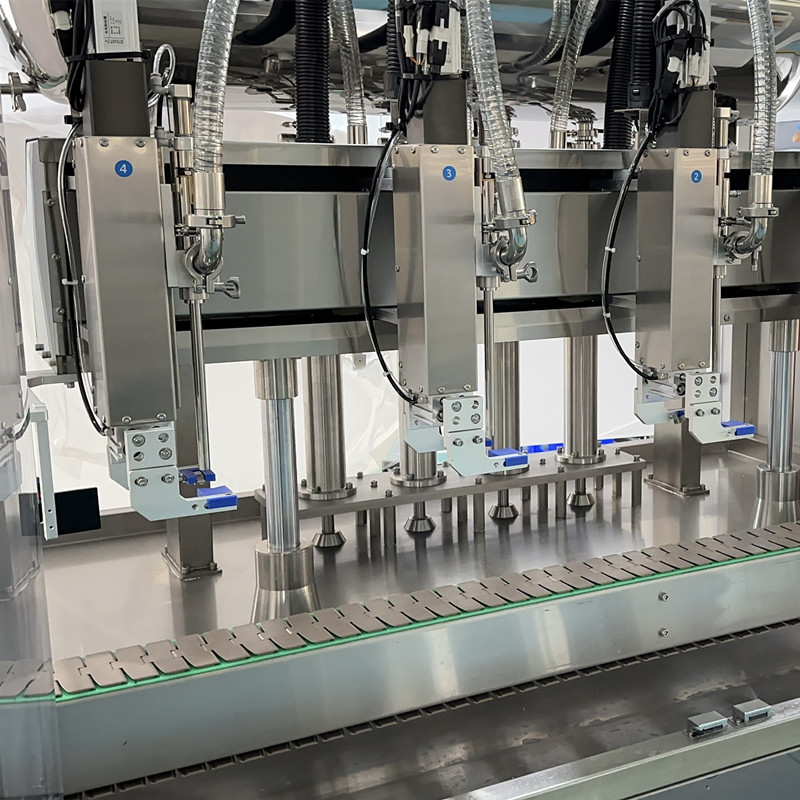

Servo tracking filling nozzle:
Servo tracking filling machine, the filling head will track the bottles during filling. The bottle can be filled continuously. The bottle operates stably and can meet the needs of high-speed production, further enhancing production capacity.

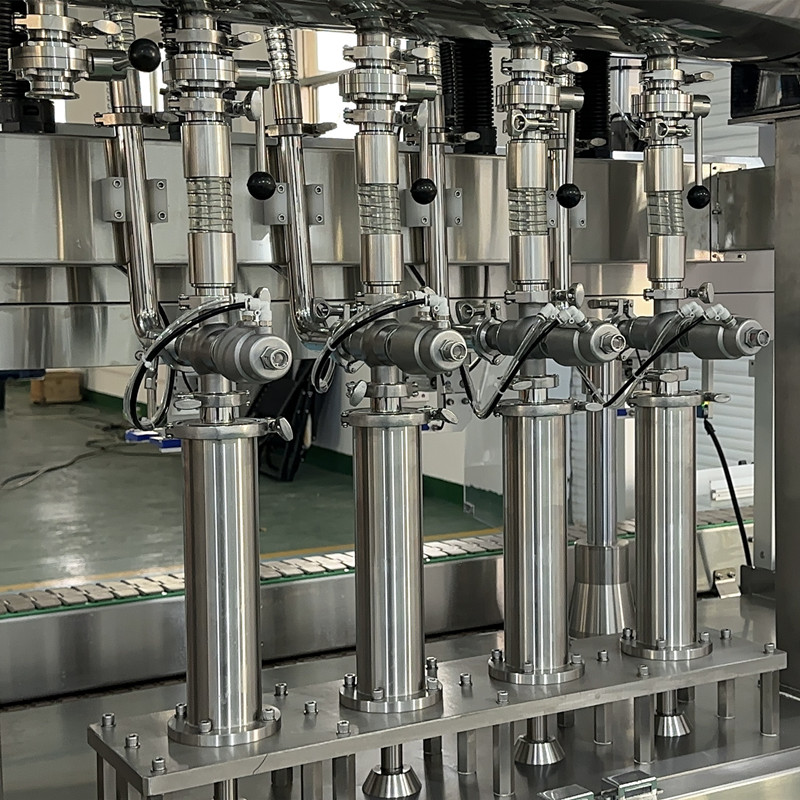

Piston:

The cylinder piston has a detachment function. With one click, the residual substances on the piston and cylinder can be removed, and the filling materials in production change very quickly. All connections are made with quick-release connectors, which are easy to disassemble and maintain, reducing the cost of use and maintenance as well as the storage time.

Structural stability:

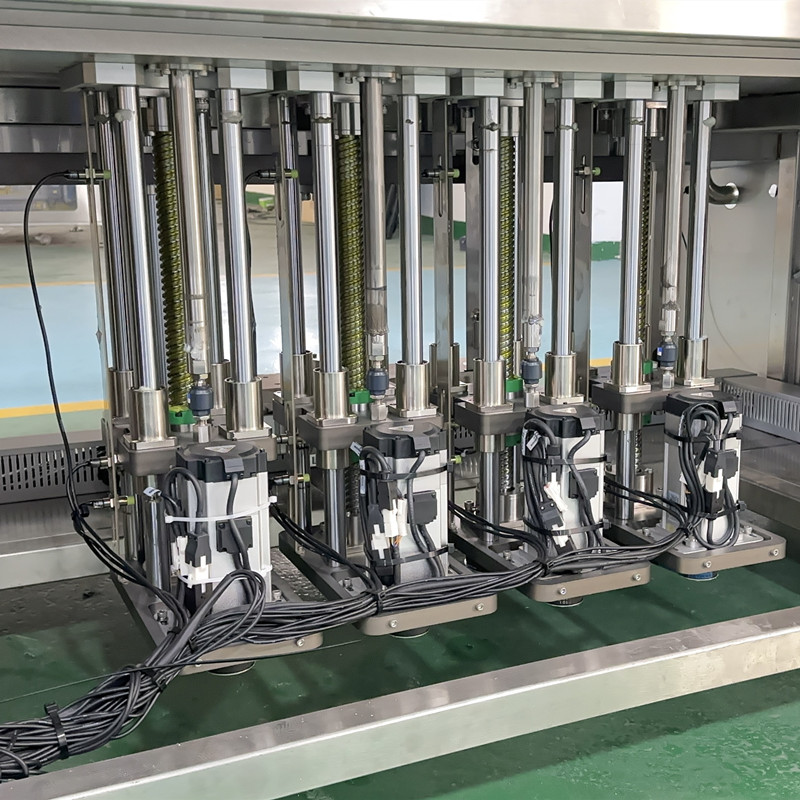

Each piston is driven by a servo motor. Double stainless steel chain drive is quieter and more durable compared with traditional belt drive. The double lead screws are driven by Panasonic high-power servo motors, ensuring stable operation and high precision.

FAQ

Q1: What types of products is this filling machine suitable for?
A1: This machine is designed for filling low-viscosity materials such as shampoos, laundry detergents, lotions, oils, pastes, and similar liquid or semi-liquid products. It can handle various container shapes and sizes, including bottles and buckets.

Q2: How does the “tracking” function work during filling?
A2: The filling nozzles are equipped with a servo tracking system that moves synchronously with the containers on the conveyor. This allows continuous filling without stopping the production line, ensuring stable operation and higher speed.

Q3: What is the filling accuracy of this machine?
A3: The machine offers high precision with a filling accuracy of ±0.5%, ensuring consistent and reliable volume control for every container.

Q4: Can the number of filling heads be customized?
A4: Yes. The standard model comes with 4 heads, but it can be customized to have 1, 2, 3, or 4 heads based on your production capacity and speed requirements.

Q5: How easy is it to clean and change materials?
A5: The piston and cylinder feature a quick-detach design with one-click cleaning function. All connections use quick-release fittings, allowing for fast disassembly, cleaning, and material changeover, which minimizes downtime.

Q6: What is the maximum speed of this filling machine?
A6: Depending on the product and container size, the machine can achieve speeds of 60–70 bottles per minute when filling 500 ml containers (e.g., lotion). Actual speed may vary based on material viscosity and container type.
