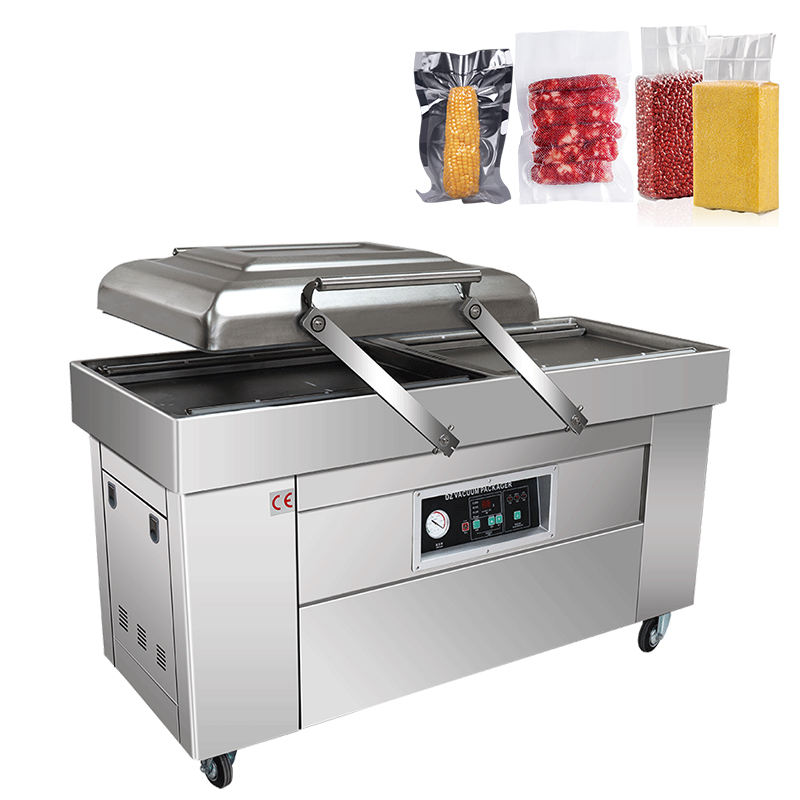

Automatic Double Chamber Vacuum Packing Machine for Coffee Pork Beef Bean Bag Rice Vegetable Bread Fish Seafood

**Product Introduction: Dual-Chamber Vacuum Machine Series**

Our Dual-Chamber Vacuum Machine series is designed for efficient, high-speed packaging in food, industrial, and commercial applications. With two independent vacuum chambers, these machines enable continuous operation—while one chamber is sealing, the other can be loaded or unloaded, significantly improving workflow and productivity.

**Key Features:**

- **Dual-Chamber Design:** Non-stop operation for maximum efficiency.

- **Robust Construction:** Made with a durable stainless steel body and reliable sealing system.

- **User-Friendly Interface:** Equipped with an intuitive control panel for easy operation.

- **High-Performance Vacuum System:** Powered by efficient vacuum pumps with speeds ranging from 20 m³/h to 60 m³/h.

- **Flexible Sealing:** Each chamber features dual seal bars for secure and consistent packaging.

- **Customizable Voltage:** Supports both 220V and 380V configurations to meet regional requirements.

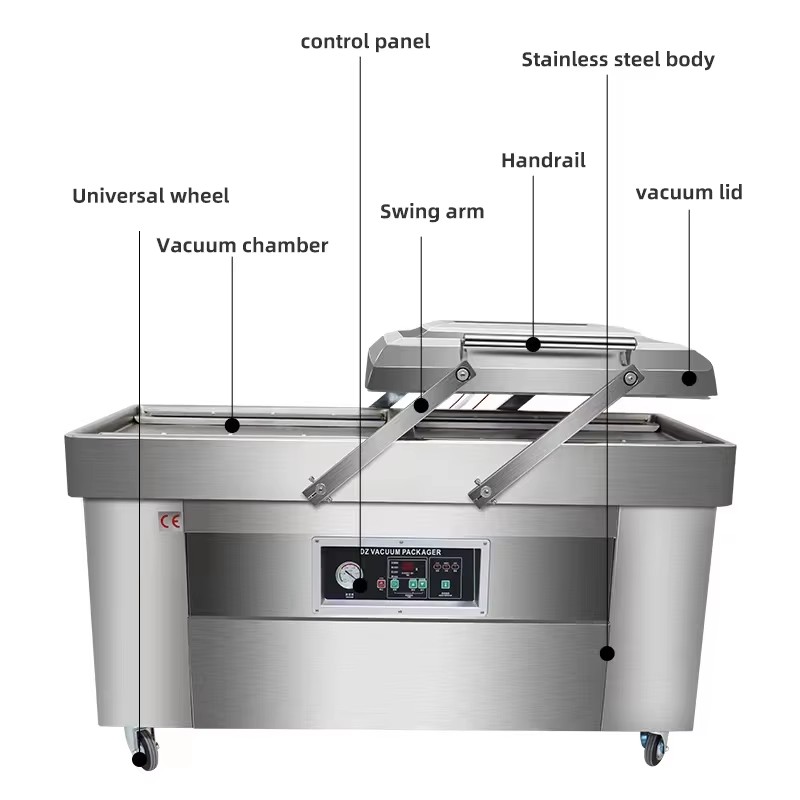

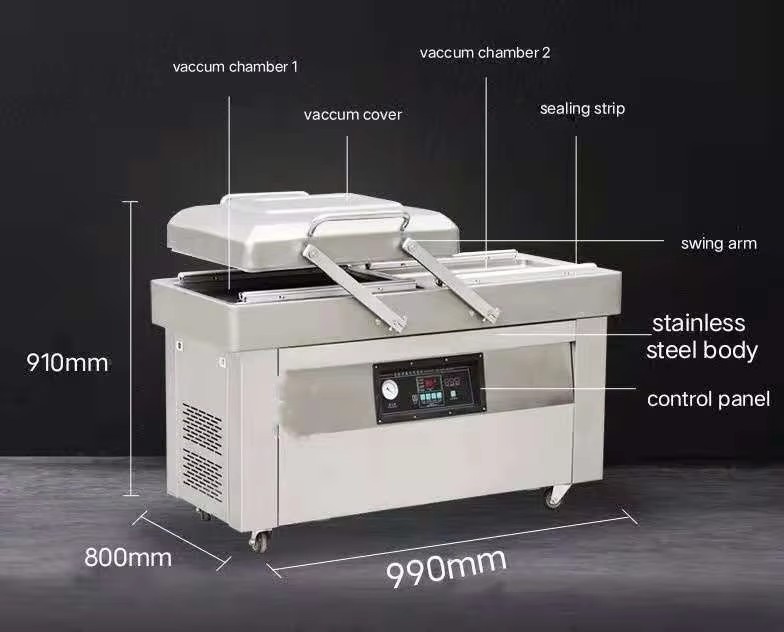

**Design & Components:**

- **Vaccum Chamber & Cover:** Precision-engineered for optimal vacuum retention.

- **Sealing Strip & Swing Arm:** Ensures airtight sealing and smooth chamber transition.

- **Stainless Steel Body:** Corrosion-resistant and easy to clean.

- **Compact Footprint:** Designed to save space while delivering high performance.

**Applications:**

Ideal for packaging:

- Fresh and processed foods

- Meat and seafood

- Electronics and hardware

- Medical and laboratory supplies

- Industrial parts and components

**Why Choose Our Dual-Chamber Vacuum Machine?**

- **Increased Productivity:** Continuous dual-chamber operation reduces downtime.

- **Reliable Sealing:** Consistent results with strong, airtight seals.

- **Energy Efficient:** Optimized power consumption across all models.

- **Easy Maintenance:** Durable design with accessible components for long service life.

For more details or custom requirements, please contact our sales team.

Available Models & Specifications:

FAQ for the Dual-Chamber Vacuum Machine:

---

### **Frequently Asked Questions (FAQ) – Dual-Chamber Vacuum Machine**

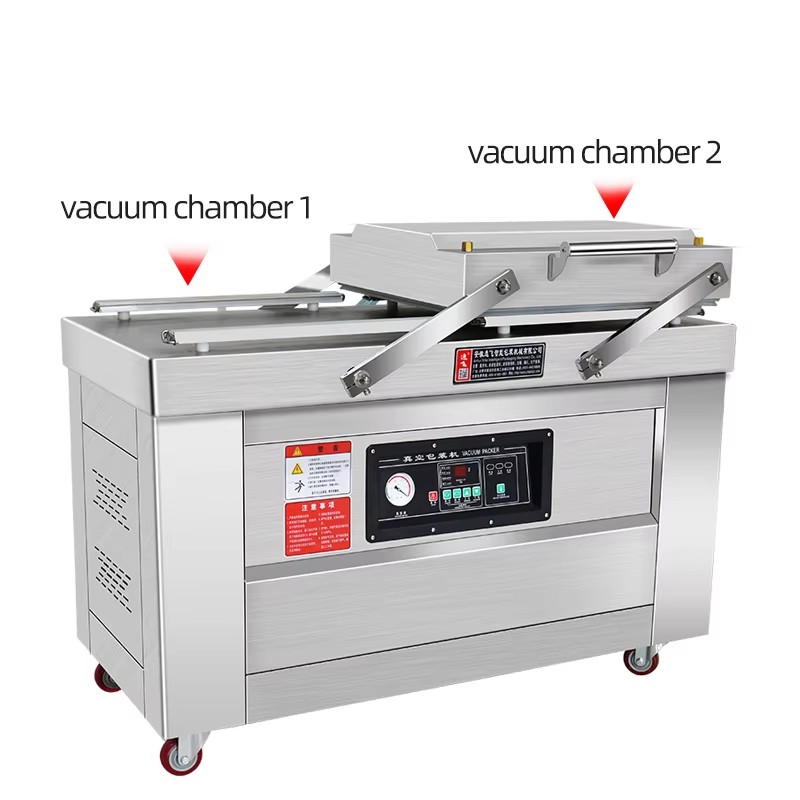

#### **1. What is a dual-chamber vacuum machine?**

A dual-chamber vacuum machine has two separate sealing chambers that work alternately. While one chamber is vacuum-sealing a package, the other can be loaded or unloaded, allowing for continuous operation and higher productivity.

#### **2. What materials can be packaged with this machine?**

It is suitable for a wide range of products including:

- Fresh and processed foods (meat, seafood, vegetables, cheese)

- Industrial parts and electronic components

- Medical and laboratory supplies

- Dry goods and pharmaceuticals

#### **3. What types of bags can be used?**

The machine works with standard vacuum bags or rolls made of PA/PE, PET/PE, or other heat-sealable barrier films. Bag thickness should generally be between 80–150 microns for optimal sealing.

#### **4. Can the machine run on different voltages?**

Yes. Most models support 220V/50Hz, and the DZ 400/25 model supports 380V/50Hz. Custom voltage configurations are also available upon request.

#### **5. What is the sealing speed?**

All models operate at 1–4 cycles per minute, depending on bag size, product type, and vacuum level settings.

#### **6. How many vacuum pumps are included?**

Depending on the model:

- DZ 400: 1 pump (20 m³/h)

- DZ 500 & DZ 600: 2 pumps (40 m³/h each)

- DZ 400/25: 3 pumps (60 m³/h total)

#### **7. Is training required to operate the machine?**

Basic operation is straightforward via the control panel. We provide an operation manual and can arrange training or instructional videos upon request.

#### **8. How do I maintain the machine?**

Regular maintenance includes:

- Cleaning the sealing bar and chamber after use

- Checking the sealing strip for wear

- Ensuring the vacuum pump oil is changed as recommended

- Periodically inspecting hose connections

#### **9. What is the warranty period?**

We offer a standard 12-month warranty on the machine and a 6-month warranty on the vacuum pump, covering manufacturing defects.

#### **10. Can the machine be customized?**

Yes. We can customize voltage, chamber size, seal bar length, and other features based on your packaging needs.

#### **11. What is the delivery time?**

Standard models are typically ready for shipment within 15–20 working days. Custom orders may require additional time.

#### **12. Do you provide after-sales support?**

Yes. We offer technical support, spare parts supply, and service assistance through our global network.

---
