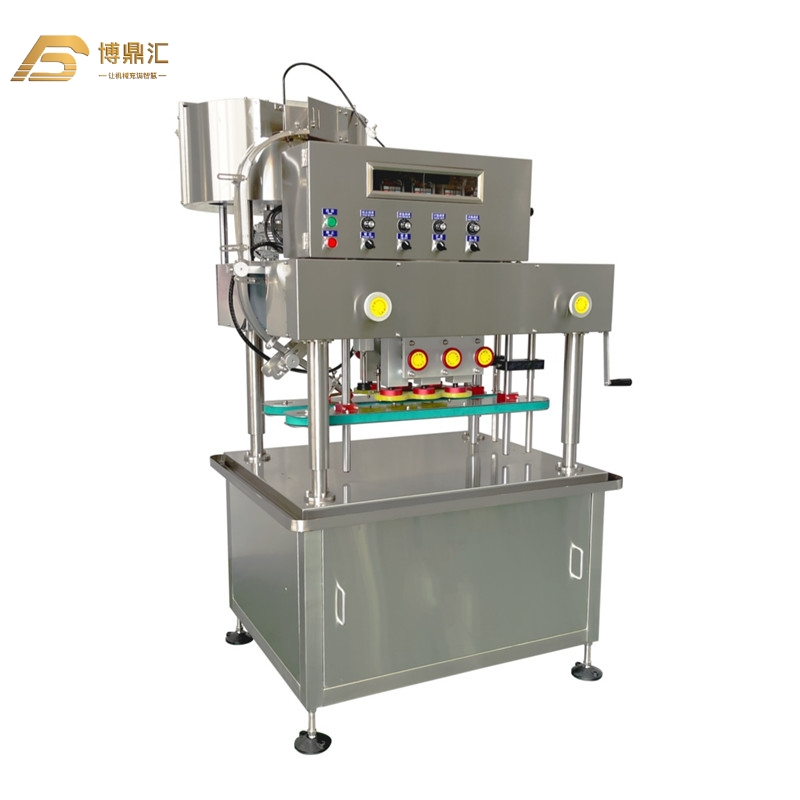

Automatic Bottle Cap Screw Spindle 6-Wheel Desktop Capping Filling Liquid Capper Machine

Introduction:
The Automatic Bottle Cap Screw Spindle 6-Wheel Desktop Capping Filling Liquid Capper Machine represents a sophisticated automation solution for high-speed, precision sealing in modern production lines. Engineered for versatility and reliability, this linear 6-wheel capping machine excels in applications ranging from food and beverage packaging to cosmetics and pharmaceuticals. Its primary function is to automate the cap tightening process, providing a robust and seamless solution to elevate productivity and guarantee superior product quality.

Product Design & Core Characteristics:

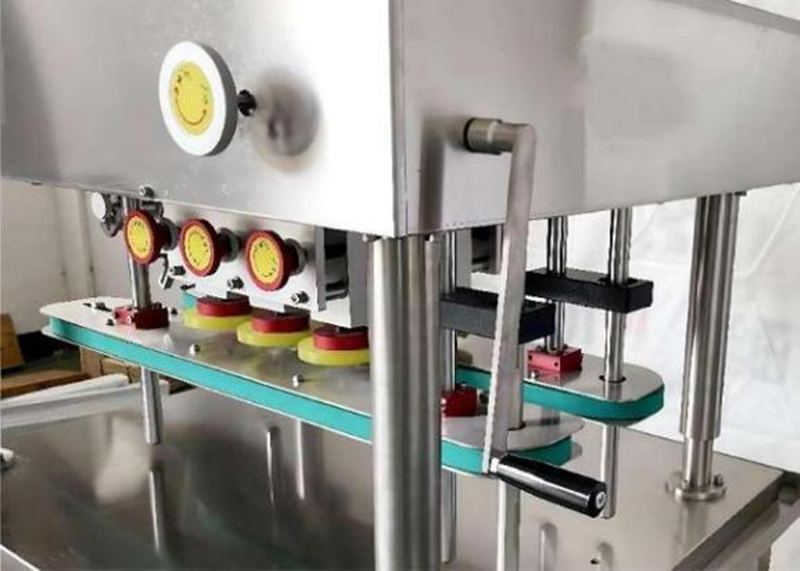

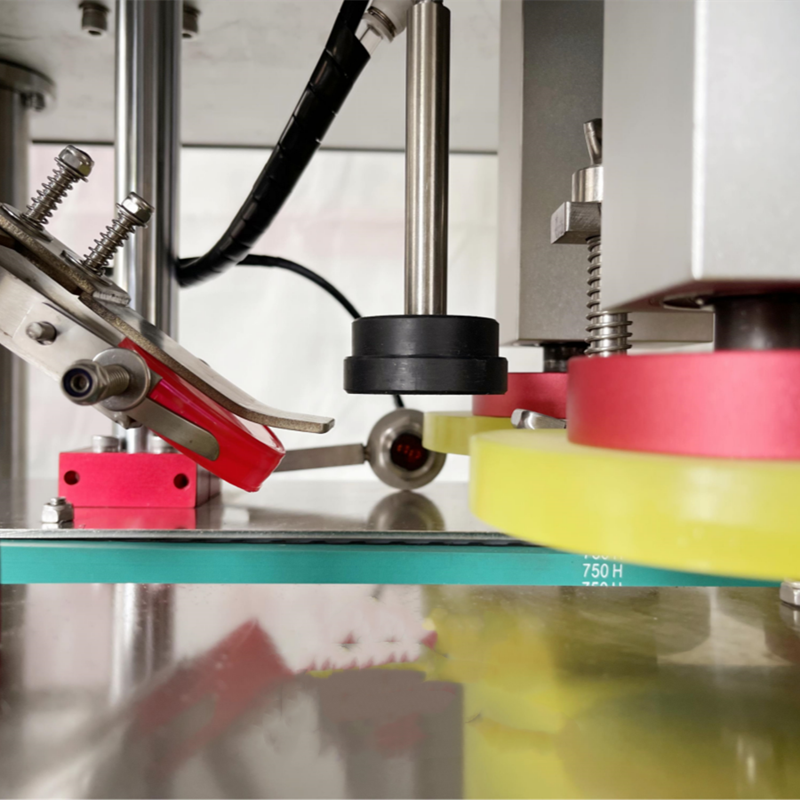

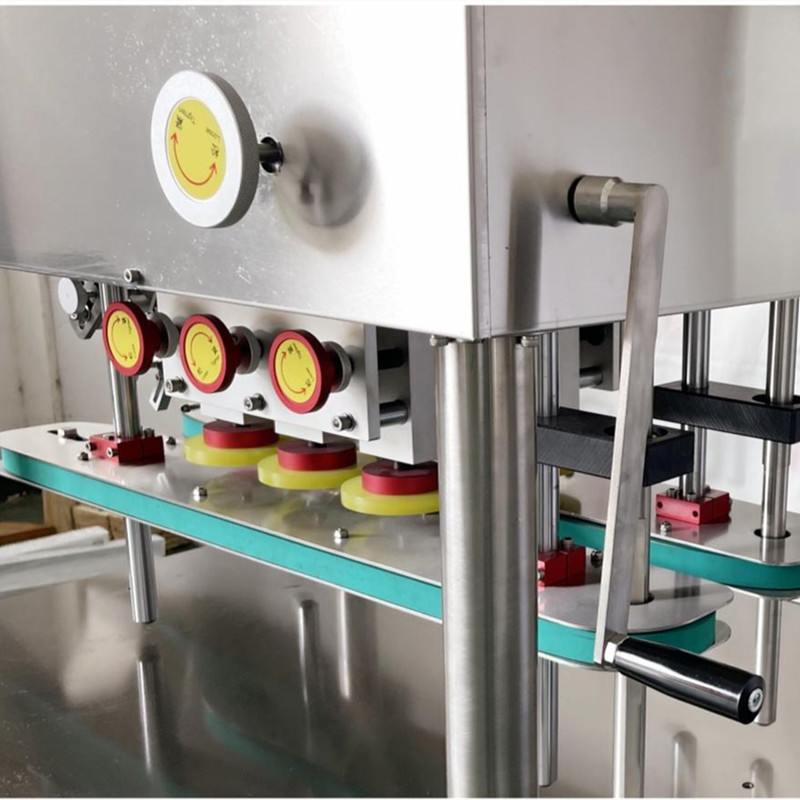

This machine employs a linear transport system integrated with a central 6-wheel capping mechanism. The structure features several sets of durable rubber capping wheels arranged to tighten multiple bottles simultaneously. Its core strengths lie in three key areas:

1. High Efficiency & Speed: Utilizing advanced automation, the machine performs continuous, high-speed capping operations, achieving a throughput of up to 8000 Bottles Per Hour (BPH). This makes it perfectly suited for large-scale production.

2. Precision & Reliability: The tightening process is controlled with exacting precision. By regulating the rotational speed and torque of the capping wheels, the system ensures each cap is fastened securely to the required specification. This precise control effectively prevents issues like loose caps or potential leakage, ensuring product safety and shelf-life stability.

3. Flexibility & Adaptability: Designed for diverse production needs, the machine is highly adaptable. It can be easily adjusted and customized to accommodate a broad spectrum of bottle shapes, neck sizes, and cap varieties. Whether handling small cosmetic bottles or larger beverage containers, the machine ensures consistent performance.

Technical Specifications:

• Model: 6-Wheel Capping Machine

• Power Supply: 110V / 220V, 50-60Hz

• Power Consumption: 2000W

• Cap Diameter Range: Φ12mm to Φ50mm

• Maximum Capping Speed: ≤8000 BPH

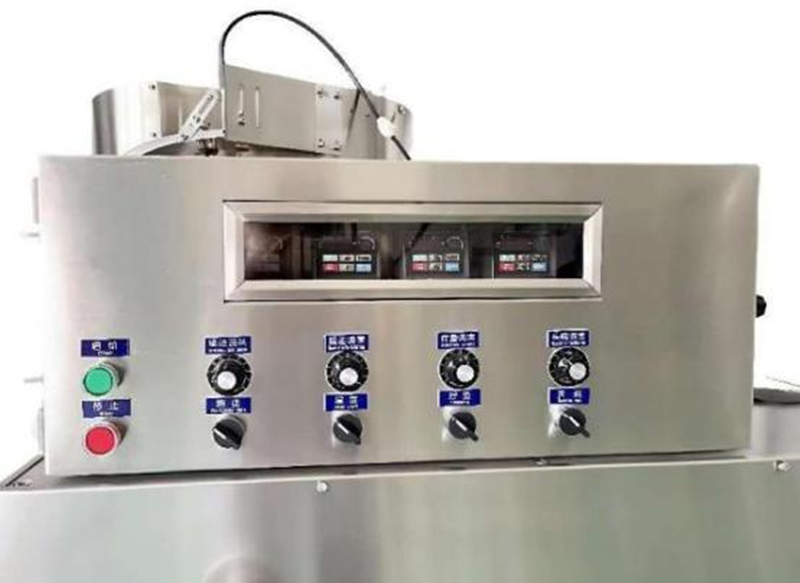

• Control System: Programmable Logic Controller (PLC) by Delta, ensuring stable, programmable, and intelligent operation.

• Noise Level: Low-noise operation for a better working environment.

Applications:
Ideal for use in conjunction with filling lines, this desktop-style capper is a perfect fit for production environments requiring reliable, space-efficient sealing of liquids, powders, or granules in glass or plastic containers. It is the optimal choice for manufacturers seeking to enhance their packaging line's speed, consistency, and overall operational efficiency.

1. What industries is this capping machine suitable for?
This machine is widely used in the food, beverage, cosmetics, and pharmaceutical industries for screw-on cap assembly and sealing operations. It is ideal for liquid, powder, or granular products packaged in bottles.

2. What is the maximum capping speed?
The machine can achieve a maximum capping speed of up to 8000 bottles per hour (BPH), making it suitable for medium to large-scale production.

3. What range of cap sizes can it handle?
It is designed to accommodate cap diameters ranging from Φ12mm to Φ50mm, and can be adjusted to fit various bottle neck sizes and cap types.

4. What kind of control system does it use?
The machine is equipped with a Delta PLC (Programmable Logic Controller), which ensures precise, stable, and programmable operation for consistent sealing performance.

5. Can it be customized for different production needs?
Yes, the machine is highly flexible. Its capping wheels and settings can be adjusted and customized to suit different bottle shapes, cap types, and production line configurations.

6. What are the power requirements for this machine?
It operates on either 110V or 220V, 50-60Hz power supply, with a total power consumption of 2000W. Please ensure your facility's electrical setup matches these specifications before installation.
