Automatic Batch Code Expiry Date Batch Qr Logo Online Tij Inkjet Printer Coding Machine for Tissue Plastic Bags Carton Packaging

Automatic Batch Code Expiry Date Batch QR Logo Online TIJ Inkjet Printer Coding Machine for Tissue Plastic Bags Carton Packaging

Complete Technical & Feature Description:

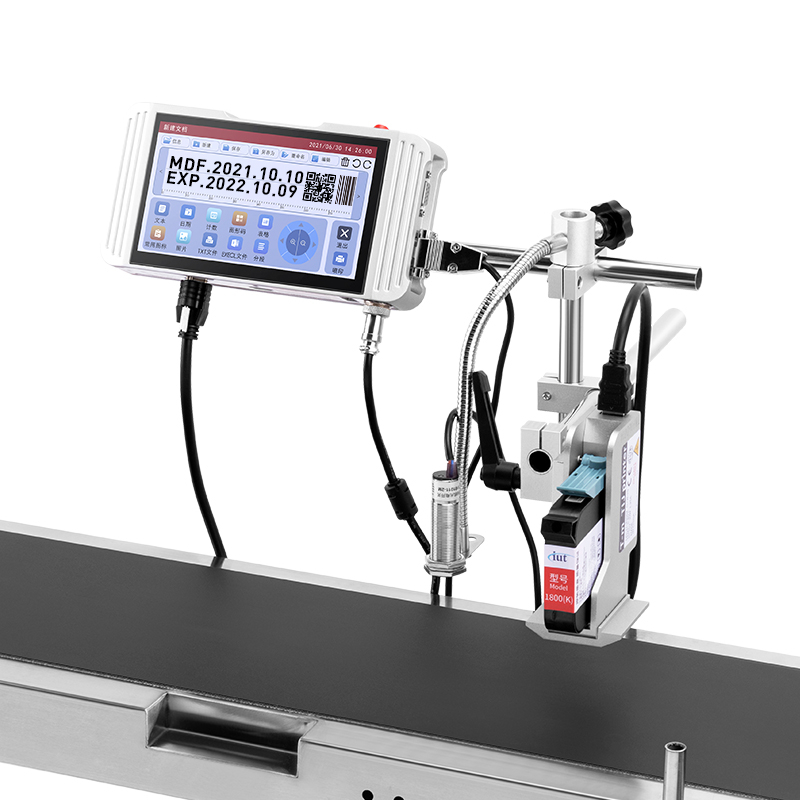

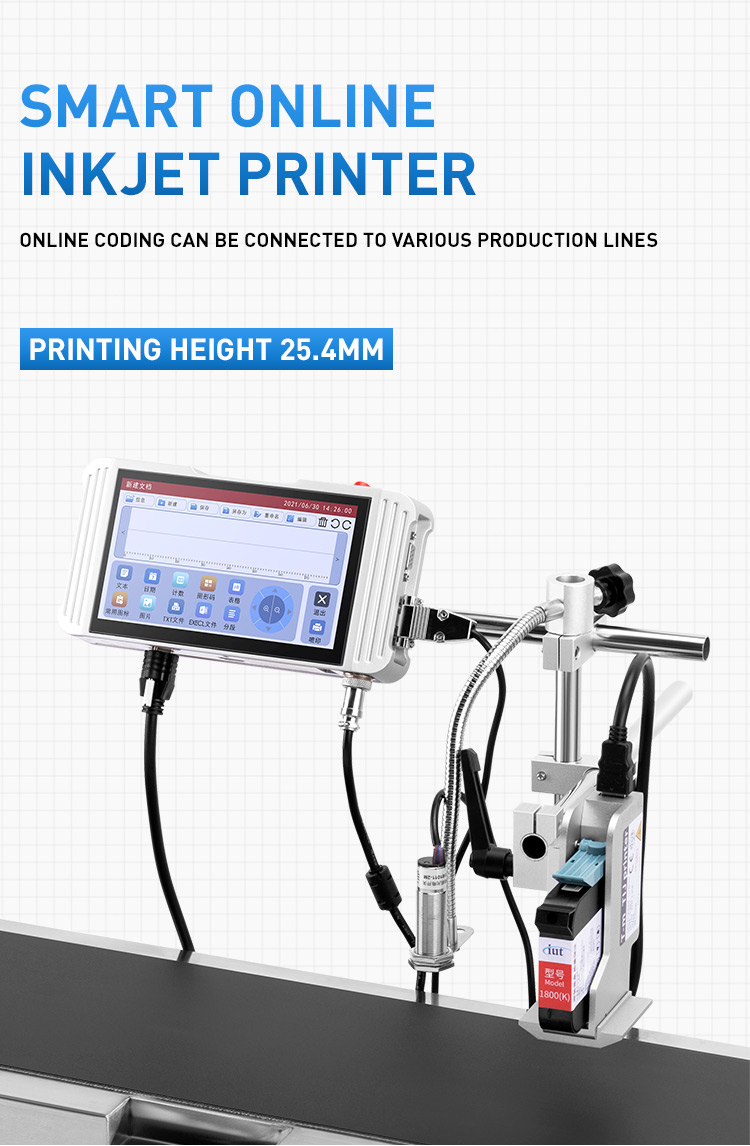

Our Smart Online Inkjet Printer represents a state-of-the-art industrial coding solution engineered for maximum versatility, reliability, and ease of use in high-paced production environments.

1. Core System & Performance:

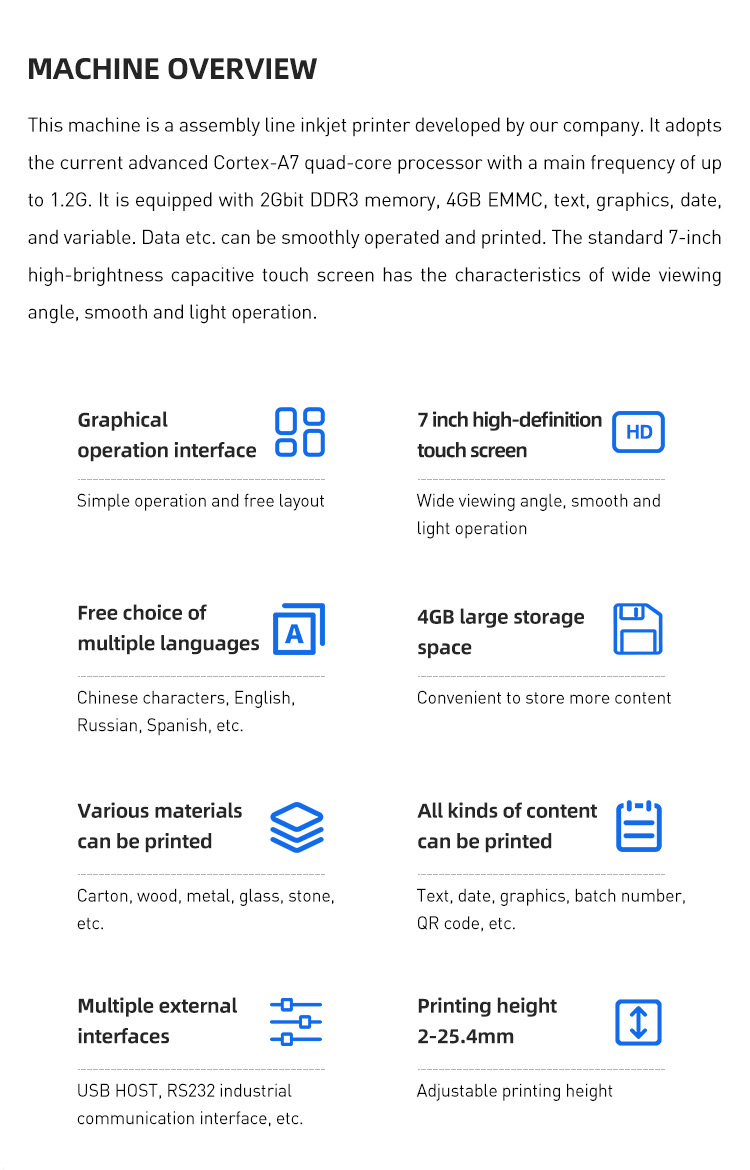

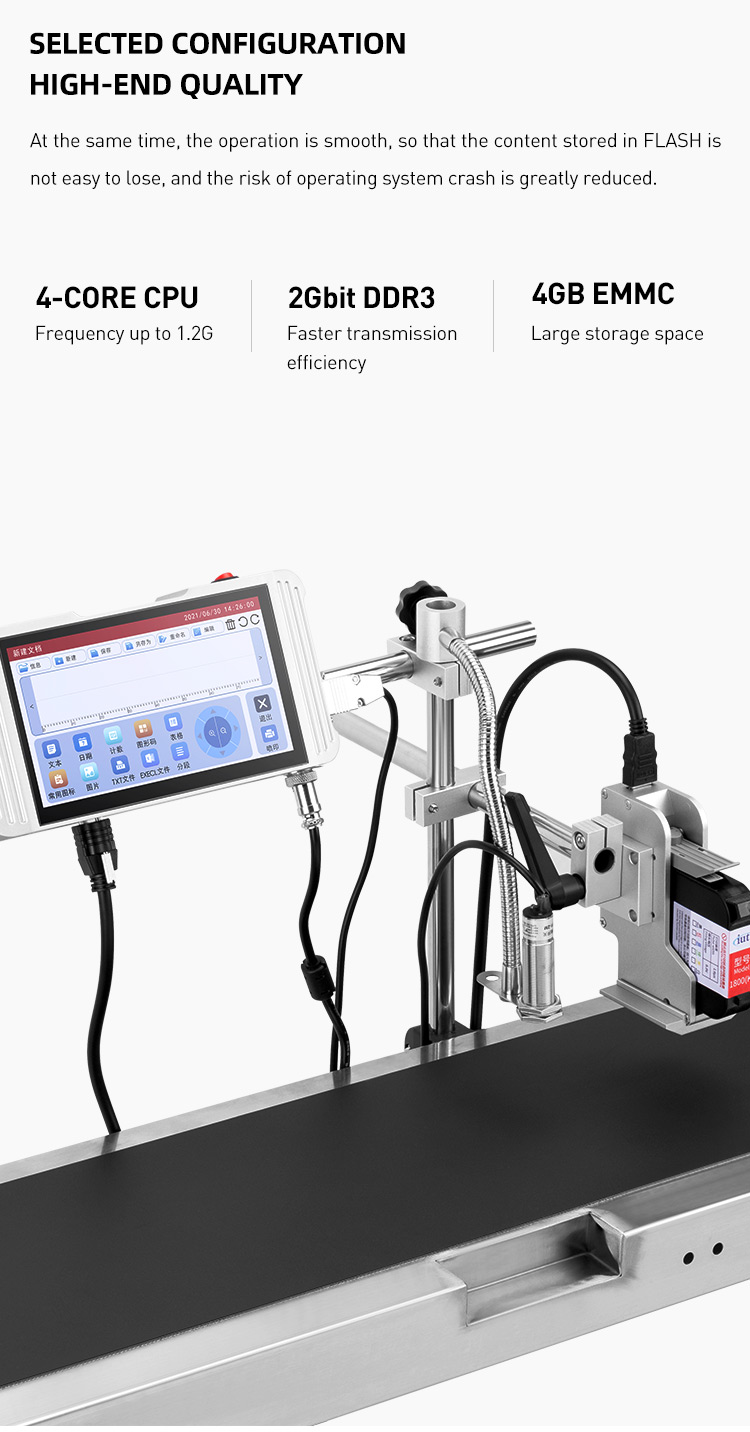

• High-Performance Controller: Powered by a robust Cortex-A7 quad-core processor (up to 1.2GHz) running a stable Linux OS, paired with 2Gbit DDR3 RAM and 4GB eMMC storage. This ensures smooth operation, fast data processing, and secure content storage without crashes or data loss.

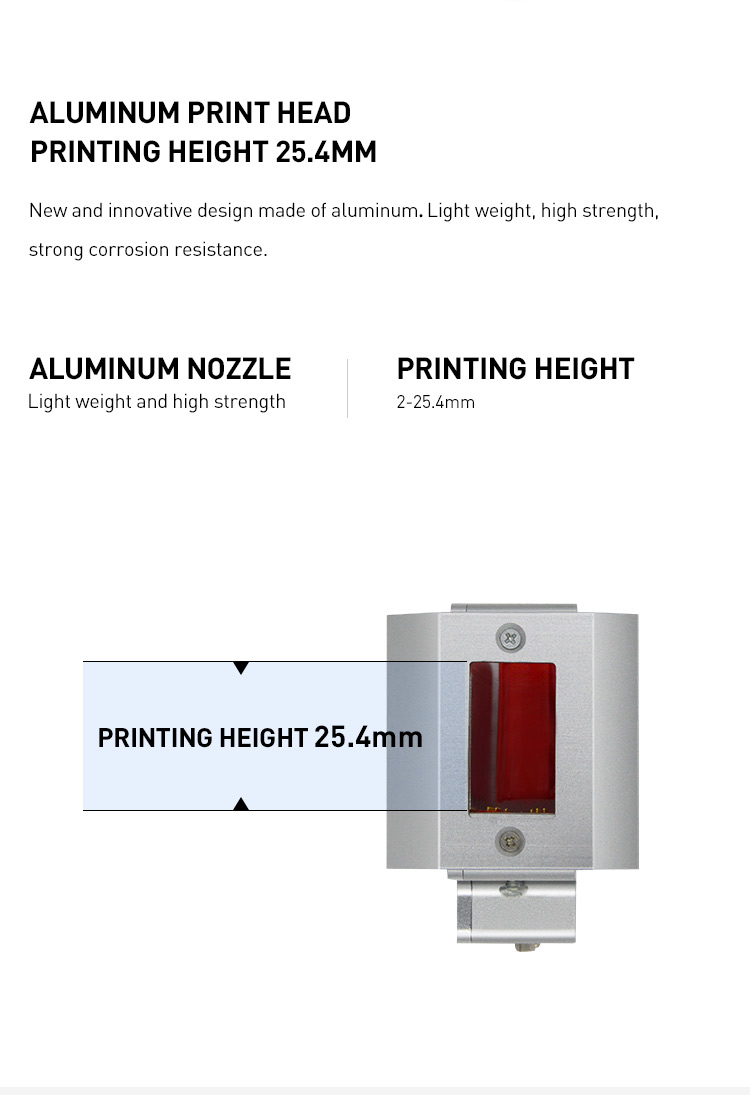

• Superior Print Quality: Utilizes a durable Thermal Inkjet (TIJ) aluminum printhead, renowned for being clog-resistant. It delivers exceptional print clarity with a configurable resolution of 300-600 DPI, guaranteeing every code, date, or graphic is sharply legible.

• Exceptional Flexibility: Printing height is widely adjustable from 2mm to 25.4mm, accommodating products of various sizes. Print speed reaches up to 40 meters/min.

2. Unmatched Printing Versatility:

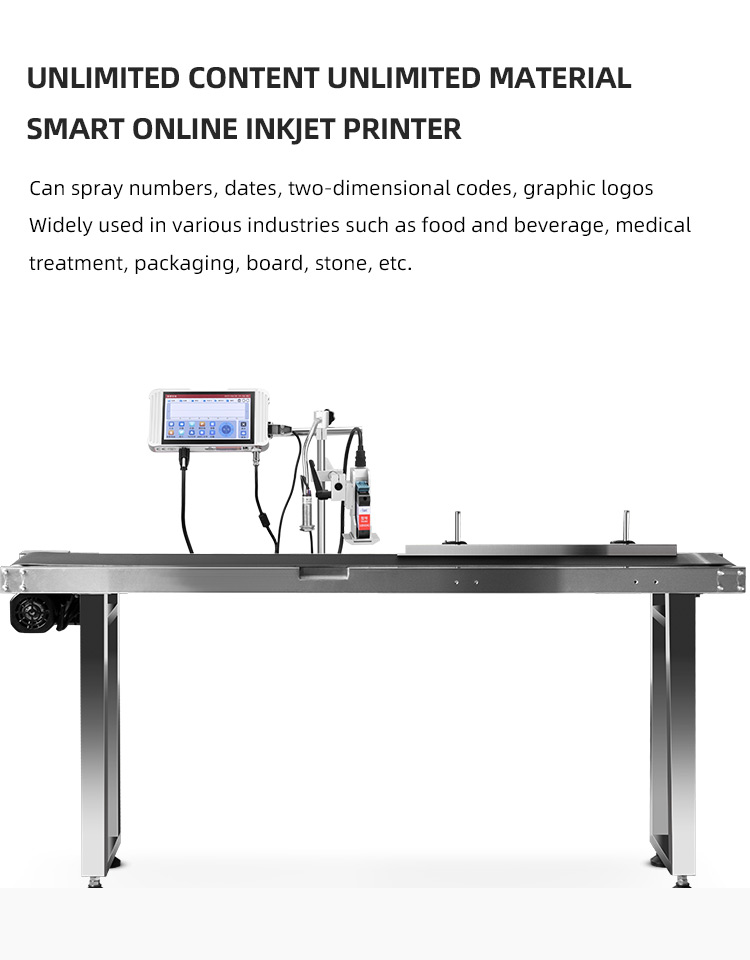

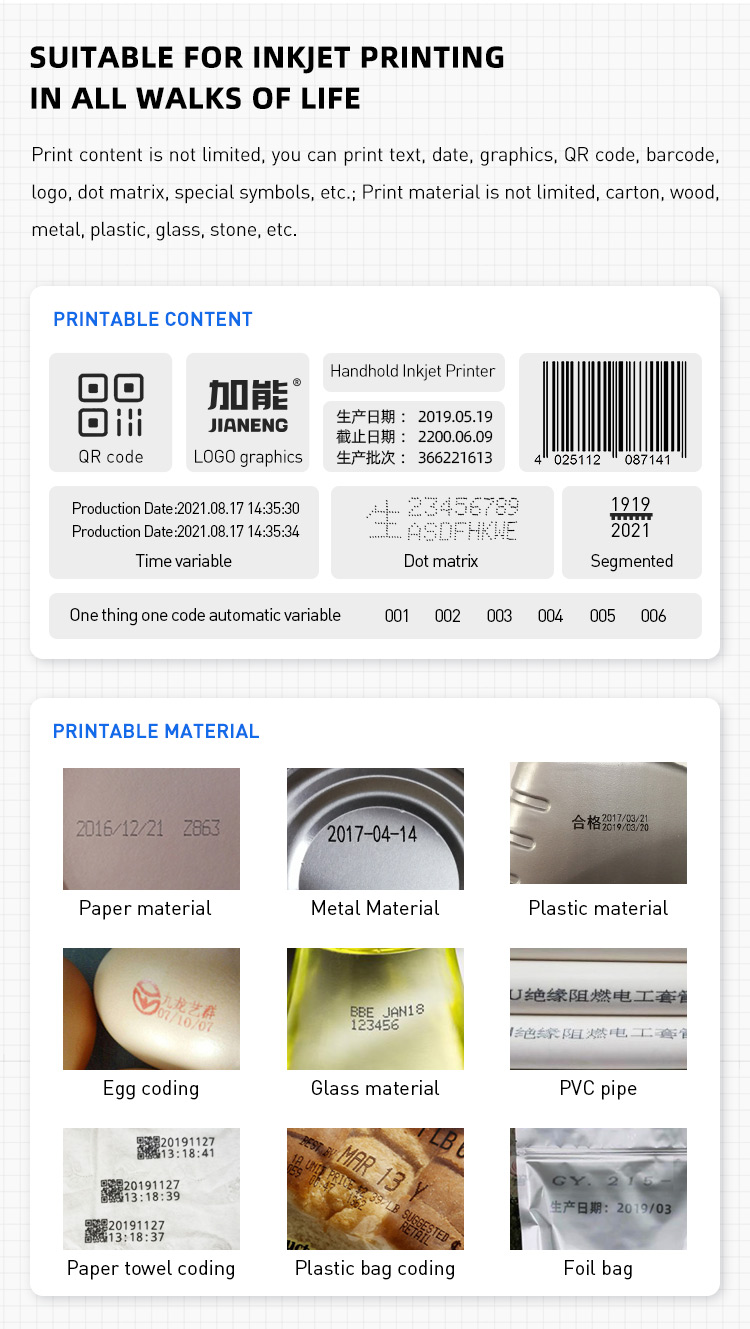

• Content Freedom: Print virtually any content: sequential batch/QR codes, expiry/manufacturing dates (with dynamic time variables), logos, graphics, dot matrix text, segmented numbers, and 1D barcodes. Supports "one item, one code" for unique serialization.

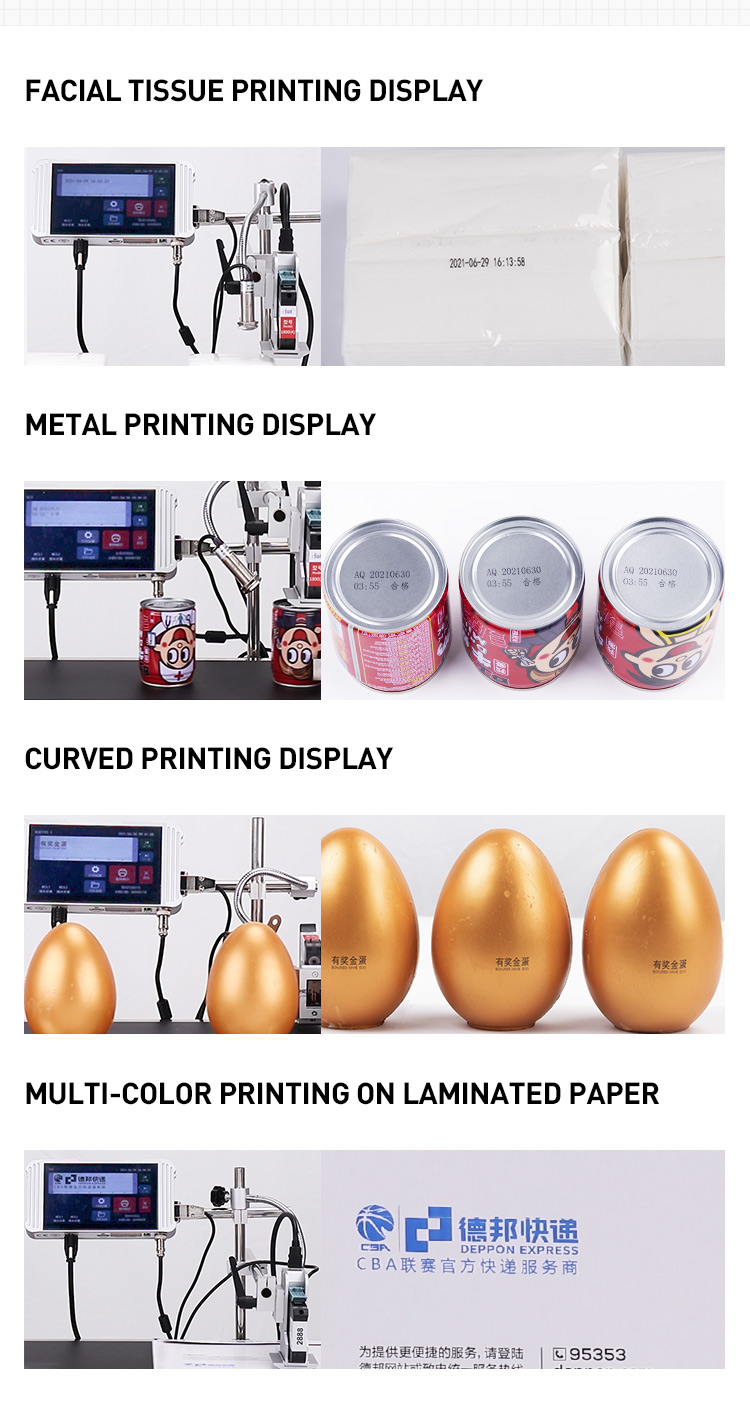

• Material Freedom: Designed for all walks of life. Works perfectly on porous and non-porous materials including tissue, plastic bags, cartons, laminated paper, metal, glass, PVC pipes, cables, wood, and stone.

3. Intelligent Operation & Connectivity:

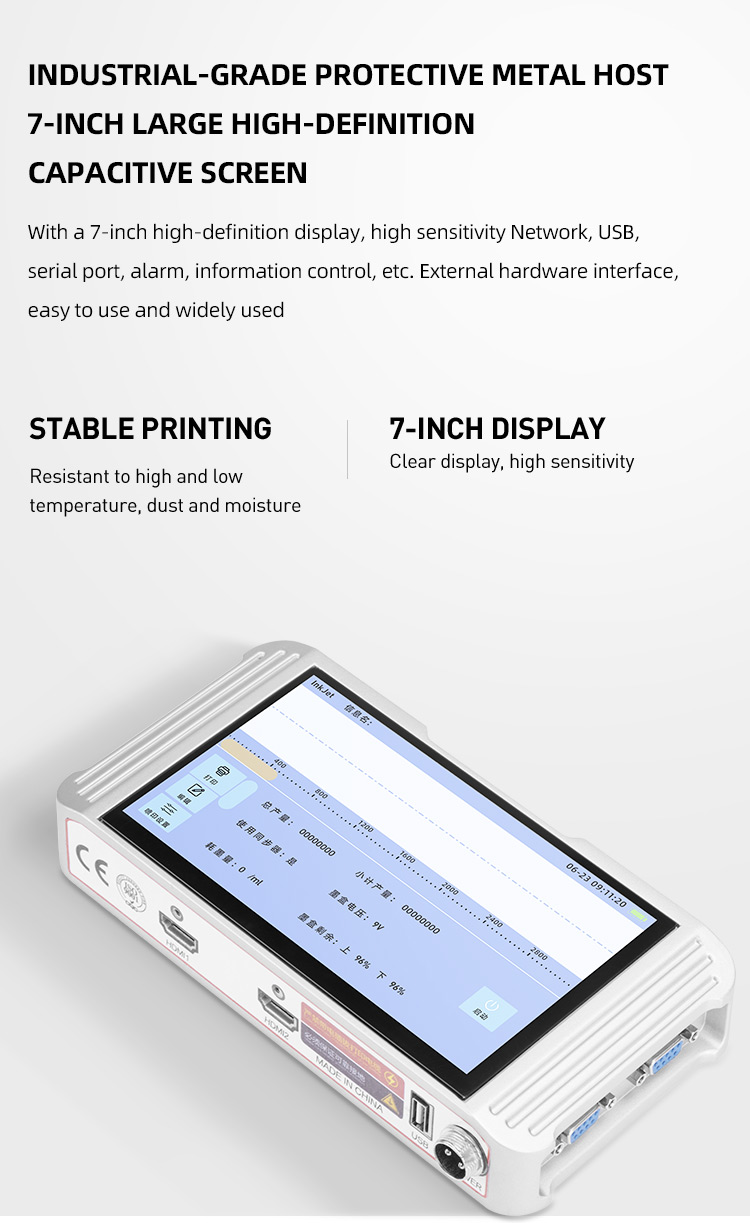

• User-Friendly Interface: A 7-inch high-definition capacitive touchscreen offers a wide viewing angle, smooth operation, and a simple graphical layout interface.

• Multi-Language Support: Includes Chinese, English, Russian, Spanish, Japanese, Arabic, and many more to facilitate global use.

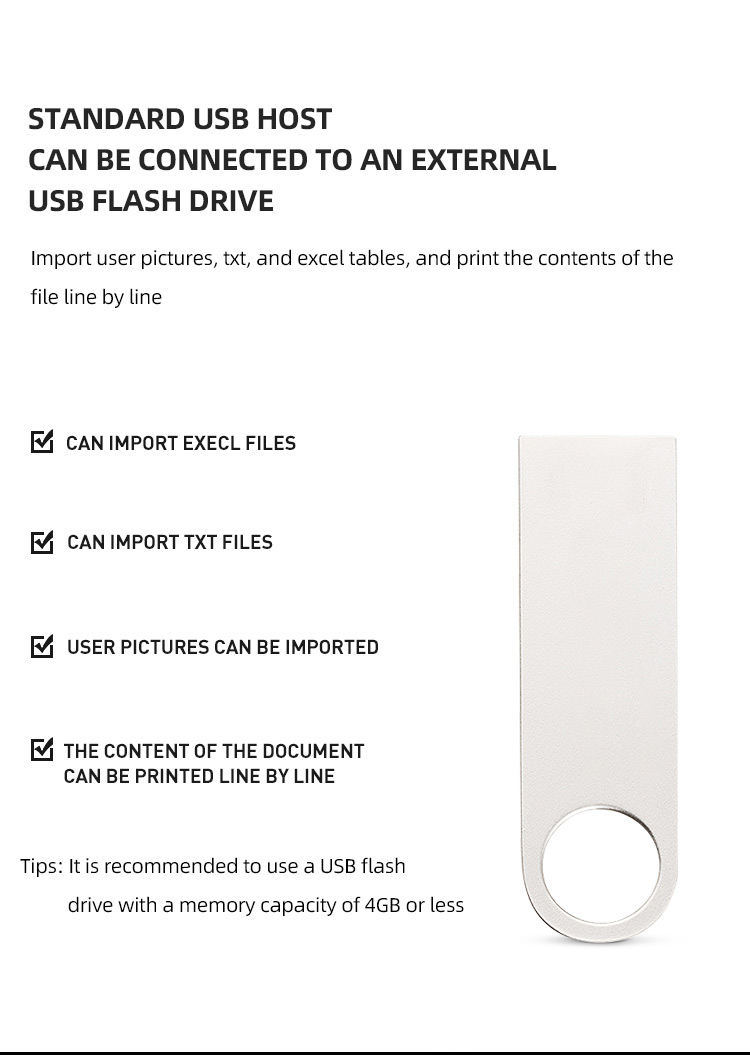

• Easy Data Import: Standard USB Host port allows direct import of print jobs from a USB drive. Supports Excel files (for variable data lists), TXT files, and user-created images for line-by-line printing.

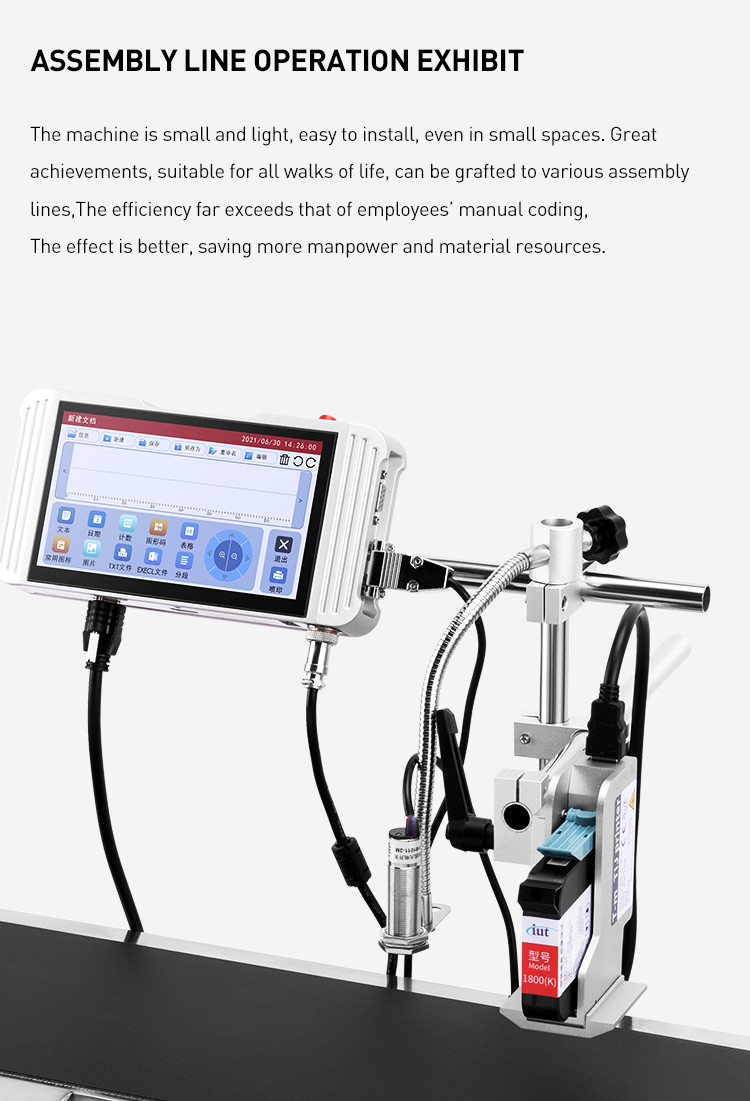

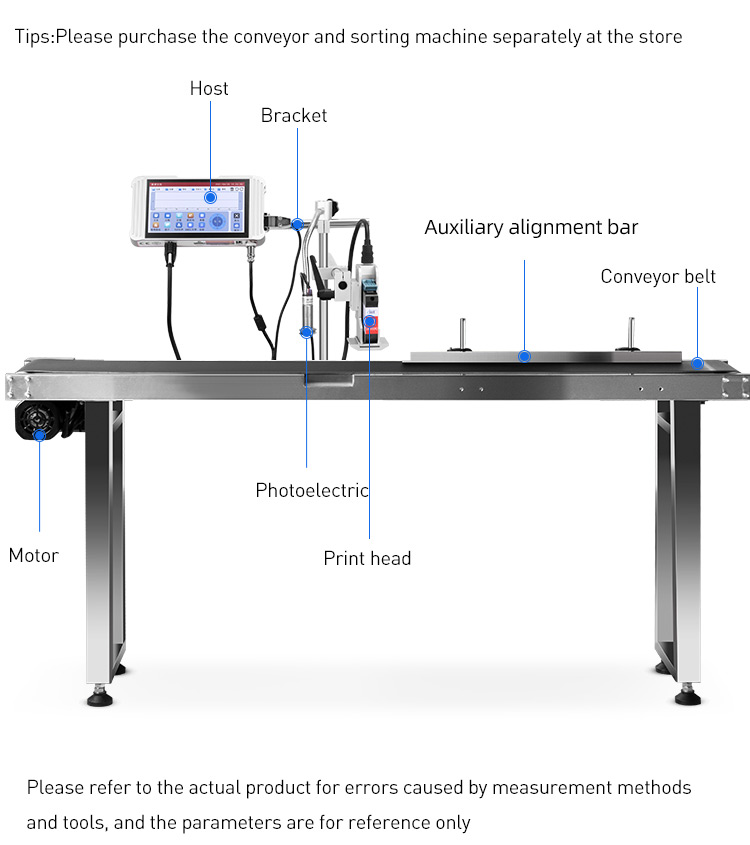

• Industrial Integration: Features RS232 serial communication and photoelectric sensor interfaces for seamless connection to production lines and automated triggering.

4. Robust Industrial Design:

• Durable Construction: The host is built with industrial-grade protective metal (aluminum), offering light weight, high strength, and corrosion resistance.

• Stable Operation: Engineered to be resistant to dust, moisture, and capable of operating in a temperature range of 0-40°C (humidity 10-80%), ensuring consistent performance.

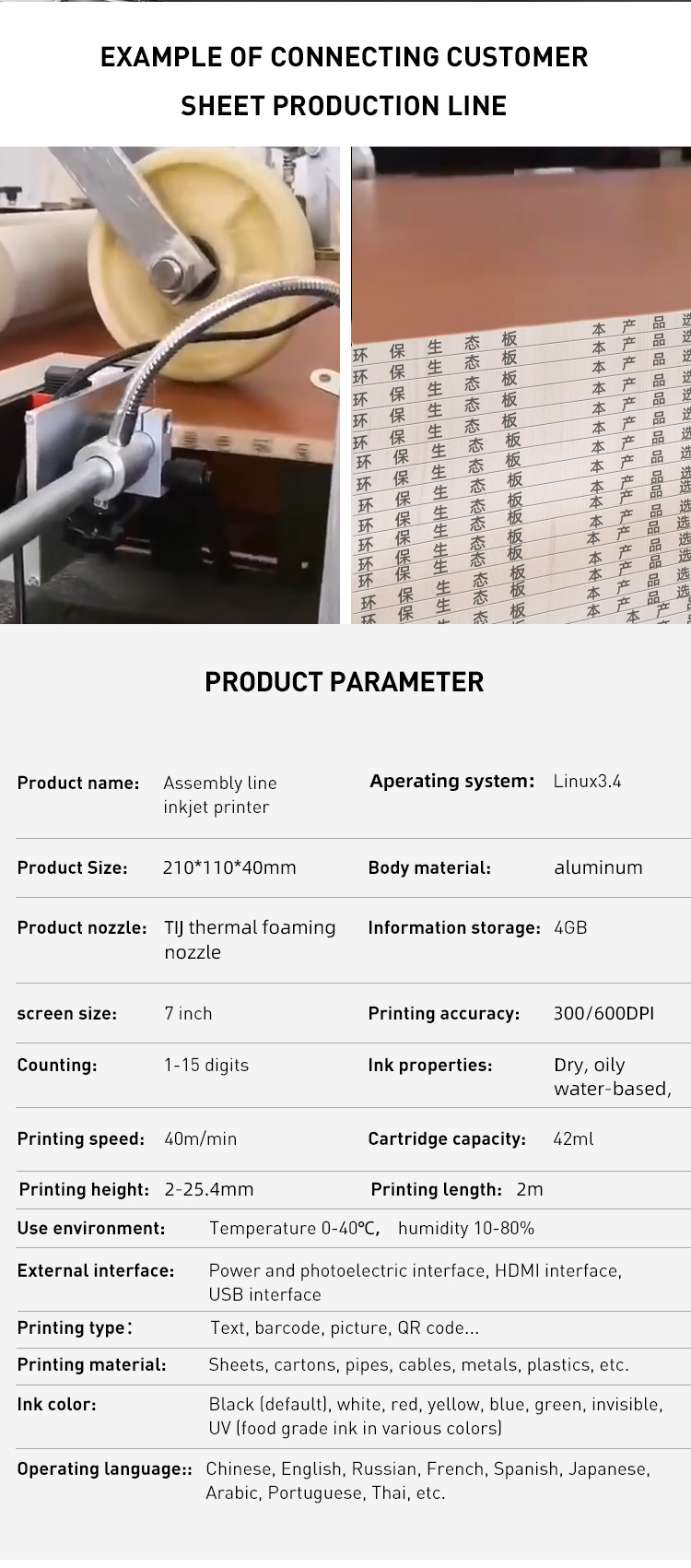

5. Specifications at a Glance:

• Product Dimensions: 210 x 110 x 40 mm

• Ink System: Uses 42ml ink cartridges. Supports a wide range of inks: black (default), white, red, yellow, blue, green, invisible, and UV/food-grade inks in various colors.

• Max Print Length: 2 meters per job.

• External Interfaces: Power & Photoelectric Input, HDMI, USB Host.

Application Industries: An ideal coding partner for Food & Beverage, Pharmaceutical, Medical, Packaging, Printing, Electronics, Building Materials (Board/Stone), and Logistics.

This machine combines high-end configuration with smart functionality to provide a future-proof, efficient, and clear coding solution for all your product identification needs.

FAQ:

Q1: What materials can this inkjet printer code on?
A: Our printer is highly versatile and can code on a wide range of porous and non-porous materials, including cartons, plastic bags, tissue paper, metal, glass, PVC pipes, wood, stone, laminated paper, and foil bags. It is designed for use across various industries such as food & beverage, pharmaceutical, packaging, and manufacturing.

Q2: What type of content can I print with this machine?
A: You can print a diverse range of content, including:

• Variable data: Batch numbers, expiry/manufacturing dates (with real-time updating), sequential codes, and time stamps.

• Identification codes: 1D barcodes, QR codes, and dot matrix text.

• Graphics & branding: Custom logos, symbols, and text in multiple languages.

• Special formats: Segmented numbers and “one item, one code” serialization.

Q3: What is the print resolution and quality like?
A: The printer uses a Thermal Inkjet (TIJ) aluminum printhead with selectable printing resolution of 300 DPI or 600 DPI. This ensures ultra-clear, high-definition printing that remains legible and scannable even on small surfaces. The TIJ technology is also clog-resistant for consistent performance.

Q4: Is the printer easy to set up and operate?
A: Yes. The printer features a 7-inch high-brightness capacitive touchscreen with an intuitive graphical user interface. It supports multiple languages (English, Chinese, Russian, Spanish, etc.) and allows easy import of files (Excel, TXT, images) via USB. The printing height is easily adjustable from 2mm to 25.4mm, and it can be integrated into existing production lines using RS232 or photoelectric sensors.

Q5: What kind of connectivity and file support does it offer?
A: The printer includes:

• USB Host port for importing files from a USB drive (supports Excel, TXT, and image files).

• RS232 industrial communication interface for PLC or sensor integration.

• HDMI port (for external display if needed).

• Network capability (depending on model).

You can print variable data lists directly from Excel or TXT files line by line.

Q6: How durable and reliable is this coding machine in an industrial environment?
A: The printer is built with an industrial-grade metal (aluminum) housing that is lightweight, corrosion-resistant, and robust. It operates reliably in temperatures from 0°C to 40°C and humidity from 10% to 80%. Its stable Linux-based system and 4GB eMMC storage ensure low risk of crashes or data loss, making it suitable for continuous production use.
