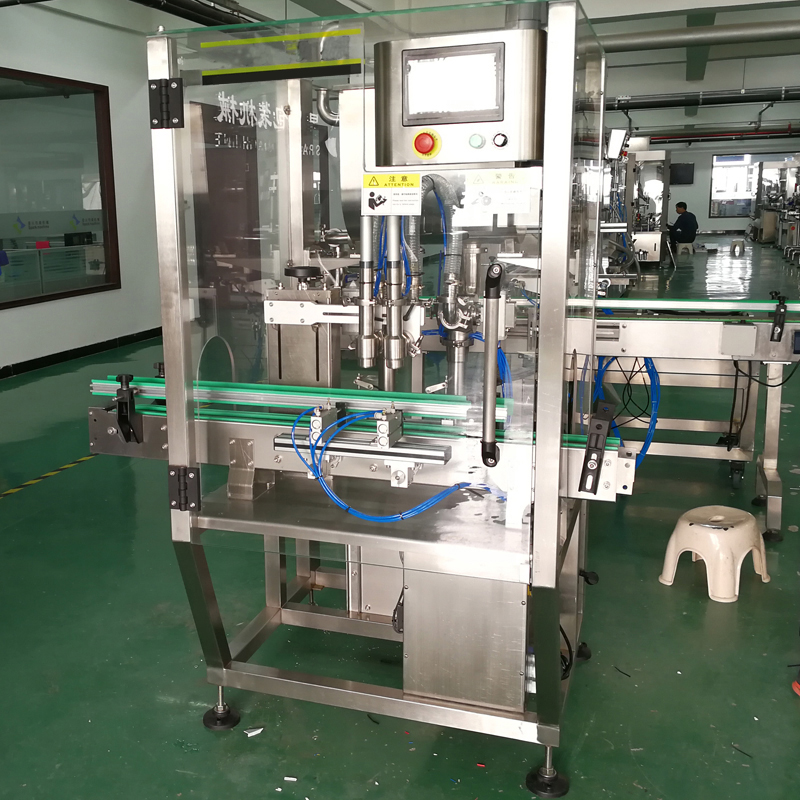

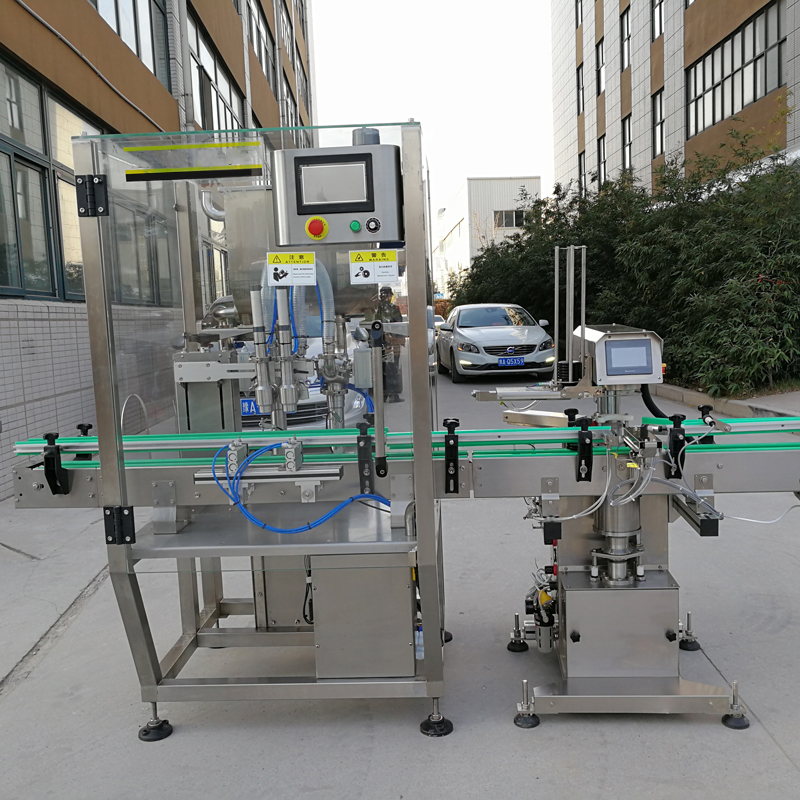

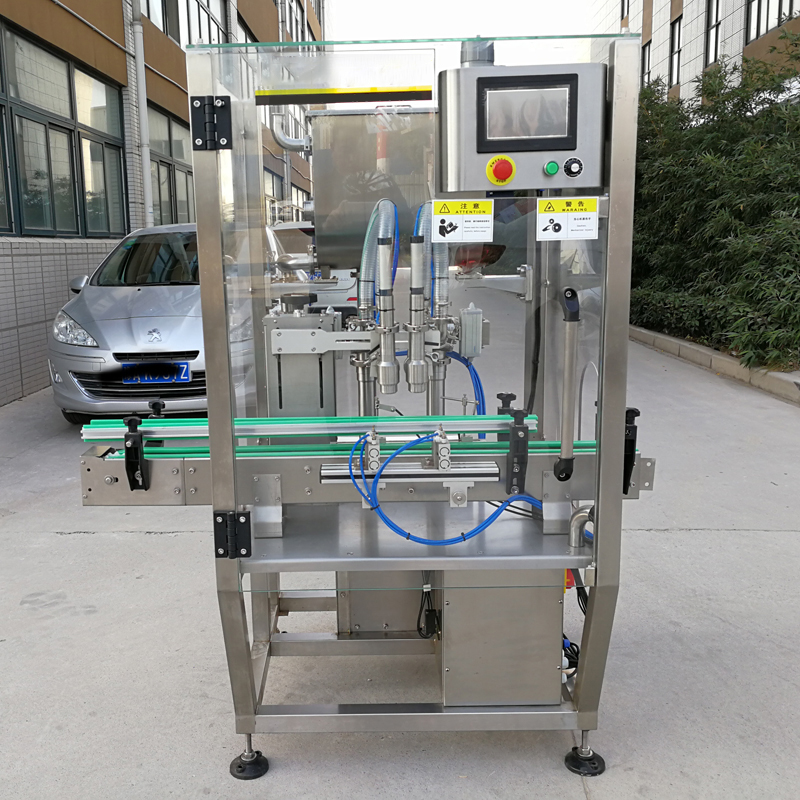

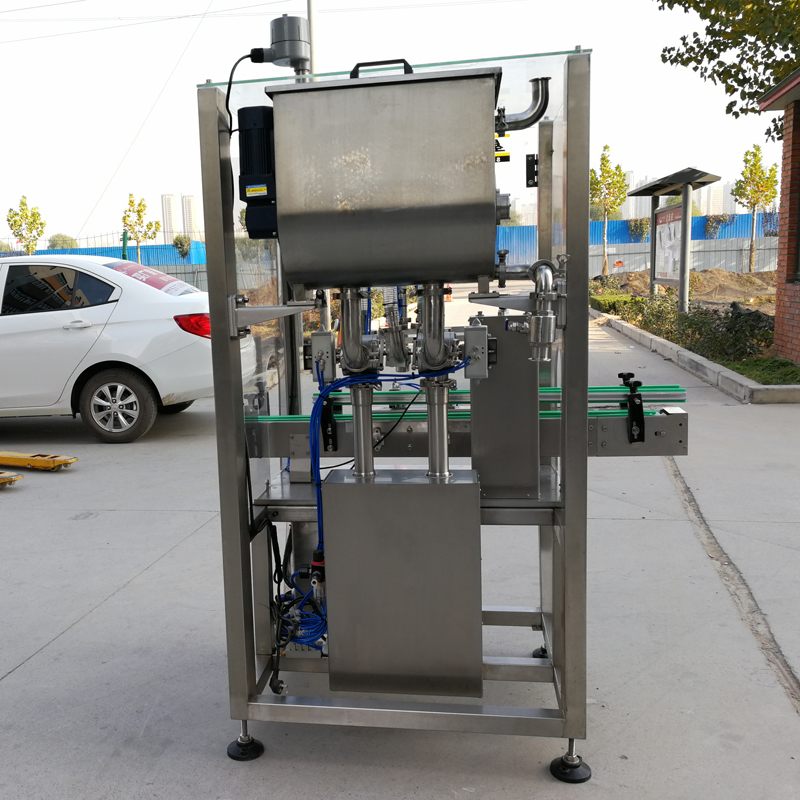

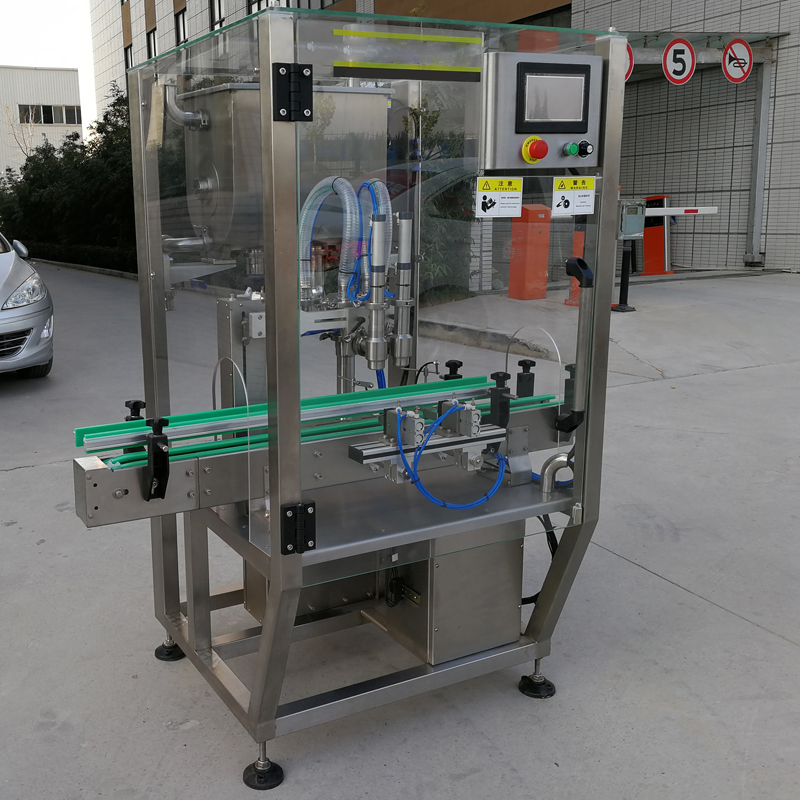

2 Heads Sauce Bottle Filling Machine Automatic filler has a beautiful design and a reasonable structure. This beef chili sauce filling machine has following features:
The swing cylinder adopts the German brand Festo, with accurate precision, fast speed, and high temperature resistance
The rotary valve part is patented by our company, which is specially designed for large particles, and it will pass well without damaging the product.
The whole machine is made of 304 stainless steel, and the contact part is made of 316 stainless steel, which is salt-resistant, acid-base resistant and has long service life.
PLC control, touch screen adjustment, more convenient to use

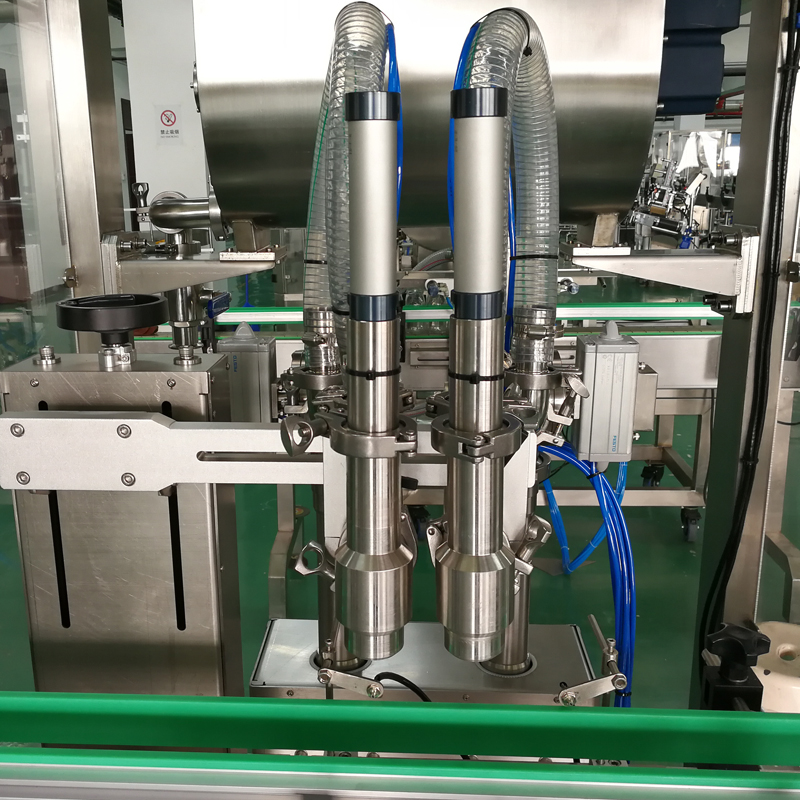

The filling head adopts a motor for automatic lifting, which can automatically submerge and lift during the filling process to avoid material splashing and overflowing
The filling nozzle is closed by piston, and there is no wire drawing or bottom material after filling, which ensures that the bottle mouth is clean and tidy and provides a good guarantee for the screw cap at the back.
Automatic chili/beef/mushroom sauce parameter:
| Power Supply: | AC220V 50/60HZ 0.5KW | Air pressure: | 0.5-0.7 Mpa |
| Filling volume: | 100-500g | Filling speed: | 1200-1800b/h |
| Measuring Accuracy: | ≤1% | Weight: | 400kg |
| SIZE: | 1500x1100x1900mm | ||
FAQ
Who are we?
A: As a leading manufacturer of packaging equipment, Shanghai Bodinghui Automation Packaging Machinery specializes in designing and producing high-performance packaging systems for industries worldwide.
With over 15 years of experience, we deliver cutting-edge technology combined with worldwide reliable engineering.
How do I know which machine I need?
A: Please provide your requirements and circumstances in as much detail as possible. This information is basic and important to help us recommend the right machine for you.
What details should I provide?
A: Usually, we need to know the details of your product, the material, size, shape of the bag, the weight of the package and so on. Good communication is very important, so if you have questions, don't hesitate to ask and get in touch.
Where is your factory located?
A: We are located in the Jinshan District of Shanghai. We are always here to welcome you.
How about your warranty?
A: Our warranty is 12 months.
Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spare parts could be provided at any time.
